    #16
    True. I would just need to find those things within my price range...Which is low for a college student. haha. I'll see what I can do.


    http://www.r3vlimited.com/board/showthread.php?t=162444

    Comment


      #17
      Hm, we just pulled a friend's M20 with flywheel, starter and all, too. I think we scrapped the clutch and flywheel. :(

      Trust me, I hear you on price. I'm graduating come Spring, and I'm doing the clutch when the trans is off of my M50 too.
      paint sucks

      Comment


        #18
        A little update

        Originally posted by Wh33lhop View Post
        Hm, we just pulled a friend's M20 with flywheel, starter and all, too. I think we scrapped the clutch and flywheel. :(

        Trust me, I hear you on price. I'm graduating come Spring, and I'm doing the clutch when the trans is off of my M50 too.
        Lucky you. I'll be done with my first year. If you fine the clutch and flywheel, would you let me know? Thanks in advance.

        So Sunday involved prepping my brake booster and painting it. It turned out very good actually. haha. It is now time to clean up the engine bay and fill unnecessary holes and hide wires and just make it look brand new and super clean. I'm gonna be painting the engine bay black, which in my opinion, looks really good with a grey, red, or white car. Hopefully will have some more pics up later.


        http://www.r3vlimited.com/board/showthread.php?t=162444

        Comment


          #19
          A little update for today. I finished up the brake booster. Turned out pretty good. I pulled the tranny. I should have pulled the whole thing out as one unit. Stupid me. Not a big deal though. Super easy to take out. I need to pick up the e36 driveshaft and e32 master cylinder and reservoir this week. Today just involved me staring at my empty engine bay. haha. And wondering who I was gonna borrow a pressure washer from. I have one I can use now. More to come later.


          http://www.r3vlimited.com/board/showthread.php?t=162444

          Comment


            #20
            Yo ahriley91, maybe I can swing by your place to see your progress as I will be trailing right behind you as I'm doing mine. I too, plan on painting my engine bay all flat black. I still need to discharge the a/c unit and I believe the previous owner installed the new r134a, I think thats the new stuff they use now that is more environmental friendly? Anyway, I need to pressure wash the bay too and then tape up the areas needed before the spraying starts.

            So I'll source an ix booster and an e32 mc brake set up. For the engine mounts, what did you decide to go with? The e28 535i motor mounts that I believe, need spacer as oppose the the e28 M5 motor mounts that do not need spacers? I also believe that it's recommended that these mounts be welded to the crossmember to keep the engine from jarring forward to where the fan clutch won't blade into the radiator? Man so much little stuff to understand while doing the conversion. But will be all worth it when complete.

            Comment


              #21
              Just to confirm, I now need the g260 shifter linkage parts, right? Because the transmission is now farther back, the stock 240 ones won't work.


              http://www.r3vlimited.com/board/showthread.php?t=162444

              Comment


                #22
                Originally posted by E30 Devil View Post
                Yo ahriley91, maybe I can swing by your place to see your progress as I will be trailing right behind you as I'm doing mine. I too, plan on painting my engine bay all flat black. I still need to discharge the a/c unit and I believe the previous owner installed the new r134a, I think thats the new stuff they use now that is more environmental friendly? Anyway, I need to pressure wash the bay too and then tape up the areas needed before the spraying starts.

                So I'll source an ix booster and an e32 mc brake set up. For the engine mounts, what did you decide to go with? The e28 535i motor mounts that I believe, need spacer as oppose the the e28 M5 motor mounts that do not need spacers? I also believe that it's recommended that these mounts be welded to the crossmember to keep the engine from jarring forward to where the fan clutch won't blade into the radiator? Man so much little stuff to understand while doing the conversion. But will be all worth it when complete.
                Well, I went with the 535i mounts. I'm 99.9% positive you don't need to run a spacer for the mounts. I just got the e32 brake booster too. Going to get the new drive shaft this weekend and the master cylinder. Tomorrow is going to be a loooonnnng day and night. Then Saturday is going to be a very early morning for a college student. I think that getting up at 8:30 on a Saturday is early. My buddy and I are going to be getting the supplies to do all of the painting and hiding of holes and taking off the brackets that I do not need anymore. I believe that I am going to be tucking wires as well. Makes the bay look super clean in my opinion. I will up date with some pictures after tomorrow and Saturday. I'm also doing the wiring harness tomorrow.


                http://www.r3vlimited.com/board/showthread.php?t=162444

                Comment


                  #23
                  if your not using your blower motor, just hide the harness behind the cover. looks 100x better than a harness cover across the firewall.

                  good luck with the swap
                  325es/24v's/20psi/meth injection/

                  sigpic

                  Comment


                    #24
                    Wiring!!

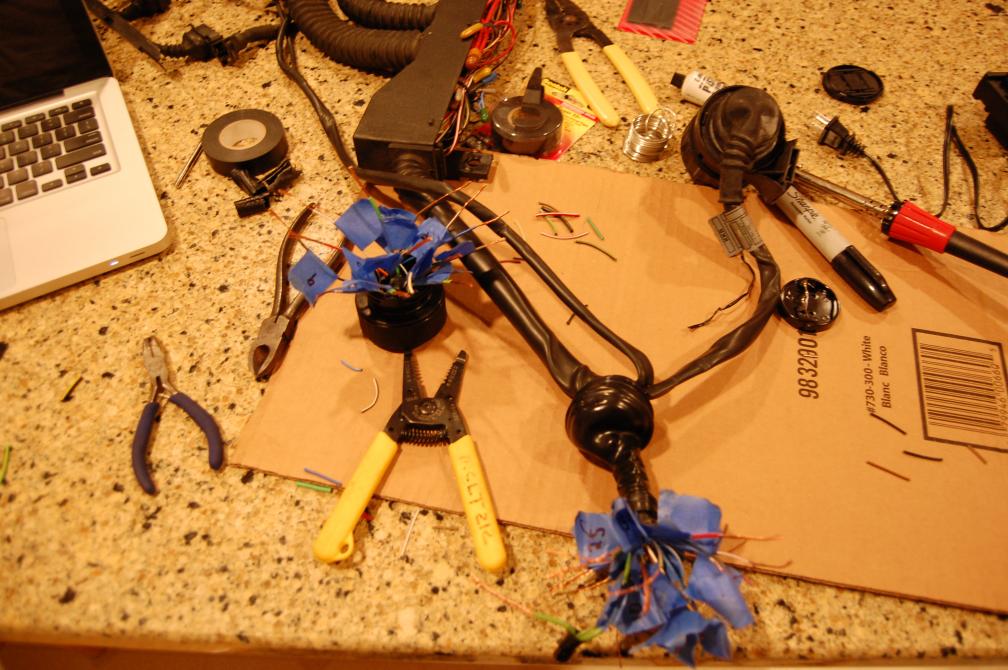

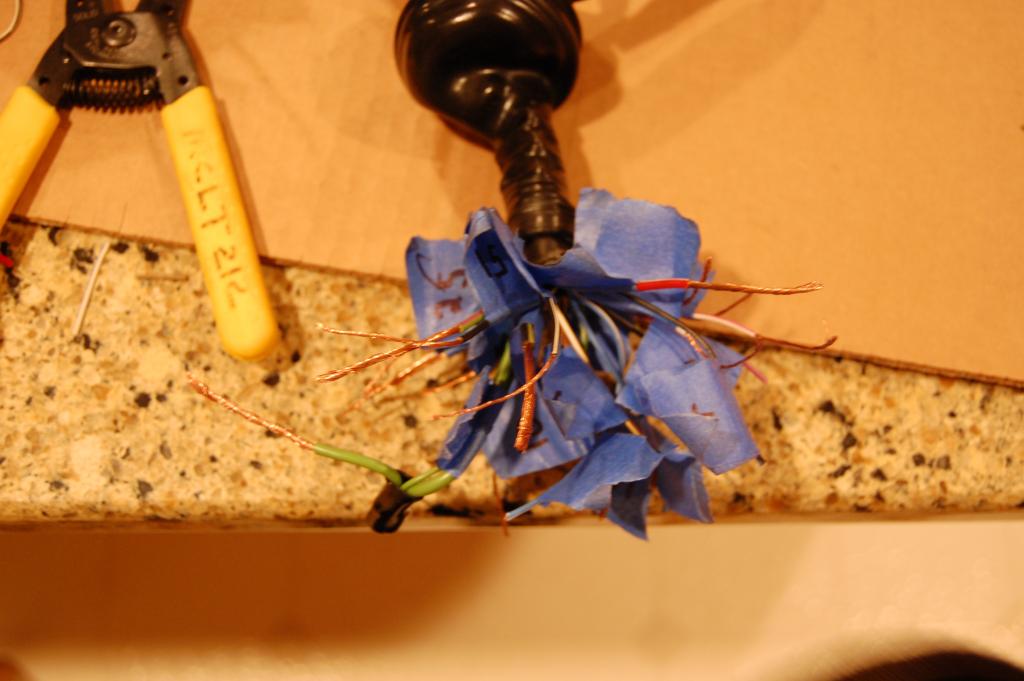

                    A little update. Tonight I tackled the wiring. I found a great diagram with pin and color matching. Worked like a charm. Took some picks of the process. And I am gonna be using the blower motor. I don't remember why I took the cover off. haha. On to the pics. Not very exciting pictures, but I know pictures are more entertaining then no pictures. haha

                    Click image for larger version

Name:	DSC_0538.jpg
Views:	1
Size:	77.4 KB
ID:	7119347

                    Click image for larger version

Name:	DSC_0539.jpg
Views:	1
Size:	117.6 KB
ID:	7119348

                    Click image for larger version

Name:	DSC_0540.jpg
Views:	1
Size:	65.3 KB
ID:	7119349
                    Last edited by ahriley91; 02-27-2010, 01:26 PM.


                    http://www.r3vlimited.com/board/showthread.php?t=162444

                    Comment


                      #25
                      There is some really nice cable management out there that could look a little better than the E-tape.

                      Flexible sheathing
                      Big Heatshrink.
                      Past Car : E30 S50 6 Speed 5 Lug 3.73
                      Current : Z3 S50 OBD2 (Smog Legal) 6 Speed BBS RN Dual Ear Diff
                      ___________________________________________
                      BNB Designs
                      Engine Swaps, Fabrication, Innovation, General Repair
                      Richmond CA
                      Julian 848-248-8029

                      Comment


                        #26
                        I know. I'll clean it up.


                        http://www.r3vlimited.com/board/showthread.php?t=162444

                        Comment


                          #27
                          Where did you find the diagram?

                          Comment


                            #28
                            Originally posted by vectorsc View Post
                            Where did you find the diagram?
                            http://wedophones.com/BMWManualsLead.htm

                            Comment


                              #29

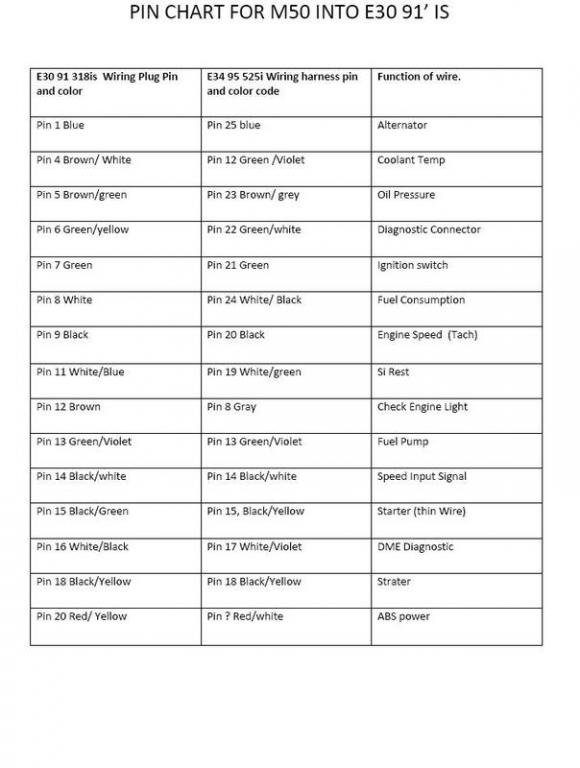

                              I will post it. I just stumbled across it and freaked out because it was the perfect one for me. Here it is.

                              Click image for larger version

Name:	Pin chart for m50 into e30 '91 is.jpg
Views:	2
Size:	51.4 KB
ID:	7119378


                              http://www.r3vlimited.com/board/showthread.php?t=162444

                              Comment


                                #30
                                I feel super dumb right now. So now that I have the new wiring harness, how do I keep the battery in the trunk? Is there some more wiring that I need to do to do this? Any help is greatly appreciated.
                                Last edited by ahriley91; 03-02-2010, 12:06 AM.
