OBC LED upgrade

[bowtie2bimmer]

I did

[archie]

Very cool.

[Gregs///M]

Well I couldn't get this to work and broke the soderring tab off the back any ideas on what to do

Use a low temperature soldering iron with pencil tip. Make sure your pencil tip is in good condition and pre-tinned. You should only hold the tip onto the solder less than 10 seconds to get it to melt.

[TimeMachinE30]

Just did this and was able to swap the light bar out with the OBC still in the dash.

By cutting the bridge and laying the LEDs flat, I must say it looks very stock. I was expecting it to be more bright. I'm glad it is not. Same brightness as my original radio.

Thank you.

[quaids]

Do you have to use yellow LEDs?

[E30NJ]

Do you have to use yellow LEDs?

No, you can use clear LEDs as well.

[Z2TT]

Hi Guys.

I have noticed my OBC's that use LEDS have a bright orange colour on the lettering on the display, while the ones that use Bulbs have a Red colour.

Just wondering is there anyway to get a Red colour using LEDS, or do I have to use incandescent bulbs to get that original red appearance?

[KingJaffeJoffer]

EuroCCA link is dead. I have completed two of these bars per the link below and neither works. Any help?

http://www.rtsauto.com/how-to-replace-e30-obc-light-and-how-to-upgrade-to-an-led-light-bar/

[KingJaffeJoffer]

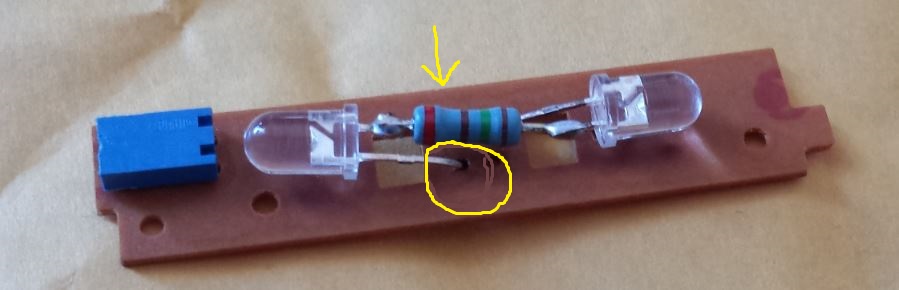

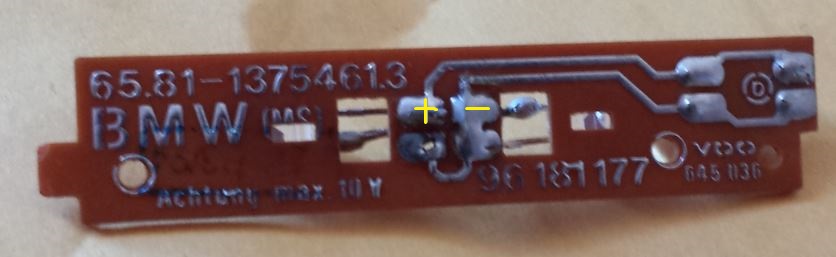

Figured it out: wiring in the RTS link above bridges the negative leads. I did not bridge, but instead soldered the cathode lead into the hole hidden under the resistor, so that the anode (+) and cathode (-) leads in the second pic are soldered as marked (without the bridge). Same result.

[chicaneS54]

Figured it out: wiring in the RTS link above bridges the negative leads. I did not bridge, but instead soldered the cathode lead into the hole hidden under the resistor, so that the anode (+) and cathode (-) leads in the second pic are soldered as marked (without the bridge). Same result.

Agreed RTS is a horrible write up and did not cover the bridging of the negative side.
