Found some old 885 squish band pics

[ForcedFirebird]

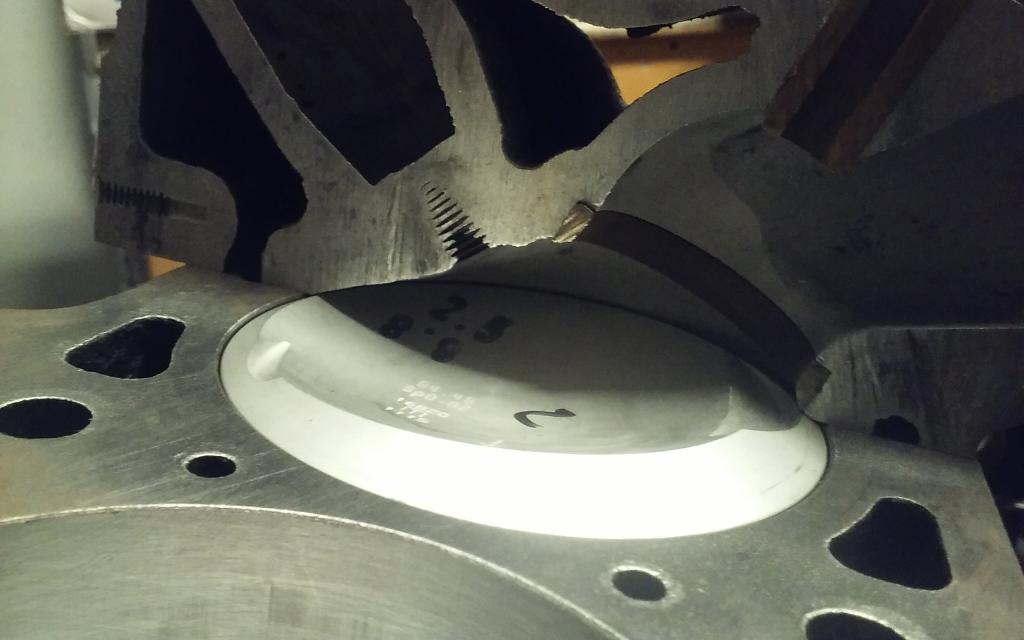

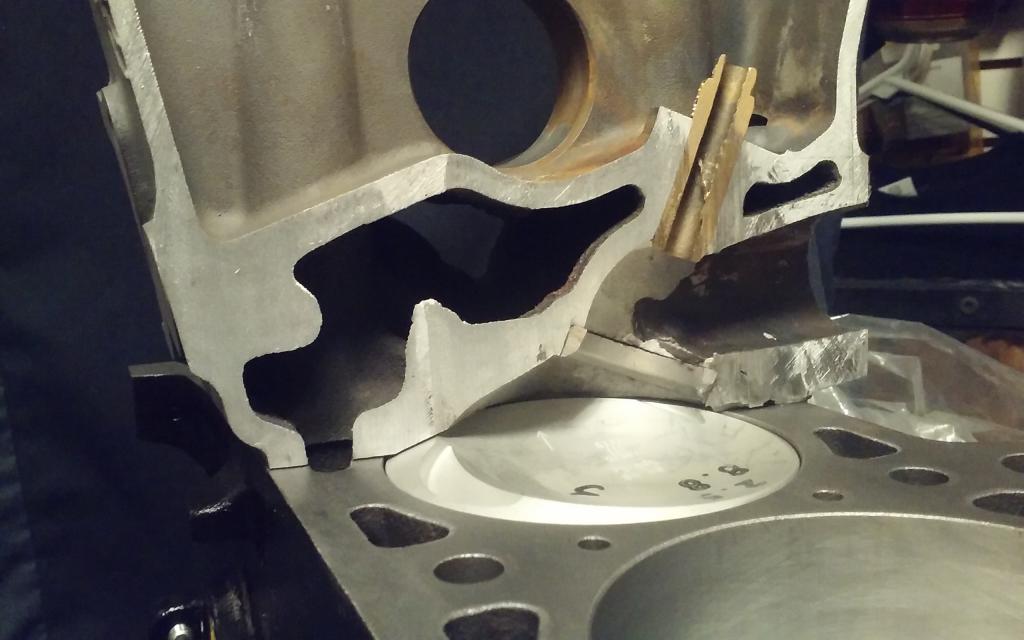

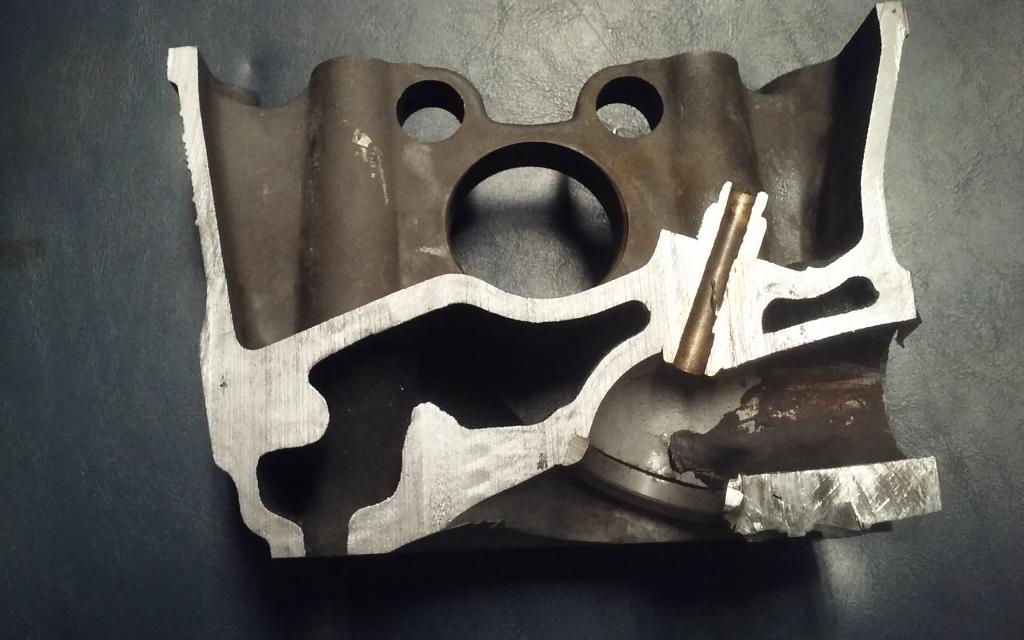

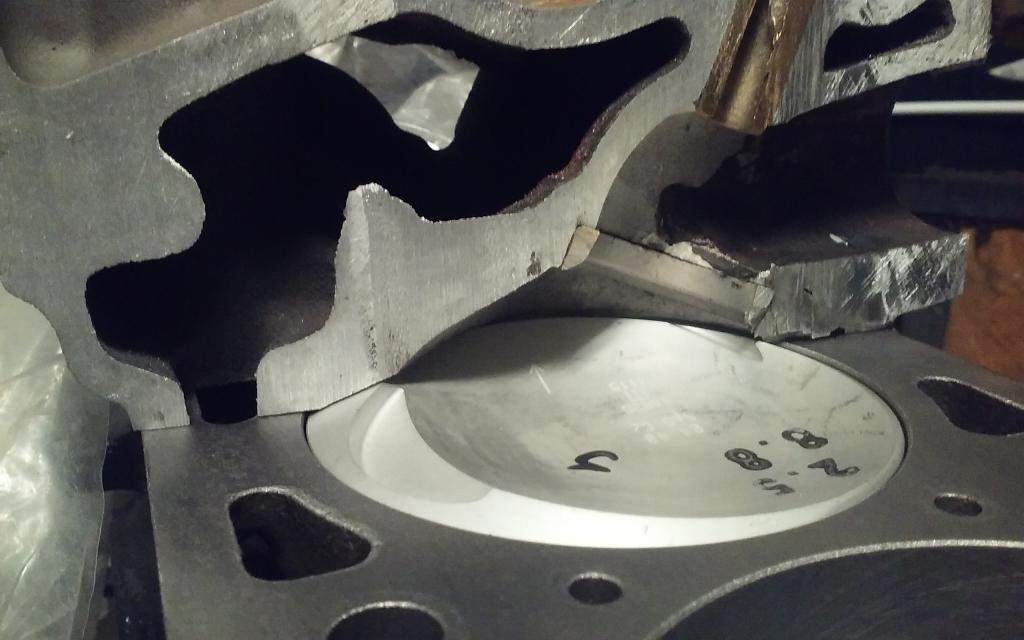

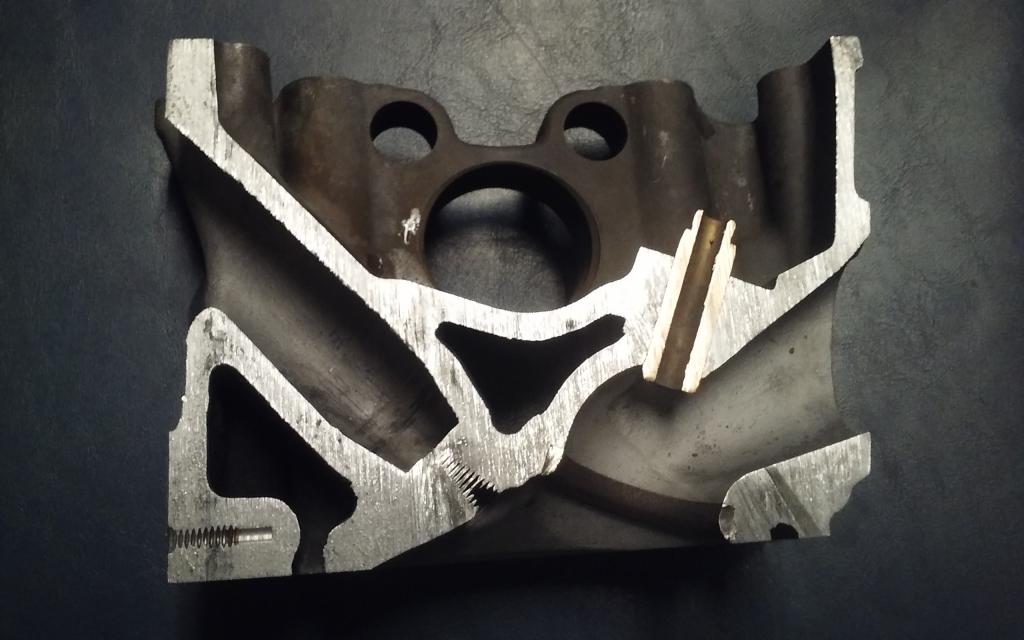

Don't take many pics of builds lately, but a while back I cut up a cracked m20 head to check out the ports and how the chambers/pistons relate.

[Streichholzschächtelchen]

Awesome shots!

[Kershaw]

That's awesome. I didn't realize the pistons and head nearly touched.

[kronus]

That's awesome. I didn't realize the pistons and head nearly touched.

note that there's no head gasket

[ForcedFirebird]

That's awesome. I didn't realize the pistons and head nearly touched.

note that there's no head gasket

The piston to head clearance in stock form is about .060". If you look close at the block in the pics, the pistons are still down in the hole, whereas they are much closer to flush in reality (TDC). This was done to project the real life situation if there was a HG involved. ;)

[digger]

they seem to stick above bore by a decent amount in my experience upto 0.5mm depends on deck height of course

[So Live]

Nice shots!

[packratbimmer]

Cool - it is interesting to see how far the coolant chamber is up on the intake port.

Thanks!!!
