    E30 diff

    What's torque spec on these bolts?

    Sent from my XT1635-01 using Tapatalk
  • Hoffbrohaus
    E30 Addict
    • Sep 2013
    • 519

    #2
    Looked at Bentley and I think that's the "final drive to rear axle carrier"?

    59-64 ft. lbs. See below

    Click image for larger version

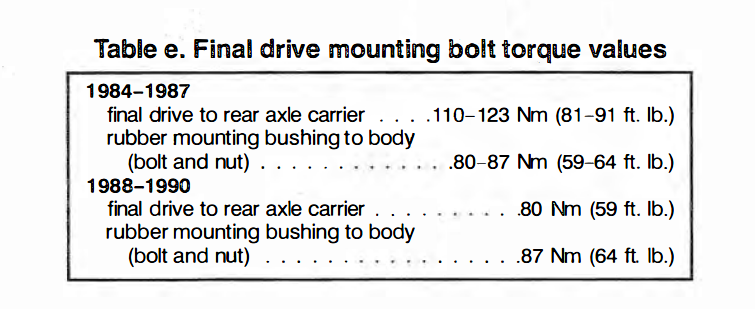

Name:	table e.png
Views:	1
Size:	105.7 KB
ID:	7193923

    Click image for larger version

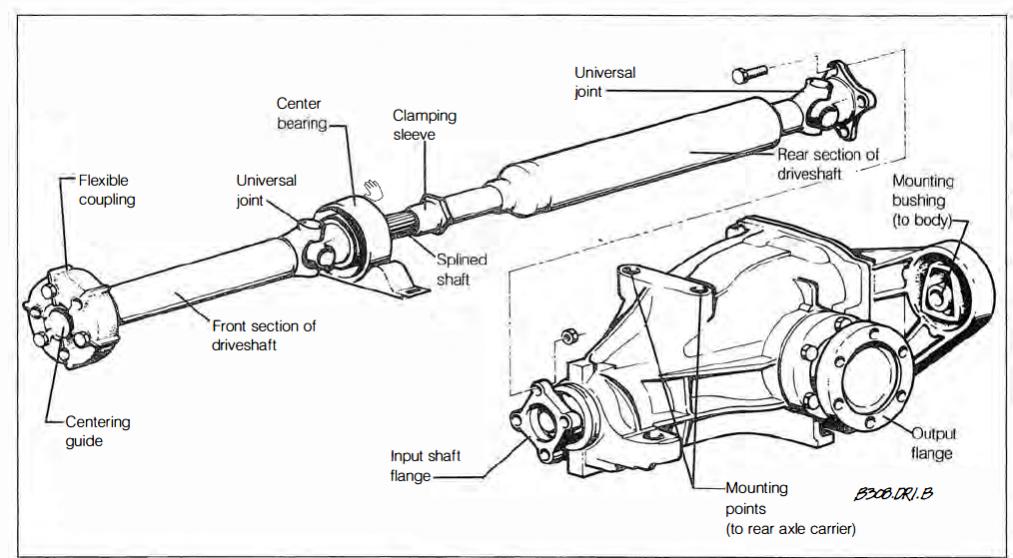

Name:	final drive diagram.jpg
Views:	1
Size:	75.9 KB
ID:	7193924
    '90 325is

    Comment

    • varg
      No R3VLimiter
      • May 2014
      • 3306

      #3
      Those specs would be for the subframe diff mount and bushing respectively. Way too much torque for those little bolts OP is talking about, would probably snap them. They're M8 class 8.8 bolts according to realoem, I wouldn't go over 20ft-lbs.

      IG @turbovarg
      '91 318is, M20 turbo
      [CoTM: 4-18]
      '94 525iT slicktop, M50B30 + S362SX-E, 600WHP DD or bust
      '93 RX-7 FD3S

      Comment

      • e30davie
        E30 Mastermind
        • Apr 2016
        • 1788

        #4
        Dp them up tight enough so they wont come undone.

        Comment

        • Rookie88
          Member
          • May 2016
          • 54

          #5
          Originally posted by e30davie
          Dp them up tight enough so they wont come undone.
          GütenTite was my next option[emoji23] Thanks for the input guys
