    Corey's JDM-Tech 2

    Hey guys its been a long time since I've posted on here and just wanted to share my story with you all. Earlier this year I ran across a marketplace ad for what was one of my realistic grail e30s, a Delphin Japanese market Mtech 2. After talking a few times with the owner and getting a ton of pictures, I put down a deposit and booked a flight out to Cali. A quick test drive told me I wanted it but it desperately needed more power being the m20b20 available in euro and japan models, but the car was otherwise exactly as described so cash exchanged hands and my return journey from L.A. to rural Michigan began. The next morning my buddy AJ and I decide to take a mountain road over towards Vegas rather than be stuck on an L.A. expressway longer than we already had been. This was the beginning of a much longer and expensive trip than we had expected. The mountain road offered less and less traffic as we journeyed onward, slowly realizing, although not wanting to voice our concerns to one another. After about 30 minutes of pristine empty mountain roads, we found our way blocked by a gate and about two feet of snow as far down the road as we could see. Evidently California wasn't as proficient at plowing these roads as we had hoped. Luckily we were able to backtrack and find a couple local enthusiasts on a morning drive of their own in a 911 and miata that pointed us towards a way out.

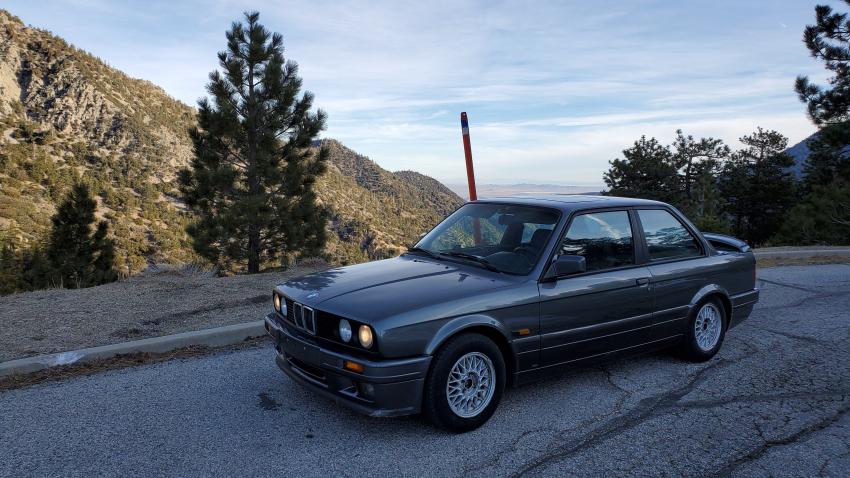

    Click image for larger version  Name:	1 Cali Mountain Road.jpg Views:	5 Size:	84.3 KB ID:	9956377

    Several hours later we stopped for a quick lunch in Vegas and continued on to Grand Junction, CO. We very quickly realized one of the things we failed to check when looking at the car; the operation of the heater. In our excitement in seeing an e30 with working A/C, we simply overlooked twisting the dial back to check for heat under the warm Californian sun. Not to be deterred, we pressed on after stopping and buying what I thought at the time was an excessive amount of hand warmers. Having done a trip like this the year previously with wonderful weather and only flecks of snow ever coming down I was foolheartedly expecting the same results. We quickly realized this wasn't going to be the case. Waking up in Grand Junction early the next morning, we began what we hoped was a long drive to somewhere in Nebraska to stop for the night. We made it two and a half hours to Glenwood Springs, CO where we were forced off a closed I-70. Our way through the mountains was blocked and the poor e30 that had likely never seen snow was introduced to it hours into my ownership. This may be the time where some of you are saying "why not just have it shipped back from Cali right to your doorstep?" To you I say, "Where's the adventure in that?" Despite that being the obviously safer route, I like to think I'm more adventurous, rather than saying I'm a complete idiot, but more on that later..



    Click image for larger version  Name:	4 Just happy its still in one piece.jpg Views:	4 Size:	89.1 KB ID:	9956378

    Click image for larger version  Name:	5 Oh great more snow.jpg Views:	4 Size:	66.5 KB ID:	9956379

    Two days passed in Glenwood Springs. Two days of unyielding snow. We made the best we could of the time, continually clearing the constant buildup of snow from the car, trudging through town to see the local sights, and taking a dip in the hot springs. These distractions came to an end when our incessant checks of the live stream I-70 traffic and weather reports said the pass had been reopened. What should have been a two and a half hour drive to Denver was nearly six hours of a mix of boredom, white knuckle driving, and extreme anxiety. After FINALLY making it over the mountains and seeing Denver in the distance out spirits began to lift as we started our descent to the city below. My first plan of action was to get all this snow and slush off my car before gassing up and handing over the keys to my copilot. I was in desperate need to get out of the driver's seat for at least a little while after the stress of the morning drive. This was just the beginning of the day though and much more was in store.. After cleaning the filth as best I could at the self wash and snapping a couple pictures I settled into the passenger seat. Unbeknownst to either of us this was going to be the shortest drive of the trip. We made it about ten feet out of the car wash and the timing belt went. Yes, our bad luck followed us over the mountain. I had discussed this with the PO, but after seeing the maintenance that had been done on the car and his insistent trust in his mechanic, I was less concerned than I should have been. It was my mistake not pulling the car apart before even starting on the trip to be sure of it, but we were already behind schedule so I decided to trust in the PO. If they did the cap, rotor, plugs, fuel filter, etc. they would've done the timing belt and water pump if it was questionable, right? Not right. So after hearing the wonderful lack of compression that's accompanied by the snapping of a timing belt and a quick look through the oil cap hole to see the cam wasn't moving, having a small breakdown and silently screaming at myself, I began to gather my wits. Luckily AJ's aunt lived 20 minutes away from where the car had given out so I had it towed there to await a proper shipping truck to have it brought home to Michigan. Feeling completely defeated, I booked us both flights home to Chicago and Detroit and settled on a company to ship the car the remainder of the journey.

    Click image for larger version  Name:	6 minutes before tragedy.jpg Views:	4 Size:	98.7 KB ID:	9956380
    This picture was taken minutes, if not seconds before tragedy stuck.
    Last edited by Simple_Smith; 10-18-2020, 07:54 PM.
    sigpic
    Follow me.
    1987 325e stroker -all solid everything NOW BOOSTED
    1993 325i Daily Black on Black Sedan M3 wannabe
    Originally posted by 8380 Labs
    i heard he saved pennies from the time he was a small boy then melted them all down to paint his car.

    #2

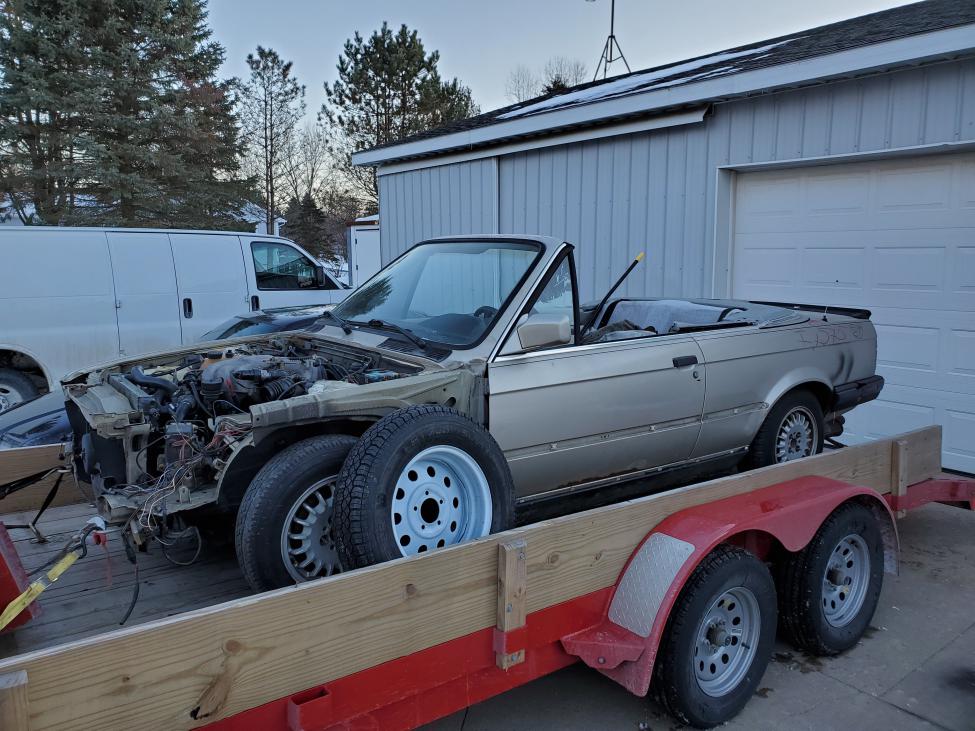

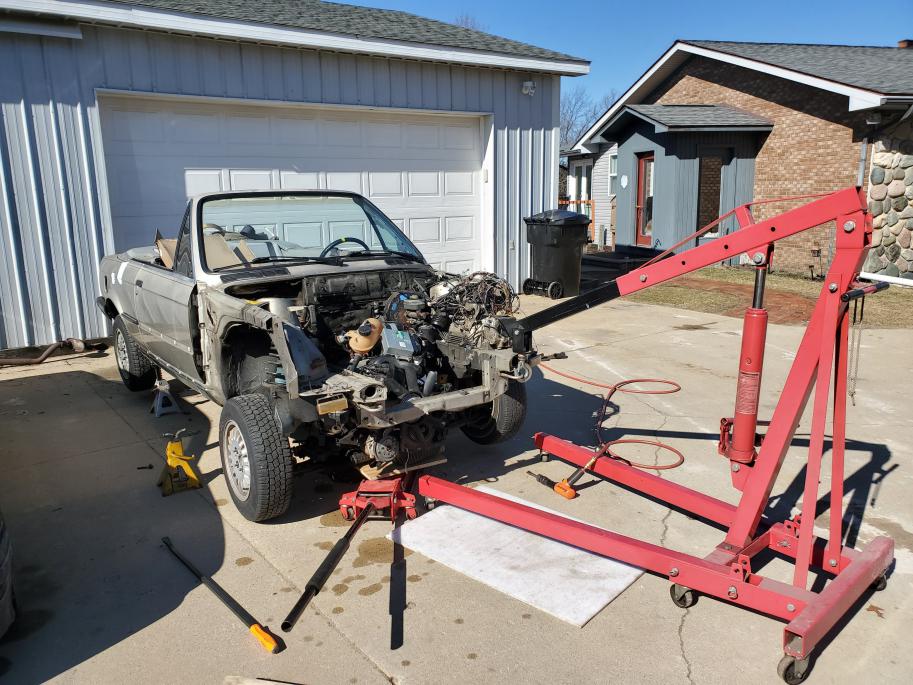

    During the time I was apart from my newly dead e30, I found a parts car with a complete manual drivetrain as well as a good M20B25 ready for a new home along with a few nice odds and ends that we e30 folk just have to keep, knowing we'll need one as soon as we throw it away. Upon the arrival of the Mtech 2, I dragged the power washer out into the slightly above freezing Michigan weather and washed it as well as the weather permitted before pushing it into the garage to begin the teardown.

    Click image for larger version

Name:	7 ready for the knife.jpg
Views:	279
Size:	102.4 KB
ID:	9956391
    Click image for larger version

Name:	20200229_180040.jpg
Views:	286
Size:	123.1 KB
ID:	9956388 Click image for larger version

Name:	20200307_104706.jpg
Views:	275
Size:	120.6 KB
ID:	9956389

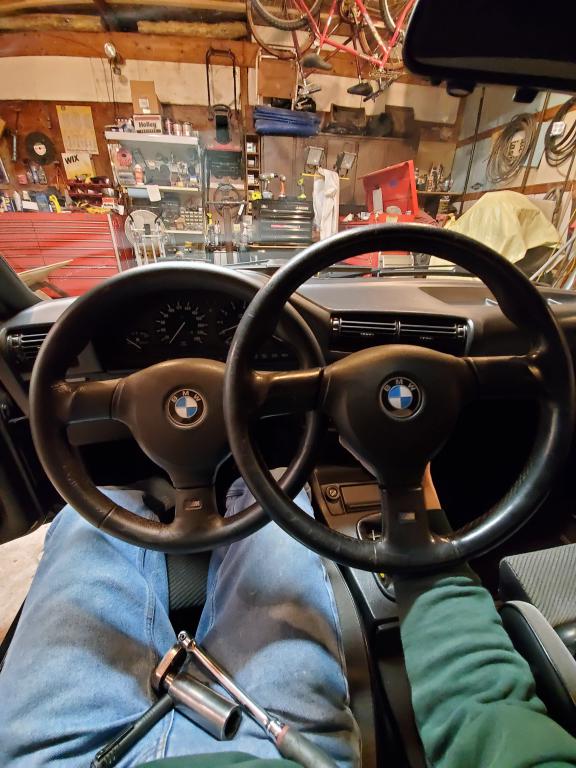

    The first two modifications I made before even addressing the engine was to swap out the 385mm Mtech 2 wheel that came with the car to the 355mm that I had on my previous turbo e30 and to swap in an e60 lever from another previous e30 along with a new ZHP knob of course.

    Click image for larger version

Name:	8 385mm to355mm.jpg
Views:	277
Size:	78.5 KB
ID:	9956390
    Last edited by Simple_Smith; 10-18-2020, 02:09 PM.
    sigpic
    Follow me.
    1987 325e stroker -all solid everything NOW BOOSTED
    1993 325i Daily Black on Black Sedan M3 wannabe
    Originally posted by 8380 Labs
    i heard he saved pennies from the time he was a small boy then melted them all down to paint his car.

    Comment


      #3

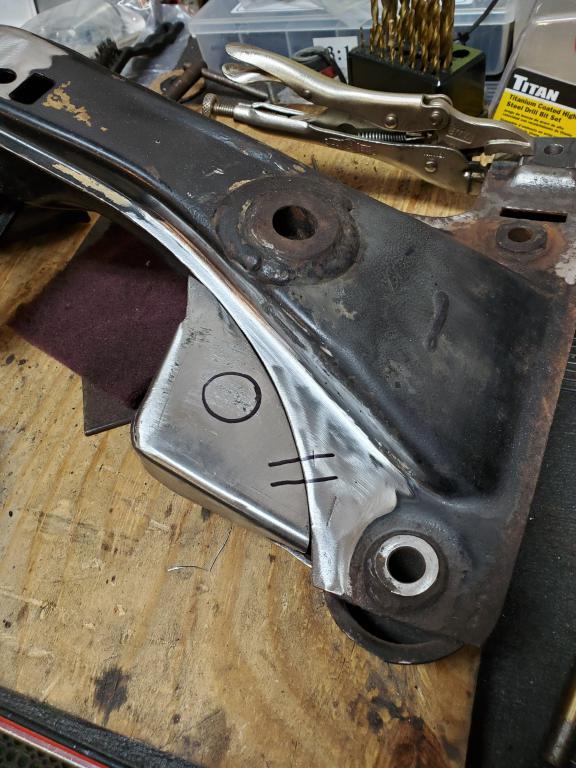

      I had decided I wanted to keep all the stock parts as complete as possible so I was going reinforce the subframe from the parts car and use that to keep the full M20B20 dropout complete. The plan was to rebuild the B20 in my spare time to in case I decide to sell the car later on, that can go with it. The subframe reinforcement plates I had purchased fit like.. well actually they didn't fit for shit in my opinion, so I decided to make my own. It took a ton of time getting them to a point that I was happy with although it still wasn't to the level that I was overjoyed with. I just got slightly past the point of diminishing returns so I decided they were acceptable for what they were, especially compared to what most of the companies producing these plates were passing off as reinforcements.
      Click image for larger version

Name:	95 subframe reinfocements.jpg
Views:	284
Size:	89.0 KB
ID:	9956392 Click image for larger version

Name:	94 Subframe reinforcements.jpg
Views:	273
Size:	81.0 KB
ID:	9956393

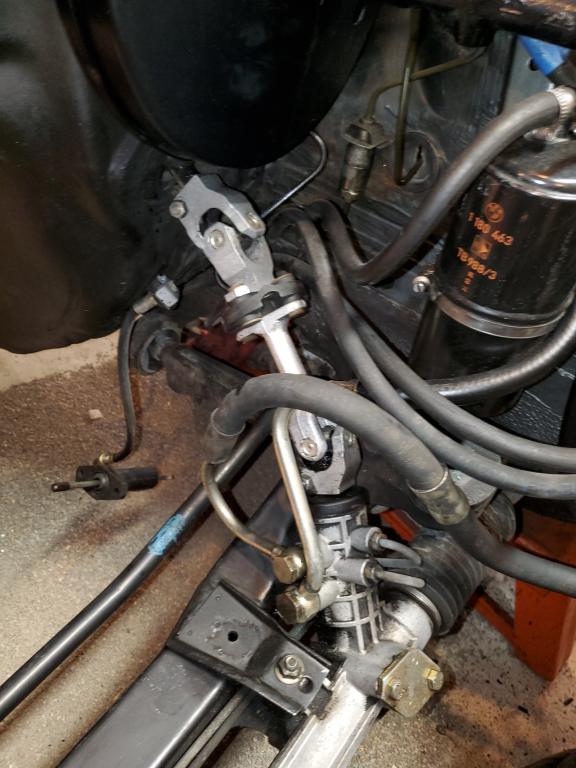

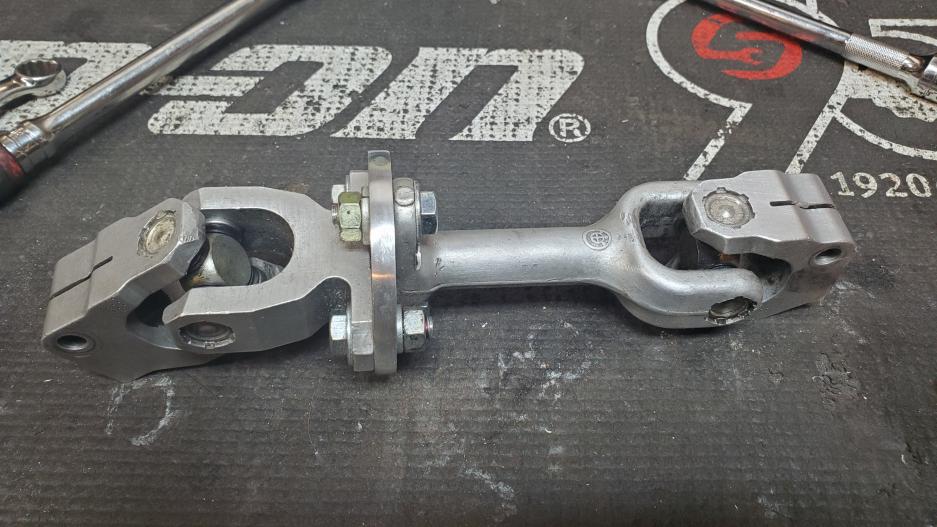

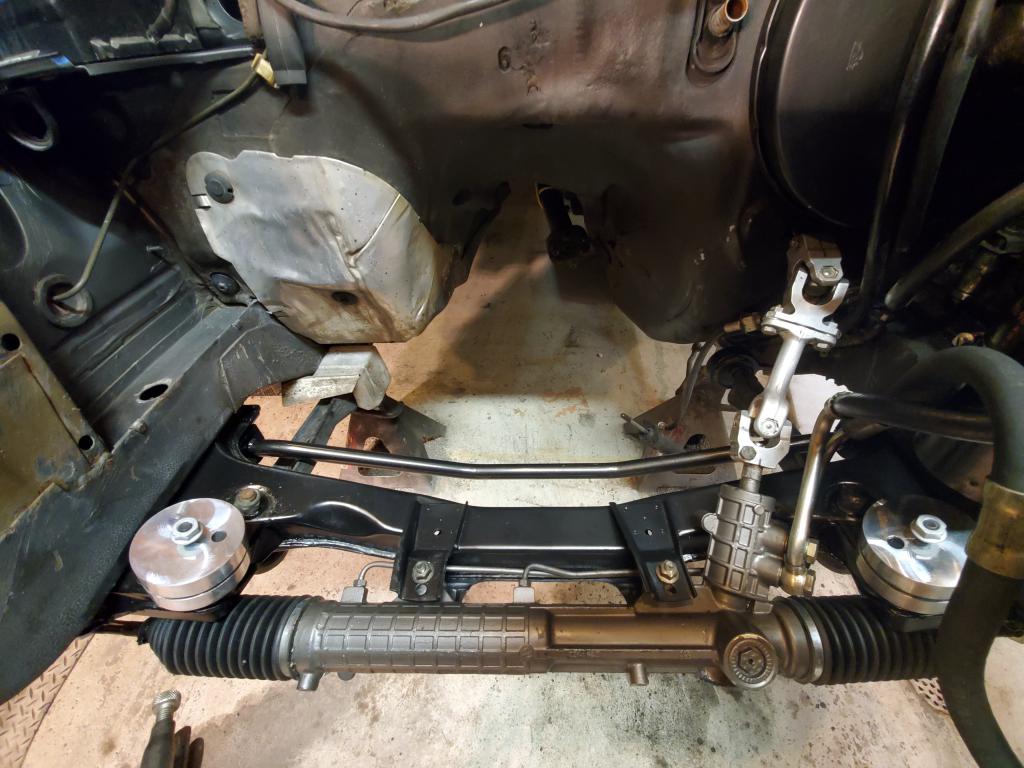

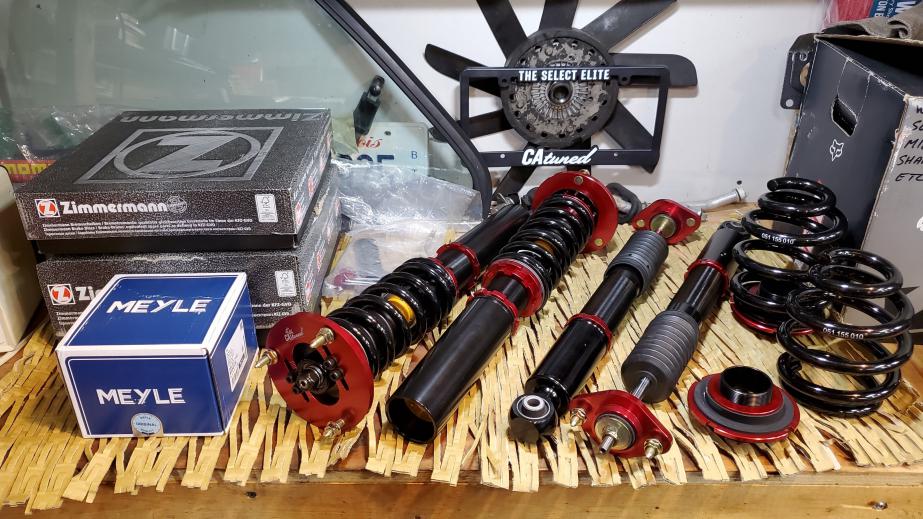

      Once the subframe was reinforced and repainted, the other goodies began to come in. I added an e46 clubsport purple tag rack and modified the euro steering shaft to work with it by eliminating the steering guibo. As a "while you're in there" I also added a set of Turner Motorsport engine mount cups. With this build I wanted to keep everything firm, but still streetable so I figured this would be the best route for that. Still need to order the trans mount cups from AKG..

      Click image for larger version

Name:	20200329_181645.jpg
Views:	273
Size:	67.0 KB
ID:	9956394 Click image for larger version

Name:	20200410_201459.jpg
Views:	273
Size:	77.1 KB
ID:	9956395 Click image for larger version

Name:	20200411_171534.jpg
Views:	275
Size:	107.7 KB
ID:	9956396
      Last edited by Simple_Smith; 10-18-2020, 02:12 PM.
      sigpic
      Follow me.
      1987 325e stroker -all solid everything NOW BOOSTED
      1993 325i Daily Black on Black Sedan M3 wannabe
      Originally posted by 8380 Labs
      i heard he saved pennies from the time he was a small boy then melted them all down to paint his car.

      Comment


        #4

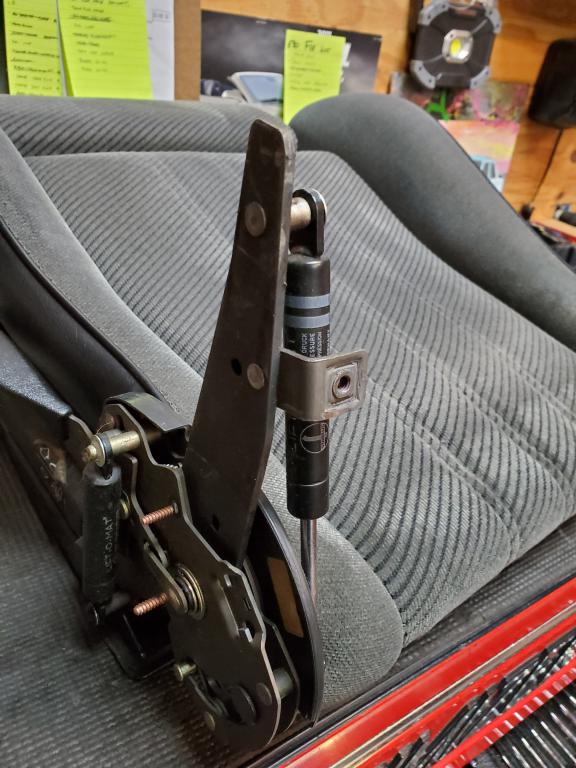

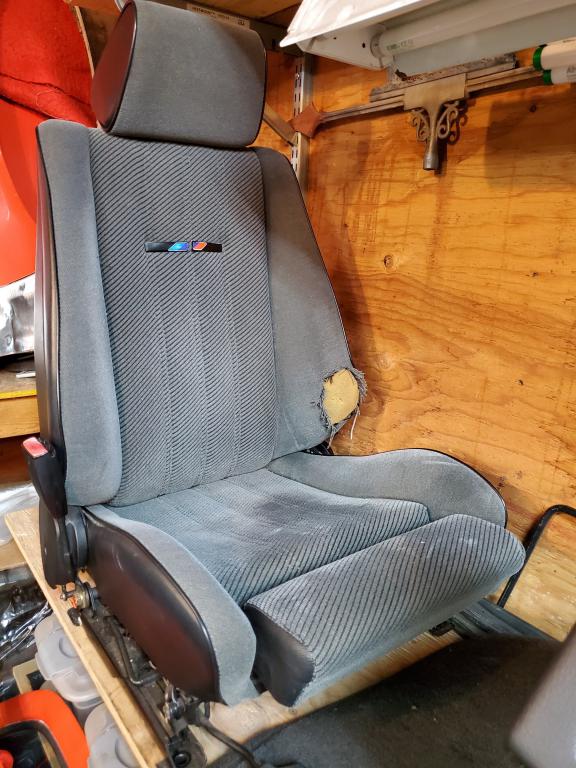

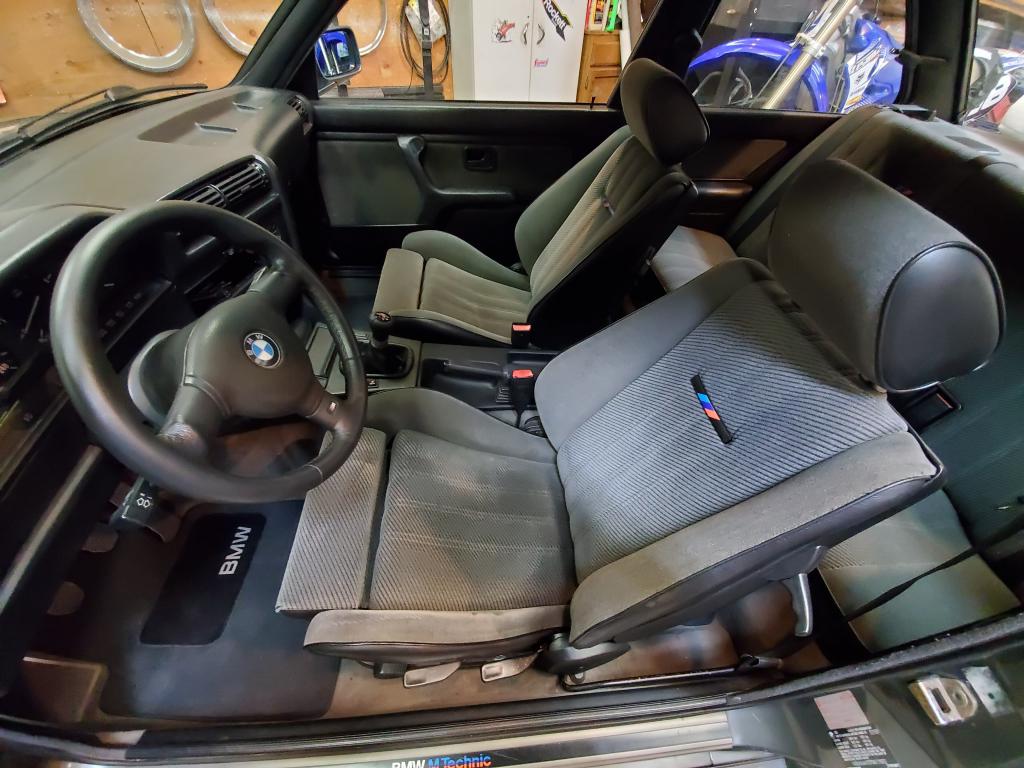

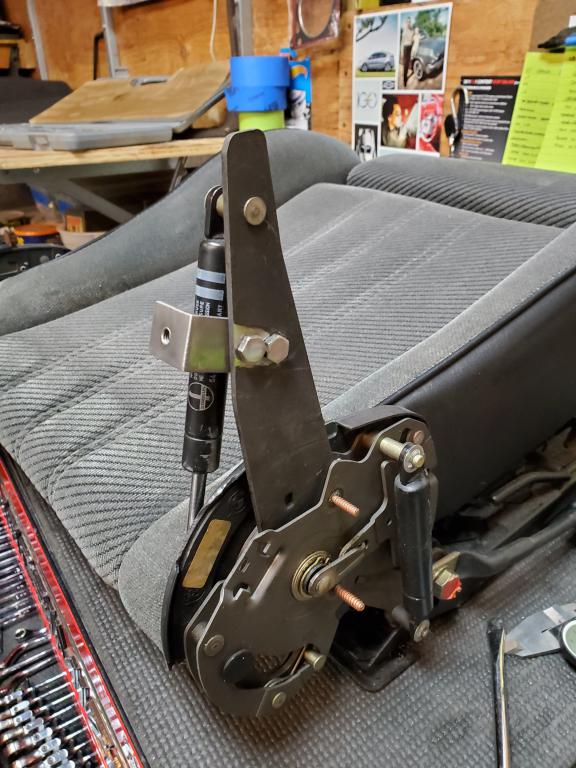

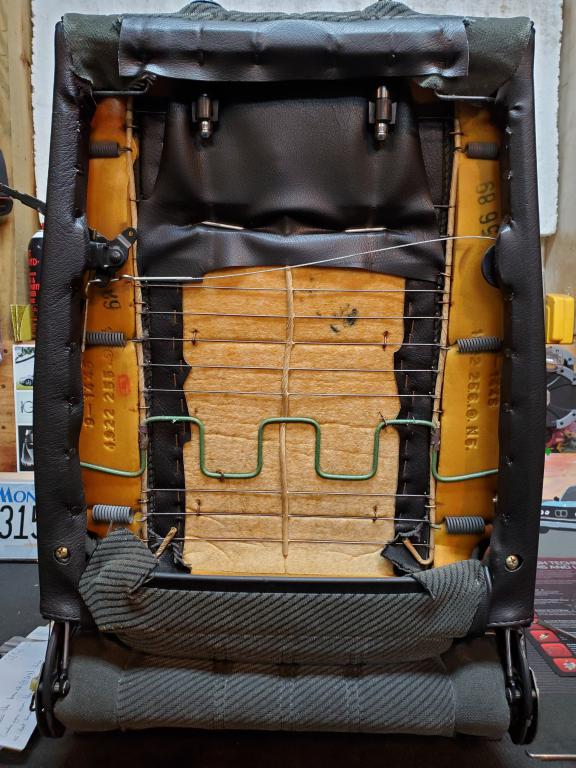

        Having tackled getting the engine swapped along with hours and hours of cleaning, I needed to address the broken seat back mounts on the driver seat and replace the driver side bolster with a replacement from the forum member brutus . This was my first time pulling apart an e30 seat so I was very deliberate with how I disassembled it, but the whole process still took much less time than I had expected despite me being so cautious. Getting the new fabric to cover the foam properly took a bit of time and making the new mounting bracket was a bit meticulous but I was quite pleased with the results.
        Click image for larger version  Name:	20200322_204526.jpg Views:	0 Size:	82.7 KB ID:	9956397
        Click image for larger version  Name:	20200509_111016.jpg Views:	0 Size:	83.4 KB ID:	9956398 Click image for larger version  Name:	20200509_163734.jpg Views:	0 Size:	76.3 KB ID:	9956399 Click image for larger version  Name:	20200509_163730.jpg Views:	0 Size:	82.8 KB ID:	9956400 Click image for larger version  Name:	20200509_171321.jpg Views:	0 Size:	111.7 KB ID:	9956401
        Last edited by Simple_Smith; 10-18-2020, 07:59 PM.
        sigpic
        Follow me.
        1987 325e stroker -all solid everything NOW BOOSTED
        1993 325i Daily Black on Black Sedan M3 wannabe
        Originally posted by 8380 Labs
        i heard he saved pennies from the time he was a small boy then melted them all down to paint his car.

        Comment


          #5

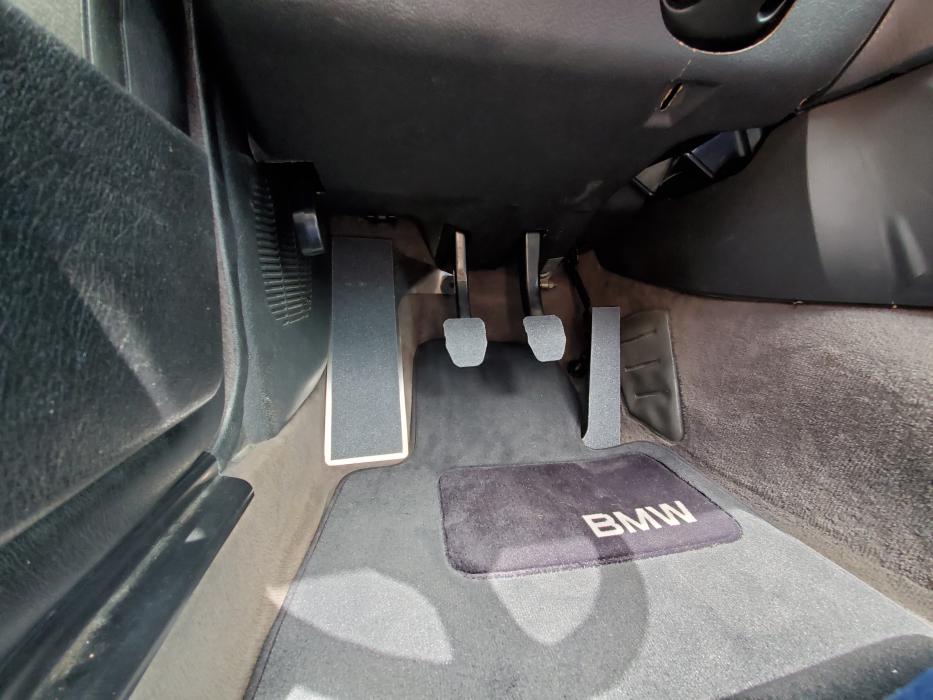

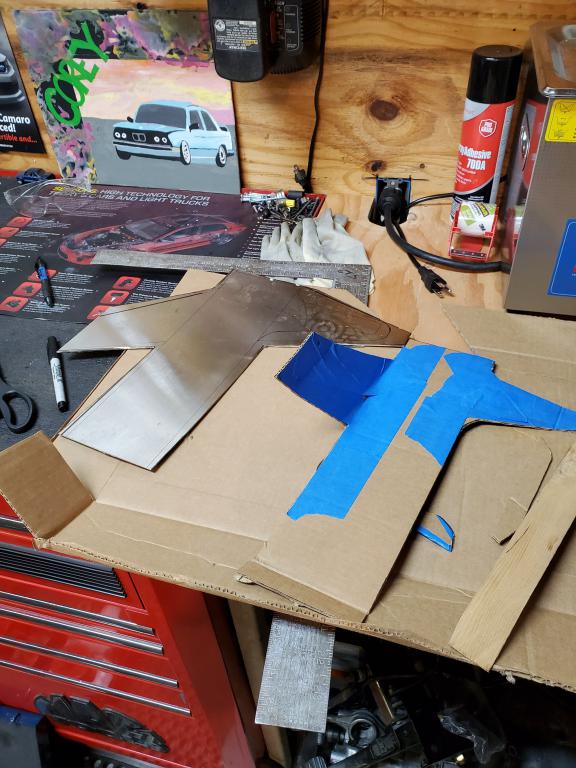

          One more thing I was displeased about was my new Mtech 2 that was lacking a proper dead pedal. The outline of the factory Mtech dead pedal was left in the carpet so my guess it the PO wanted to keep that for himself (which is understandable considering what people are getting for them nowadays). Undeterred, I began mock up of my own custom dead pedal first transferring the outline to masking tape, then to cardboard, and finally stainless steel to compliment the ZHP knob along with grip taping all the pedals. Again, a full day of work, but with results that reflect that in my opinion.


          Click image for larger version  Name:	97 Dead pedal build.jpg Views:	0 Size:	80.1 KB ID:	9956404

          Click image for larger version  Name:	98 finished product.jpg Views:	0 Size:	79.3 KB ID:	9956405
          e46 convertible mats are pictured and I would give them a 6/10 for e30 fitment. In this case pictures do them much better justice in the sense that pictures are very misleading. I don't know of any others that fit better, but I would like to see how e82 mats compare. And saying the rear mats fit is absolutely laughable. Overall I'm very pleased with how the interior is coming together. I recently purchased and installed a husco armrest with aftermarket brackets, but haven't uploaded any pictures of that just yet.

          Thanks so much for reading this far, or even if you just scrolled through the pics, thanks for stopping by. I'll continue to add to this as the build progresses and please don't hesitate to ask any questions about any aspect of this build. I have a ton more pictures, but this is all for now.

          Cheers!
          -Corey
          Last edited by Simple_Smith; 10-18-2020, 04:46 PM.
          sigpic
          Follow me.
          1987 325e stroker -all solid everything NOW BOOSTED
          1993 325i Daily Black on Black Sedan M3 wannabe
          Originally posted by 8380 Labs
          i heard he saved pennies from the time he was a small boy then melted them all down to paint his car.

          Comment


            #6
            reserved for updates
            Last edited by Simple_Smith; 10-18-2020, 02:32 PM.
            sigpic
            Follow me.
            1987 325e stroker -all solid everything NOW BOOSTED
            1993 325i Daily Black on Black Sedan M3 wannabe
            Originally posted by 8380 Labs
            i heard he saved pennies from the time he was a small boy then melted them all down to paint his car.

            Comment


              #7
              reserved for updates
              Last edited by Simple_Smith; 10-18-2020, 02:36 PM.
              sigpic
              Follow me.
              1987 325e stroker -all solid everything NOW BOOSTED
              1993 325i Daily Black on Black Sedan M3 wannabe
              Originally posted by 8380 Labs
              i heard he saved pennies from the time he was a small boy then melted them all down to paint his car.

              Comment


                #8
                what a story... jesus man. score on the parts car though... Sent from my SM-G981U using Tapatalk
                ~~~~~~~~~~~~~~~~~
                '90 325i sedan daily driven
                '85 325e coupe also a daily

                Comment


                  #9
                  Originally posted by cheffy30 View Post
                  what a story... jesus man. score on the parts car though... Sent from my SM-G981U using Tapatalk
                  A spare manual swap is always a nice thing when space isn't an issue, never know when a clean auto car will come up begging for a swap.. Luckily when I was looking for another M20 several were up on marketplace and this was a little over an hour away. The other option that's still on the table is to use a spare block I had to build a "mild" 3.0 M20 but that was a bit more involved than I was wanting at the time.
                  sigpic
                  Follow me.
                  1987 325e stroker -all solid everything NOW BOOSTED
                  1993 325i Daily Black on Black Sedan M3 wannabe
                  Originally posted by 8380 Labs
                  i heard he saved pennies from the time he was a small boy then melted them all down to paint his car.

                  Comment


                    #10
                    Great story so far! Way to stay persistent. Looking forward to more updates!

                    Comment


                      #11
                      I want a manual so bad. one day maybe... meanwhile my auto is holding on with 300+k... Sent from my SM-G981U using Tapatalk
                      ~~~~~~~~~~~~~~~~~
                      '90 325i sedan daily driven
                      '85 325e coupe also a daily

                      Comment


                        #12
                        This car is such a nice combo, I love it.


                        Originally posted by Simple_Smith View Post
                        Click image for larger version

Name:	20200410_201459.jpg
Views:	273
Size:	77.1 KB
ID:	9956395
                        FYI if you run it like this with the ujoints out of phase, it's going to introduce a sine wave into the rotational output.
                        It might feel like the rack turns more at certain spots in the steering rack. Easiest fix is to make a guibo out of some thicker sheet steel. It should still fit the rack that way.
                        Originally posted by priapism
                        My girl don't know shit, but she bakes a mean cupcake.
                        Originally posted by shameson
                        Usually it's best not to know how much money you have into your e30

                        Comment


                          #13
                          So many twists and turns in the story arc, but you’re on the upswing now!
                          sigpic
                          January 2012 COTM

                          Comment


                            #14
                            Northern it took me a while before my pea sized brain could wrap itself around this concept. I've only driven the car a handful of times this season and I did get an odd feeling from the steering, but I wrote it off as not being familiar with the car, but after seeing your comment and watching this video https://www.youtube.com/watch?v=Idk3BVDVHq4 things started to click for me. I'll definitely be pulling it apart to re-phase the u-joints properly.

                            Thanks everyone for the feedback! This is why I love r3v. I'll continue chipping away at the to-do list and posting updates as I go. If anyone would like more details on anything I've covered so far, PM me or simply post in here and I will gladly share what information and knowledge I can.
                            sigpic
                            Follow me.
                            1987 325e stroker -all solid everything NOW BOOSTED
                            1993 325i Daily Black on Black Sedan M3 wannabe
                            Originally posted by 8380 Labs
                            i heard he saved pennies from the time he was a small boy then melted them all down to paint his car.

                            Comment


                              #15
                              Wow, i have a soft spot for the Delphingrau and M-Tech 2 combination. I hope to one day own a 325i in this colour or a Sterling Silver one with the M-Tech 2 Kit.
                              So sad the timing belt decided to cr*p out on you. You will not regret the B25 upgrade and big respect that you're planning on keeping the original engine and restoring it.
                              I'm a sucker for originality.

                              Keep up the good work!
