Pantless Spencys zinno ETA fix-up thread. ~NOW RUNS YAY~

[Pantless Spency]

the head of the bolt hadn't even hit the cam seal ring yet
i wasn't just going ham on the thing lol. but the one that did snap seem'd to have suffered from heating and cooling rapidly, it was a rusty color, i take it was from the side closer to the thermostat port.

[hfabricius]

Bentley manual says 48-52 ft. lbs. Camshaft sprocket to cam, right?

[Pantless Spency]

yessir.

the torx 12 male bolt that goes into the camshaft.

[Pantless Spency]

how would one go about torqueing that since it spins the cam?

[hfabricius]

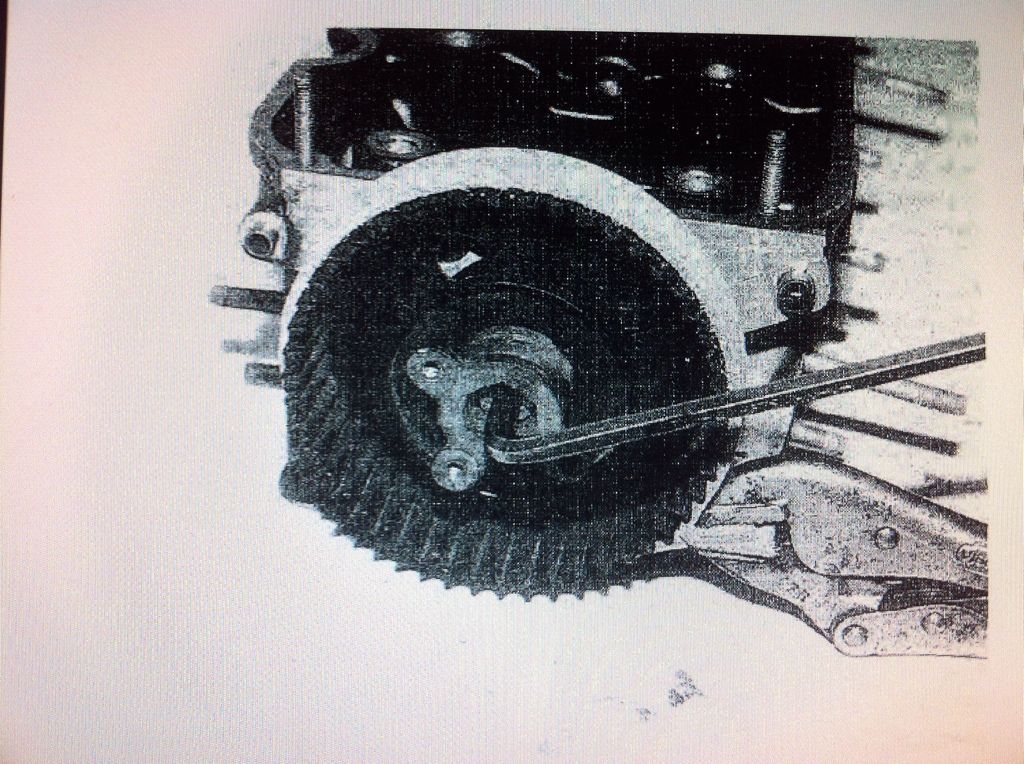

Take an old timing belt and wrap in around that camshaft sprocket and use some vice grips to keep it tight. Similar to how a oil filter/strap wrench works. Ill try and pull the picture from the bentley pdf.

EDIT: Got it.

[Pantless Spency]

fuuu i just threw that out! lol

[mbonanni]

Bentley manual says 48-52 ft. lbs. Camshaft sprocket to cam, right?

yessir.

the torx 12 male bolt that goes into the camshaft.

how would one go about torqueing that since it spins the cam?

fuuu i just threw that out! lol

Sorry thought big crankshaft bolt /:

Tighten that shit down as much as possible, then install on car. hold crankshaft bolts tighten??

[Pantless Spency]

maybe a good idea^^^

[Pantless Spency]

do you install the camshaft seal from the back of the cam to the head or once the cam is all the way in then slide the seal over it?


i checked the bolt and its submerged in the head :Fuck:

[hfabricius]

From the Bentley: Installation is the reverse of removal. Before installing the
camshaft, it should be thoroughly lubricated . Coat the camshaft
oil seal lip and the housing O-ring with motor oil before
installation. To prevent damaging the oil seal, wrap the front of
the camshaft with tape. If the oil supply tube was removed ,
tighten the fittings to 6 to 8 Nm (4.5 to 5 . 5 ft. lb.) . I nstall the
camshaft sprocket and the distri butor rotor adaptor so the
guide pin correctly aligns with the guide hole in the sprocket
and adaptor. Tighten the mounting bolt to 65 to 70 N m (48 to
52 ft. l b.) .

[Pantless Spency]

hm i just read my chilton and i still dont have a clue.... (about the camshaft seal.)

[5Toes]

Today has been a successful day.

Hopefully you will have it in the car by Sunday?

[Pantless Spency]

todays been a lot of fuckery.


:/

seriously just wanna buy a b27 and drop it in.

[5Toes]

lol I didnt want to say it that way, chose to be sarcastic.

[Pantless Spency]

:/

toes im so frustereaaarted.
