My e30 Project... Mtech II sedan, Jlines, Vaders, M50 and much more...

[motorsports_3]

Wow, it really has been forever since my last update. Work has been killing me. I had an issue with the idle jumping from 1-3k. That took me a while to figure out. It turned out to be the Throttle cable was too tight. I got most of the little things done also.

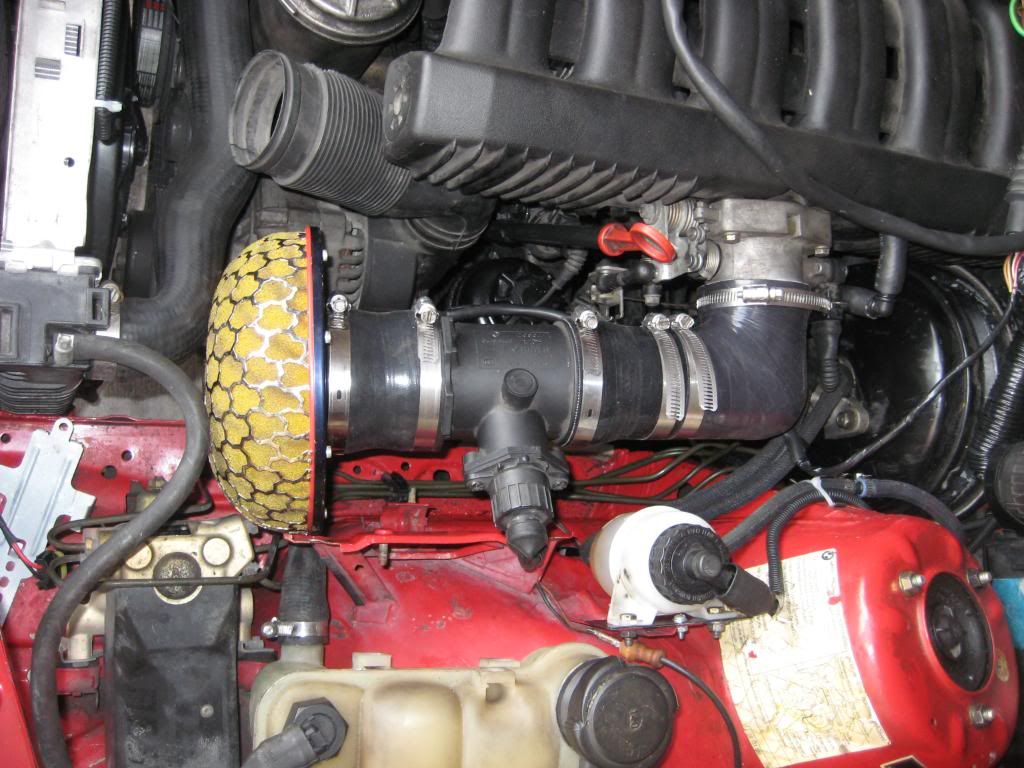

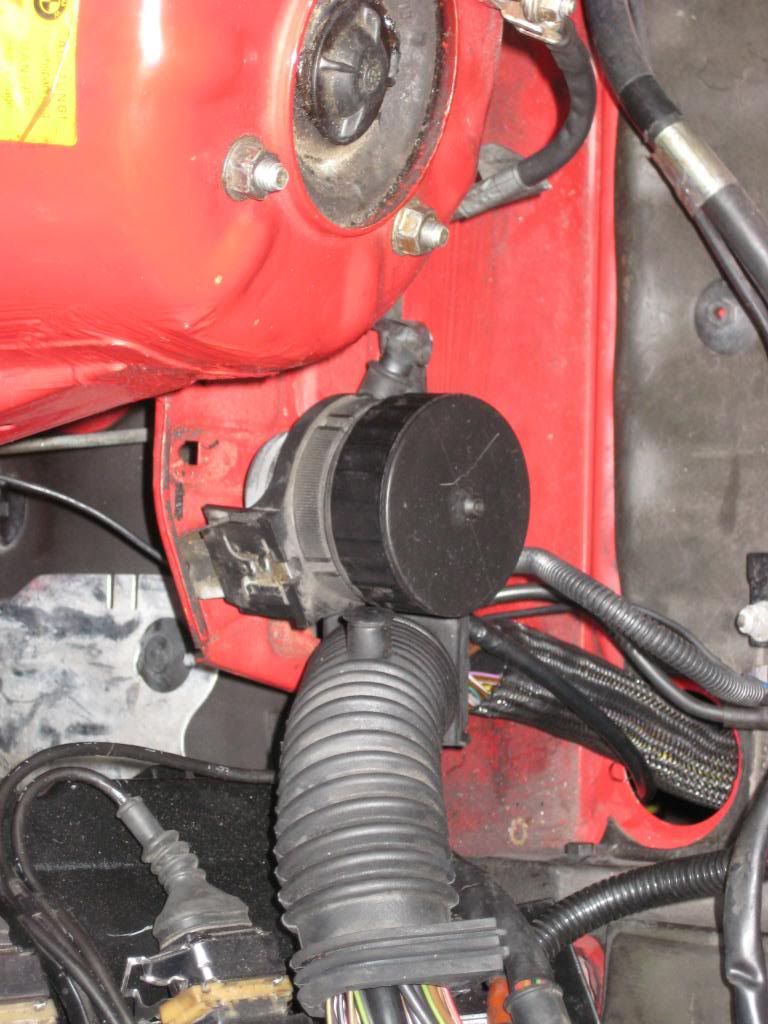

Mounted my Free mad tyte air filter

Mounted the code reader

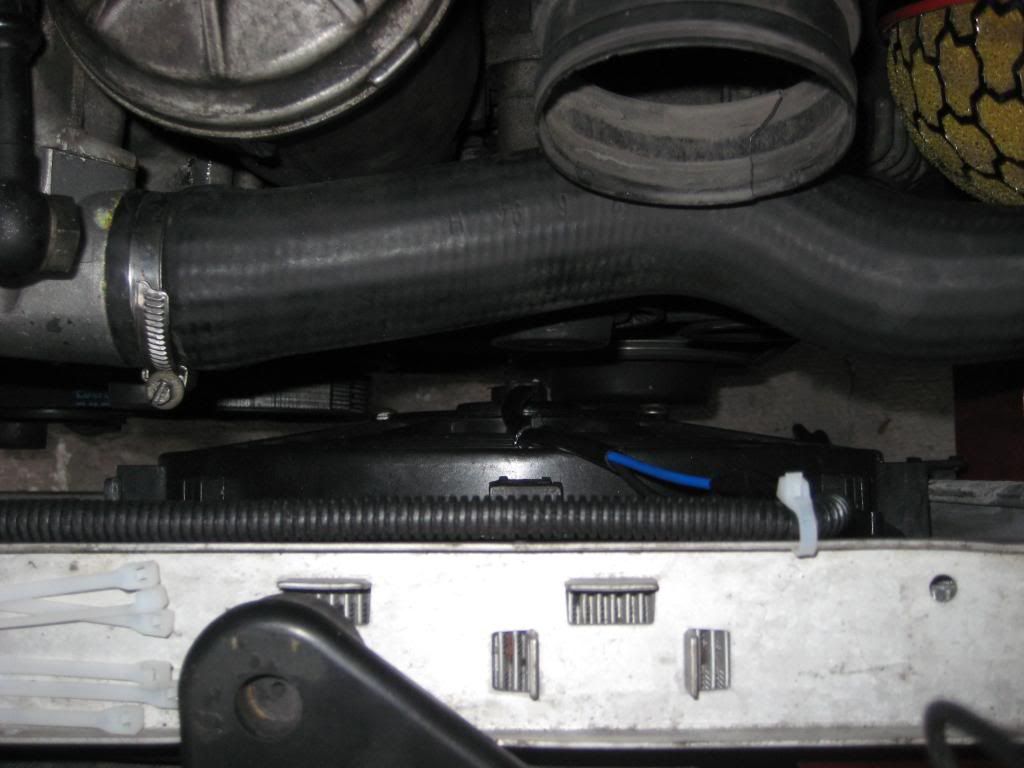

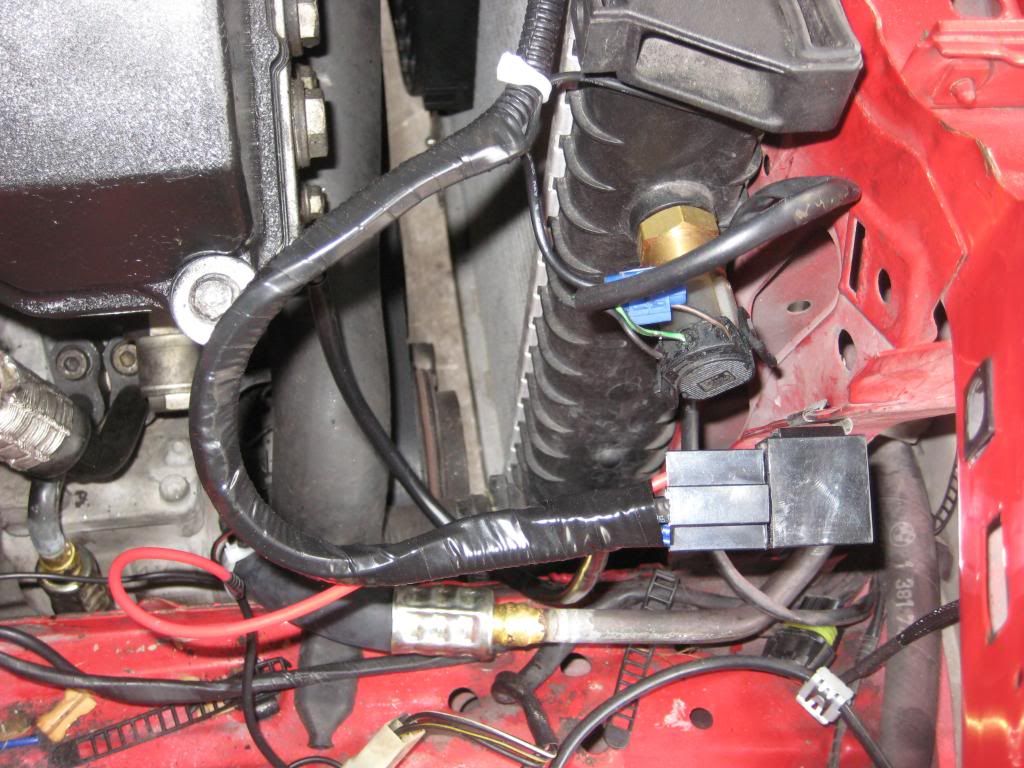

Wired the aux fan

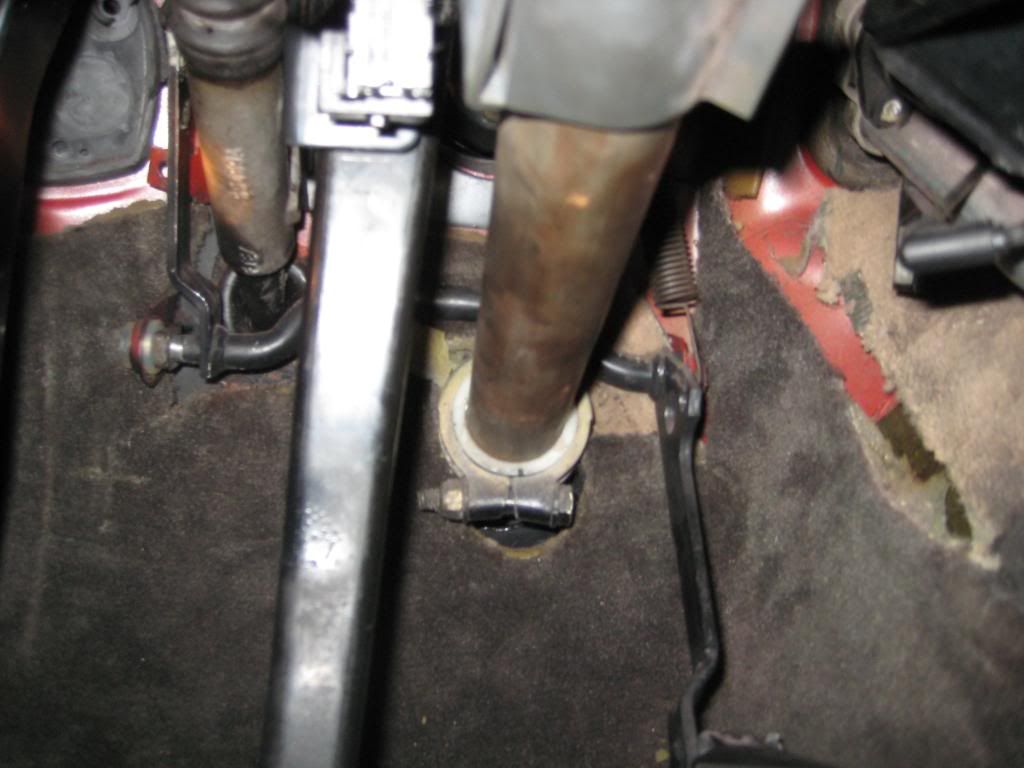

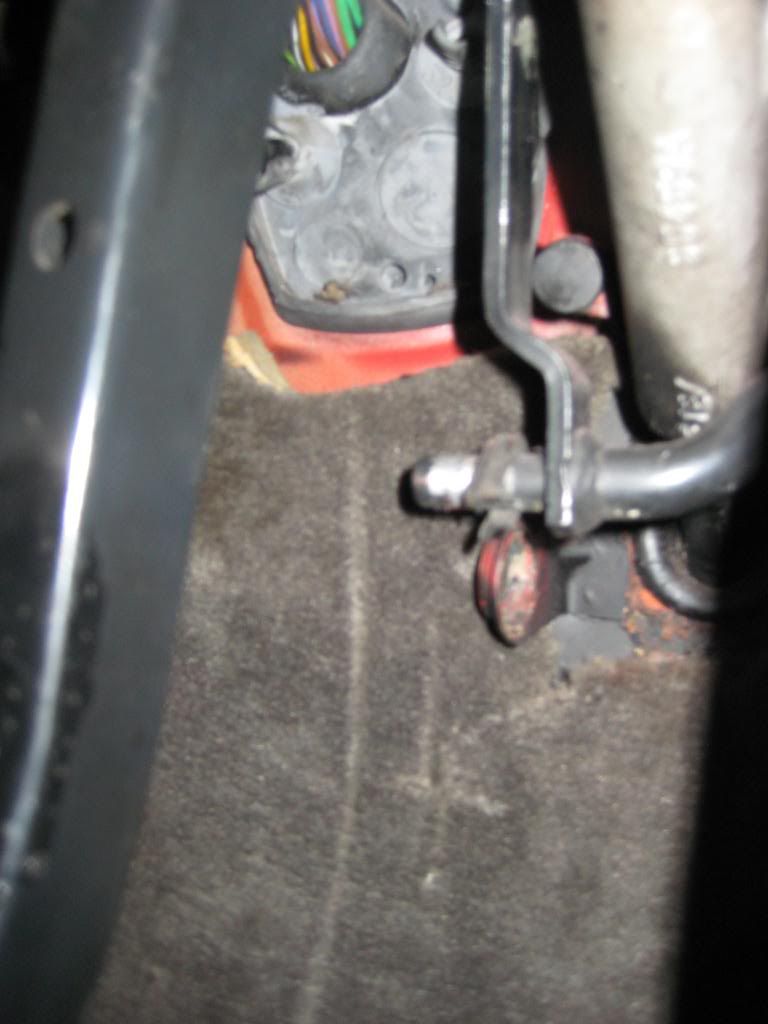

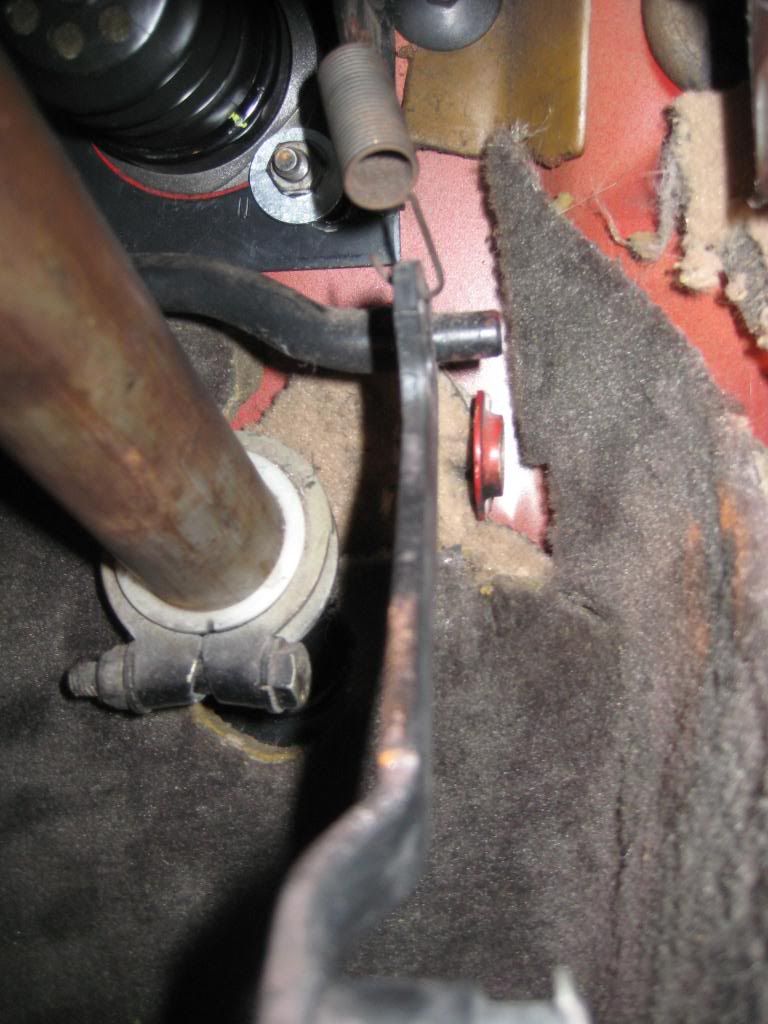

I noticed my gas pedal was not being held on the top. I needed new grommets


Done

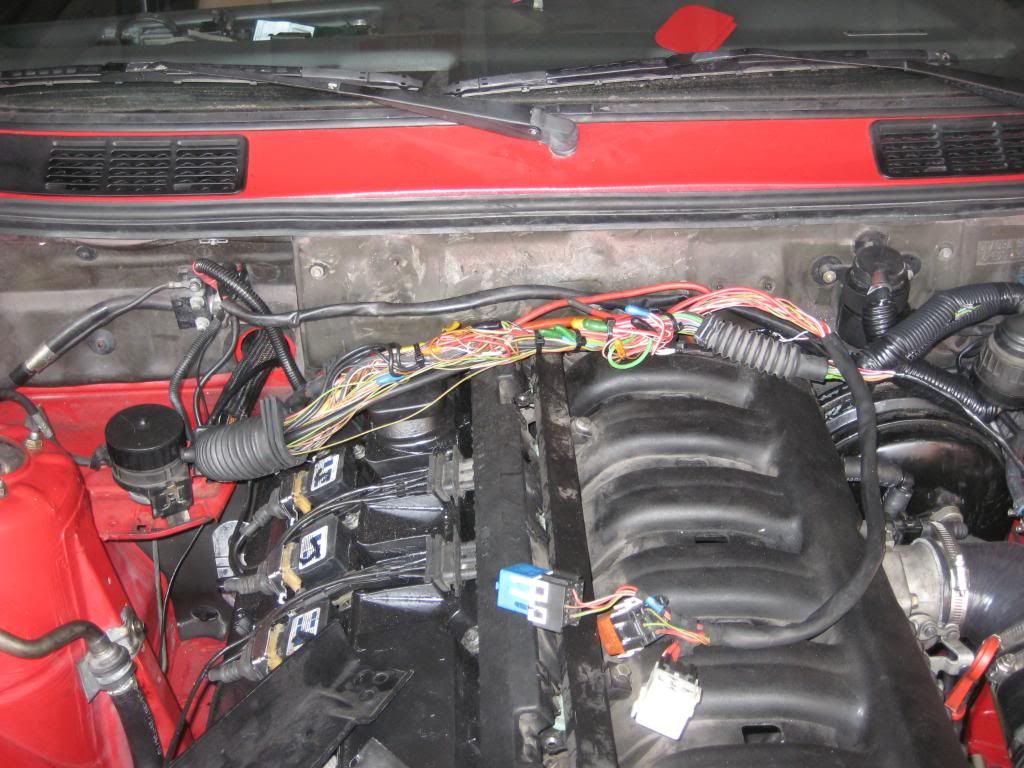

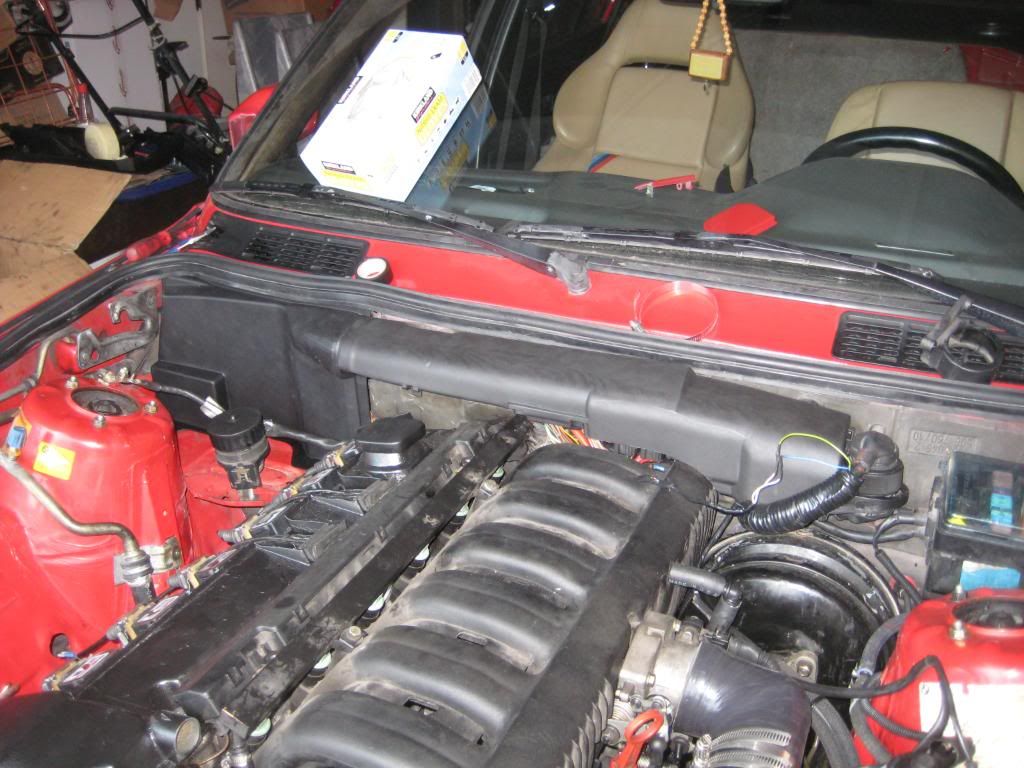

I also cleaned up the wires

Process

All done

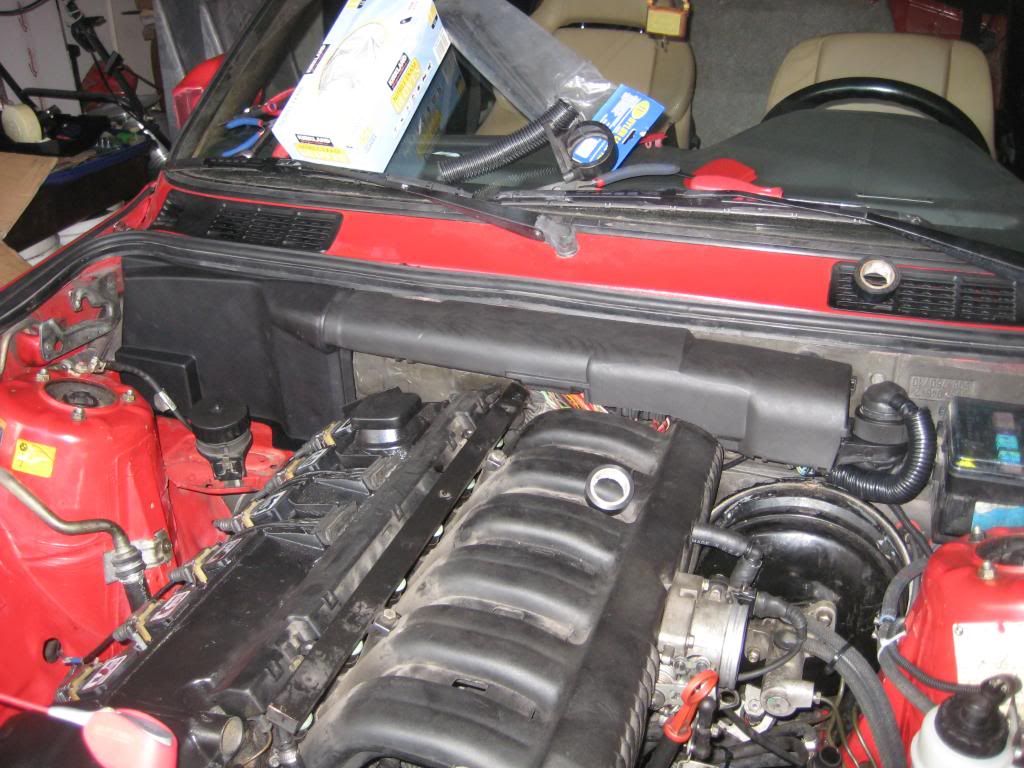

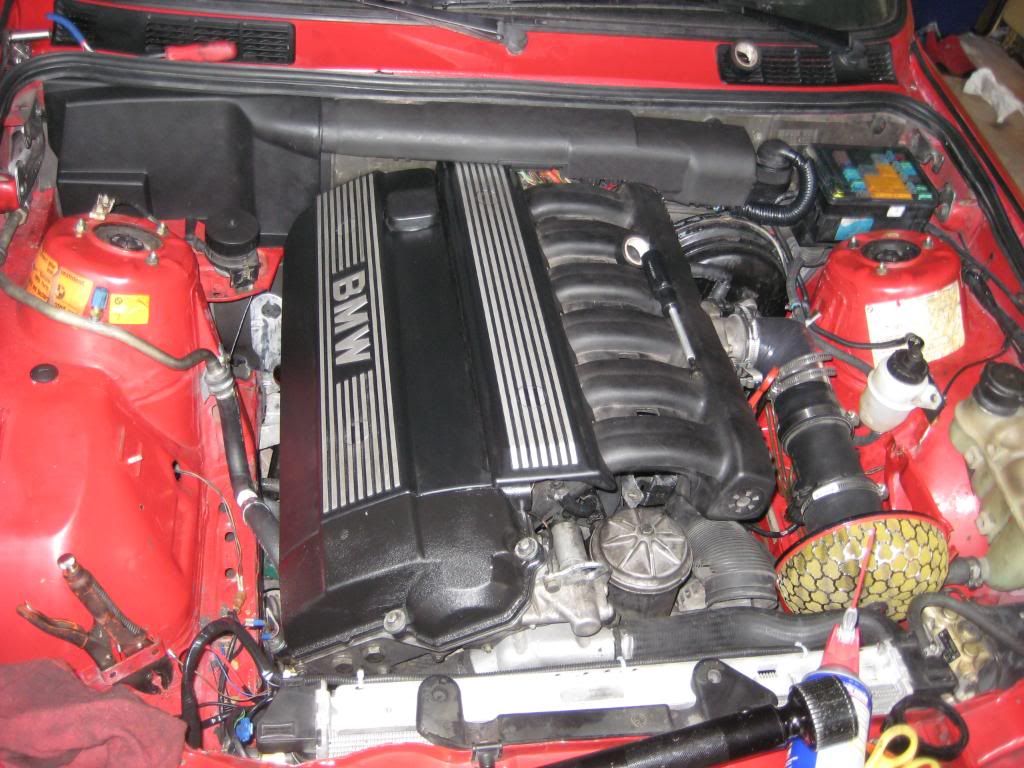

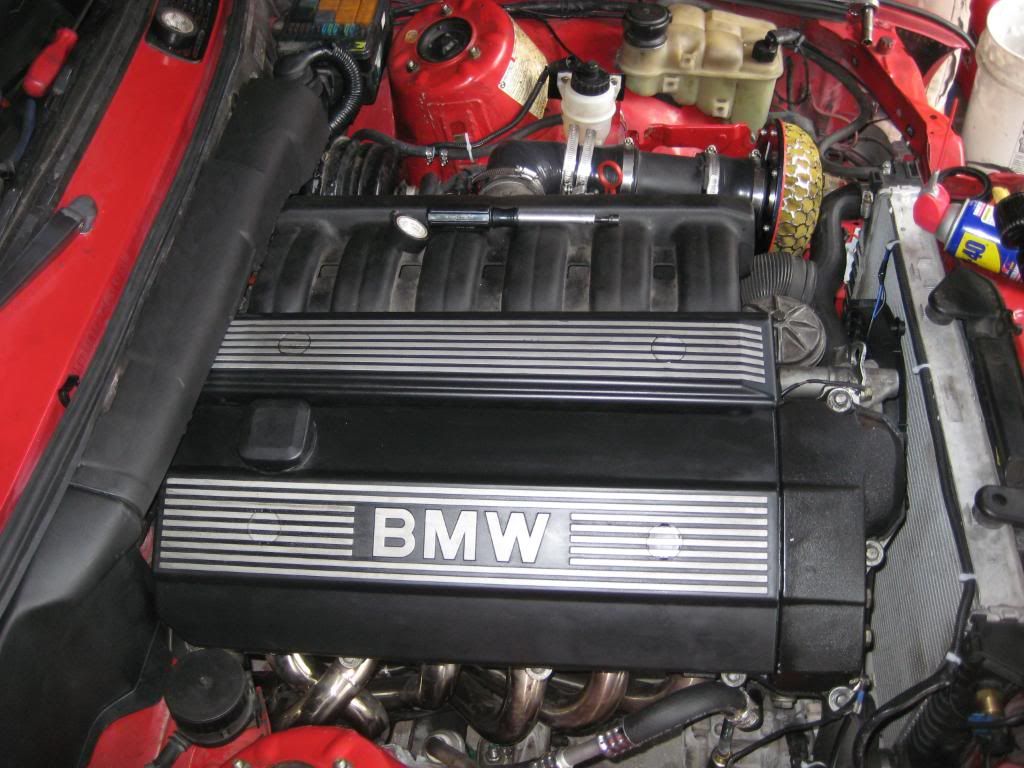

Engine covers on

[bimmer_E30]

awesome!

[harv]

DAMN!!!!!!!

John

[motorsports_3]

So I have been waiting to show this to you guys all at once. One reason why this is taking me forever, along with my job, is that I keep finding new things to add. I decided to do the interior also.

I found a set of Sand power and heated Vaders in very good shape.

I made a set of brackets

Too bad they didnt work

I had to buy some brackets


All set up


I had to modify the seatbelt connector to fit the Vaders








Next was wiring them
My harness


Running it

The connectors

All done


I do not have the heated option installed yet, until I could find a full e36 harness with switches.
Seats installed




I got my back seat custom wrapped to get as close as possible





I also did my guages.









I also vacuumed and filled the A/C system

I found out that my fan decided to die today.

[e30 gangsta]

Wow this car had come a long way! good job!

[motorsports_3]

So I got a few things done in the past few days.

I connected the lights.



Mounted the WW res

Put the grilles back on along with the bumper



I also got a Ryan G splitter




In order to get my temp guage working I needed to change the temp sender
Under the intake mani

New one

Old Vs New

All done

Working

I also blead the brakes



The car is pretty much done. I just need to finish mounting the hood, and wiring the aux fan.

[briansjacobs]

I got some 4 pot wilwoods for sale, would look nice up there

[motorsports_3]

So here is a small update.

I am still waiting to get the exhaust on, hopefully next week or so.

I have mounted the RX-7 BBK. They are 4 piston calipers and 280mm rotors.



Shot with my wheels on. Note the cracked paint.



Mock fitting:
Bracket fits


Rotor fits


Caliper fits


Wheels dont :(


I ordered spacers, but due to lovely sema, they wont be here until next week

Wheel removed

Brake system removed

Heat shield removed



Locktite on the bracket bolts


Bracket and rotor on


Brake line adaptor


Everything on


Pads on


Make sure to tighten brake lines


All done


Now all thats left is to bleed the brakes

Got the hood on



Small pic of what I have been up to

[ethrtyiS]

dude, i love your car! awesome work, keep it up!

[motorsports_3]

What ive been up to the past few days

[VasFinest]

those wheels look so good. I just saw this thread, but I really liek your car!!

[ethrtyiS]

damn those wheels look good.

[Lof8]

I haven't seen this car since your 1st post...and damn! Nice work!

[motorsports_3]

Thanks guys!

[motorsports_3]

I got the wheels on today. I am really excited. I keep looking at the car.

Yes it is dirty, yes I am going to wash it, and give it a very very good wax.

Spacers came in today


Really good quality, and good prices, I would reccomend them to anyone


Spacer on


Wheel on



A few crappy pics of the car




Damn, I just noticed it is pretty low. Skid plate here I come!
