    The Ecobeamer

    I got the idea to and started this project earlier this month; Take my e30 and really build it up as a nice car with a ford ecoboost powerplant. Did planning and research the first week august and went to work on the 7th. Things are moving along good but i need to get some parts so I decided to take a break to make this build thread for your viewing pleasure. Heres the fundamental details of the build:

    -4 door e30
    -2.3L ford mustang ecoboost crate motor with control pack
    -Quicktime bellhousing for 2.3l ecoboost to T5/TKO tranny
    -Hays dragon claw single disc clutch kit with flywheel rated for 600+hp
    -Tremec TKO-500 tranny with .68 OD
    -Custom chromemoly driveshaft with 1310-1350 u joints
    -3.64 torsen LSD from Z3 with dual bushing mounts
    -reinforced subframes
    -coilovers,rebuilt spindles/hubs, new cv axles
    -universal radiator and big intercooler
    -full 3" 304ss turboback with mandrel bends with a resonator
    -12 gal fuel cell with holley hydramat to prevent fuel starvation.
    -basic universal wiring harness
    -autometer z series gauges in custom gauge panel


    this dyno graph shows what the 2.3l ecoboost is capable of. powerband is flat as hell. as it is right now the motor is rated to 310hp and 350 ft/lbs at the crank. im hoping that with my intercooler and 3" turbo back that I can hit 300hp and 350 ft/lbs at the wheels with a tune. that respectable power along with its low weight I think will be real nice in an e30

    Click image for larger version  Name:	cobb dyno.jpg Views:	113 Size:	31.7 KB ID:	9865641
    Last edited by hkv; 08-31-2019, 02:16 AM.

    #2
    ok so I gotta start this project with a stripped body shell and once I got to that point I removed the notorious tar and also removed spare tire well to save some weight. I will cut an aluminum sheet and rivet it in there to cover the hole

    Click image for larger version

Name:	20190807-235128.jpg
Views:	924
Size:	80.6 KB
ID:	9865645

    Click image for larger version

Name:	20190808-000402.jpg
Views:	925
Size:	69.4 KB
ID:	9865646


    the plan for the fuel cell is to mount it as close as possible to the stock location

    Click image for larger version

Name:	20190808-002913.jpg
Views:	920
Size:	80.1 KB
ID:	9865647

    Comment


      #3
      one part of this project involves spraying the underside clean so that I can give it some good looking paint

      turn this:
      Click image for larger version

Name:	20190816-185109.jpg
Views:	923
Size:	77.5 KB
ID:	9865652

      into this:
      Click image for larger version

Name:	20190816-185119.jpg
Views:	926
Size:	77.6 KB
ID:	9865653

      Comment


        #4
        Nice work! Hope to see this running one day.

        Comment


          #5
          Originally posted by formyhealth View Post
          Nice work! Hope to see this running one day.
          thanks man, you had the idea before me. more posts to come, stay tuned.

          my desired date to get this thing driving by is late October
          Last edited by hkv; 08-29-2019, 10:12 PM.

          Comment


            #6
            the fuel cell location is interesting, I kinda wish I did a stock fuel tank but it is what it is, I will have to rivet/weld a shield to separate it from the cabin
            cut, test, cut, test, cut, test:

            Click image for larger version

Name:	20190817-234739.jpg
Views:	820
Size:	75.1 KB
ID:	9866040

            Click image for larger version

Name:	20190817-235008.jpg
Views:	816
Size:	70.1 KB
ID:	9866041

            Click image for larger version

Name:	20190818-000830.jpg
Views:	817
Size:	72.4 KB
ID:	9866042

            Click image for larger version

Name:	20190818-002022.jpg
Views:	822
Size:	68.3 KB
ID:	9866043
            location is pretty sorted out, good ground clearance:

            Click image for larger version

Name:	20190818-000915.jpg
Views:	820
Size:	77.9 KB
ID:	9866044
            Last edited by hkv; 08-31-2019, 02:25 AM.

            Comment


              #7
              megan racing coilovers, don't feel 100% about them but they should be decent

              Click image for larger version

Name:	20190813-224118.jpg
Views:	921
Size:	54.7 KB
ID:	9865671

              Click image for larger version

Name:	20190813-233716.jpg
Views:	922
Size:	71.3 KB
ID:	9865672

              Comment


                #8
                wire wheeled the trailing arms
                Click image for larger version

Name:	20190813-224202.jpg
Views:	906
Size:	69.2 KB
ID:	9865675

                painted them with por-15 and installed new bearings

                Click image for larger version

Name:	20190817-181507.jpg
Views:	902
Size:	82.0 KB
ID:	9865676

                Click image for larger version

Name:	20190817-183212.jpg
Views:	905
Size:	75.1 KB
ID:	9865677

                Click image for larger version

Name:	20190817-190233.jpg
Views:	908
Size:	61.8 KB
ID:	9865678

                Comment


                  #9
                  new tie rods and power steering delete for the steering rack:

                  Click image for larger version

Name:	20190814-034132.jpg
Views:	911
Size:	78.5 KB
ID:	9865681

                  Comment


                    #10
                    motor, control pack and wheels where delivered freight within 10 mins of eachother. couldn't have planned it better if I tried too

                    Click image for larger version

Name:	20190821-151857.jpg
Views:	911
Size:	74.2 KB
ID:	9865684

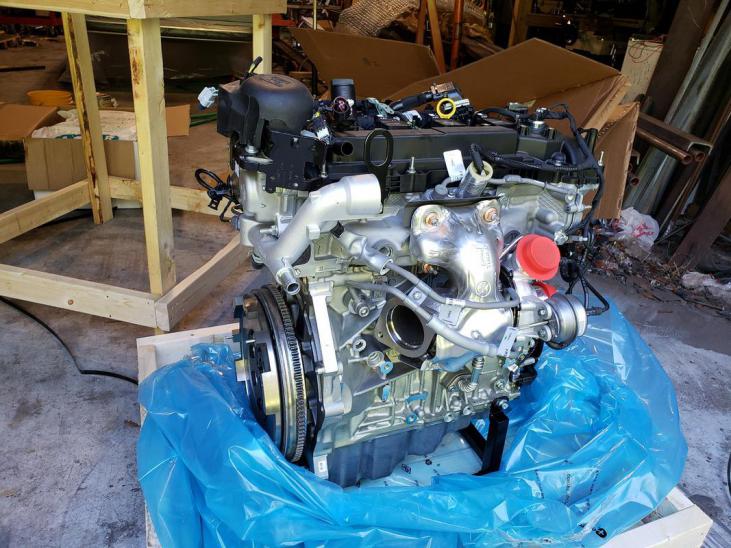

                    here she is; what a beaute

                    Click image for larger version

Name:	20190821-164158.jpg
Views:	907
Size:	83.1 KB
ID:	9865685

                    Click image for larger version

Name:	20190821-164211.jpg
Views:	911
Size:	84.9 KB
ID:	9865686

                    Click image for larger version

Name:	20190821-164205.jpg
Views:	916
Size:	85.1 KB
ID:	9865687

                    Comment


                      #11
                      almost immediately got to removing the stock flywheel
                      Click image for larger version

Name:	20190821-164153.jpg
Views:	917
Size:	84.0 KB
ID:	9865690

                      Click image for larger version

Name:	20190821-184612.jpg
Views:	915
Size:	73.2 KB
ID:	9865691

                      Click image for larger version

Name:	20190821-184603.jpg
Views:	914
Size:	60.8 KB
ID:	9865692

                      tko came in soon after as well

                      Click image for larger version

Name:	20190821-221308.jpg
Views:	902
Size:	42.6 KB
ID:	9865693

                      time to hoist the motor up to get it going

                      Click image for larger version

Name:	20190821-221724.jpg
Views:	905
Size:	76.9 KB
ID:	9865694

                      Comment


                        #12
                        flexplate
                        Click image for larger version  Name:	20190821-222549.jpg Views:	533 Size:	67.2 KB ID:	9865697

                        flywheel with bronze bushing in it as opposed to in the crank for the TKO

                        Click image for larger version  Name:	20190821-231019.jpg Views:	531 Size:	56.9 KB ID:	9865698

                        clutch

                        Click image for larger version  Name:	20190822-002507.jpg Views:	527 Size:	58.7 KB ID:	9865699

                        dragon claw pressure plate

                        Click image for larger version  Name:	20190822-005512.jpg Views:	532 Size:	60.2 KB ID:	9865700

                        and finally with the bellhousing the end result;

                        Click image for larger version  Name:	20190822_012645.jpg Views:	538 Size:	87.8 KB ID:	9865701
                        Last edited by hkv; 09-23-2019, 02:43 PM.

                        Comment


                          #13
                          I painted the car which was an adventure. first attempt was a disaster but this second attempt came out pretty good and im extremely satisfied with it. I realize that many will cringe but take it or leave it, I like it.

                          Click image for larger version

Name:	20190826_154319.jpg
Views:	904
Size:	82.0 KB
ID:	9865703

                          Click image for larger version

Name:	20190826_154331.jpg
Views:	898
Size:	81.3 KB
ID:	9865704

                          Comment


                            #14
                            once again: cut, test, cut, test, cut, test.... the ecoboost has a rear sump oil pan and my strategy is to mount the motor far back enough and high enough so as to clear the front subframe. luckily with the Tremec TKO transmission I have 6 (I believe) different shifter locations to choose from depending the final location of the engine. the high pressure fuel pump of the ecoboost is the high point of the motor and I will tuck that under the windshield.

                            Click image for larger version  Name:	20190826_231931.jpg Views:	88 Size:	83.1 KB ID:	9865707

                            Click image for larger version  Name:	20190826_235239.jpg Views:	86 Size:	84.1 KB ID:	9865708

                            Click image for larger version  Name:	20190826_233840.jpg Views:	86 Size:	81.7 KB ID:	9865709


                            lots of engine bay room

                            Click image for larger version  Name:	20190827_012357.jpg Views:	88 Size:	83.9 KB ID:	9865710
                            Last edited by hkv; 08-31-2019, 11:35 AM.

                            Comment


                              #15
                              I had to turn a spacer for the throw-out bearing on my lathe because this is such a funky driveline setup, the input shaft doesn't go into the crank it only only seats as far as the flywheel. so the transmission is much farther back than on a sbf for example

                              Click image for larger version

Name:	20190827_215252.jpg
Views:	898
Size:	64.4 KB
ID:	9865713


                              so pretty

                              Click image for larger version

Name:	20190827_232442.jpg
Views:	896
Size:	87.3 KB
ID:	9865714

                              Click image for larger version

Name:	20190827_232836.jpg
Views:	892
Size:	89.6 KB
ID:	9865715

                              Click image for larger version

Name:	20190827_233443.jpg
Views:	896
Size:	88.6 KB
ID:	9865716

                              Click image for larger version

Name:	20190827_234603.jpg
Views:	897
Size:	85.3 KB
ID:	9865717

                              Comment
