    Seat Slider

    Been working on something new!

    Click image for larger version

Name:	50058920451_1707a2c476_c.jpg
Views:	14
Size:	62.1 KB
ID:	9935536


    Couple of kits available now.
    Last edited by JGee; 06-29-2020, 10:13 AM.
    HIK Fab

    #2
    I can't see the picture. What iz it?

    Comment


      #3
      It is a race seat slider. It has over 4 inches of adjustment forward and back and at the same time moves just over an inch up and down.

      Made for the endurance race team that is not all the same height.

      It comes in a kit that your fabricator will put together. All parts are precision cut or machined to high tolerances. Making it much easier to keep the slides square, which is critical to a good working slider.

      The bottom seat “rails” come pre-drilled for the e30 (as pictured) but can also be ordered blank.

      The seat can be mounted very low if desired or as high as the one pictured above which is actually for an e12. The kit will accept any side mount seat with approximately a 12” spacing.

      Click image for larger version

Name:	50058931216_69ce17224b_c.jpg
Views:	15
Size:	108.4 KB
ID:	9935552

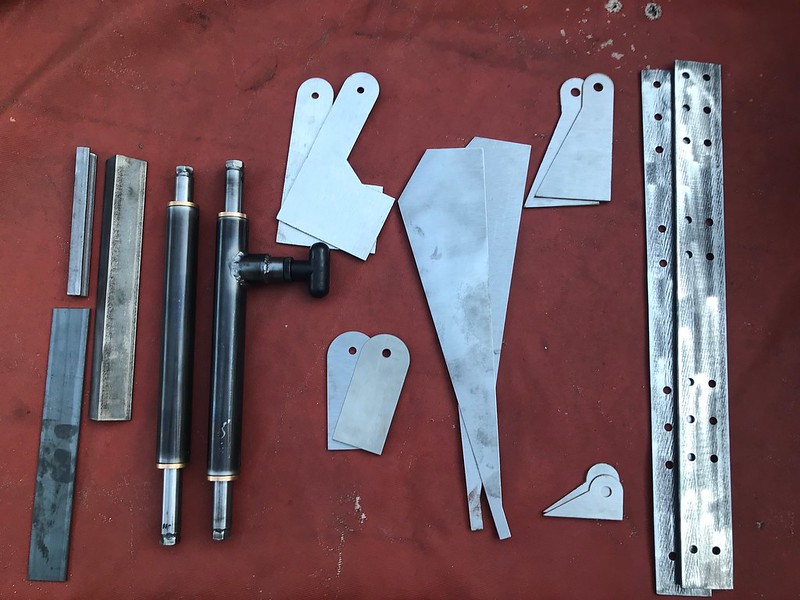

      Kit comes with everything you need and more. Hardware (not pictured) and instructions included.

      Click image for larger version

Name:	50059357092_be94383788_c.jpg
Views:	15
Size:	67.6 KB
ID:	9935553

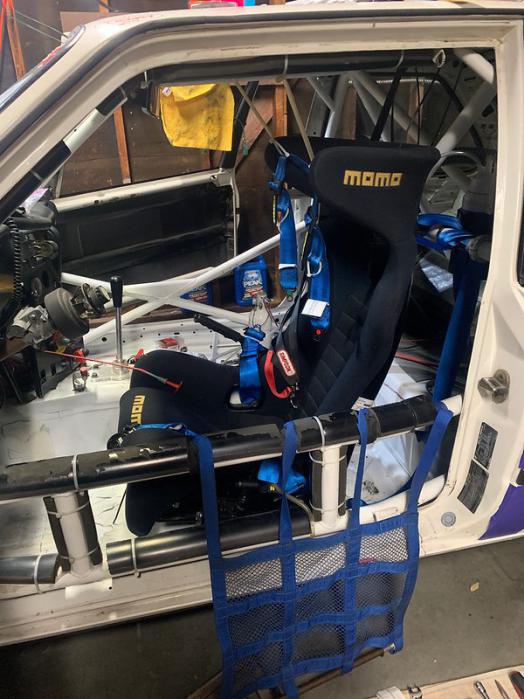

      This car is shared by drivers ranging in height from 5'7" to 6'1".

      JH
