    wiring diagram throttle actuator bmw e46 m3

    Hi.

    I am looking for wiring diagram on throttle actuator bmw e46 m3
    Have thought of switching ecu to the Motec M800 on an S14 engine

    Sincerely, Nils-Erik

    #2
    You can also wire one up stand-alone with a Pololu jrk 12v12 motor controller board

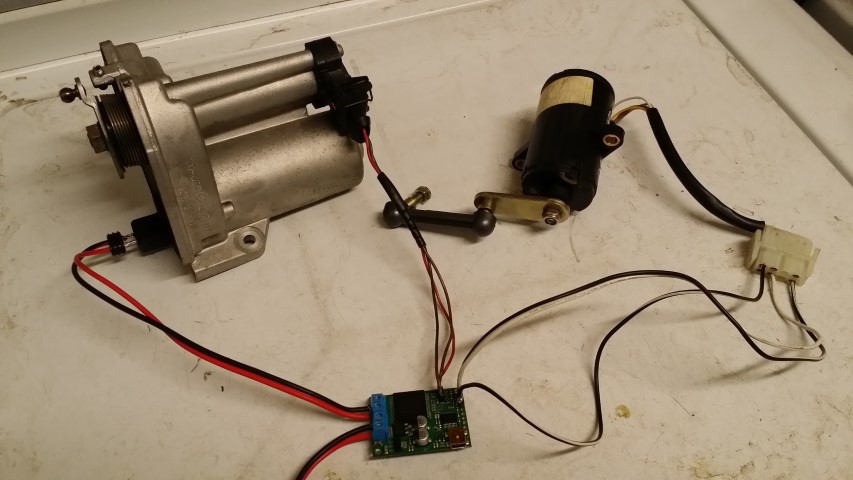

    Click image for larger version

Name:	20150626_080329 (Small).jpg
Views:	42
Size:	78.8 KB
ID:	9889032
    My M20 Frankenbuild(s)
    4 Sale - Fully Built TurnKey Megasquirt Plug and Play EMS

    Comment


      #3
      Still looking for my wiring notes from a few years back, but I still have this setup on the bench so I can get whatever info you need from it, but basically 12v +/- PWM to the motor and 5v +/- Ref and signal feedback from the TPS
      Last edited by whodwho; 11-30-2019, 11:43 AM.
      My M20 Frankenbuild(s)
      4 Sale - Fully Built TurnKey Megasquirt Plug and Play EMS

      Comment


        #4
        www.newtis.info is where I look for things like this.

        hth

        t
        now, sometimes I just mess with people. It's more entertaining that way. george graves
