    One Year In... M3 Build Thread

    Small update. I'm pulling wiring from around the driver footwell. Hoping to pass as little wire as possible back through the firewall and leave some in place in the car, we'll see how that works out.

    So far....

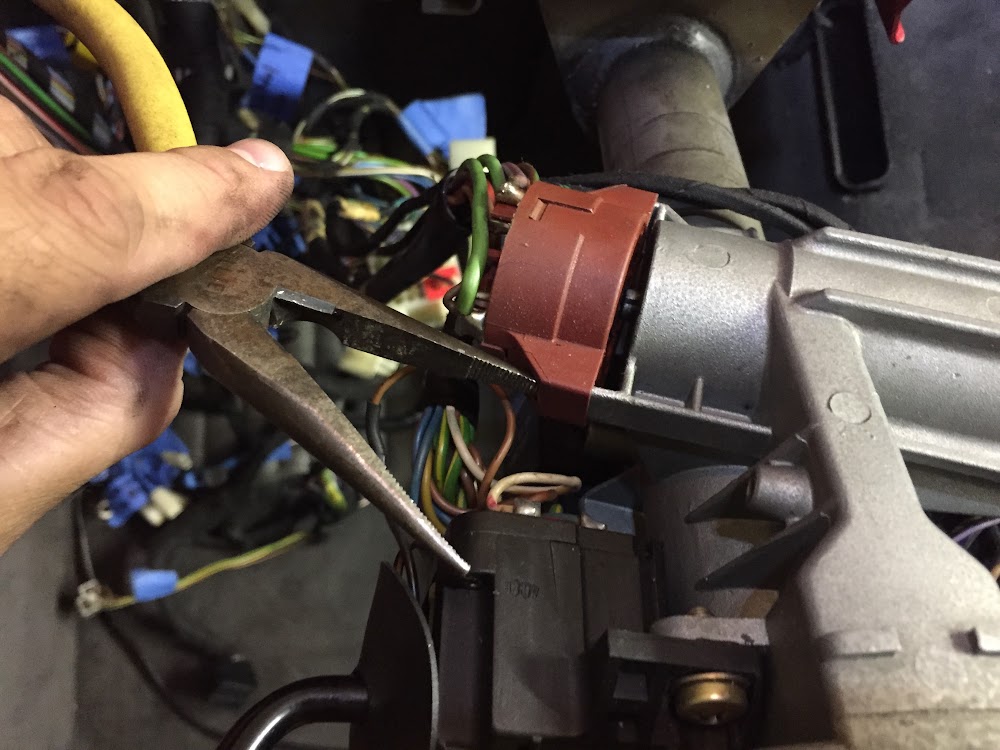

    This is the main connector for all the wires that run to the steering wheel and the stalks (turn signal, wipers, cruise, etc)



    Pretty self explanatory on how to get it off the column.

    [will post pic here when I disconnect the wires themselves, not there yet]

    This T shaped black mount sits on the firewall holds up cables and holds down insulation, easy to remove.


    This guy mounts to the firewall and holds the OBC module as well as several connectors that go through into the engine bay. Easy to disconnect just remember where everything was plugged in or take pictures. Take pictures. For your sanity. There are two main connectors

















    On the lower left side of the footwell, behind where the engine release used to be, there appears to be a zip tie holding the main harness in place. Do not cut this. I almost did until I saw you can leave it whole and remove the harness from it easily









    Detach some of the cable mounts from the ledge above the steering column. Remembering where each goes







    This apparently is the seatbelt buzzer relay.





    As part of this I'm removing the pedal box as well.

    Unhook the brake and gas pedal return springs. I just let them hang from the pedal box for now



    Remove the pin and clip holding the brake master cylinder to the brake pedal. The crop part of the clip needs to be lifted high enough so that the whole clip can slide over the pin











    Now the clutch master cylinder. No clip here, just a 17cm and 13cm wrench needed





    Both cylinders should be free of the pedals now.

    More to come!


    Sent from my iPhone using Tapatalk
    Last edited by CurrusDei; 05-24-2015, 08:22 AM.
    _______________________________________________
    5 Year M3 Build, In Progress
    RMT200 Retrofit

    Comment


      how's your back? great pics - you must be a contortionist :-)
      I BUY/SELL REFURBISHED CM5907s & CM5908s

      HOWTOs:
      DB vert plastic bumpers
      OEM Keys
      MTech1 docs

      88 ix Lach/Card
      91 ic Calypso 3.1
      86 Cosmo 2.7

      OEM+ or bust!


      reelizmpro: I will always be an e30 guy.. I still do all of my own labor
      TrentW: There's just something so right about a well-built M20 in an E30
      e30m3s54turbo: I save my money for tuner parts.

      Comment


        One Year In... M3 Build Thread

        Originally posted by bradnic View Post
        how's your back? great pics - you must be a contortionist :-)

        Ha! It helps when you have the entire interior out. Opens things up a bit. I have smacked the back of my head on the exposed end of my steering column 2 or 3 times-that's always fun

        Birthday present from my sister came in Friday. My other sister got me a new heater core pipe - let's say I'm difficult to shop for.



        New OEM insulation!

        and from my wife....



        and from my grandmother...




        Sent from my iPhone using Tapatalk
        Last edited by CurrusDei; 05-24-2015, 08:23 AM.
        _______________________________________________
        5 Year M3 Build, In Progress
        RMT200 Retrofit

        Comment


          Epic Bday presents!

          Check Us out on Facebook
          Needing a harness adapter or wiring help? Check it out: also have 24v motor mounts, E30 M3 covers and E36 ECU mounts!
          Full Product Line Tuning
          OBD2 Tuning Available! OBD2 E36, S54 Swap, S62 Swap, etc: tuning@MarkertMotorWorks.com Dyno Thread

          Comment


            One Year In... M3 Build Thread

            Way overdue for an update!

            I moved the various wiring harnesses aside so I could get to the 6 bolts holding in the pedal box. This job is much easier with no dash/windshield.





            Top bolts out



            bottom bolts out. This loosens the brake booster as well.



            Disconnect the two bolts holding the pedal box to the clutch master cylinder.





            Then it wiggles free. Finally got that last piece of old insulation out!







            A also disconnected the ignition cylinder wiring while i was there



            MUCH more to come soon. I just loaded up over 400 pics.

            Sent from my iPhone using Tapatalk
            Last edited by CurrusDei; 06-27-2015, 06:33 PM.
            _______________________________________________
            5 Year M3 Build, In Progress
            RMT200 Retrofit

            Comment


              Cant wait to see :)
              Current:
              1989 325i
              1988 M3
              1987 325ic
              Past:
              2001 330ci
              2001 M3

              Comment


                One Year In... M3 Build Thread

                Center Caps look much better, but really show how badly the wheels need to be refreshed





                Here come the big guns

                Last edited by CurrusDei; 06-27-2015, 05:26 PM.
                _______________________________________________
                5 Year M3 Build, In Progress
                RMT200 Retrofit

                Comment


                  Engine Removal Prep

                  Removing hood stops



                  White plastic clips around shock tower go to the ignition coil.



                  Bracket on passenger shock tower - holds an AC line







                  Clip for coolant tank overflow hose



                  Rail bumper



                  Cruise control actuator coming off - three bolts





                  Ground Wires - Working my way to getting the wiring harness freed





                  Loosening connections to ABS unit











                  And off comes the Intake Plenum



                  Magnet helps with the washers - dont want them falling down into the engine bay


                  Bracket on back of plenum holding line from valve cover gasket to brake booster


                  Disconnecting 2 hoses from bottom of plenum. One on front, one directly below.









                  Remove bolt under support bracket (probably replacing this old busted bushing with an upgraded unit. Kormann makes some good stuff like this)



                  Off!





                  Some oil blow-by



                  And there are those beautiful ITBs!
