    Garagistic Strut Bar Install

    just installed a garagistic strut bar. wasn't as smooth as i had hoped. front two bolts lined up great but the back two closer to the firewall were about 1-2 mm out between them. might have been the bar, the garagistic gets crapped on a bit but is still mostly good value for the money.
    most e30 shock towers move inward a bit over time and the bar can be installed by lifting the car at the center of the subframe, moving the towers out. mine had moved outward, after hours of creative jacking on either side to move the towers in, we wound up ovalizing the back holes by about 1mm each.





    wasn't super thrilled about enlarging the holes but it's in and everything seems solid after taking the car on a good run to try it.
    wondered if anyone else has had a similar experience.

    #2
    I have had a similar experience with most Ireland E30 stuff... over the decades...

    t
    now, sometimes I just mess with people. It's more entertaining that way. george graves

    Comment


      #3
      Originally posted by TobyB View Post
      I have had a similar experience with most Ireland E30 stuff... over the decades...

      t
      i run their longtube header which was a great bargain. love the sound etc.

      Comment


        #4
        Originally posted by 82eye View Post
        creative jacking
        mmm
        1989 Hooptie 325iS Build Thread
        1989 Zinnoberrot M3 Build Thread

        Comment


          #5

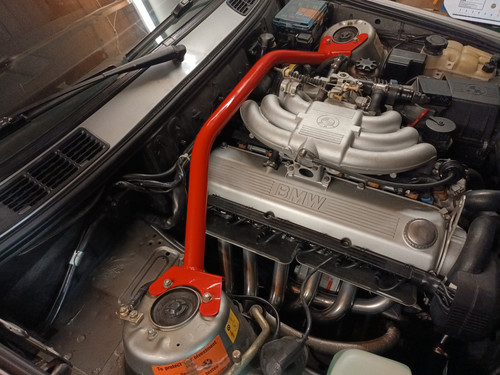

          I just installed a Garagistic unit on my vert. The holes lined up perfectly so I’m fairly sure their measurements are fairly good.

          Click image for larger version

Name:	2CF316D5-4F6D-4BE1-8D99-A6FF6E6FBE9F.jpg
Views:	59
Size:	221.5 KB
ID:	10141642

          Comment


            #6
            Originally posted by ehrawn View Post
            I just installed a Garagistic unit on my vert. The holes lined up perfectly so I’m fairly sure their measurements are fairly good.
            yours has the tower reinforcements that most don't. it had better line up with those. the issue is only on 6 cyl cars without it.

            Comment


              #7
              Originally posted by 82eye View Post

              i run their longtube header which was a great bargain. love the sound etc.
              Oh, the value for money's ok- and that's often been reflected in the fit and finish.

              t
              now, sometimes I just mess with people. It's more entertaining that way. george graves

              Comment


                #8
                When I installed mine the holes lined up great. My installed was easy

                88' Seta 2.7i Zinno

                https://www.r3vlimited.com/board/for...430-my-88-seta

                Comment


                  #9
                  the rear bar went in fine. gonna have to check it after running it a while. got ecs strut tower reinforcements making the bolts close to max with the brace added.





                  cut out some access windows in the carpet and reinstalled. next project is mounting an amp and sorting some audio.
