    The GT30 - My S54 Swapped E30 journey

    Hey R3v,

    A lot has happened since I last checked in. I sold my M54 swapped touring in April 2021. My daughter was born shortly after that in May 2021! So life has been fun and hectic. BUT in the midst of all of these major life changes, I was able to find time to build another car.

    Completing an S54 swap has been a long term E30 goal of mine. Ever since doing my first S50 swap back in 2011-2012, I immediately became a fan of 24v swapped E30's. Since then, i've done an S52, M54 and now the S54. To me, this is the ultimate iteration for the car. This is a true drivers car with no aids: throttle out! With that said...

    Enter: The GT30. The idea behind the nomenclature "GT30" is that I wanted to build an E30 with a design intent of following Porsche 996/997 GT3 Architecture: NA, high revving, 6MT, track oriented, ALL BUSINESS!

    Heres a little back story.

    I found the donor 1991 318iS on one of the E30 groups on Facebook. The ad simply said ' E30 brakes'. I click the ad, and find a very clean, straight DiamondSchwarz 318iS with an M50 swap, AST 4100 coilovers, Wilwood Massive Lee 300x32mm BBK, and a plethora of other track goodies for a bargain price....the ad had been up for a few days with ZERO comments and minimal views. I message the owner and its still available! The car is located in Montana, but is originally a PDX car. We work out a few logistics, and the seller agrees to deliver the car to Bellevue, WA for a minimal fee! SCORE!


    Click image for larger version  Name:	IMG_6618.jpg Views:	0 Size:	59.2 KB ID:	10061330
    Click image for larger version  Name:	IMG_6801.jpg Views:	0 Size:	108.7 KB ID:	10061331
    Click image for larger version  Name:	IMG_6655.jpg Views:	0 Size:	74.6 KB ID:	10061334

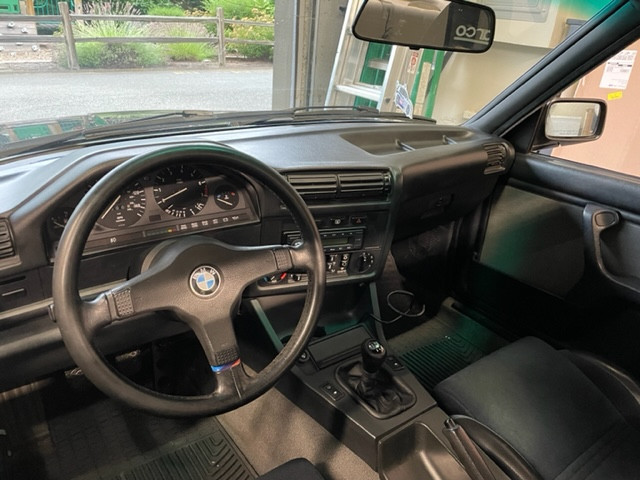

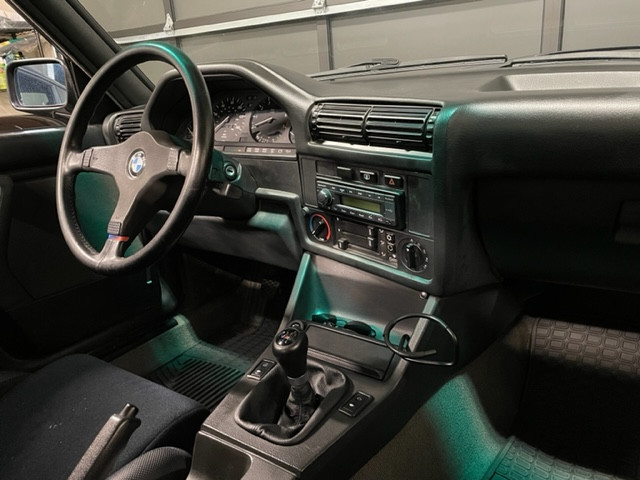

    Having purchased the car sight unseen, I was pleasantly surprised by its condition. The seller was very honest and transparent.
    Attached Files
    Last edited by spiDmang; 07-08-2022, 10:02 PM.
    -Brad, AlphaTeam Motorwerks, LLC
    91' 318iS - S54/6MT Swapped
    08' E90 M3 6MT - Daily
    04' Chevy Duramax CCLB - Work Truck/Hauler


    Originally posted by IronJoe
    Alpha Team: running through e30s, gringo icebergs, and 19 yr olds.

    Originally posted by 2mAn
    Brads a standup guy even though he likes buttsex

    #2

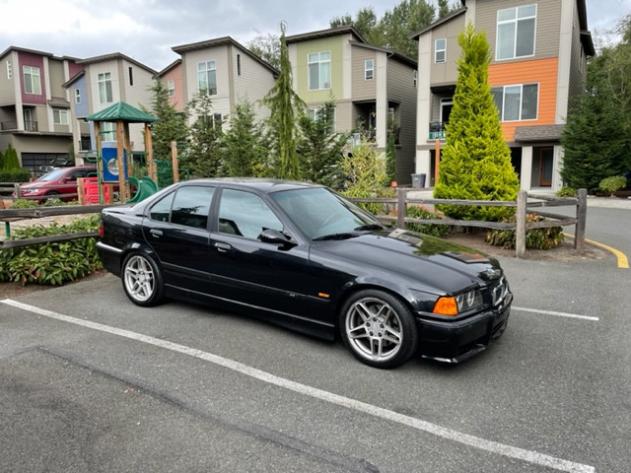

    Fast forward a month, I come across an S54 E36 M3 for sale.
    Click image for larger version

Name:	IMG_6832.jpg
Views:	454
Size:	57.5 KB
ID:	10061338

    The car had been for sale for a few months with no movement. To me, that says alot considering most S54 swapped E36 command big bucks and typically don't stay on the market for too long...so whats wrong with it? The seller disclosed that the car was in an accident but was professionally fixed. I should have taken it to get a PPI done, but lesson learned.

    Click image for larger version

Name:	IMG_6768.jpg
Views:	453
Size:	98.9 KB
ID:	10061339
    The car had a VERY tweaked frame rail (roughly 1.5" off alignment), and held together by literal duct tape and zip ties. That day, I decided this was going to be a part out. Huge bummer, but you have to turn a negative situation into a positive.

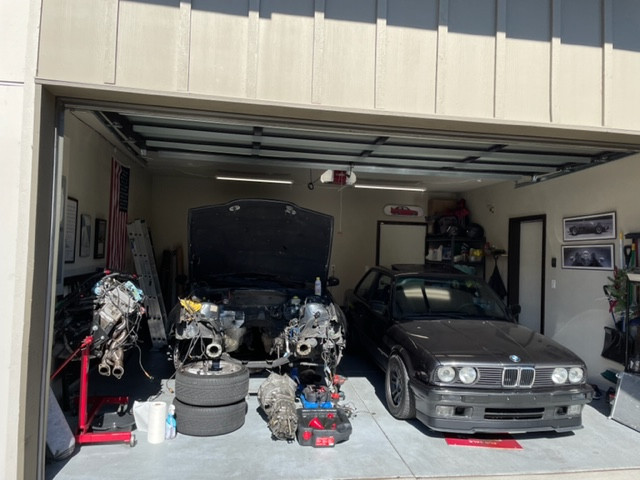

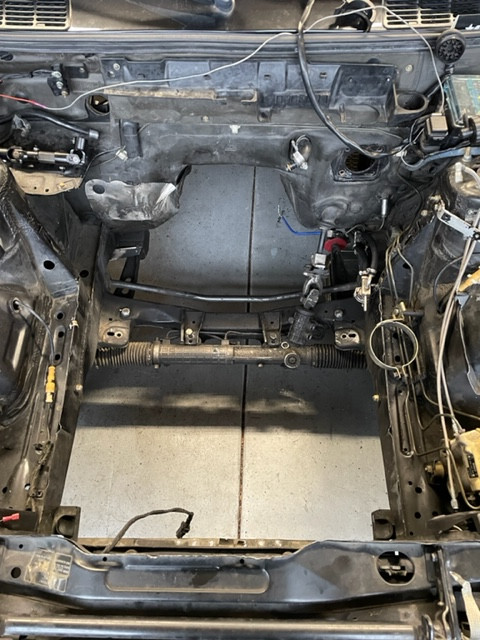

    Commence tear down!

    Click image for larger version

Name:	65419312961__26B67563-337B-47CC-B706-71D1F908ECCD.jpg
Views:	439
Size:	115.3 KB
ID:	10061340

    Click image for larger version

Name:	IMG_7071.jpg
Views:	444
Size:	87.5 KB
ID:	10061341
    Click image for larger version

Name:	IMG_7072.jpg
Views:	440
Size:	83.1 KB
ID:	10061342
    Last edited by spiDmang; 07-08-2022, 10:06 PM.
    -Brad, AlphaTeam Motorwerks, LLC
    91' 318iS - S54/6MT Swapped
    08' E90 M3 6MT - Daily
    04' Chevy Duramax CCLB - Work Truck/Hauler


    Originally posted by IronJoe
    Alpha Team: running through e30s, gringo icebergs, and 19 yr olds.

    Originally posted by 2mAn
    Brads a standup guy even though he likes buttsex

    Comment


      #3

      Parts collection

      Click image for larger version

Name:	IMG_7084.jpg
Views:	458
Size:	112.4 KB
ID:	10061343

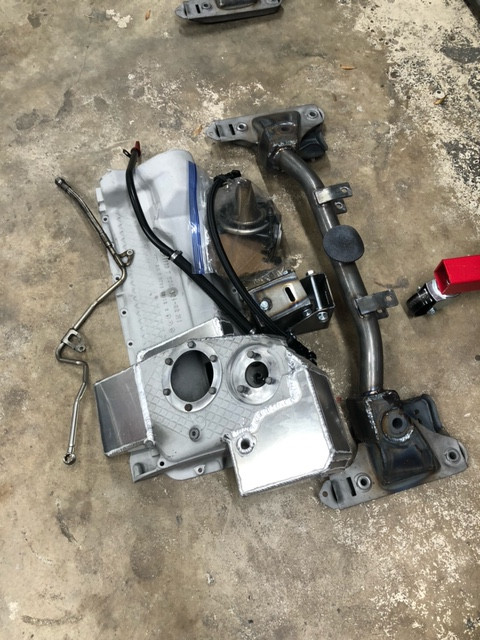

      Bayside Fabrication Rear sump pan conversion and custom front subframe. Quality pieces and VERY quick turnaround

      Click image for larger version

Name:	image0.jpg
Views:	425
Size:	116.7 KB
ID:	10061344


      Brand new Z3M Harness. I didnt want to second guess any of the PO's work since he hacked up the original harness. So this gave me peace of mind.

      Click image for larger version

Name:	IMG_7083.jpg
Views:	451
Size:	96.3 KB
ID:	10061345

      Click image for larger version

Name:	IMG_7663.jpg
Views:	439
Size:	85.0 KB
ID:	10061346
      Last edited by spiDmang; 07-08-2022, 10:09 PM.
      -Brad, AlphaTeam Motorwerks, LLC
      91' 318iS - S54/6MT Swapped
      08' E90 M3 6MT - Daily
      04' Chevy Duramax CCLB - Work Truck/Hauler


      Originally posted by IronJoe
      Alpha Team: running through e30s, gringo icebergs, and 19 yr olds.

      Originally posted by 2mAn
      Brads a standup guy even though he likes buttsex

      Comment


        #4

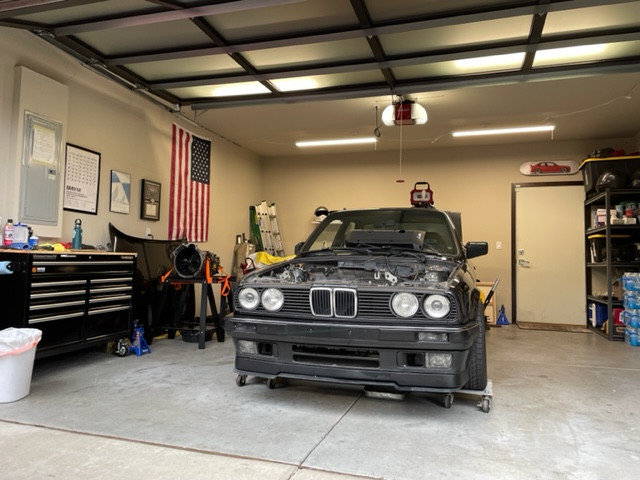

        Finally got a new tool box! And my at home work space is getting much more organized.


        Click image for larger version  Name:	IMG_7627.jpg Views:	0 Size:	90.4 KB ID:	10061822

        Light tear down of the S54. Pulled all cooling components, oil filter housing, sensors, etc for refreshing/resealing. Vanos was bullet proofed by Strictly BMW in Bellevue, WA, so I didn't have to tear into that.

        Click image for larger version  Name:	66113220213__FB9DAAB8-2104-4748-8BE1-22F416C0C4BC.jpg Views:	0 Size:	98.8 KB ID:	10061823

        New ARP Rod bolts and ACL bearings installed. Sooooo much easier on a stand! haha

        Click image for larger version  Name:	IMG_7577.jpg Views:	0 Size:	97.7 KB ID:	10061824

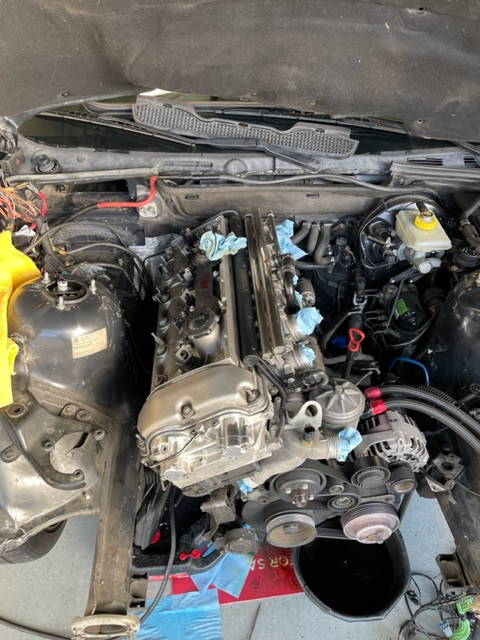

        obligatory engine bay shot prior to the Bayside Fabrication subframe install. You can see the E46 M3 FPR sitting on the firewall. My buddy made me a custom bracket that attaches directly to the frame rail utilizing an existing hole.


        Click image for larger version  Name:	IMG_7707.jpg Views:	0 Size:	114.5 KB ID:	10061825

        Custom FPR Bracket made by a buddy and myself utilizing a carbon filament that is heat and oil resistant.



        Click image for larger version

Name:	66606547743__47C27159-BDE3-4B6A-A8FC-A36FF9D22112.jpg
Views:	378
Size:	75.8 KB
ID:	10061826
        Last edited by spiDmang; 07-13-2022, 11:03 AM.
        -Brad, AlphaTeam Motorwerks, LLC
        91' 318iS - S54/6MT Swapped
        08' E90 M3 6MT - Daily
        04' Chevy Duramax CCLB - Work Truck/Hauler


        Originally posted by IronJoe
        Alpha Team: running through e30s, gringo icebergs, and 19 yr olds.

        Originally posted by 2mAn
        Brads a standup guy even though he likes buttsex

        Comment


          #5
          4
          -Brad, AlphaTeam Motorwerks, LLC
          91' 318iS - S54/6MT Swapped
          08' E90 M3 6MT - Daily
          04' Chevy Duramax CCLB - Work Truck/Hauler


          Originally posted by IronJoe
          Alpha Team: running through e30s, gringo icebergs, and 19 yr olds.

          Originally posted by 2mAn
          Brads a standup guy even though he likes buttsex

          Comment


            #6
            5
            -Brad, AlphaTeam Motorwerks, LLC
            91' 318iS - S54/6MT Swapped
            08' E90 M3 6MT - Daily
            04' Chevy Duramax CCLB - Work Truck/Hauler


            Originally posted by IronJoe
            Alpha Team: running through e30s, gringo icebergs, and 19 yr olds.

            Originally posted by 2mAn
            Brads a standup guy even though he likes buttsex

            Comment


              #7
              This is great! Very excited on this build! My car has the nick name GT30 around the shop based on the same concept. :)

              I was up above it, Now I'm down in it ~ Entropy - A Build thread.
              @Zakspeed_US

              Comment


                #8
                Brad posting a build thread?... uh oh is it going to be for sale soon

                Miss ya buddy, hope the family is good
                Simon
                Current Cars:
                -1999 996.1 911 4/98 3.8L 6-Speed, 21st Century Beetle

                Make R3V Great Again -2020

                Comment


                  #9
                  Dis gunna be gud.

                  Comment


                    #10
                    You have my attention!

                    If you don't mind me asking what does Bayside Fabrication charge for the rear sump pan conversion and custom subframe?

                    It's nice to see other options since Arc Asylum is gone, I know there is another vendor in the UK, but this is always good to see.
                    Project Thread | Instagram | Phoenix, Arizona Events Thread

                    Comment


                      #11
                      Looking good so far!

                      I would like to have an S54 E36 one day.
                      It's a shame that one was totaled out, but at least the heart is going into a worthy chassis.

                      Subbed for updates

                      Comment


                        #12
                        Do you have a build thread for that m54 wagon build?
                        sigpic

                        Comment


                          #13
                          Simon
                          Current Cars:
                          -1999 996.1 911 4/98 3.8L 6-Speed, 21st Century Beetle

                          Make R3V Great Again -2020

                          Comment


                            #14
                            Unfortunate about the E36, but sometimes it's nice for a mistake to force you into a project... well, looking back on it at least lol
                            Originally posted by priapism
                            My girl don't know shit, but she bakes a mean cupcake.
                            Originally posted by shameson
                            Usually it's best not to know how much money you have into your e30

                            Comment


                              #15
                              Originally posted by DEV0 E30 View Post
                              You have my attention!
                              If you don't mind me asking what does Bayside Fabrication charge for the rear sump pan conversion and custom subframe?
                              $1,500 for the works! IMO, well worth the money.
