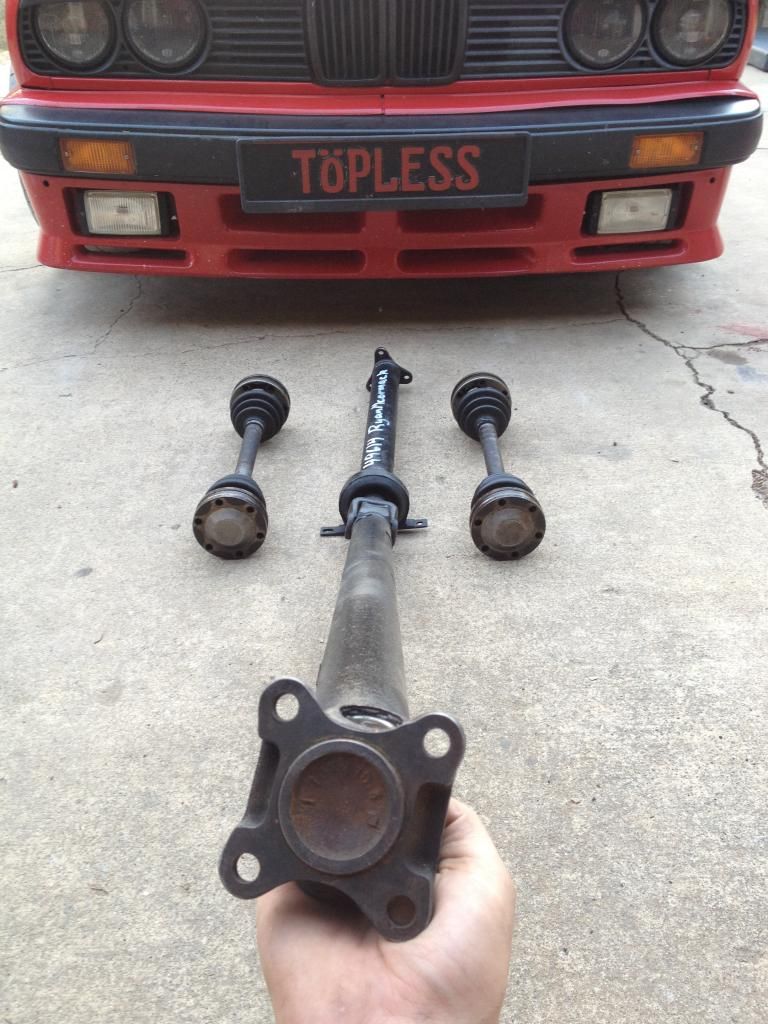

Another long day of work completed. It started out with a couple deliveries. One from Mr. Danco, a pair of E21 half shafts. The other from IE, the new 5 speed driveshaft.

Thought this was interesting:


Despite being handled poorly in delivery everything looked fine.



My brother and I spent some time on his E30 convertible today^. Tranny flush, 750iL master cylinder, louder exhaust. Then we got to work on the 2002...

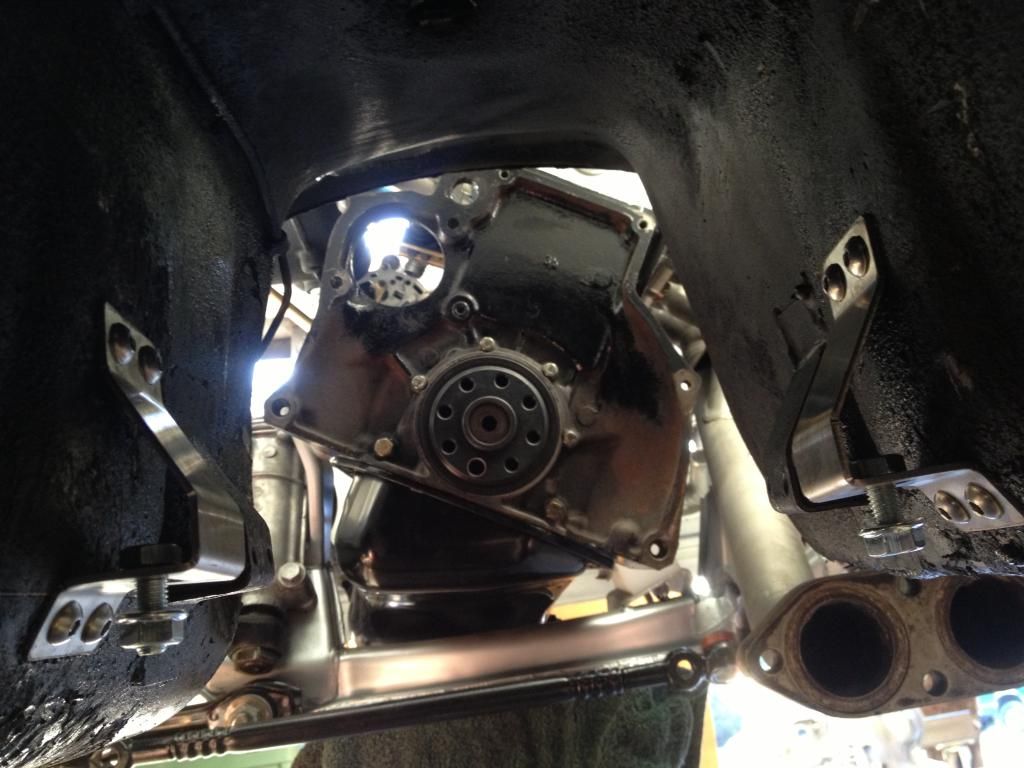

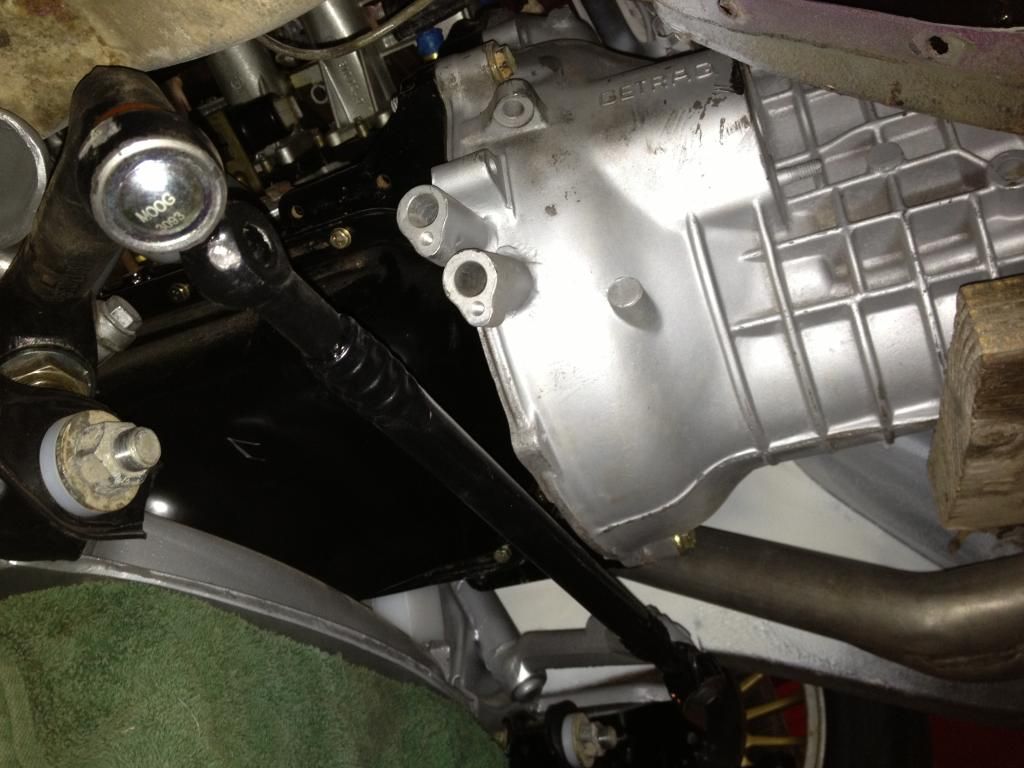

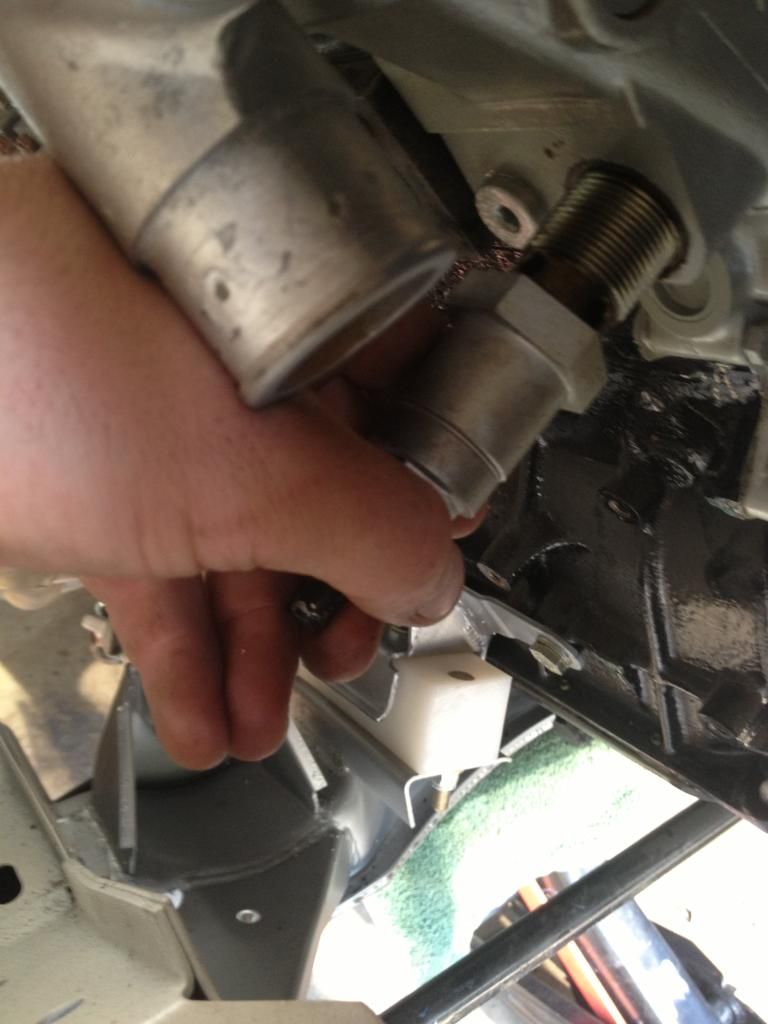

Test fit of the 5 speed transmission to mock up the new Massive rear mounts and marked the spot on the tunnel that needs to be massaged a bit for the slave cylinder. Not the best pic but it was getting late. At first the 5 speed transmission was not sitting straight in the tunnel. It was tweaked toward the driver side about 1/2 inch. To remedy this we supported the front of the engine to take the weight off the engine mounts. I had to remove the driver side engine mount and bushing and get it into the vice. I slotted the hole in the engine mount arm where the bushing bolts travels through and also placed a washer between the engine block and the engine mount to space it a tiny bit. This allowed me to adjust the trans dead center in the tunnel. Once it was lined up I tightened the engine mounts back down and now the S14 and trans sit perfectly in line. :)

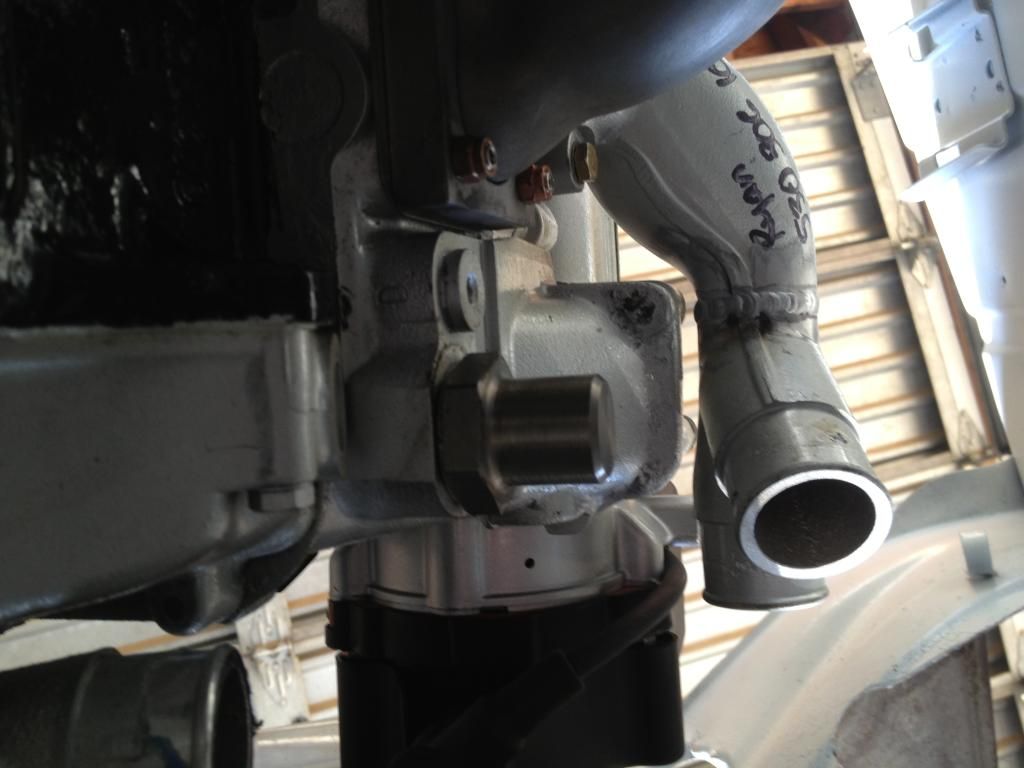

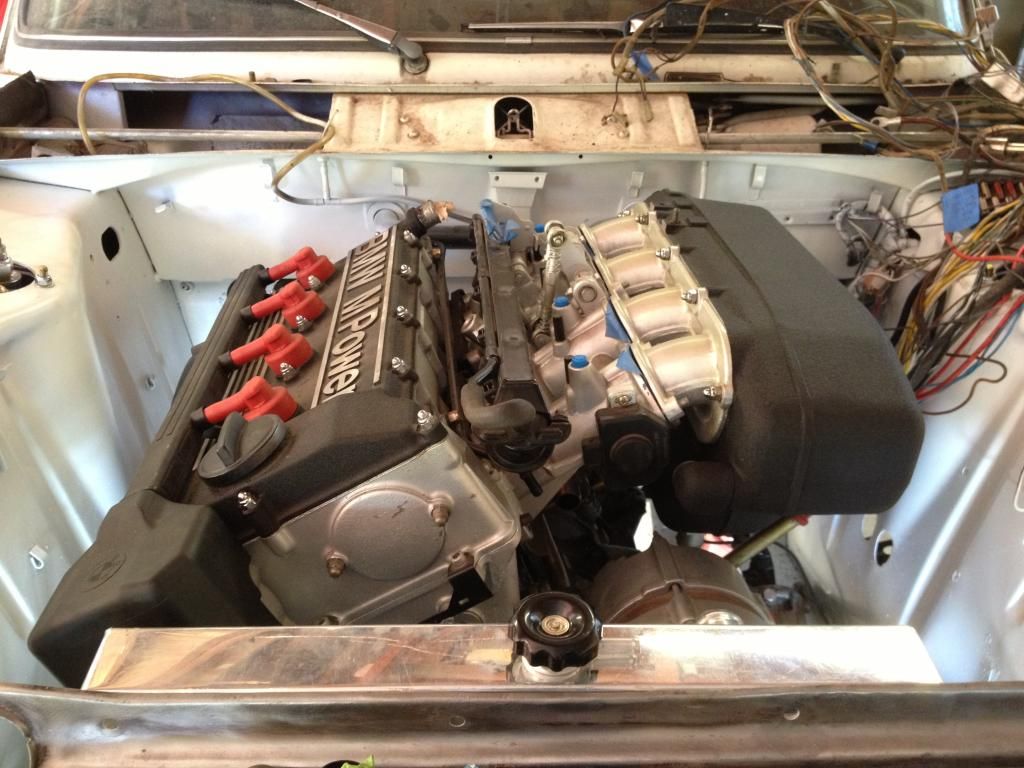

With the transmission supported, I could finally test fit the IE radiator. Clearance between the water pump pulley mounting bolts and the radiator is slim. With some massaging of the radiator support, and some thinner hex key bolts to replace the standard 10mm pulley bolts, I achieved the needed space between pulley and radiator.

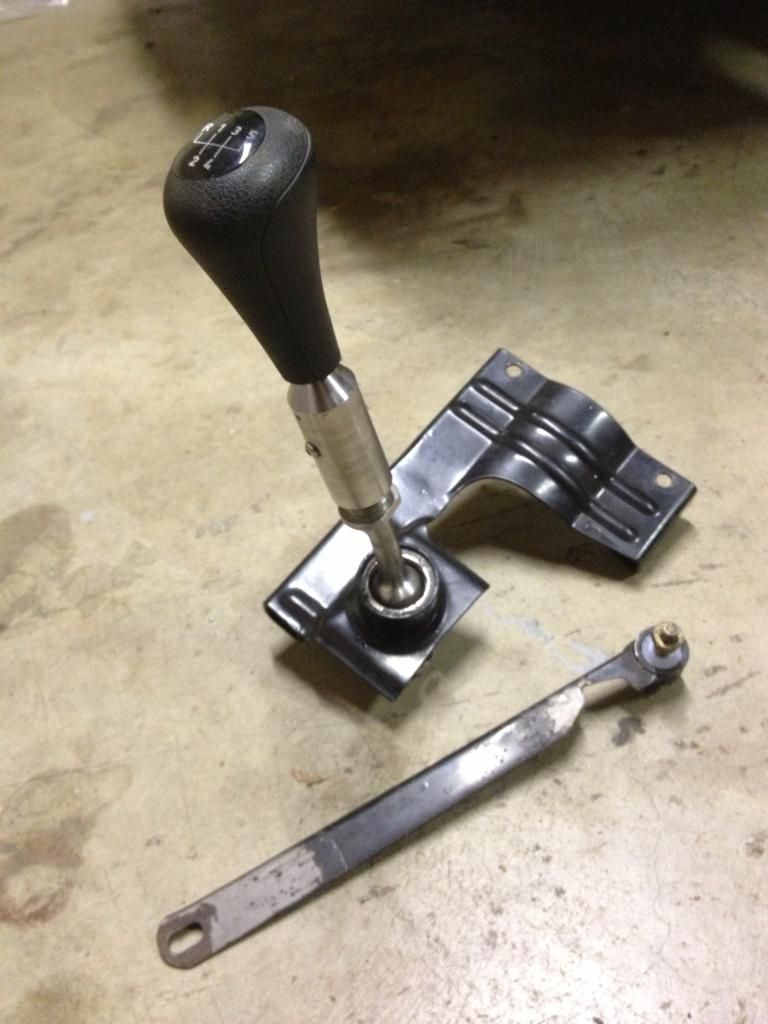

Finally, I spent some time mocking up the Aardvark Racing 5 speed shifter plate. I'm using the UUC EVO III shifter with early model E30 shifter hardware. I did have to modify the support arm that supports the shifter plate and connects to the transmission. Once modified, I pressed in the IE solid bushing. It'll all be painted up tomorrow now that I know it clears and installs without issue.



Tomorrow I will be installing the 5 speed Massive transmission mounts, shortening the transmission crossmember a bit to fit the new mounts, and then test fitting the drive line. Next Ill tackle the pedal box rebuild and the brake booster hardware rebuild with the kits IE offers.

On a side note, I pulled the carpet yesterday and was surprised to see how much sound deadening material there is underneath. I must have removed 20 lbs from the passenger side alone. Once it's all removed from all floor pans and the tunnel, Ill likely add some sort of floor cover back to the passenger front floor board. With that header running underneath, and then the remainder of the exhaust traveling beneath that floorboard, I just want some heat shielding for the new carpet and passengers feet. Looking into a firewall heat shield also to further help heat blockage.

[CorvallisBMW]

Looking good! :)

[RCM3]

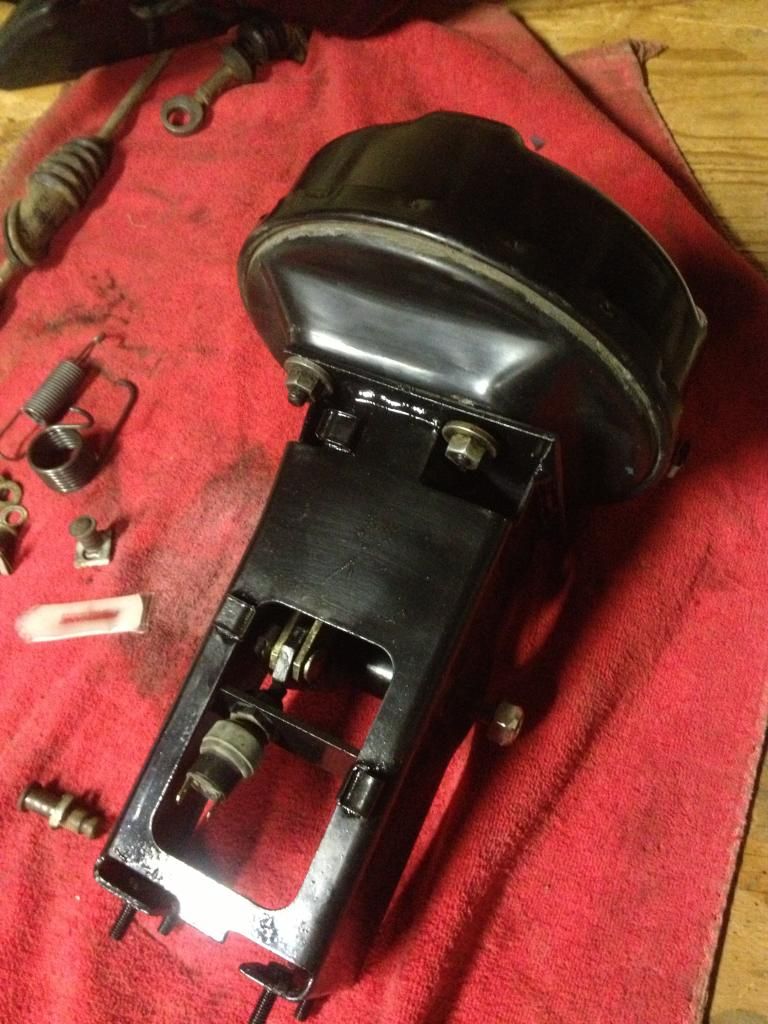

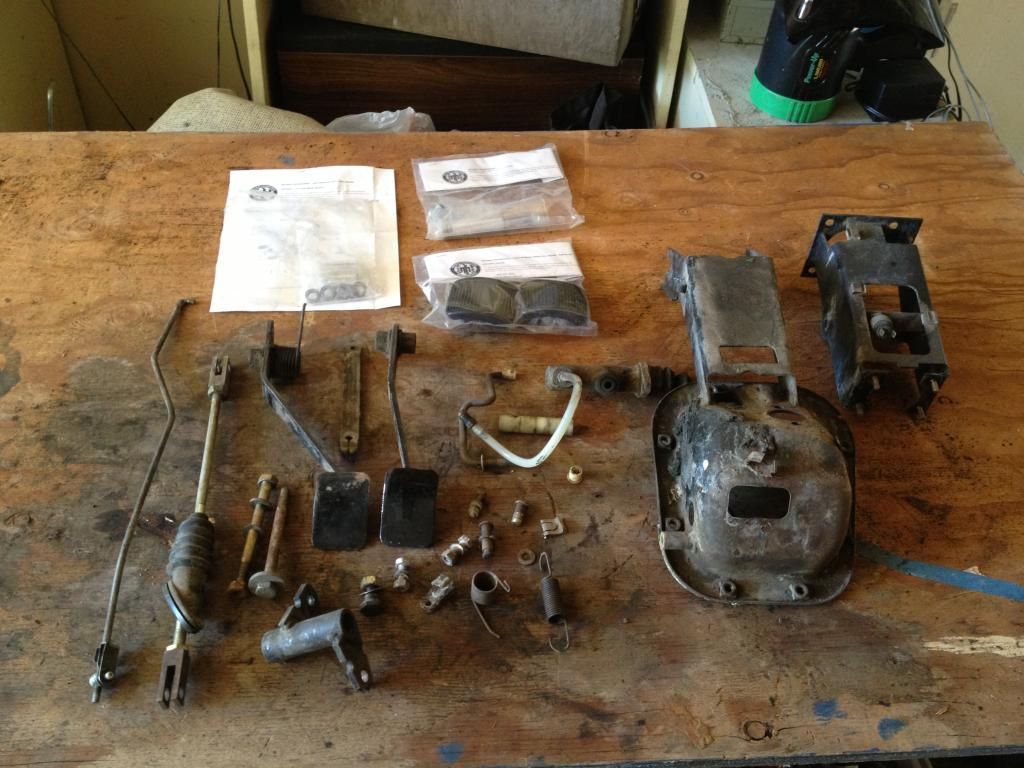

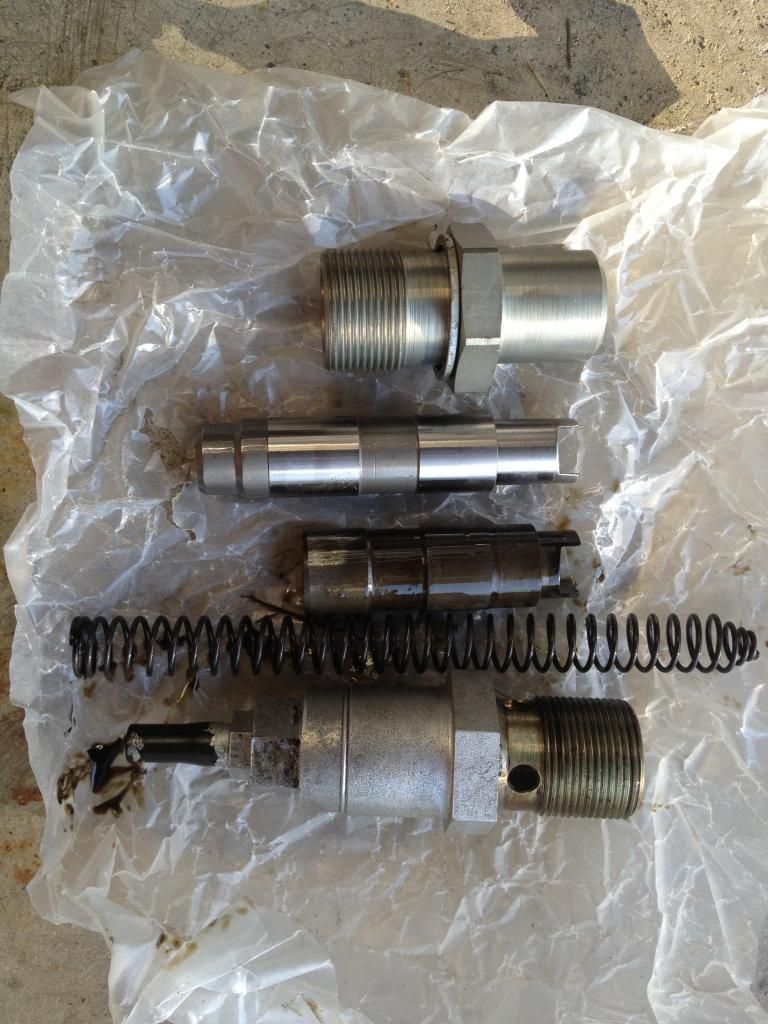

Tedious things today. Stripped down and cleaned the pedal box and all bits associated with it. Here's where I started:



I primed and painted anything metal that was to be reused. The clutch and brake pedals, pedal box itself, brake booster mounting plates, and the booster pivot arm. While those dried I measured, re measured, measured once more and drilled the holes for the 5 speed Massive mounts. Per discussion in Marshall's M2 build on the FAQ, I made sure to grab large washers for the new bolts that secure the mounts. Avoids vibrations through the power train eventually pulling the small bolt heads through the thin sheet metal in the trans tunnel, especially since I have those solid bushings.

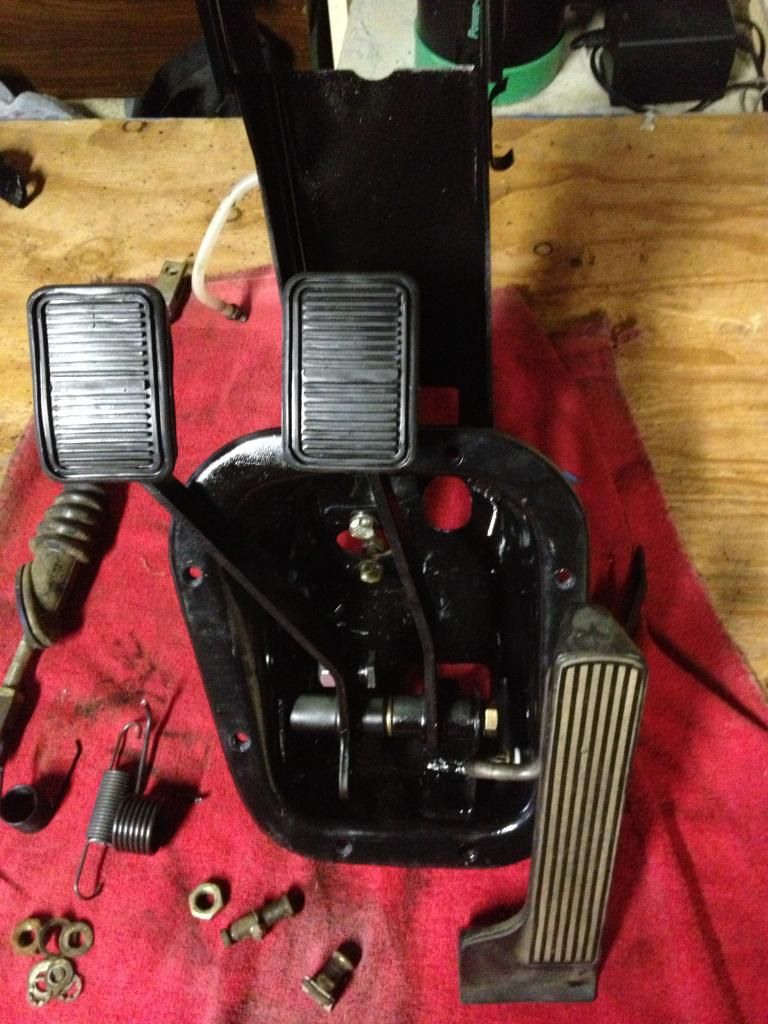

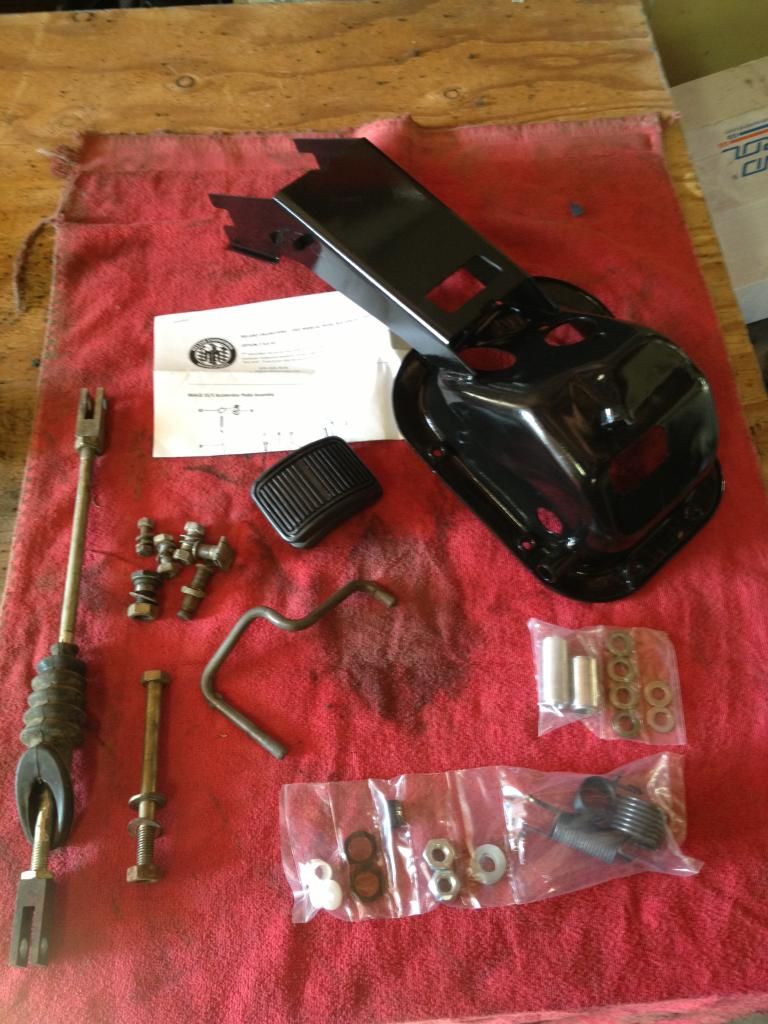

Back to the pedal box. Followed IEs exploded views of the parts to rebuild the unit. Old plastic sleeves are replace with their kit in favor for small bearings and aluminum spacers. Much nicer! It all went together without surprises. Ill take a few pieces off to install the box tomorrow and reassemble once again onto the car.







Tomorrows agenda. Finish the wiring on this guy finally.

[pietro]

So nice! Looks super clean… definitely sub'd

[deutschman]

I dont know why but I actually enjoyed rebuilding the pedal box on my last 02. Maybe Im weird hahaha

Good work!

[aintnothang]

I remember see that red vert up in Placerville a few weeks ago.

[RCM3]

The last few days have been dedicated to E30s and my E39. The 540i needed a big maintenance overhaul. Vacuum leaks had been killing performance and triggering the CEL so I made some time to get all that sorted.

A follow up shot of my bros E30. He's seriously beginning to hunt for a nice 2002, considering trading the vert in for an M20 powered square tail. My project in the background.




Back to the M2 updates.

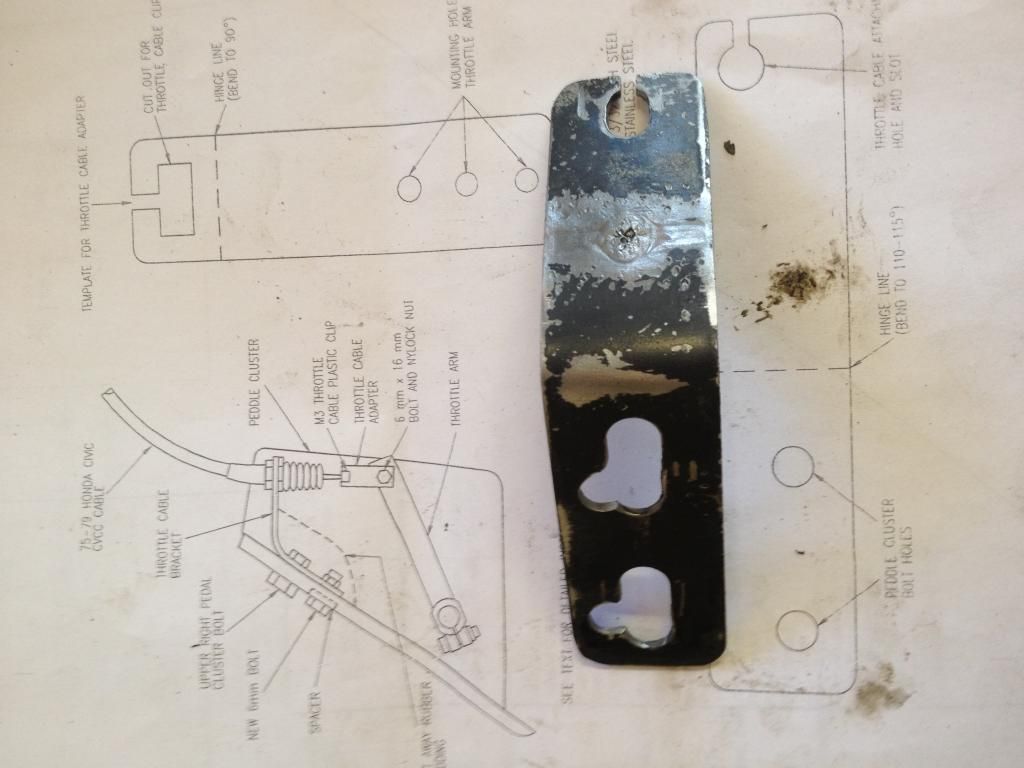

The day started with some fabrication of the throttle cable brackets needed for the S14. I had a template for both brackets and I followed those specs to create them. Looking around the scrap pile, I found the old 2002 AC radiator brackets and got to work. A few cuts, some drilling, filing, then painting I had the brackets finished. My swap guide says to use a 1975-79 Civic CVCC throttle cable to complete the throttle linkage set up, I haven't made that purchase just yet however.




Then I swapped in the new, updated timing chain tensioner. It's an E36 M3 tensioner that works very well in the S14 to provide more consistent chain pressure and to help out on cold starts. Fairly simple job with a deep 32mm socket.

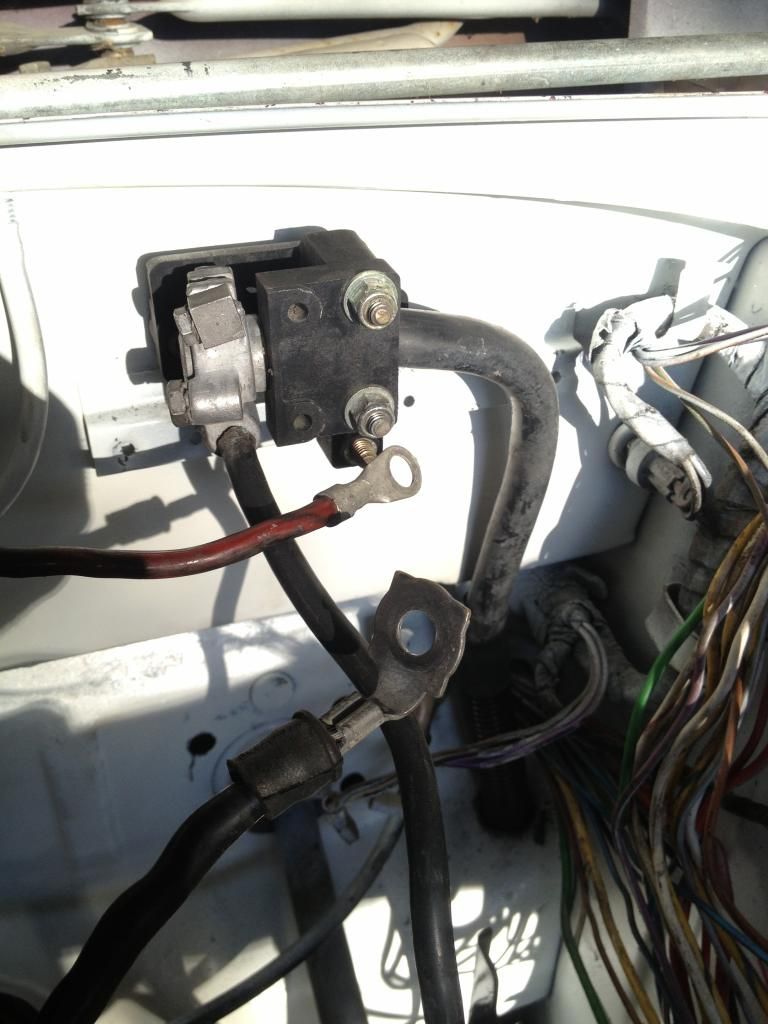

Mounted up the E30 battery terminal box on the fire wall for the positive lead. I think ill need to grab another section of E30 battery wiring, in about 1 foot short. Ill grab some at the junk yard later.
