    Bayside Fabrication S54 E30 Subrfame and Oil Pan Modification 2.0

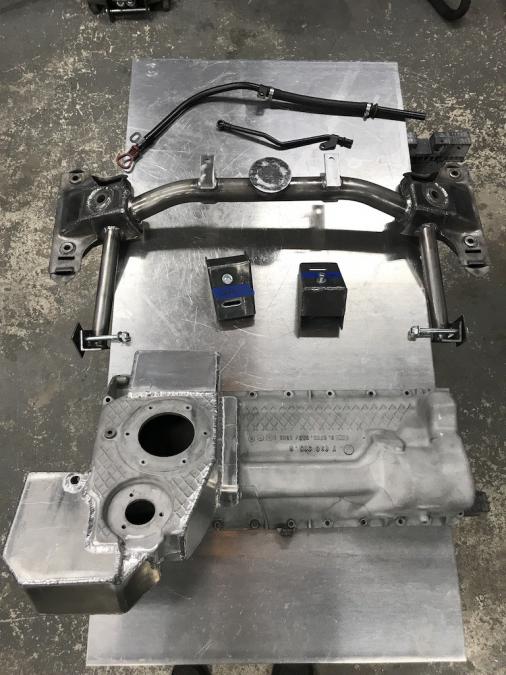

    Hey guys how's it going. Just wanted to put it out there that I completely redesigned my setup that I originally had in favor for a much simpler and over all better design. As for the subframe specs it is cut and reinforced with 1/8 plate, the cross member is 1.75x.095 DOM tubing, steering rack mounts are 3/16 steel. HD subframe adds 2 additional mounting points at the fire wall and is thru bolted to frame. Sway bar mounts are a boxed in design that are can be thru bolted or welded just in front of the subframe to the frame rail. This takes additional stress of the subframe. Oil pan is modified using 3/16” thick 5052 aluminum. All pans are bolted down with a sealed gasket to a flat surface and pressure tested to ensure there are no pin holes. Oil capacity is approximately .75qt greater than factory. I will get better pics as soon as a few customers start the conversion as I didn’t have the time or space completely pull my drivetrain again.

    Parts I would need from customer
    1. Oil Pan. Include one of the m6x100mm long rear oil pan bolts. (Needs to be installed before expansion tank.
    2. Subframe. Complete or cut just outside of steering rack mounts and send me those 2 pieces. (Cutting will save on shipping)
    3. Dipstick tube with dipstick
    4. Oil drain tube

    Additional info needed:
    1. I will also need to know what steering rack you are planning on using as the mounts are different from the e30 to e36/e46.
    2. Thru bolt or weld on sway bar mounts

    Price is $800+shipping for standard mods
    $850 + shipping for the HD subframe.
    $25 for subframe jack point added

    If interested I contact me at ben.sipson@gmail.com @baysidefabrication on instagram or call me at 860-324-7935. Also check out my facebook group S54 E30 Owners Group. Any questions feel free to ask.
