    M20 Front Engine Whine / Rotational Sound

    Hello all. I'm looking for some insight as to what may be causing a rotational whine near the front of my engine. The sound has been consistent throughout my two years of ownership, is very noticeable around 2k rpm from outside the car, and is definitely RPM dependent. It doesn't seem to have gotten worse or better over time, and there are no obvious external issues I have been able to find. I have replaced the water pump, belts, alternator, distributor, and fan clutch as maintenance items over time, and unfortunately none solved the noise problem. The only remaining external rotating item is the timing belt, which was replaced by a local BMW shop immediately after I purchased the car. I haven't replaced the timing belt again yet, because I may be removing the head for some work soon, and would like it to be fresh with the head refresh.

    I think it's also worth noting that there are no shavings or anything visible in the oil that may indicate bearing wear.

    I've done some searching, but can't seem to find anyone that I'm confident has the same issue, so any ideas on what this may be would be greatly appreciated.

    Video of the sound in question: https://youtu.be/6NpxtjCRxMA

    #2
    Likely the timing belt system, it’s makes that noise when it’s a bit over tensioned.
    89 E30 325is Lachs Silber - currently M20B31, M20B33 in the works, stroked to the hilt...

    new build thread http://www.r3vlimited.com/board/showthread.php?t=317505

    Comment


      #3
      When my M20 was making that sound it was the timing belt tensioner. I disconnected all other belts and it kept making the noise, replaced the belt and tensioner and it went away.
      @turbovarg
      '91 318is, M20B25, T3/T04E 60 trim (18psi), megasquirt, coilovers, Z3 rack, cold AC
      [b u i l d]
      [Car of the month: April 2018]

      0c8b7c9527af628a346878feb14bf757

      Comment


        #4
        I have had the same problem with one of my cars. I am wondering if I can start the engine with no drive belts attached without harming electronics? In other words, can I start and run the car on the battery for a minute or two with no ill effects? Planning to put one belt back at a time...

        Comment


          #5
          Digger & varg, thanks for the input. Timing belt / tensioner is my main suspect too, just needed to hear it from someone else.

          Packratbimmer - Yes, you can definitely start w/o accessory belts to help eliminate the alternator, water pump, power steering pump, etc. This is precisely what I did to rule out those items on my car. Obviously don't run it for long like this. For reference, mine took maybe 20 seconds to confirm it wasn't the water pump.

          Comment


            #6
            Originally posted by packratbimmer View Post
            I am wondering if I can start the engine with no drive belts attached without harming electronics? In other words, can I start and run the car on the battery for a minute or two with no ill effects? Planning to put one belt back at a time...
            No issues with this, it won't hurt anything and your battery has more than enough reserve to run it like this for as long as that would take.
            Just remember that the water pump is also not pumping while the belt is off, but you shouldn't be running it long enough for that to matter.
            Originally posted by priapism
            My girl don't know shit, but she bakes a mean cupcake.
            Originally posted by shameson
            Usually it's best not to know how much money you have into your e30

            Comment


              #7
              Originally posted by Northern View Post

              No issues with this, it won't hurt anything and your battery has more than enough reserve to run it like this for as long as that would take.
              Just remember that the water pump is also not pumping while the belt is off, but you shouldn't be running it long enough for that to matter.
              Thanks Syoder and Northern!

              Comment


                #8
                Can anyone recommend the best timing belt tensioner brand to buy? I use Continental timing belts and usually buy it in a kit. I am wondering if they have started putting in cheap bearings into the kits to curb costs.

                Comment


                  #9
                  OE or INA have worked well for me
                  89 E30 325is Lachs Silber - currently M20B31, M20B33 in the works, stroked to the hilt...

                  new build thread http://www.r3vlimited.com/board/showthread.php?t=317505

                  Comment


                    #10
                    I thought I'd provide an update on the this situation.

                    Long story short, it does appear to be the timing belt tensioner pulley. There's no obvious play in the bearing, but rotating by hand reveals the movement is a little less smooth than the new pulley I have. The reason I say it appears to be the pulley is that my repair plan snowballed drastically to the point that the engine & trans is now out of the car, the head is at the machine shop, and I'm tearing down the block for the same treatment. I was burning a lot of oil (at least 1qt every 500 miles), and she failed smog. After changing plugs and cleaning & sealing the intake she failed again. I've been wary of the head gasket and the bottom end (specifically rings), as I know the head was rebuilt by the PO, and the bottom end wasn't touched. I thought if I'm tearing the front apart and taking the timing belt out, I may as well go all the way rather than come back in a year and do it all again.

                    Wish me luck.

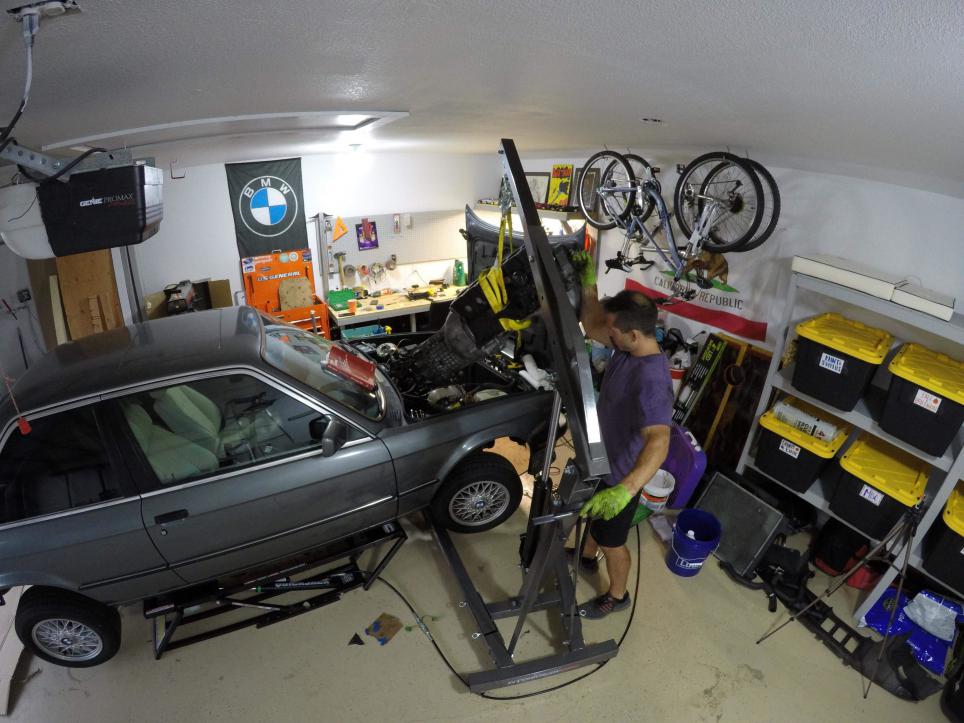

                    Here's a little action shot...

                    Click image for larger version

Name:	rsz_g0029115.jpg
Views:	171
Size:	98.1 KB
ID:	9941508

                    Comment


                      #11
                      Aah yes, taking the "while I'm in there" to a whole new level!

                      I too have a whine coming from the front of the engine, I haven't had time to remove the accessory belts yet and listen if it still whines.
                      1990 325iX Touring - November 2018 R3V Car Of The Month

                      1980 Volkswagen Golf mk1 1.1
                      1974 BMW 2002 Touring

                      Instagram

                      Comment
