M30 swap

[george graves]

Nope, standard thread direction.

I always get that wrong. Sorry.

[1987E30project]

I just want to replace the plastic rails. So can it be done without removing the chain?

[yert315]

no, you have to remove the chain to get it out of the guard rail

[1987E30project]

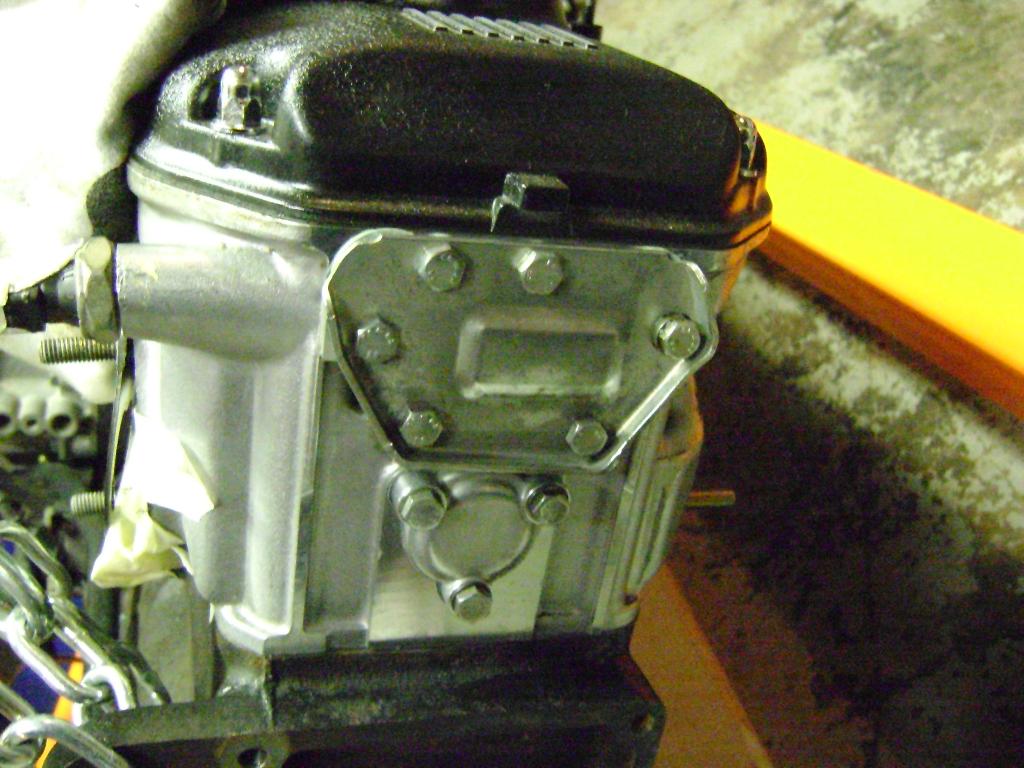

Some more progress. Replaced the gaskets for these covers

[1987E30project]

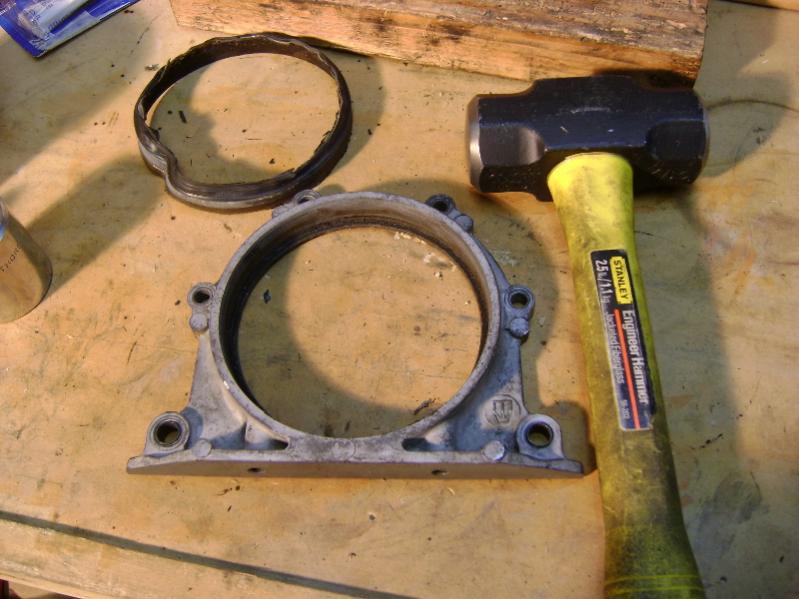

Removed the rear main seal from the holder. My BFH had to lend a hand.

[BDK]

make sure that you tap the new one in a mm or two farther than the last one to prevent leaks...

[1987E30project]

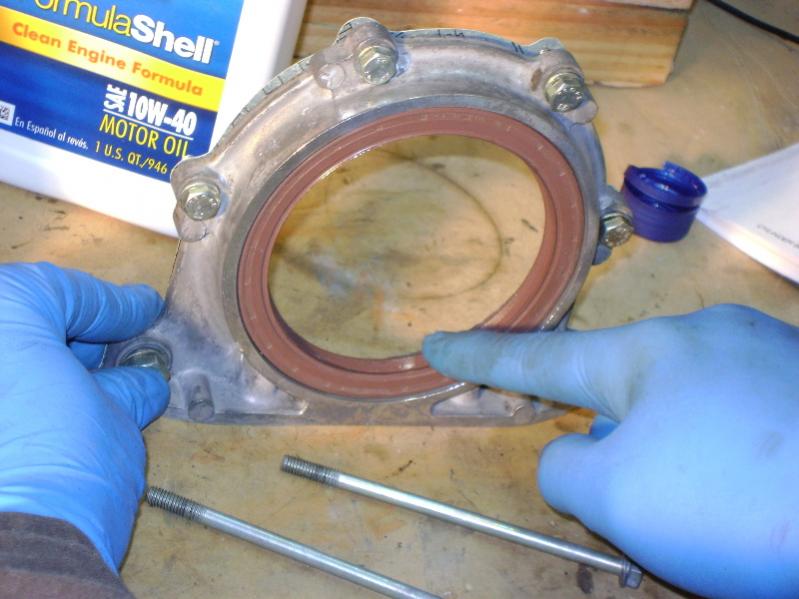

Here's the new one installed. I went 2mm below to avoid leaks. Put a little oil on the lip so it slides in easy when installing.

[wildstoats]

Some more progress. Replaced the gaskets for these covers [ATTACH]25891[/ATTACH]

Does anyone else think that gasket looks like a duck? Quack quack!



Looking good :)

[1987E30project]

Sure does. Ummmm..... I didn't use new washers when replacing that gasket. There was only one screw using a washer also.

[E30 Beast]

its lookin good so far just started the swap myself waiting for my flywheel to come in so i could piece this bad boy together keep up the good work

[1987E30project]

Update

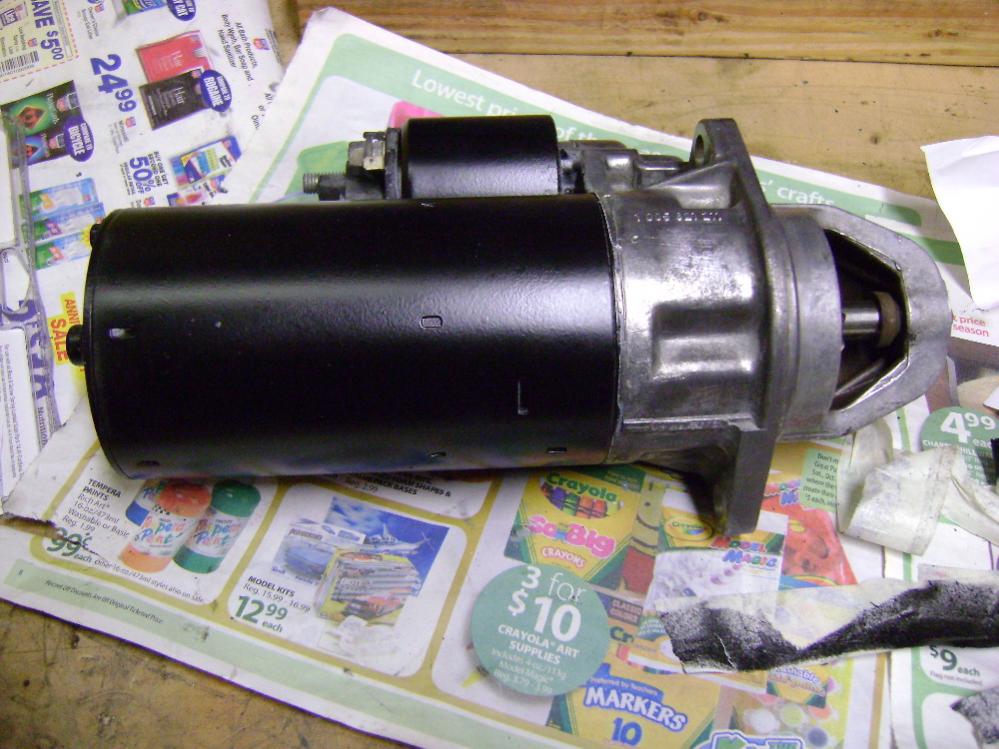

I had the starter tested and it passed and since the paint was chipping i gave it a coat of paint.

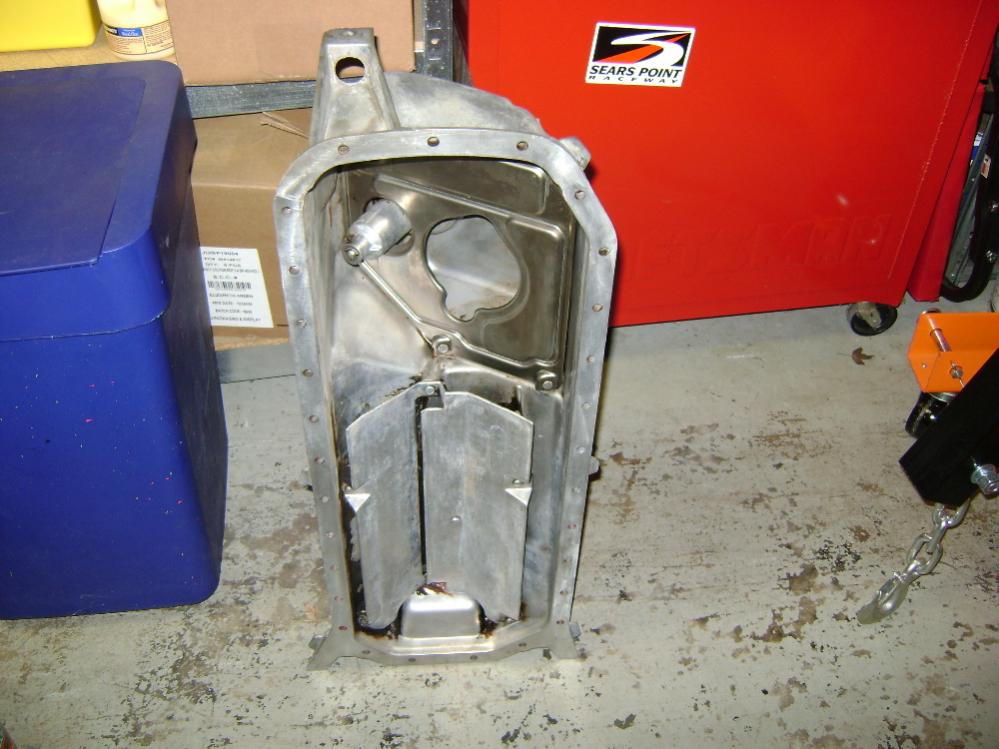

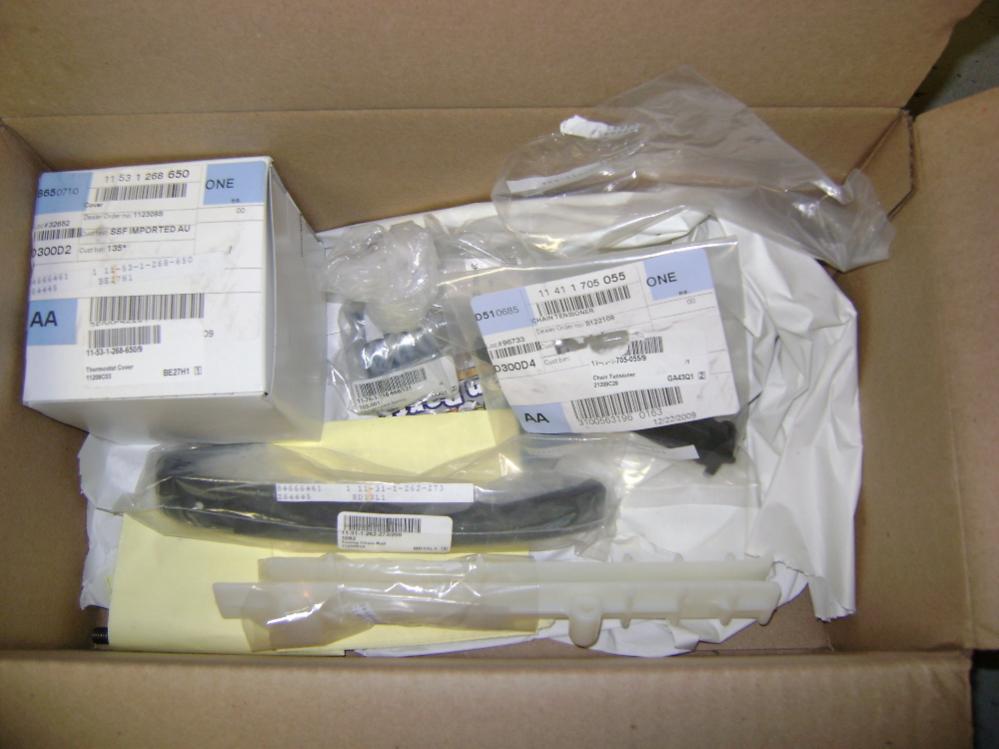

Removed and cleaned oil pan. Engine waiting for some parts which just arrived.


Now I have to figure out a way to remove the crankshaft nut and replace the chain guides and tensioners.

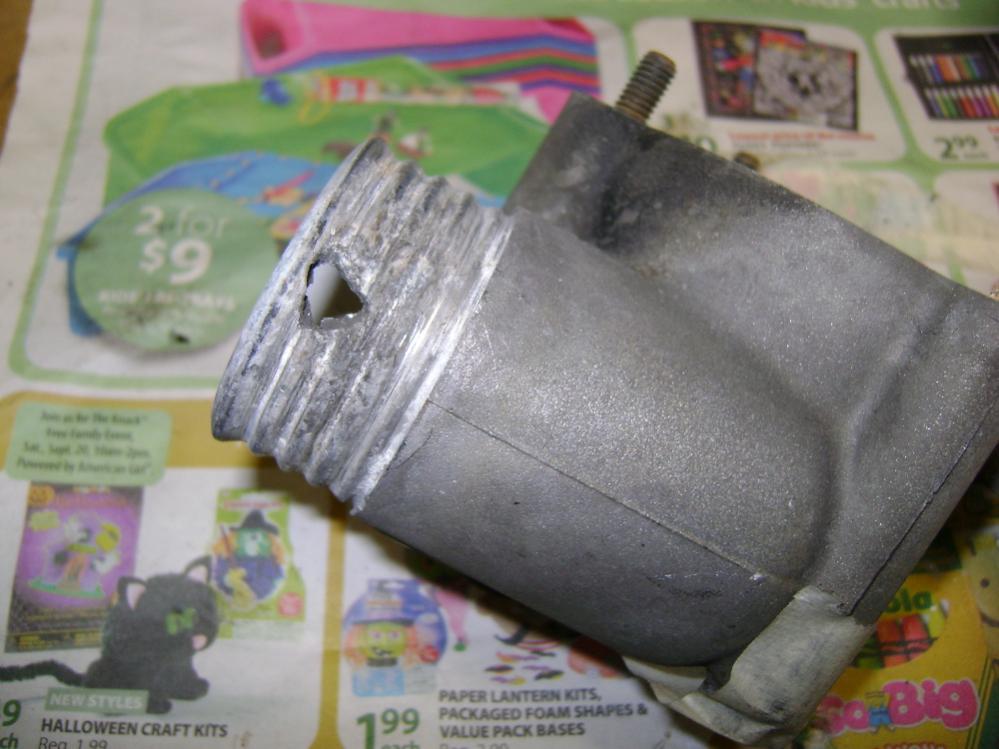

I think this makes a good argument to use BMW coolant only. Would you reuse this thermostat cover??

[Doughnut]

I think this makes a good argument to use BMW coolant only. Would you reuse this thermostat cover??
[ATTACH]26545[/ATTACH]

Yeah, use bmw coolant.
If funds were a bit tight, I'd reuse that thermostat cover and just put the hose clamp up further. Double check to make sure there isn't any damage elsewhere too!

[weaksauce]

[ATTACH]26543[/ATTACH]

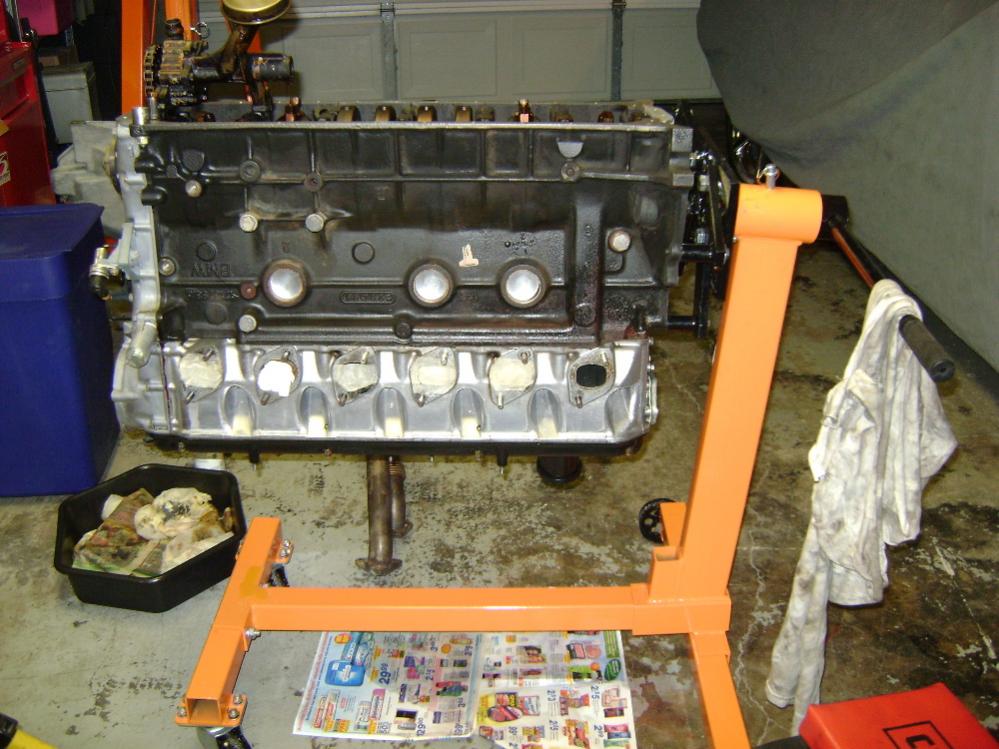

ahhh! your motor is upside down!

[1987E30project]

Yeah, use bmw coolant.
If funds were a bit tight, I'd reuse that thermostat cover and just put the hose clamp up further. Double check to make sure there isn't any damage elsewhere too!

I'm replacing the water pump, thermostat, what else should I check or replace?

[wildstoats]

Yeah, use bmw coolant.
If funds were a bit tight, I'd reuse that thermostat cover and just put the hose clamp up further. Double check to make sure there isn't any damage elsewhere too!

Whoa! What the hell caused that?
