      Update: I've put about 300 miles on her and she run's like a scalded cat!

      I have a short list of things that need to be fixed:
      1. Brakes are dragging (Massive Booster Delete)
      2. Still no Tach
      3. Speedometer is WAY off
      4. Electric fan runs all the time.

      Other than that, she runs great and is an absolute blast to drive. The solid motor mounts aren't as bad as I was expecting vibration wise and the exhaust is actually relatively quiet until I stand on it. No power steering isn't that bad but, I haven't had it on a tight road yet. The decision to delete the brake booster is still questionable, I can't give a solid answer until I have fixed the dragging pad problem (just need to adjust linkage). Because the pads are in contact with the rotor, the pedal is super firm and the pads have some pretty knarly fade.

      The fan should be an easy fix. I just need to change wire pin-outs on a relay.
      1988 Super E - RIP
      2019 Ford Escape - DD ;D
      2006 Chevy 2500 Duramax - Race car hauler
      1990 Corvette - Weekend toy
      1986 353 - Snow White, One Crazy Girl - SOLD :(
      1986 VW Jetta (vr6) - Racecar SOLD

      IG: RDE_Fabrications
      Check us out
      Or YouTube --> HERE

      Comment


        1000 mile check in.

        1. Dragging brakes fixed - backed off on the rod between the master cylinder and the pedal
        2. Tach fixed - needed resistor between the power and signal wire
        3. Speedometer is still off
        4. Electric fan fixed - issue with relay wiring

        No power steering feels amazing, I am still really happy with it even on twisty roads when pushed hard. No power brakes is a little sketch when doing spirited driving - I will most likely be upgrading calipers or reducing the size of the master. I can't lock up the wheels and I don't have the confidence I want to late brake into a turn and know that the car will respond.

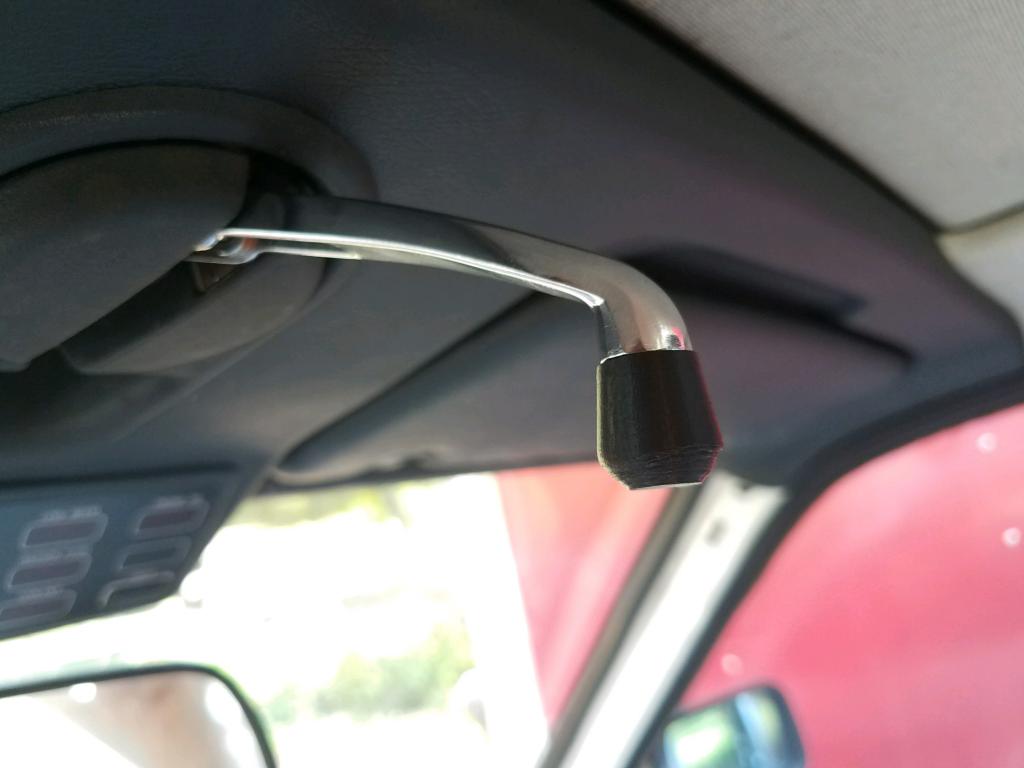

        On another note, I have been slowly going through the rest of the car and I started with the sunroof crank knob.

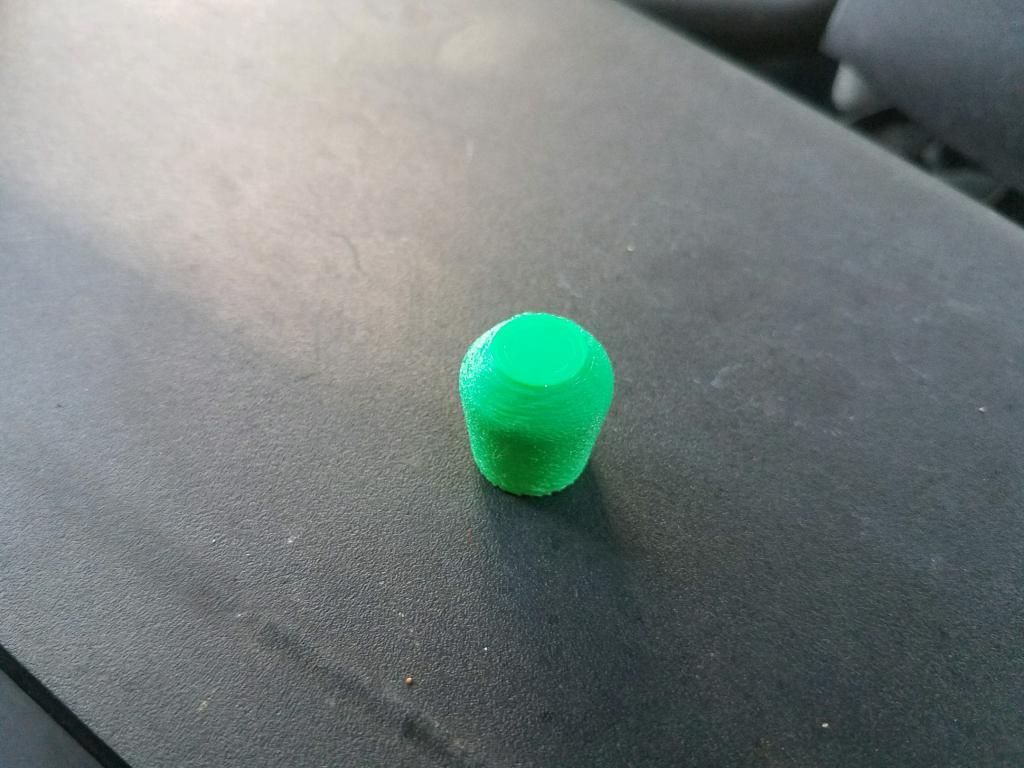

        I made a prototype on a 3d printer and once I verified the dimensions I printed a more permanent version from black Nylon. The permanent version was a little tight and I had to use a rubber mallet to tap it onto the handle. Works like a champ though and sure beats the little metal post.
