ttrousdell's Project Thread (E30 M3 & S38 swap content)

[Alpina]

Thats a hell of a thread,,,,,, fantastic i must say

ps, reminds me of my own projects..

[MJCRO]

Sounds so sick.

[Jb325is]

So what are you going to do with the m5? I'm about to start a new swap on my e30 and am debating between building an s5x or s38. I couldn't find it in your thread, what mounts did you go with and did you run the subframe spacers?

[ttrousdell]

So what are you going to do with the m5? I'm about to start a new swap on my e30 and am debating between building an s5x or s38. I couldn't find it in your thread, what mounts did you go with and did you run the subframe spacers?

Once I get the S38 in the e30 running 100% Ill pull the other s38 and sell the shell. Ill keep the other engine and 280 trans as a spare or for a later project. Im not sure who made the mounts. They came with the engine when I bought it. The engine was originally in someones e30 M3. Not running subframe spacers but will prob make some eventually. For now ill just run no hood and hope I dont attract unwanted attention.

Awesome man! your smile says everything!! Now get your ass to upstate NY for some weekend backroads.

Once I sort out the bugs definitely. Few things to do still.

• Fix high idle
• Get custom radiator hoses(the ones i rigged are temporary)
• Install a fan
• Resonance flap doesn't seem to be working.
• Coolant gauge in cluster doesn't work (I have an aftermarket temp gauge installed but would be nice to have the one on the cluster functioning)

Thats a hell of a thread,,,,,, fantastic i must say

ps, reminds me of my own projects..

Thanks. Was admiring your build long before i had an s38. Big help :up:

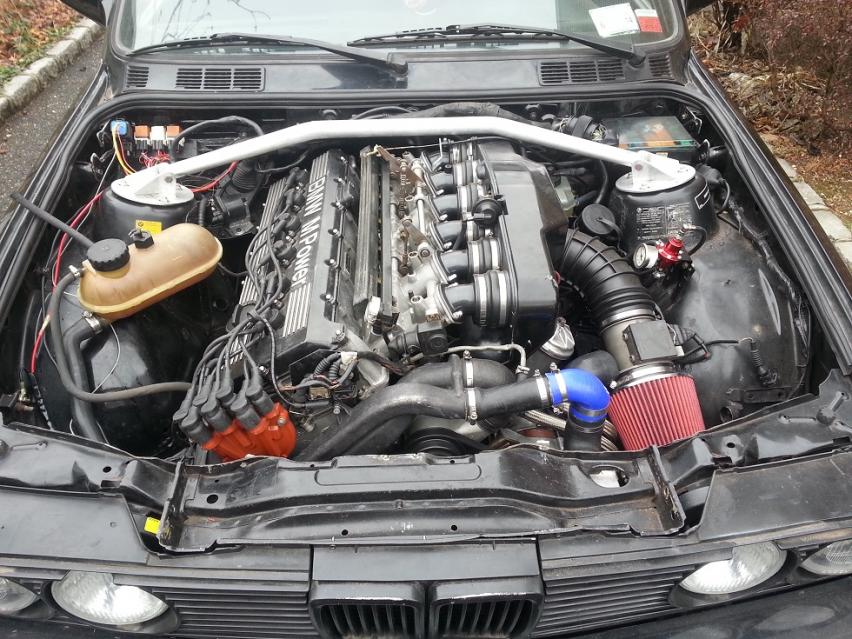

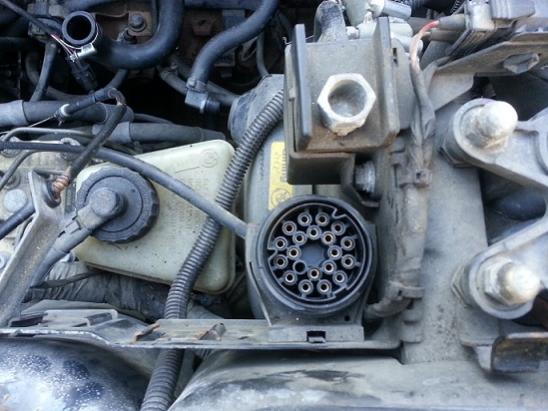

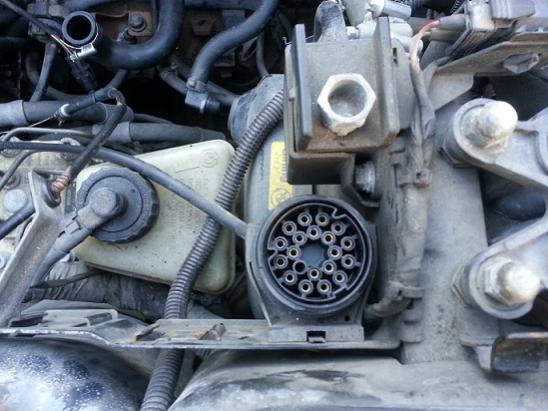

At the moment I'm still chasing electrical issues. The first s38 came with a 25 pin harness but to my surprise the M5 that I have now (build date 3/90) came with a 20 pin very similar to the M30 and even M20B25.



91' M5 C101

1. Blue
2. Blue/Yellow
3. Black/White
4. Brown/Purple
5. Brown/Green
6. Green/White 12V
7. Green - 12V
8. Purple/Black
9. Black
10. White/Blue
11. White/Green
12. Gray
13. Green/Purple
14. White/Black
15. Not Used
16. White/Yellow
17. Pink/White
18. Black/Yellow
19. Green/Blue
20. Yellow/Brown

I was always under the impression that all s38s had the 25pin connector. Initially I thought I had a M30b35 harness which was good because I compared the two and found that they are nearly identical pinouts except for 3 and 10. I pulled out pin 8 and that was good enough for the engine to start and not have the harness melt. Sweet!
I have not connected pin 20 to anything and i'm certain that is why I don't have a functioning coolant gauge.



M30B35 (courtesy of Frank Macaluso's M30 swap Guide)

1. Blue -Alternator Charge
2. Blue/White - Oil static (check panel)
3. Black/White - Fuel Rate (econo gauge)
4. Brown/Purple - Coolant temp
5. Brown/Green - Oil press light
6. Green/White 12V - O2 Heater
7. Green - 12V - Ignition Coil
8. Purple/Black - Alarm System
9. Black - Tachometer
10. Yellow/Blue - Dynamic oil press.
11. White/Green - Diagnostic Reset
12. Gray -Check Engine Light
13. Green/Purple - Fuel Pump Relay Pin 87
14. White/Black - Speedometer
15. Brown/Black - Neutral Safety (auto)
16. White/Yellow -
17. Pink/White -
18. Black/Yellow - Starter
19. Green/Blue
20. Yellow/Brown -Ground coolant temp

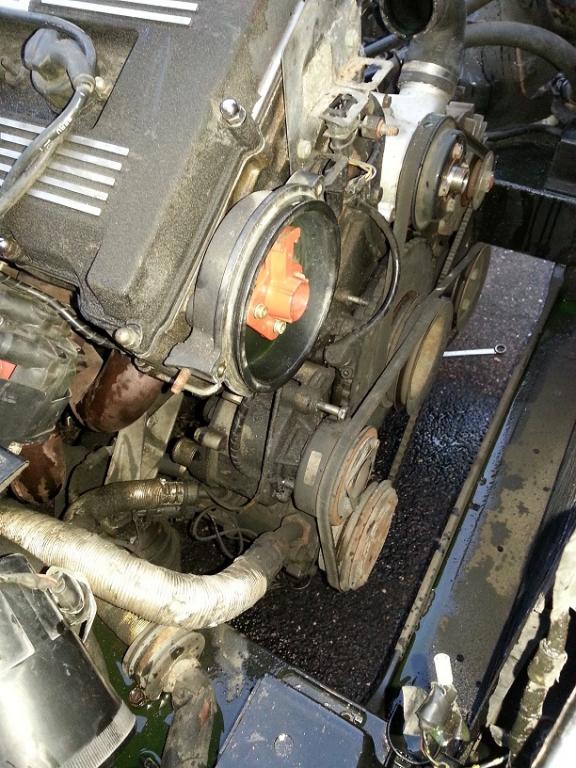

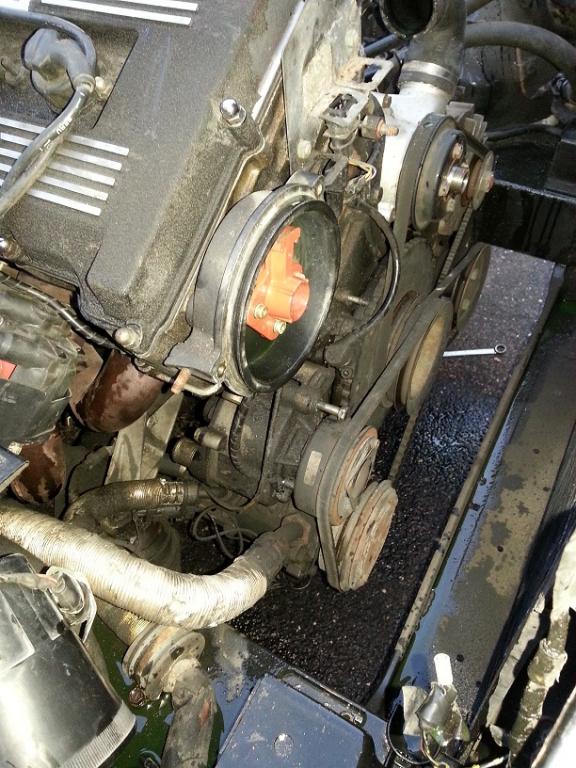

Air pump located just above the Ac compressor. From what i have read it pumps air into the exhaust manifold at start up to aid in reducing emissions. i don't plan on running it.

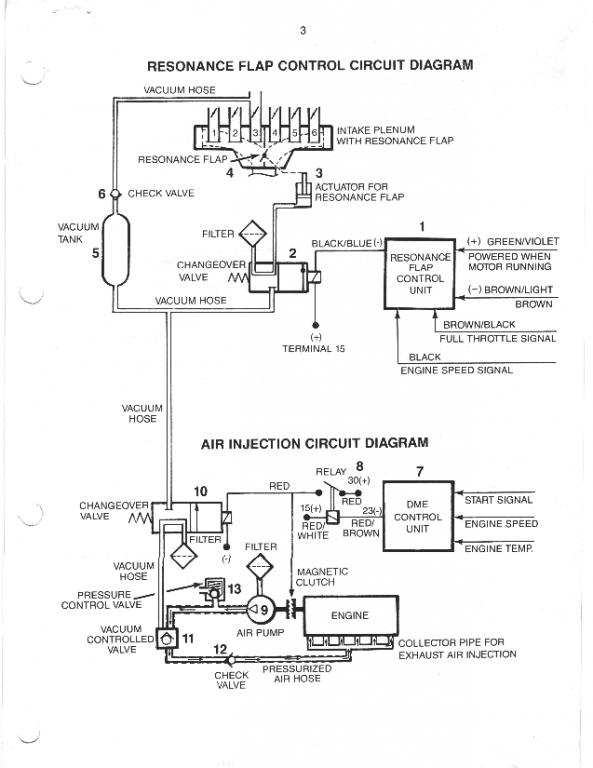

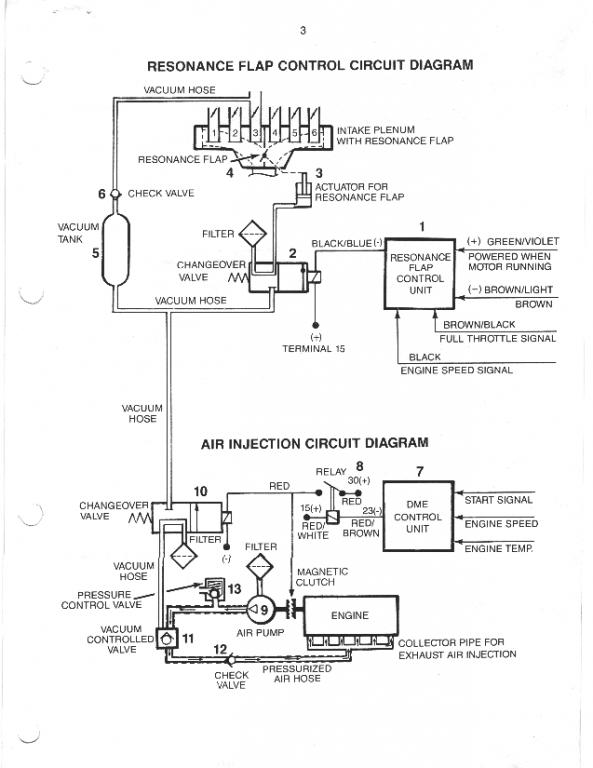

The resonance flap system I do plan to have working. Right now I don't get any movement from the actuator which i've read tells you if the flap is functioning. I have have to control unit plugged into the harness. http://www.bmw-m.net/techdata/m5engine.htm

[frontin540i]

Subscribed.... :late:

[ttrousdell]

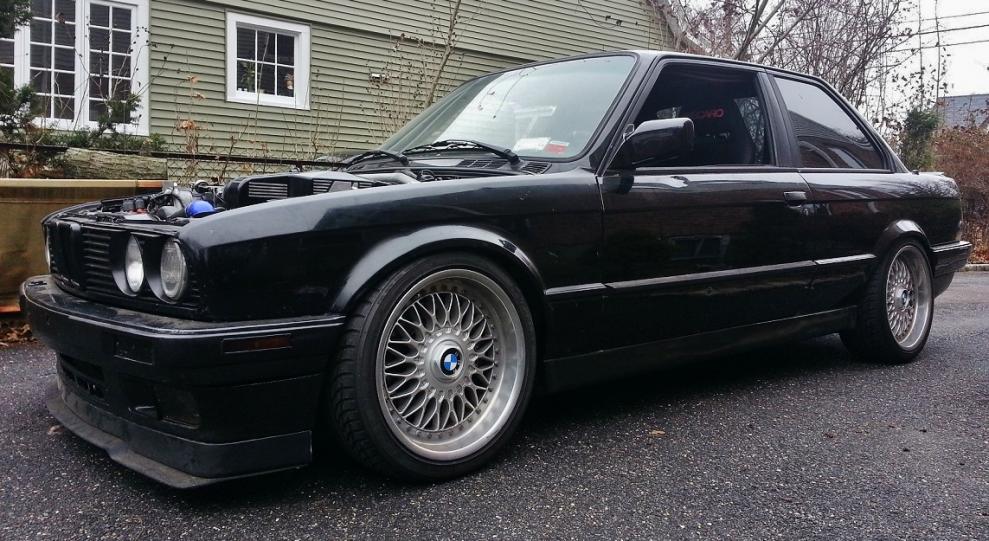

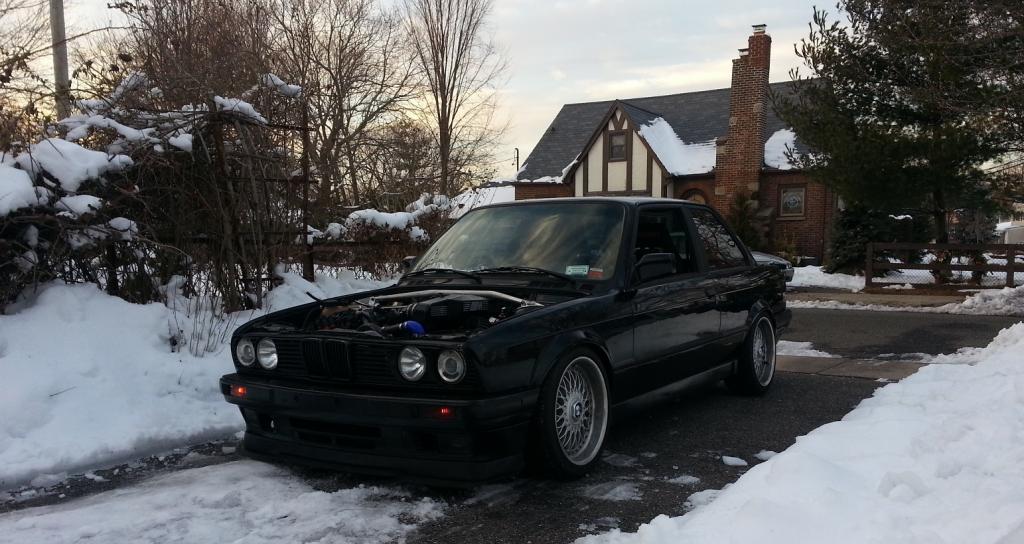

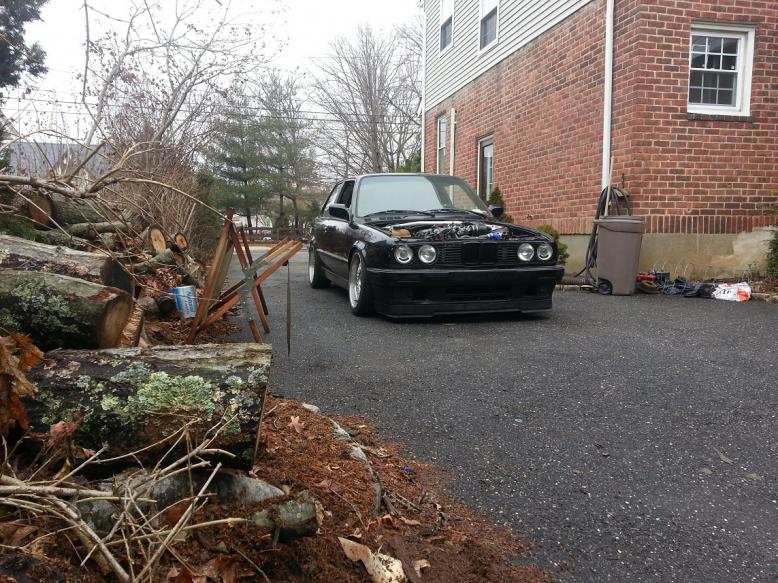

Small update. Installed a spal fan and recaros recently. Took the car out today and snapped a few pics.

[F34R]

Fucking sick man, we need to hangout very soon! This time at my place! Upstate back roads ;)

[efficient]

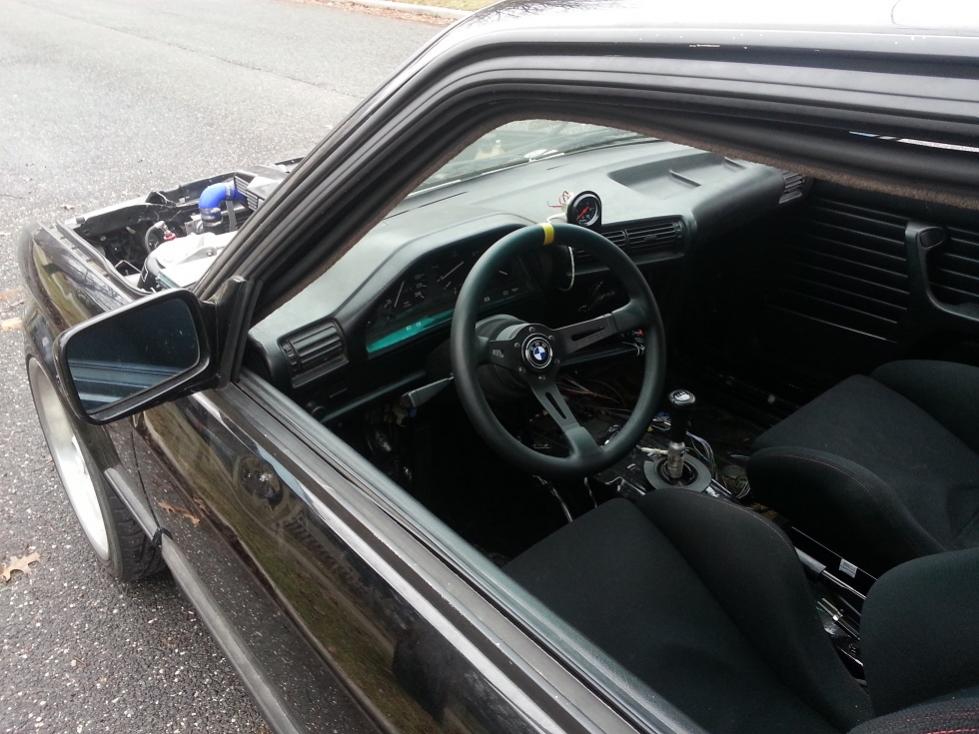

Very nice. What kind of steering wheel is that?

[JCarp90]

This is fuckin sweet. I want an S38.

[Roysneon]

So I'm gonna be that guy once again but...Wheel and tire specs?

17x8 et20?

[Nick_S]

good god this car is incredible. Fantastic work.

[ttrousdell]

Very nice. What kind of steering wheel is that?

Momo. The BMW horn button was bought off amazon

So I'm gonna be that guy once again but...Wheel and tire specs? 17x8 et20?

Yes 17x8 et20. Your average RC090s. Tires are 215/40 with 1/2" spacers in front to clear the brake calipers.

[litu]

Nice :)

[CorvallisBMW]

Not sure how I missed this until now, fuckin' nice work!

[MPLFoster]

errmahgawd that S38 is tits.

nice work.
