M50 swap that will blow your mind.

[Noshow20x96]

M42, this just seems like a cheaper replacement overall

It really is. You can mount the clutch res somewhere by the fuse box. Make your own bracket that connects to the firewall.


Sent from my iPhone using Tapatalk Pro

[gespinal0301]

I'm just wondering if I would have to do that, in the pic below you can see the little tabs that I'm talking about. I just dont know if they are removable or can be cut



It looks a lot like the stock line shown below



Any thoughts or can someone verify the little tab things haha

[pazi88]

Yes the tabs are for clutch line. Cut one open and put the stock clutch line to it.

I already bought mine, but also ln m52 the resevoir is on way. I'm trying to find fine that is not remote one.

[Noshow20x96]

Got some more pins made. Sold one already, shipping one out tomorrow and one more available.


Sent from my iPhone using Tapatalk Pro

[Noshow20x96]

I edited the OP to clear up some info on the e9x booster setup.


Sent from my iPhone using Tapatalk Pro

[e30strokr]

I edited the OP to clear up some info on the e9x booster setup.


Sent from my iPhone using Tapatalk Pro

seems an easy thing to do... I'm not very keen on brake lines.. all we need is some sort of adapter?

[Noshow20x96]

seems an easy thing to do... I'm not very keen on brake lines.. all we need is some sort of adapter?

Yes. I have the pictures posted up with the part number


Sent from my iPhone using Tapatalk Pro

[cwlo]

Noshow, I couldn't figure out why you had to lengthen the pin, as I did not have to on my install. But then I realized you are using the original booster rod and end. I found the length a bit too long for my car, with no free-play. A few test drives made it clear the pedal was too high, so I cut the end off, threaded, and put on the stock e30 end. This allowed some adjustment to fine tune the length to where the pedal had just enough movement before engaging. (1/4" or so). How has your install been with regard to pedal height?

[Noshow20x96]

Noshow, I couldn't figure out why you had to lengthen the pin, as I did not have to on my install. But then I realized you are using the original booster rod and end. I found the length a bit too long for my car, with no free-play. A few test drives made it clear the pedal was too high, so I cut the end off, threaded, and put on the stock e30 end. This allowed some adjustment to fine tune the length to where the pedal had just enough movement before engaging. (1/4" or so). How has your install been with regard to pedal height?

The pedal height was the same between the oem booster and the e9x booster. I mean exactly the same place. Is your car a airbag car? I don’t think it would make a difference but I’m curious.


Sent from my iPhone using Tapatalk Pro

[cwlo]

Mine is pre-airbag....1988....although the pedal cluster is from another car, as it was originally an automatic. Perhaps the pedal cluster is from a newer car.

[Cayoncrusier93]

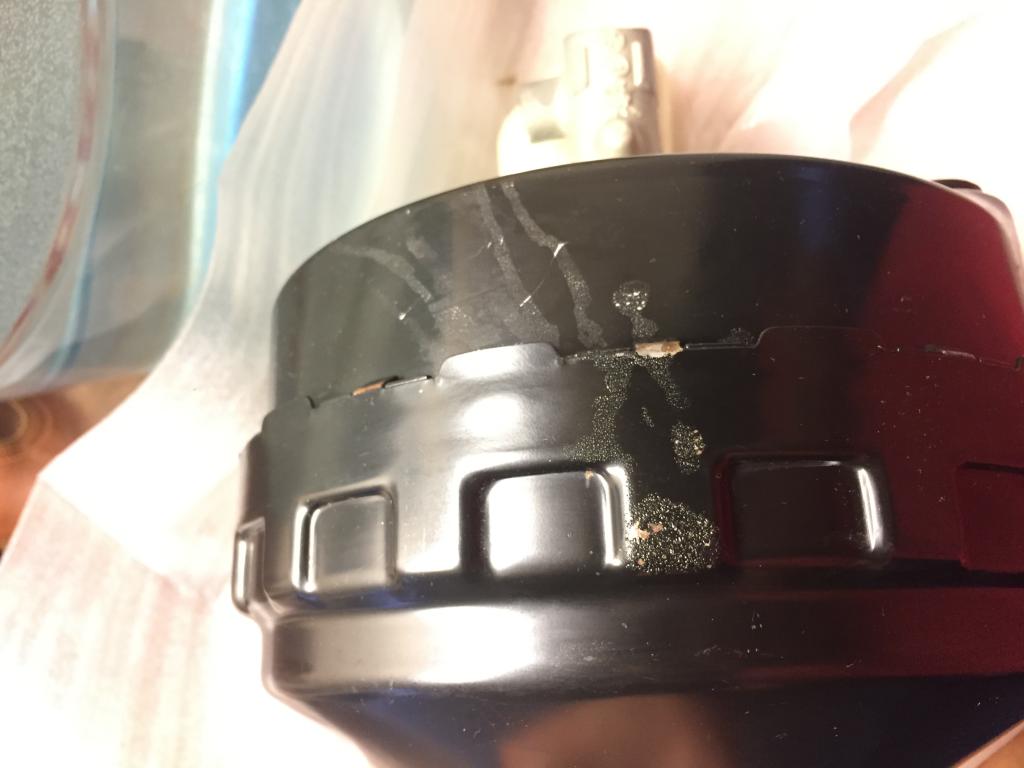

I got my booster couple days ago, and noticed this. Should i be concerned? It also looks like it was opened at some point because the little tabs that hold the halfs together seem to have the paint chipped off at the bend point. Tag says “ 06 330CI” what you guys think?

[Noshow20x96]

I got my booster couple days ago, and noticed this. Should i be concerned? It also looks like it was opened at some point because the little tabs that hold the halfs together seem to have the paint chipped off at the bend point. Tag says “ 06 330CI” what you guys think?

[ATTACH]122711[/ATTACH]

Hmmmm that does look strange. Use your discretion on it. If you don’t trust I then return it and get another one.


Sent from my iPhone using Tapatalk Pro

[Cayoncrusier93]

Hmmmm that does look strange. Use your discretion on it. If you don’t trust I then return it and get another one.


Sent from my iPhone using Tapatalk Pro

I’m thinking it might have sat in brake fluid from when it was removed and waiting on the shelf. When i got it it was covered in brake fluid, i’m going to try it and if it’s no good, i’ll just grab another one from ebay.

[Noshow20x96]

I’m thinking it might have sat in brake fluid from when it was removed and waiting on the shelf. When i got it it was covered in brake fluid, i’m going to try it and if it’s no good, i’ll just grab another one from ebay.

Ok cool.


Sent from my iPhone using Tapatalk Pro

[Noshow20x96]

I have sold all of my pins. I am going to make more. If you are interested please message me and I’ll get you a price.


Sent from my iPhone using Tapatalk Pro
