    Originally posted by poopin04 View Post
    So I've purchased a dryer from autohausaz and thought it was wrong, so I sent it back and reordered from Pelican. But they sent me the same exact one I sent back to AutoHausAZ. Can someone confirm if this is the correct dryer?

    https://www.dropbox.com/s/z35tqd8v47...712_113445.jpg

    It was part # 64-53-1-466-051 from pelican. What they sent doesn't look like the one from the photo.

    There was a change in the spec'd dryers in 1989

    years up to 09/1989 - 64531466051 (the one in your picture)

    10/1989 onwards - 64538391025 (has a schrader valve to screw in the pressure sensor)

    Comment


      Thanks for the link to Amazon for the PF condenser, I have been looking everywhere! :D

      I bought a Spal 14" pusher fan, does anyone know if I also need the 195h relay/thermostat kit, or can I just wire in the stock relay/sensor as mentioned previously?

      Bring on the cold air...
      Last edited by adjmcloon; 07-13-2013, 11:44 PM.

      Comment


        Originally posted by glucklich21 View Post
        Order them from Autohaus. The kit is more expensive then the individual orings.

        I would try flushing the evaporator just incase some trash ended up in there from the dead compressor.
        Okay, I'll definitely flush the evaporator. Any recommended method/materials? Probably not my old mainstay, brake clean

        Also, I did a price check on the seals and the kit was only a couple dollars more than the individual seals but comes with the necessary fittings as well. Seemed like a better route for me, assuming everything I need is in there...

        I just ordered one of the last four Amazon PF condensers as well, just a heads-up. I got tired of the AZ backorder and they were pretty rude when I called, so I moved on.
        Interested in vintage cars? Ever thought about racing one? Info, photos, videos, and more can be found at www.michaelsvintageracing.com!

        Elva Courier build thread here!

        Comment


          Originally posted by adjmcloon View Post
          Thanks for the link to Amazon for the PF condenser, I have been looking everywhere! :D

          I bought a Spal 14" pusher fan, does anyone know if I also need the 195h relay/thermostat kit, or can I just wire in the stock relay/sensor as mentioned previously?

          Bring on the cold air...
          You only need the relay kit if you are doing a fan delete on the engine. Otherwise the stock relay is fine. The Spal comes with 4 mounting straps and you only need 3 for the fan so I used the 4th with the Spal pigtail ($12 on Amazon) so my relay is totally plug and play. When I went to jump the relay to test the system with the aux fan in high, it was 2 connectors and a slide out bracket so took me about 30 seconds to remove and replace.

          Here's how I mounted the condensor

          and here's my fabbed pigtail


          My install starts here if you want reference pics
          http://www.r3vlimited.com/board/show...&postcount=123
          Deck Lid and soft top Shocks on hand

          Seat shocks on hand for immediate shipment
          https://www.r3vlimited.com/board/sho...86#post4944786
          Alice the Time Capsule
          http://www.r3vlimited.com/board/showthread.php?t=360504
          87 Zinno Cabrio barn find 98k and still smells like a barn. Build thread http://www.r3vlimited.com/board/show...20#post3455220

          Comment


            [QUOTE



            Yes

            My friend had the same setup on his 88. We ended up keeping both as we went with a rebuild compressor of his old one. You might be able to just by pass the second switch going to the compressor and wire in for it to function off of one. This is how it is in later style E30s.

            [/QUOTE]

            So how does one wire things up to just run off the one pressure switch? I just got a new dryer and its designed to use just one. That at the new pressure switch I bought has the wrong connectors. (I don't know the exact part number on the switch, its at home.)

            Thanks,
            Will
            '59 Alfa Romeo 101.02 Giulietta Sprint
            '69 Alfa Romeo 105.51 1750 GTV (R.I.P)
            '69 Datsun 2000 roadster Vintage race car
            '88 BMW M3

            Comment


              How could you tell if your car has been converted or not? Bought my ix a few months ago and it has supposedly been converted. Just want to make sure before I go and try and top off the refrigerant.
              Your signature picture has been removed since it contained the Photobucket "upgrade your account" image.

              Build Thread
              Rear Diff Rebuild
              Rebuildable Viscous Coupling
              Transfer Case Rebuild
              "Life is simpler with 12 valves"

              Comment


                Originally posted by TehRaydarlover View Post
                How could you tell if your car has been converted or not? Bought my ix a few months ago and it has supposedly been converted. Just want to make sure before I go and try and top off the refrigerant.
                R134a has colored fittings, R12 has plain metal fittings. Also, the recharge bottle won't fit on an R12 system.
                Last edited by ELVA164; 07-18-2013, 05:43 AM.
                Interested in vintage cars? Ever thought about racing one? Info, photos, videos, and more can be found at www.michaelsvintageracing.com!

                Elva Courier build thread here!

                Comment


                  Originally posted by ELVA164 View Post
                  R134a has colored fittings, R12 has plain metal fittings. Also, the recharge bottle won't fit on n R12 system.
                  I have 134 adapters that are black so color alone is not 100%. Every adapter Ive seen though is designed for the r134a hose quick connects and are larger than the threaded r12 fittings.
                  Deck Lid and soft top Shocks on hand

                  Seat shocks on hand for immediate shipment
                  https://www.r3vlimited.com/board/sho...86#post4944786
                  Alice the Time Capsule
                  http://www.r3vlimited.com/board/showthread.php?t=360504
                  87 Zinno Cabrio barn find 98k and still smells like a barn. Build thread http://www.r3vlimited.com/board/show...20#post3455220

                  Comment


                    Sorry, should've been more specific. R134a is never bare metal as far as I've seen. As a side note, still wondering what the procedure/materials are for flushing an evaporator...
                    Interested in vintage cars? Ever thought about racing one? Info, photos, videos, and more can be found at www.michaelsvintageracing.com!

                    Elva Courier build thread here!

                    Comment


                      Originally posted by ELVA164 View Post
                      Sorry, should've been more specific. R134a is never bare metal as far as I've seen. As a side note, still wondering what the procedure/materials are for flushing an evaporator...
                      Flushing is SOP and depends on how bad your system is. The main goal when converting is to get rid of any mineral oil since it does not play well with PAG. If your system as "black death" then it could be beyond flushing.
                      I just bought a can of AC Flush from Oreilly for $17 and that was sufficient since I replaced everything but the hard lines and hoses. Id think a can would do an evaporator or you can buy a flush canister and jug of flush on Amazon
                      Deck Lid and soft top Shocks on hand

                      Seat shocks on hand for immediate shipment
                      https://www.r3vlimited.com/board/sho...86#post4944786
                      Alice the Time Capsule
                      http://www.r3vlimited.com/board/showthread.php?t=360504
                      87 Zinno Cabrio barn find 98k and still smells like a barn. Build thread http://www.r3vlimited.com/board/show...20#post3455220

                      Comment


                        So I guessing I still have R-12?
                        Click image for larger version

Name:	IMG_20130718_151555.jpg
Views:	1
Size:	86.1 KB
ID:	7157724Click image for larger version

Name:	IMG_20130718_151525.jpg
Views:	1
Size:	96.7 KB
ID:	7157725

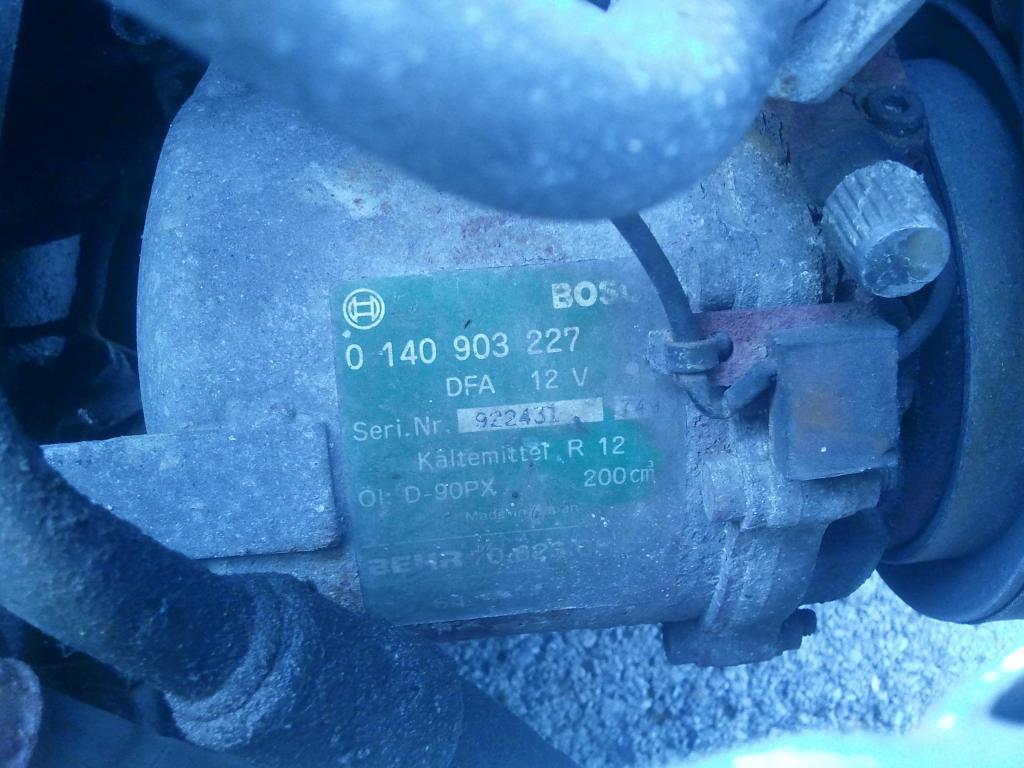

                        Must have missed it saying R-12, or can you use the same compressor?
                        Click image for larger version

Name:	IMG_20130718_151359.jpg
Views:	1
Size:	88.4 KB
ID:	7157726
                        The reason I ask is my ac doesn't blow very cold. If I leave it on fan setting 2 it blows somewhat cool air, but when its on full blast it can't keep up and just blows hot air. Also it seems like the compressor is turning on and off when I'm idling or at a constant rev, at least this is when it is noticeable. Could this be caused by low refrigerant levels or something else? Thoughts?

                        Thanks,
                        Ray

                        hmm probably not the right place for Q&A sorry
                        Last edited by TehRaydarlover; 07-18-2013, 01:40 PM.
                        Your signature picture has been removed since it contained the Photobucket "upgrade your account" image.

                        Build Thread
                        Rear Diff Rebuild
                        Rebuildable Viscous Coupling
                        Transfer Case Rebuild
                        "Life is simpler with 12 valves"

                        Comment


                          Originally posted by TehRaydarlover View Post
                          So I guessing I still have R-12?

                          Must have missed it saying R-12, or can you use the same compressor?

                          The reason I ask is my ac doesn't blow very cold. If I leave it on fan setting 2 it blows somewhat cool air, but when its on full blast it can't keep up and just blows hot air. Also it seems like the compressor is turning on and off when I'm idling or at a constant rev, at least this is when it is noticeable. Could this be caused by low refrigerant levels or something else? Thoughts?

                          Thanks,
                          Ray

                          hmm probably not the right place for Q&A sorry
                          Those are retrofit fittings so you most likely are converted. I dont know what model your car is or the production date but there is a service bulletin that lists the compressors and build date that are NOT r134a compatible. They all say r12 since that what thjey were designed for but mosty have r134a compatible seals.

                          It does sound like you are low on refrigerant so its worth buying a can with a fill hose and hoping that solves your problem.If not then you have too find and repair your leak, replace that nasty looking dryer, vac and recharge then cross your fingers.
                          Deck Lid and soft top Shocks on hand

                          Seat shocks on hand for immediate shipment
                          https://www.r3vlimited.com/board/sho...86#post4944786
                          Alice the Time Capsule
                          http://www.r3vlimited.com/board/showthread.php?t=360504
                          87 Zinno Cabrio barn find 98k and still smells like a barn. Build thread http://www.r3vlimited.com/board/show...20#post3455220

                          Comment


                            Alright sounds good. I did give the schrader valve a poke and the system, as nasty as it looks, is pressurized. Its an 88' ix not sure what the production date is but I'll check when I get off work. Might run the the parts store after work and pick up a recharge kit and see what happens.

                            Thanks for the info!
                            Ray
                            Your signature picture has been removed since it contained the Photobucket "upgrade your account" image.

                            Build Thread
                            Rear Diff Rebuild
                            Rebuildable Viscous Coupling
                            Transfer Case Rebuild
                            "Life is simpler with 12 valves"

                            Comment


                              Originally posted by TehRaydarlover View Post
                              Alright sounds good. I did give the schrader valve a poke and the system, as nasty as it looks, is pressurized. Its an 88' ix not sure what the production date is but I'll check when I get off work. Might run the the parts store after work and pick up a recharge kit and see what happens.

                              Thanks for the info!
                              Ray
                              You are on the right track. According to BMW these are the e30 vehicles and dates that are NOT r134a compatible

                              318i 7/85-8/85
                              325e, 325i, 325iC 7/87 - 10/88
                              325ix, M3 All

                              So if your ix still has the original compressor and it's fairy certain it is not suitable for a conversion. Since it looks like its been converted, if the compressor (or seals) were not swapped that could very well be the source of your leaks since the seals are what fails.
                              Deck Lid and soft top Shocks on hand

                              Seat shocks on hand for immediate shipment
                              https://www.r3vlimited.com/board/sho...86#post4944786
                              Alice the Time Capsule
                              http://www.r3vlimited.com/board/showthread.php?t=360504
                              87 Zinno Cabrio barn find 98k and still smells like a barn. Build thread http://www.r3vlimited.com/board/show...20#post3455220

                              Comment


                                Alright so I bought a recharge kit and hooked it up to check the current system pressure, it was at around 60psi at an ambient temperature of 75F according to the chart supplied with the kit that is too high, should be around 45psi. I did some testing. Running at idle the compressor would turn on and off periodically. When running at 3k RPM the compressor would engage and disengage almost immediately. Could this be cause by the system being overcharged, pressure switch immediately trips turning the compressor off. (at least that's how I think it works?) Also when the compressor does engage its pretty loud, makes me think it could be the original and the R-134a isn't playing nice with the lubricant for the compressor.

                                Ray
                                Your signature picture has been removed since it contained the Photobucket "upgrade your account" image.

                                Build Thread
                                Rear Diff Rebuild
                                Rebuildable Viscous Coupling
                                Transfer Case Rebuild
                                "Life is simpler with 12 valves"

                                Comment
