E30Rossi's Full Build - Overhaul - 5 Lug - Bay Shave - M54 Swap (Pic Heavy)

[E30Rossi]

Some black powdercoat to go with the theme

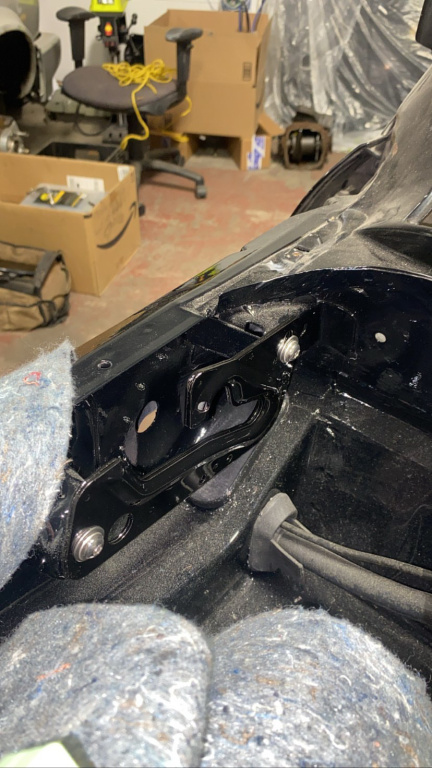

Powdercoated the hood hinges while I was there with some dress-up bolts
So fed up of the dust in the shop!

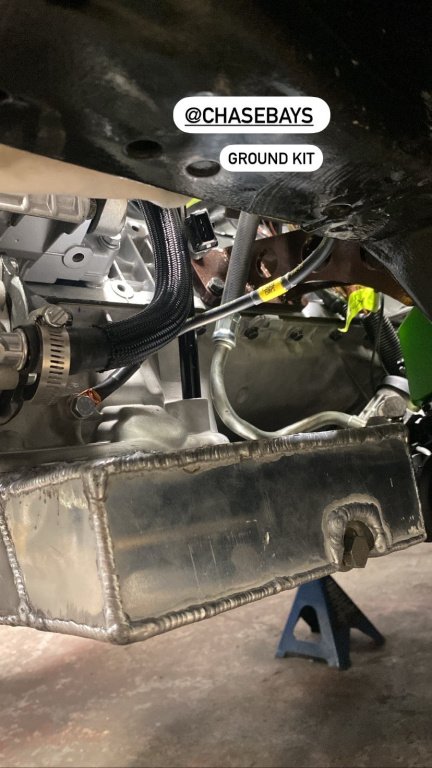

Got around to installing the ChaseBays universal ground wire kit but the terminals are a little small for the E30 chassis ground studs so I soldered on some bigger terminals


Added a second ground on the other side because 2>1

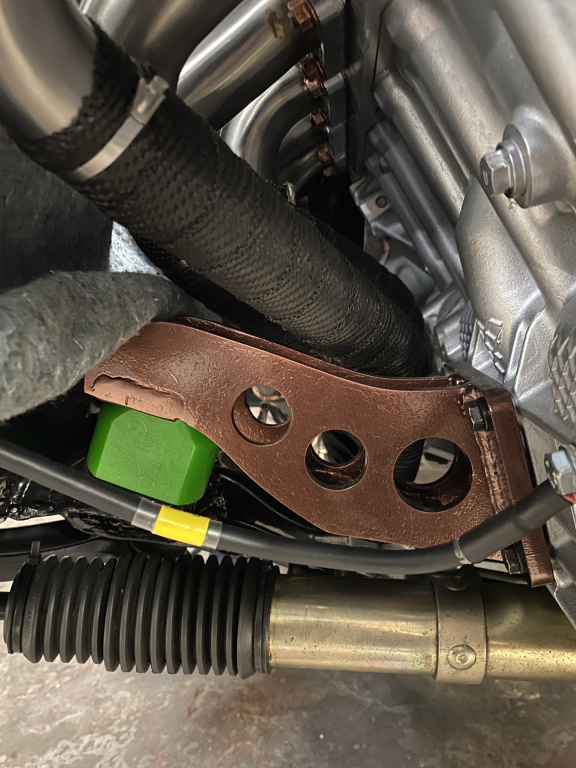

You can see why I wrapped the header here, there's barely any space between the arm


Going to have fun fitting all this through the firewall!

[E30Rossi]

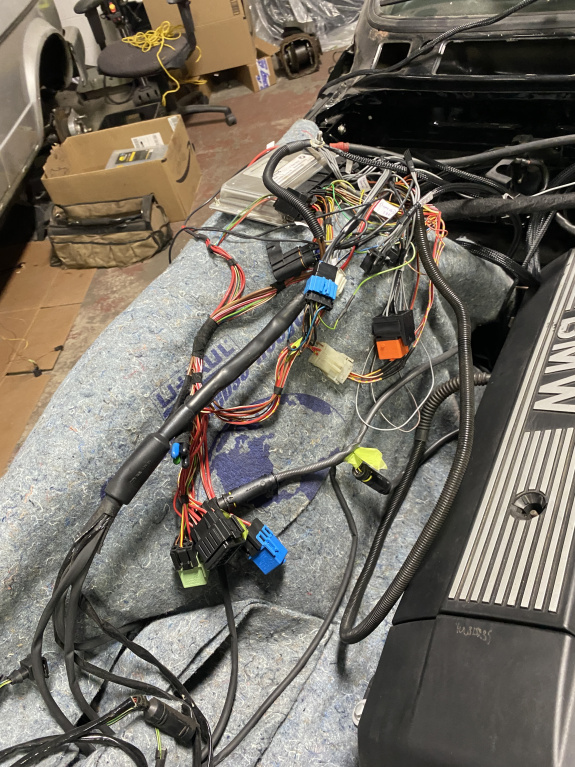

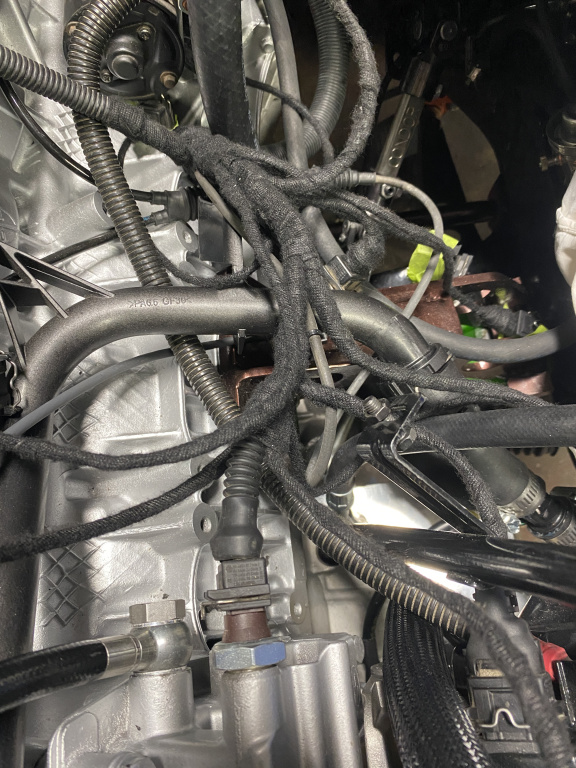

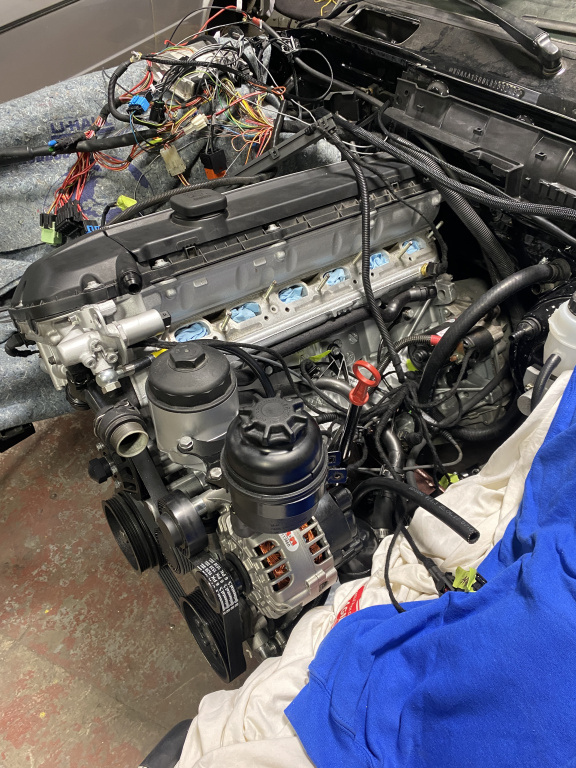

Time for wiring!


Started wrapping each connector wiring, and joined them until the harness


New hood release cable since the old one broke off

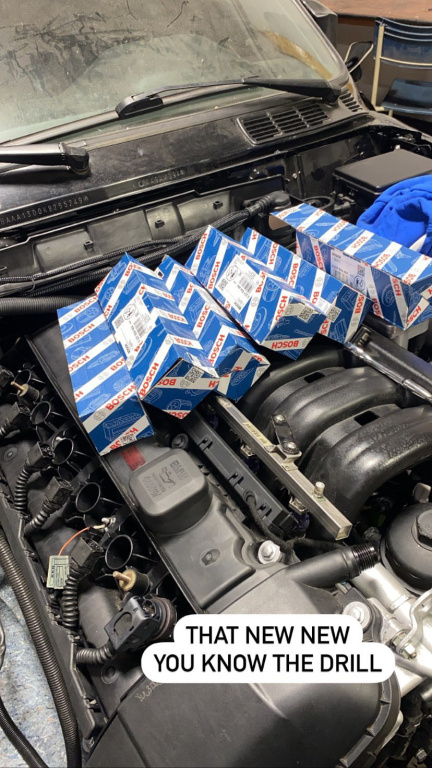

New coilpacks because why not at this point


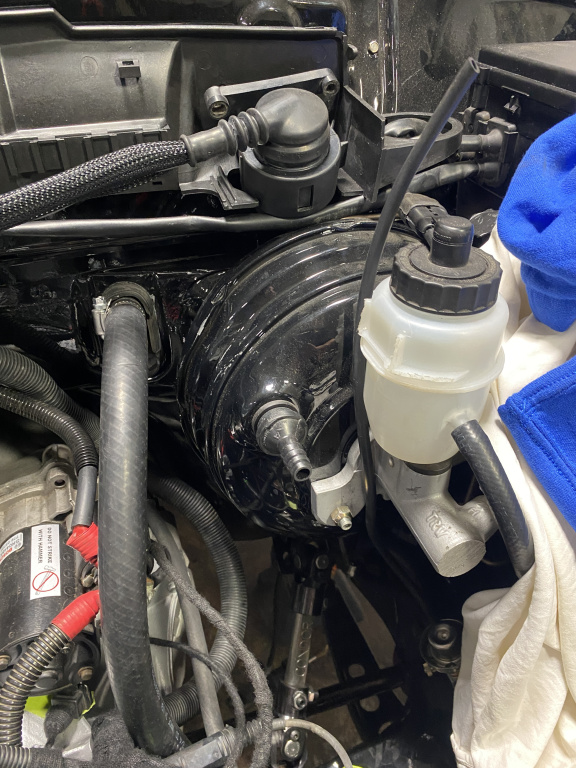

Started routing heater hoses

[E30Rossi]

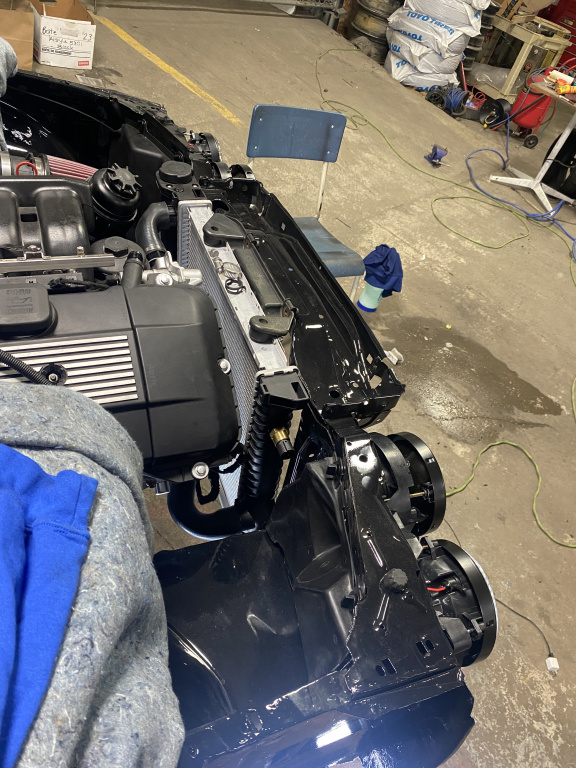

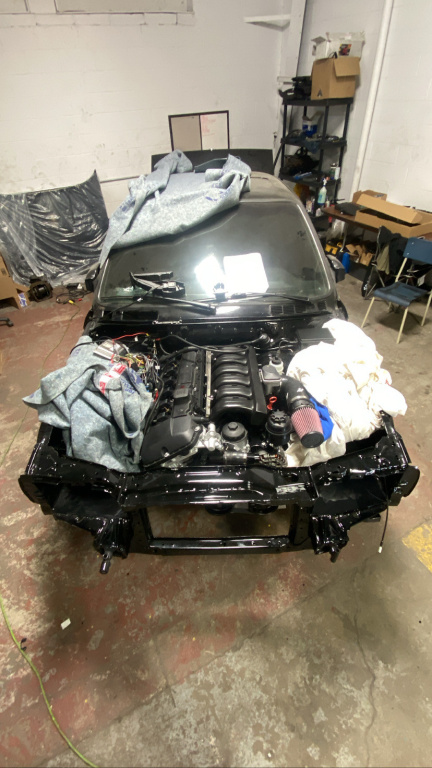

Finally got to fit the rad support back on, First time since it was painted because I was too nervous about scratching it


Test fit radiator

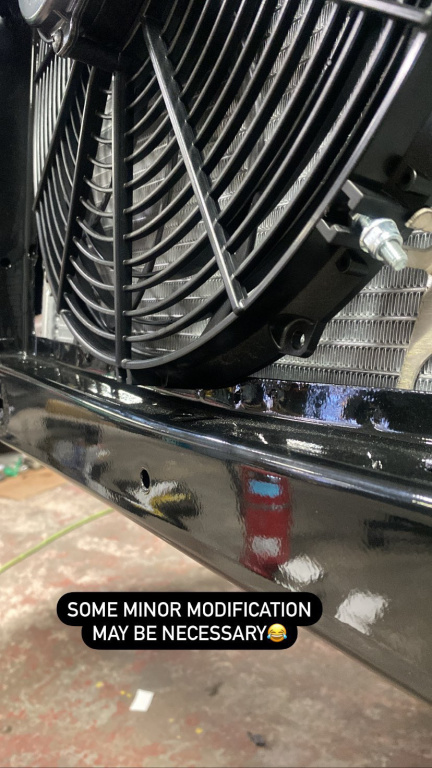

Tried fitting the SPAL electric fan...


Almost fits but not so lucky


Grinder came out, no going back

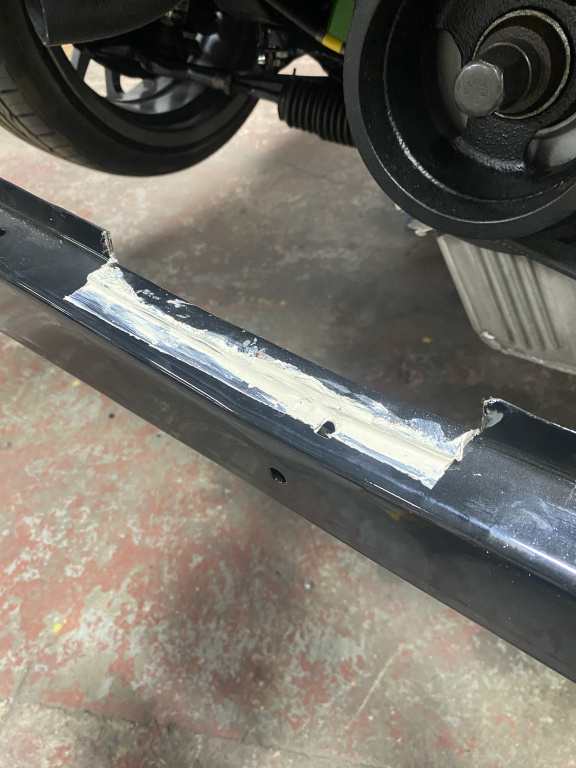

Seam sealed and bent the edge over it so no chance of rust

[E30Rossi]

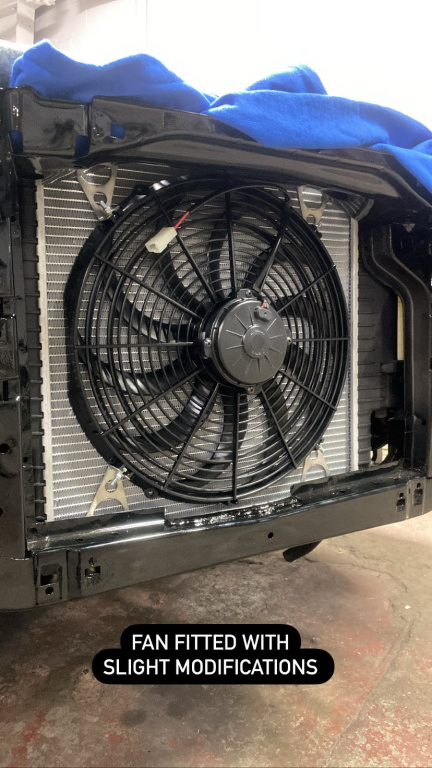

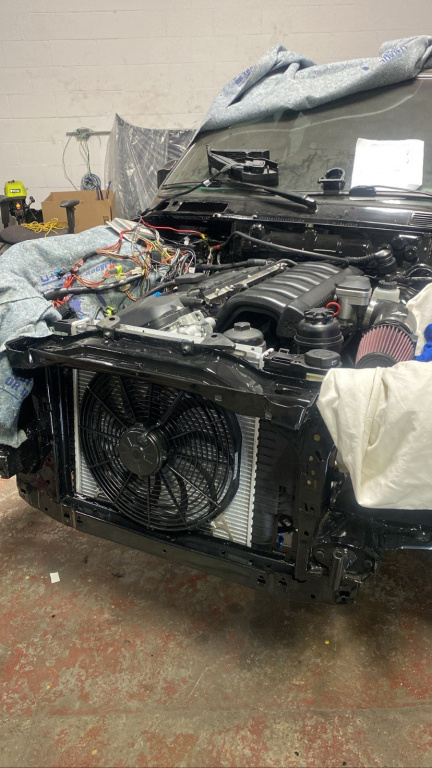

Fan fitted with lots of room to install and remove it

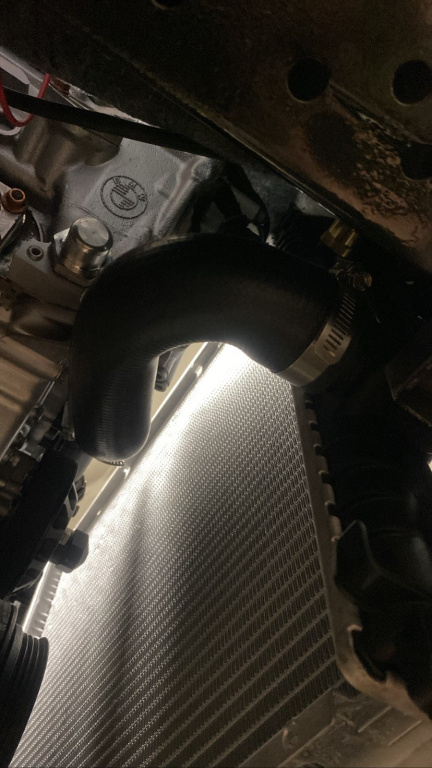

Bottom coolant hose installed. I used Gates 21900 and cut to size as the internet suggested

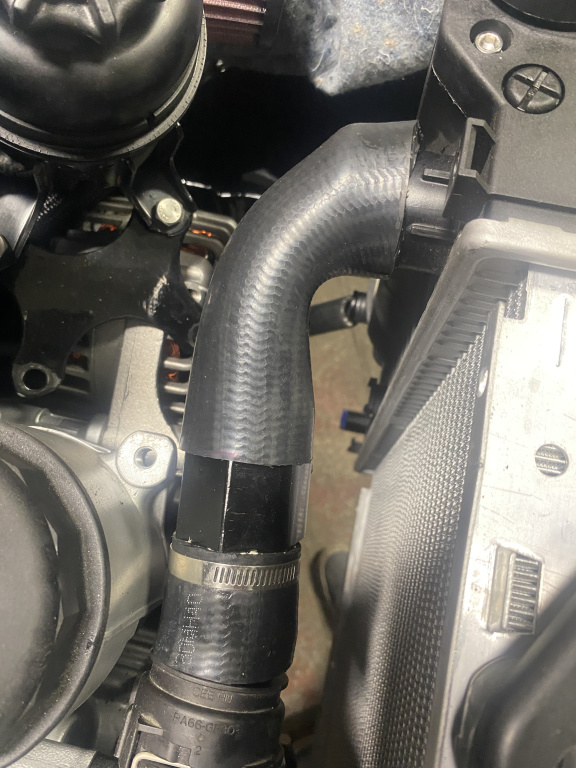

318 radiator fits nice with the integrated overflow, but the "bung" is not at the best place vs. the thermostat


Not the ideal but until I find a better suitable hose, this will have to do.
I don't think the flow will be a problem

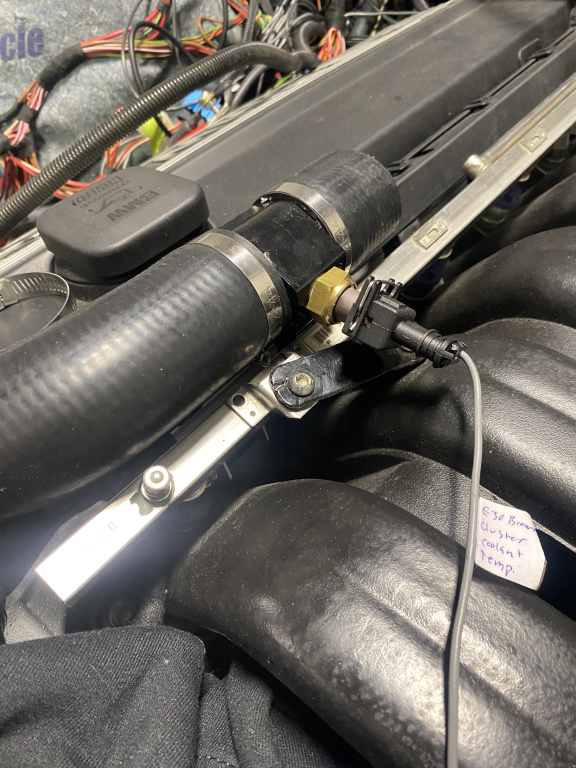

Rethreaded the RaceGerman coolant sensor adapter to M14x1.5 to fit the E30 sensor for the cluster

[E30Rossi]

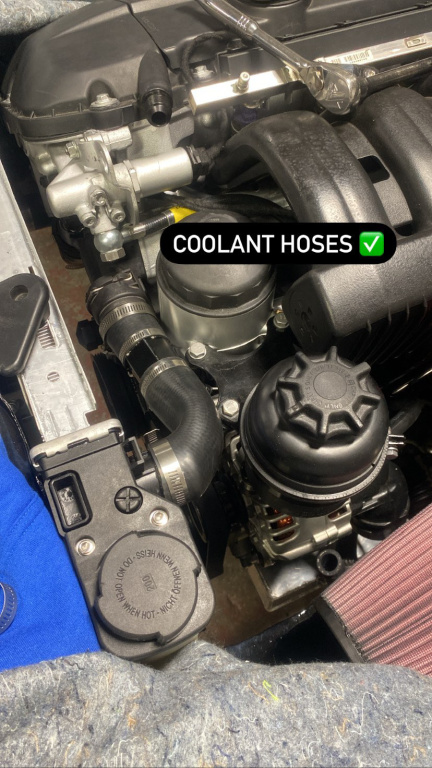

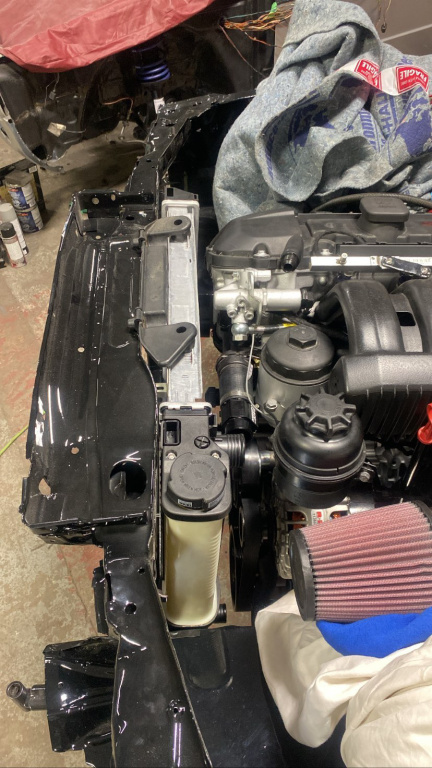

Coolant system wrapped up

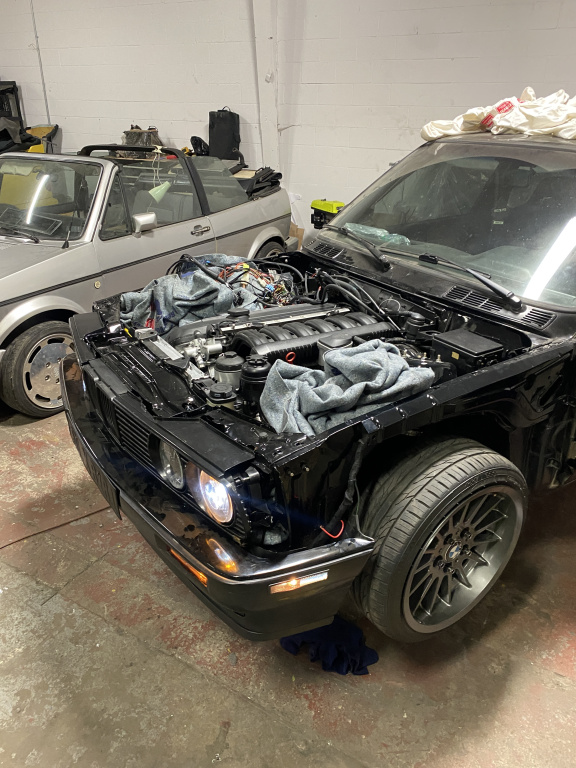

First time trying on the DEPO smoked projector headlights and I LOVE how these look!
Changes the whole front of the car. Can't wait to see it all together!!

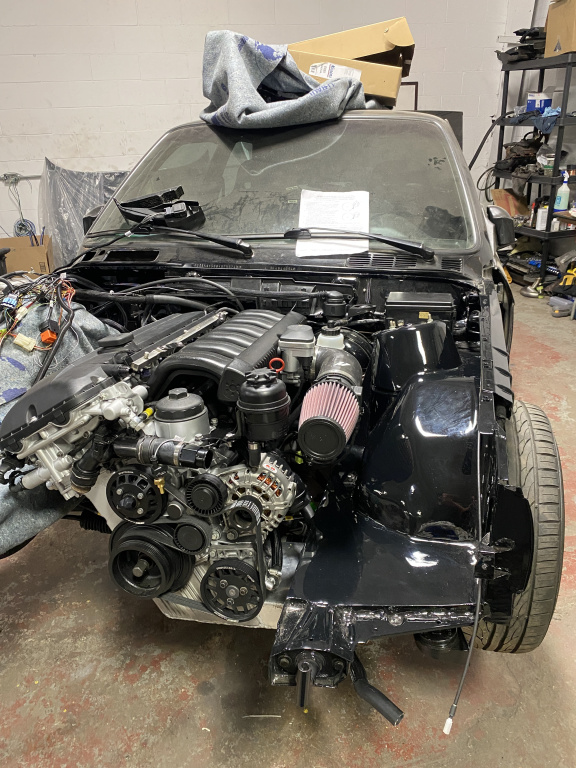

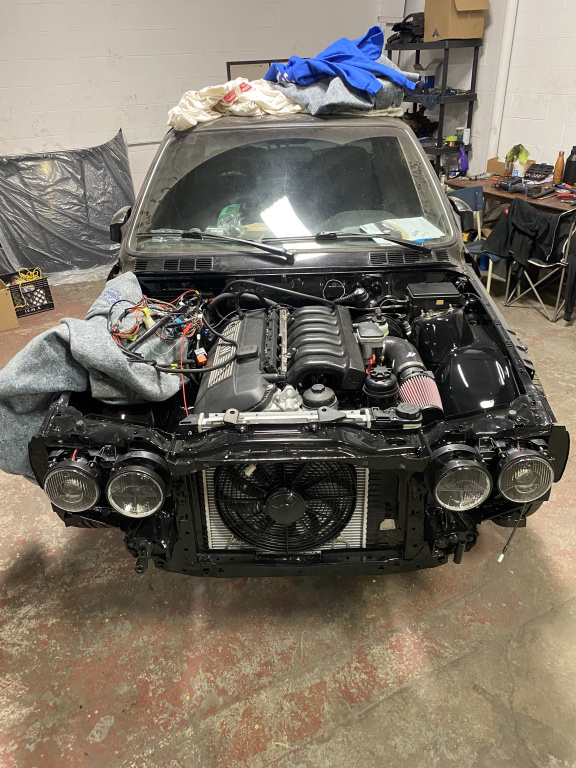

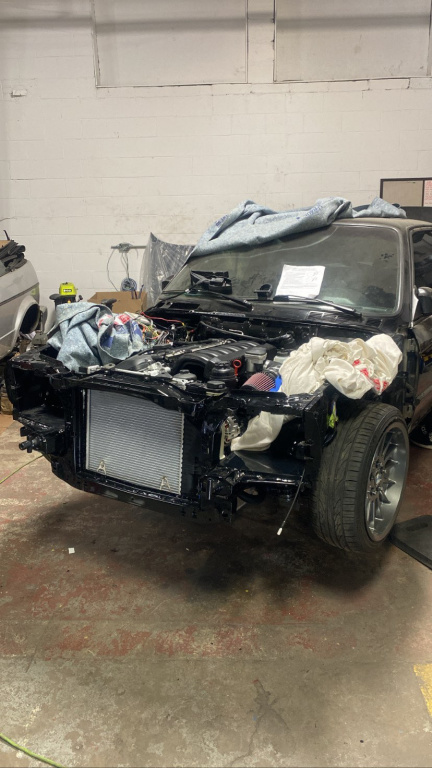

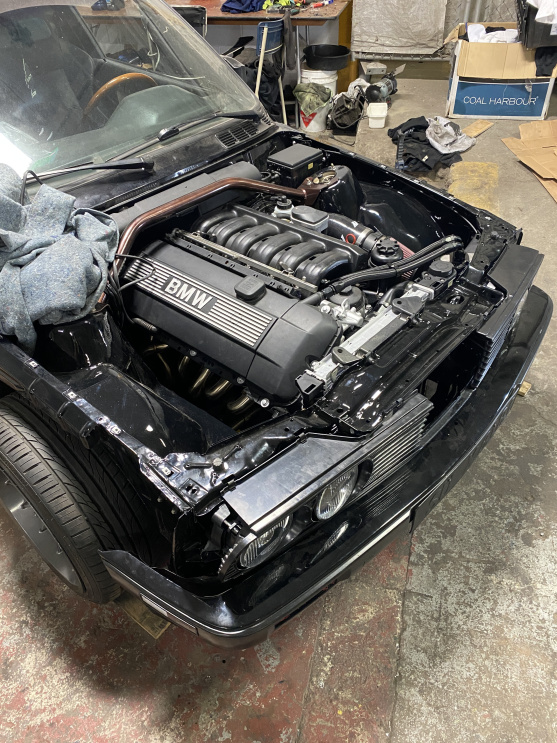

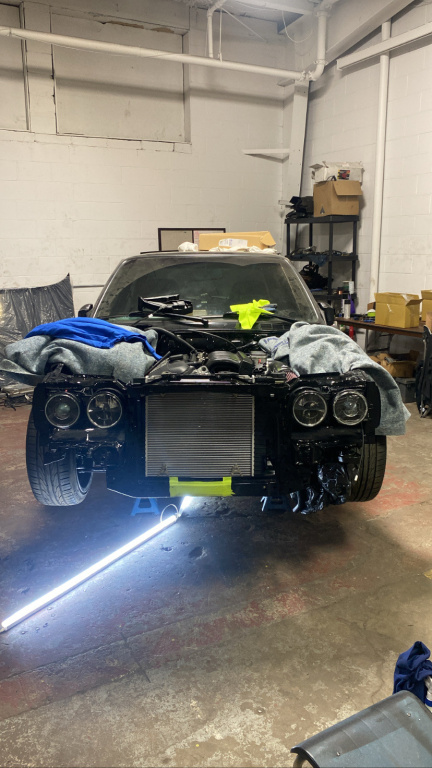

FINALLY looking more like a car again!! Progress feels great!


Bought the headlight cover new because this side was missing

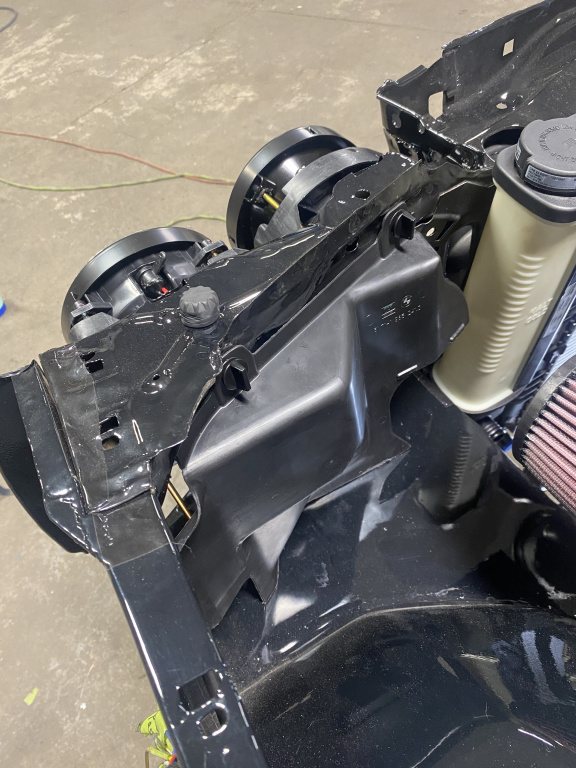

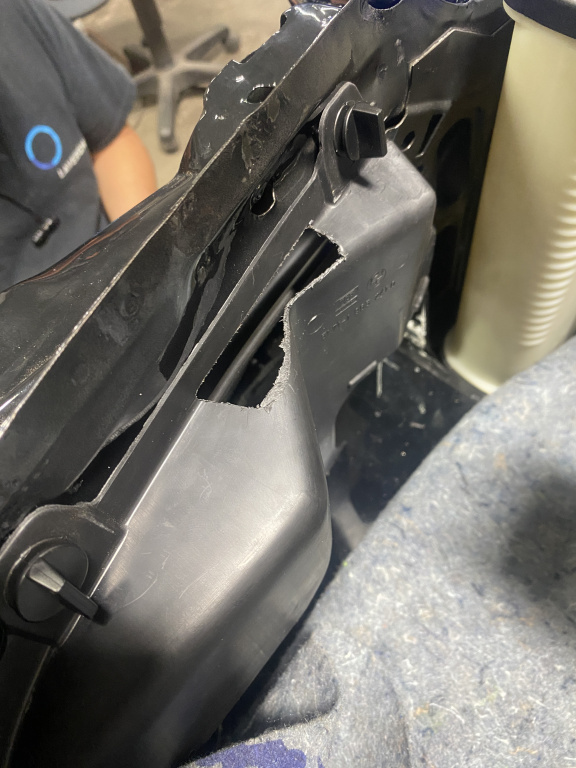

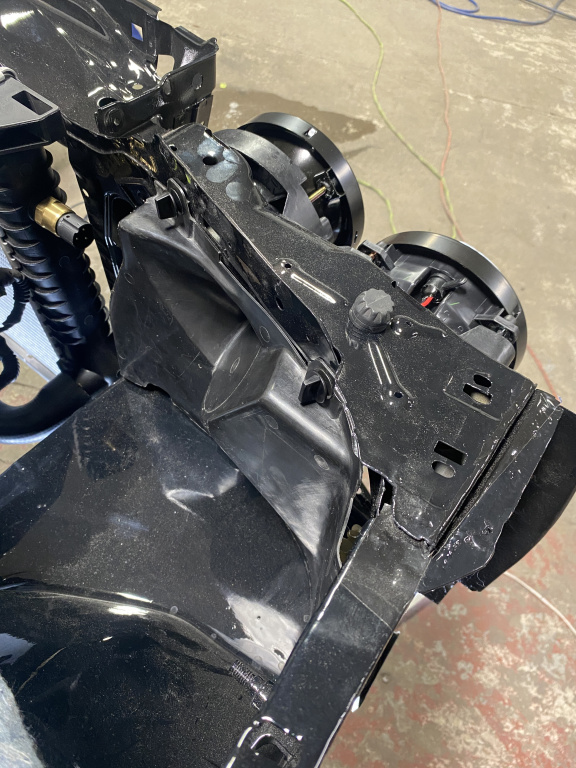

Had to trim the bottom to fit because of the welded plates at the bottom
New OEM clips to hold them in
Need to find a solution to hold the bottom in place


Same thing for passenger side
I used black wrap where the rad support slides on to not scratch the paint

[E30Rossi]

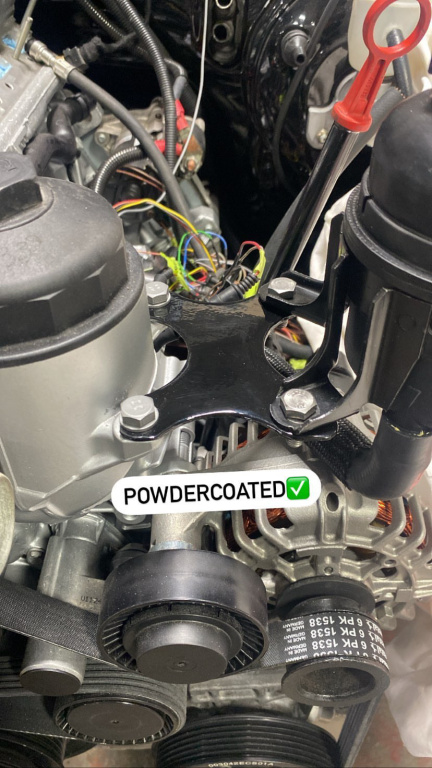

These small details will bring the whole engine bay together at the end

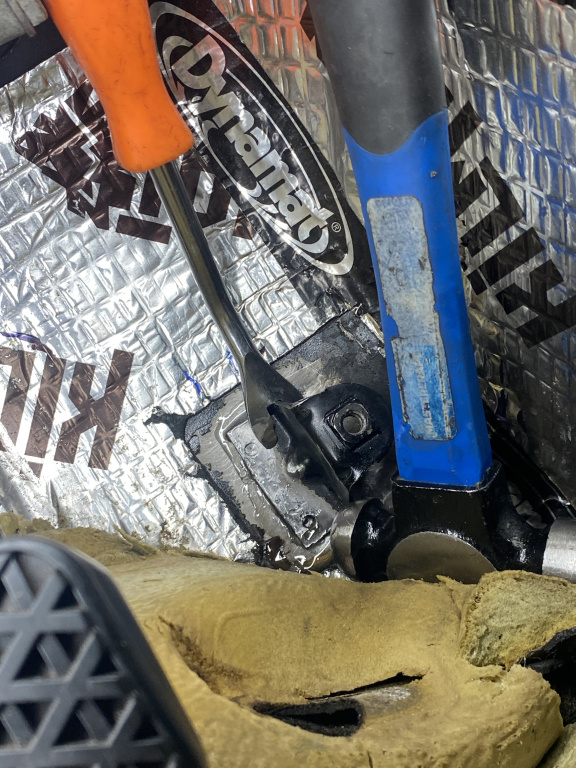

Tried to fit the pedal bracket but it was way too far off so I removed the top bracket to move it


Epoxied the bracket 1/2" over left

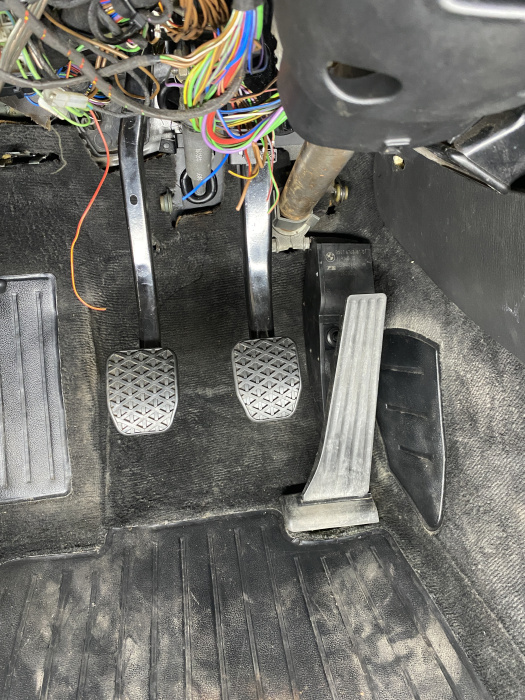

Needs a good cleanup but pedal installed!

[E30Rossi]

Next up, finishing the driveline!

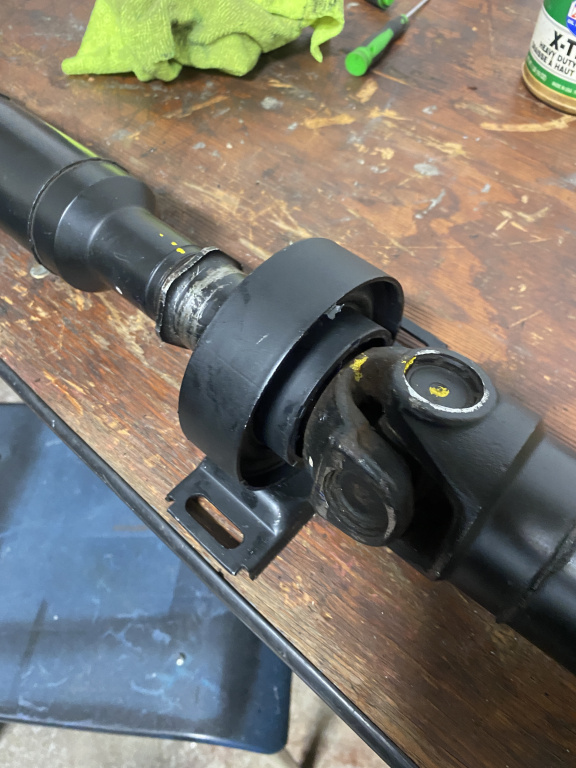

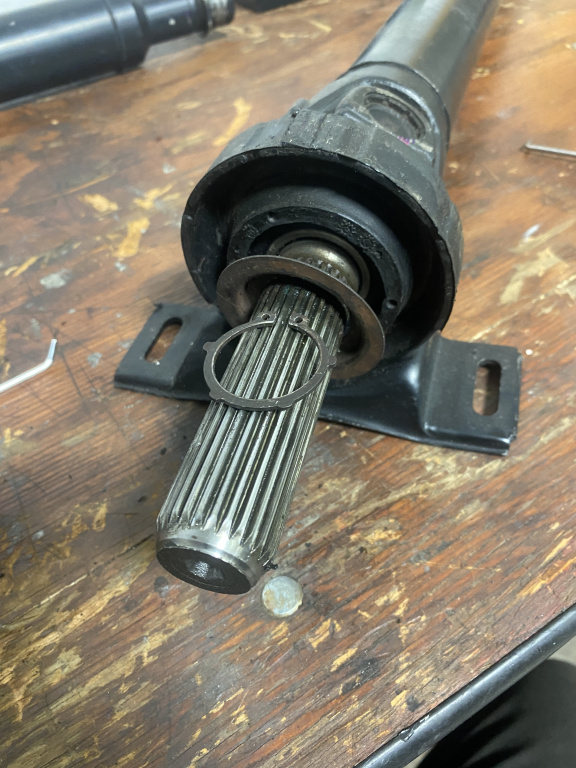

I bought a rebalanced driveshaft with new CSB but went to install it and the CSB was too tall and too wide
not sure if this is meant for an early model since that's what it came off of, but ordered the correct one

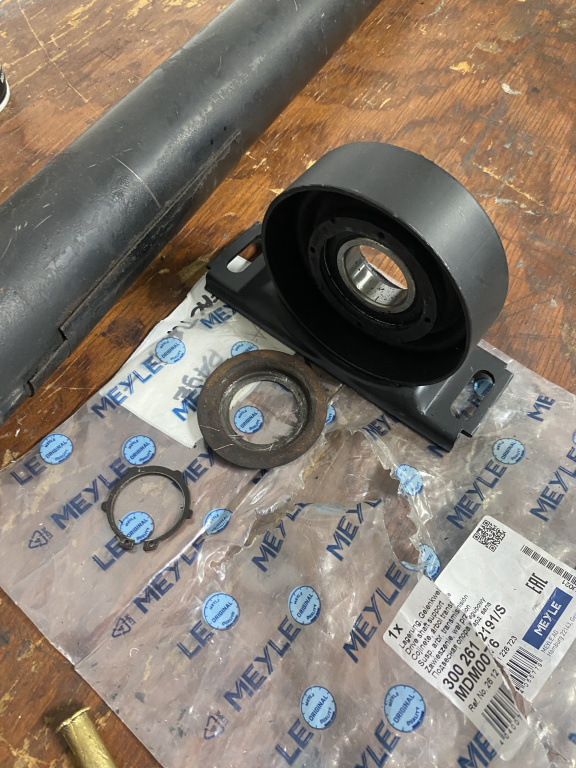

New CSB


Installed and lined up driveshaft

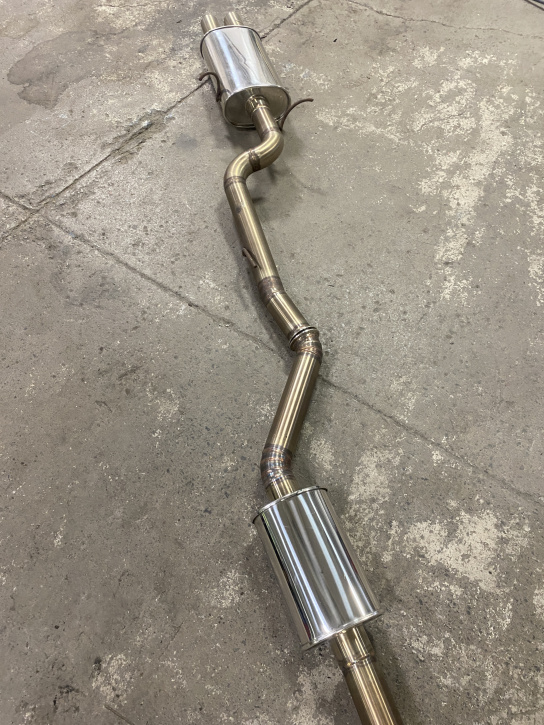

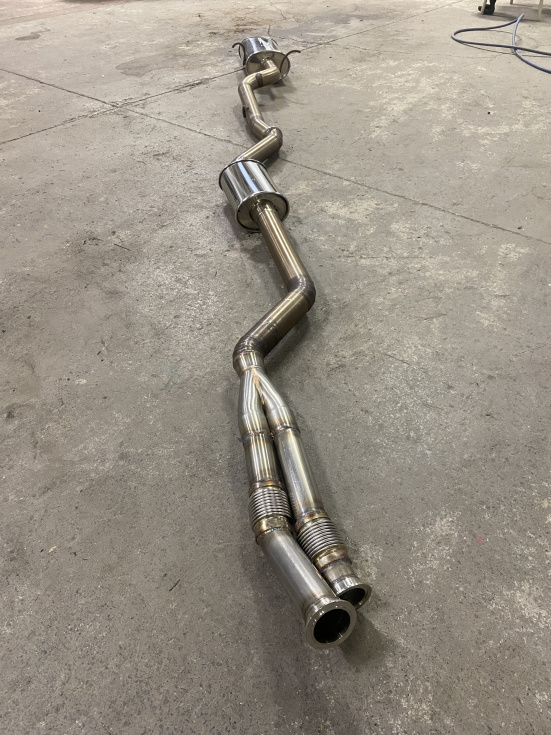

First time seeing the full exhaust layed out on the floor in one piece and all I can say is WOW
this thing is a pure work of art!


Those pie-cuts and tig welds are so pretty

[E30Rossi]

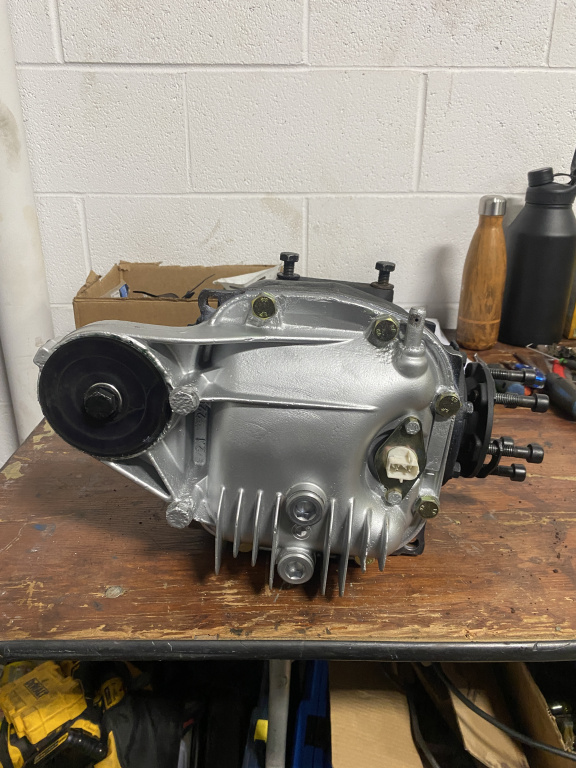

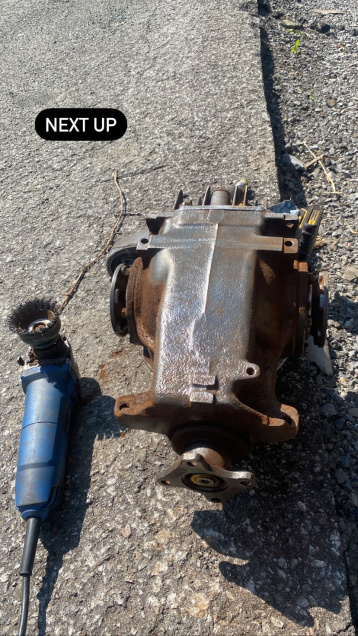

My next project was refreshing the 2.93 diff I bought
This thing was so gross and rusty, took a lotttt of wire brusing to get it decent
I'm still hunting for a better ratio (3.25) but have had no luck finding one anywhere near here

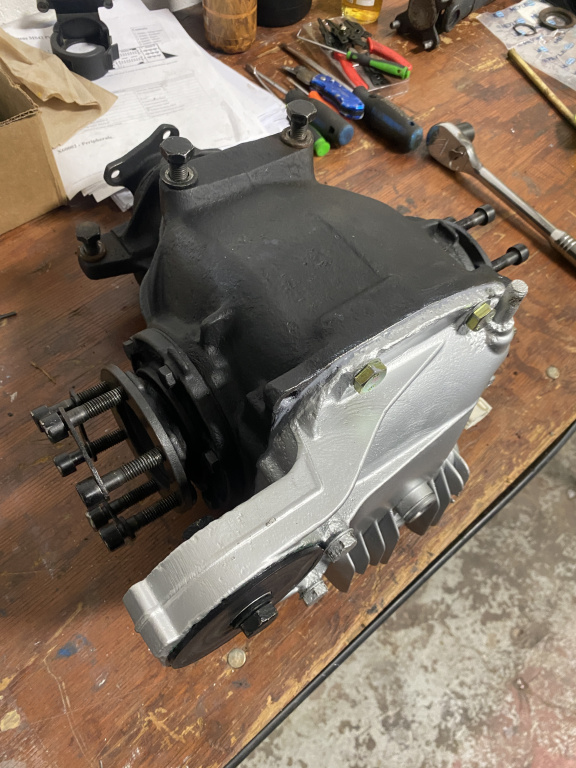

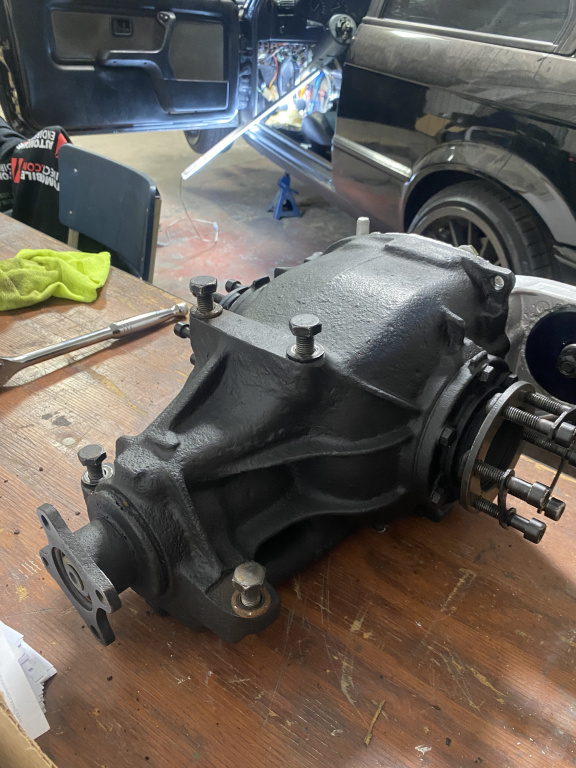

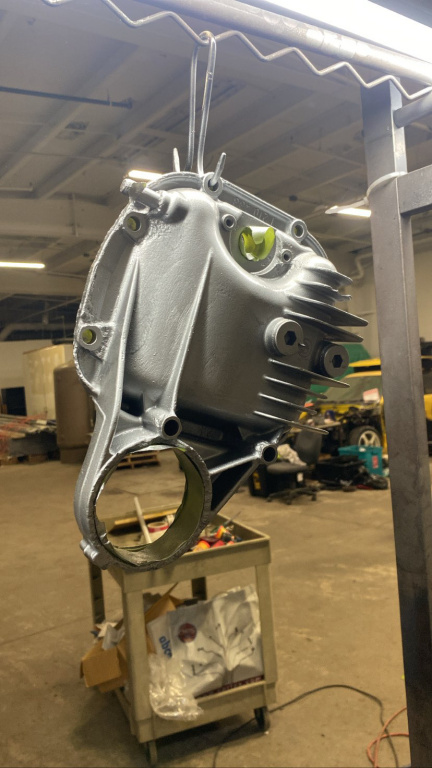

Fresh coat of rust paint

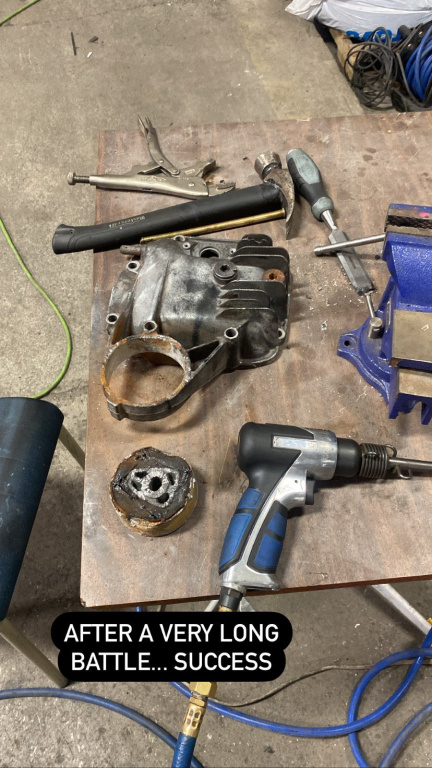

Took at least an hour of banging and swearing to get the bushing out


Quick coat of paint on the rear cover

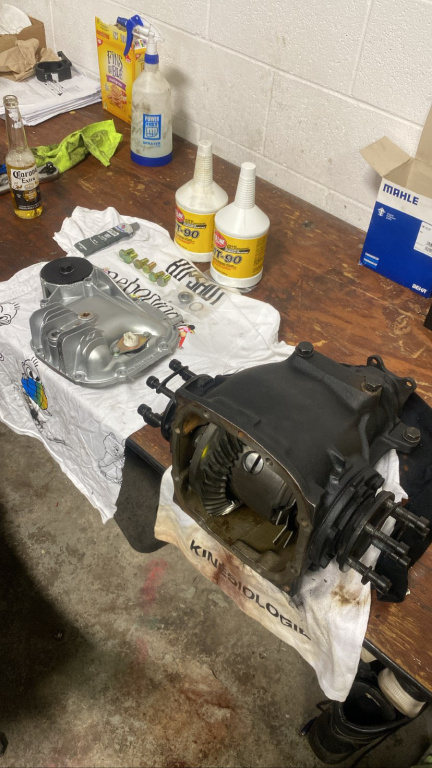

Cleaned the inside of the diff, ready to assemble

[E30Rossi]

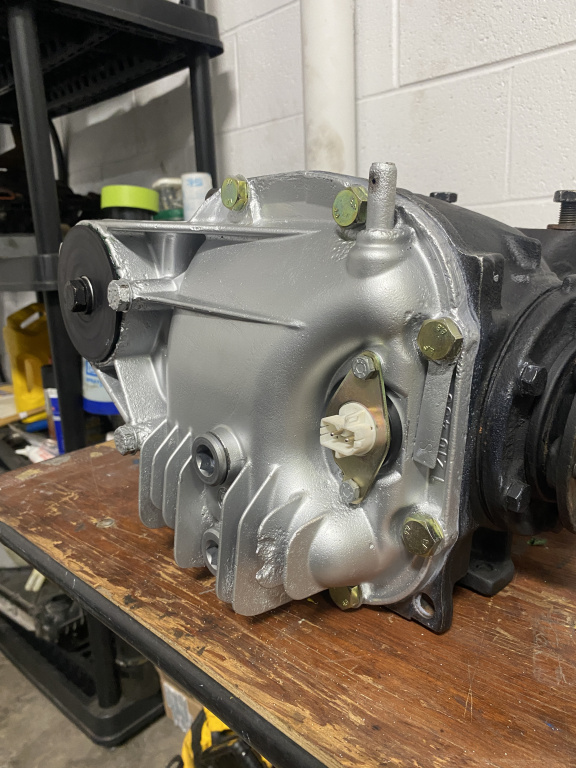

New OEM speed sensor, bracket, bolts, drain plugs and re-installed poly diff bushing from my old diff


Forgot to order the 2 long bolts, but this diff is a temporary solution either way


Retapped all the threads before installation


Ready to go

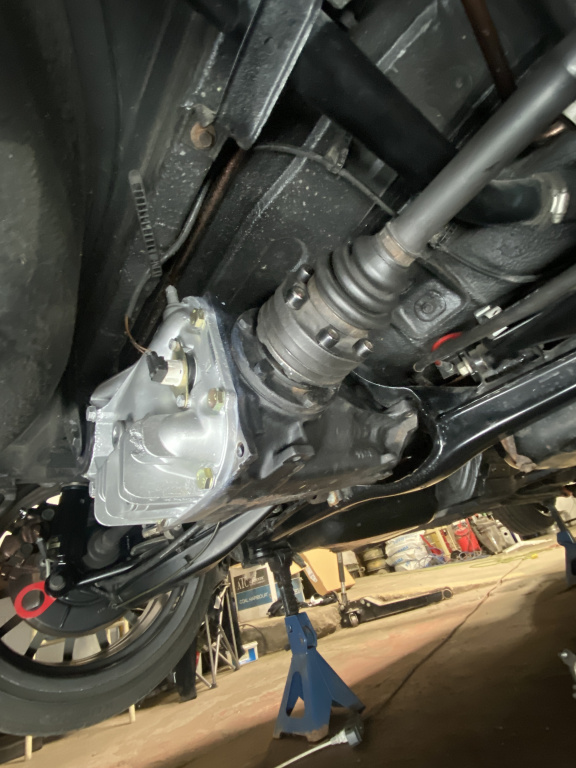

Got the diff back in and installed axles and driveshaft!

[Panici]

Wow a lot of progress since I last checked in!
Good work.

Too late now, but I think if you rotate that SPAL fan 90° then no trimming is required. There are flats on the top and bottom to add clearance.

[E30Rossi]

Wow a lot of progress since I last checked in!
Good work.

Too late now, but I think if you rotate that SPAL fan 90° then no trimming is required. There are flats on the top and bottom to add clearance.

I've been slacking on updating, the car is completed and back home now! I will add the rest of the photos!
I think if I would've rotated it , the brackets wouldn't work. Anyways, as you said, too late now

[E30Rossi]

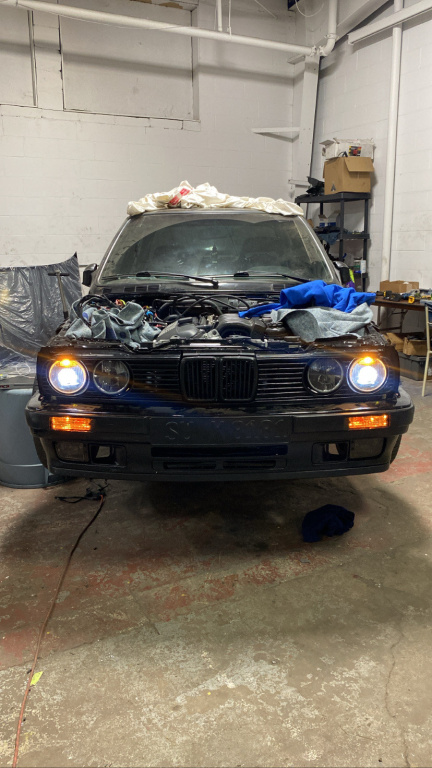

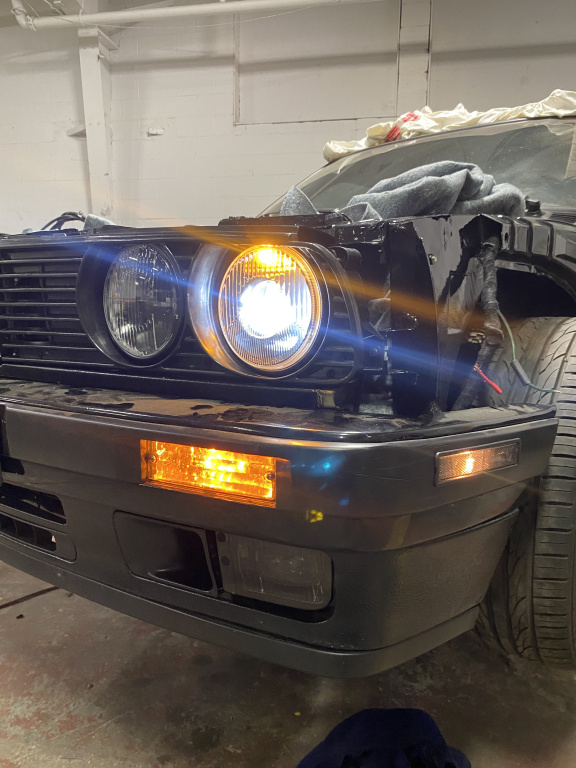

Time to wire up the headlights! Had to order new connectors and wire leads from dealer $$$


Love the look of these, and the light output is sooo much better than sealed beam lights!
LED bulbs were Auxito brand from Amazon. We'll see how they do! they seem like decent quality


Starting to look complete with the valence and grilles


Side markers don't match anymore, Amber LEDs ordered!

[E30Rossi]

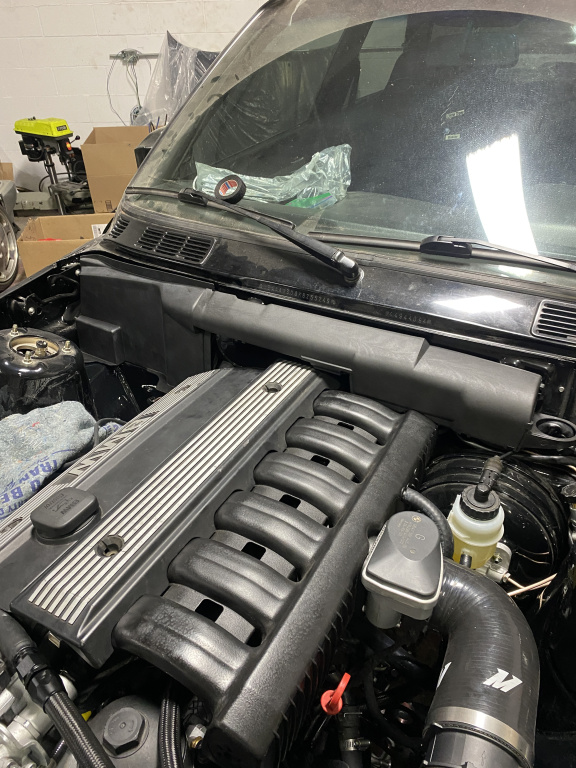

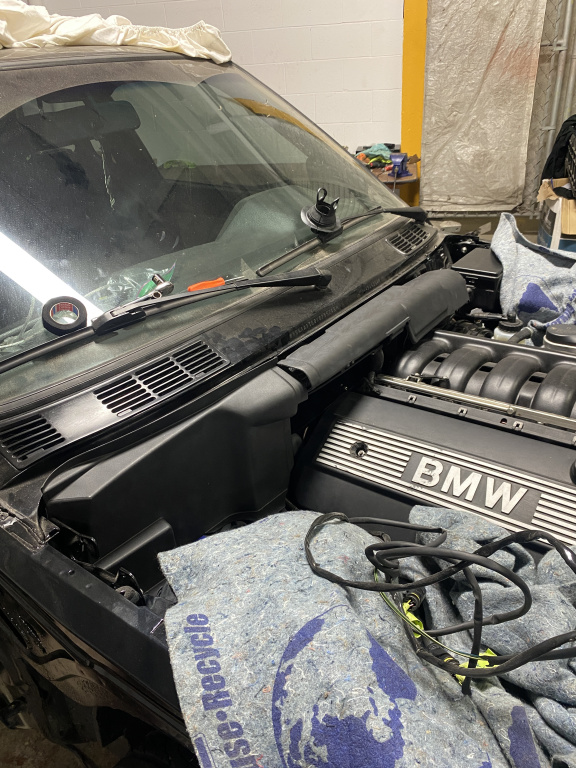

So glad I got all the wiring harness covers! This will complete the engine bay soooo much


Starting to see the vision come together



Decided on a spot for the catch can, which requires some cutting of the headlight cover to mount to the rad support


Looks like it was meant to be there. Inserted 2 rivnuts under rad support to hold the catch can


First line passed. Looking good

[E30Rossi]

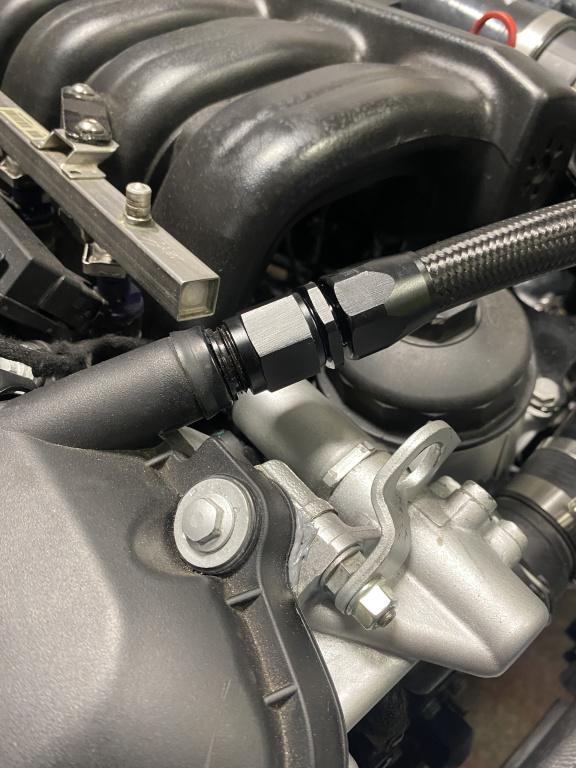

Glad I got the SeemsLegitGarage valve cover fitting. Makes the install look some much more professional


Need to find a better solution for top rad hose

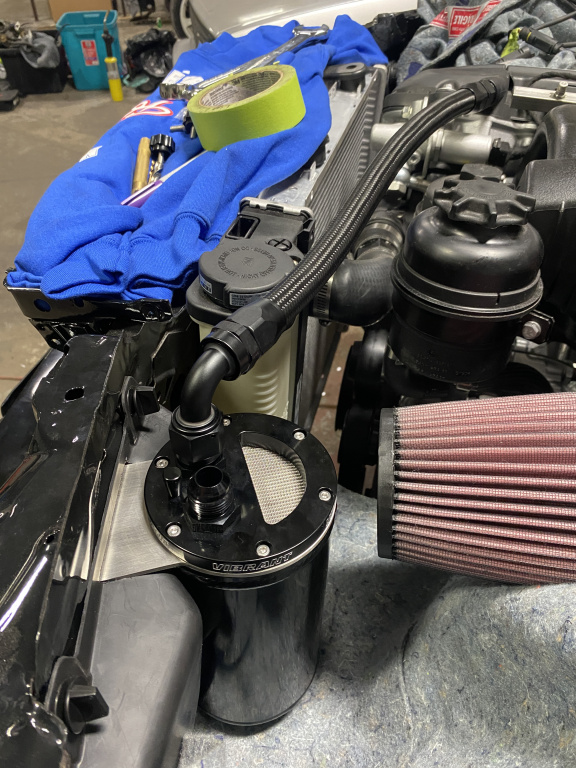

Second Catch can line routed into intake boot with all Vibrant fittings

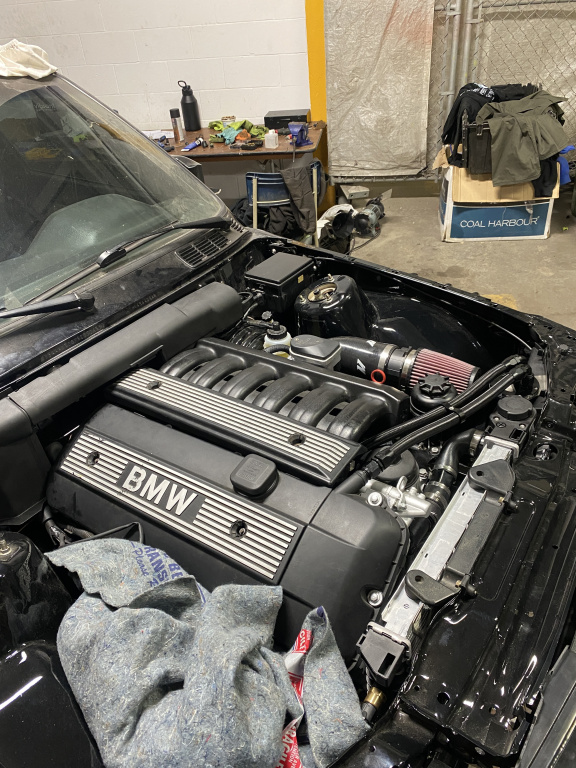

Loving how the catch can setup looks in there


Had to get the line separator as a final touch

[E30Rossi]

Trimmed harness cover to fit with M50 intake manifold

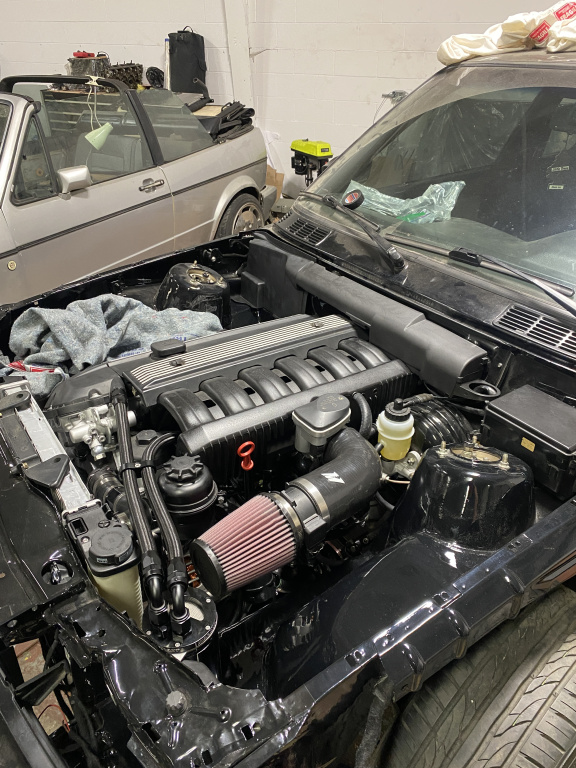

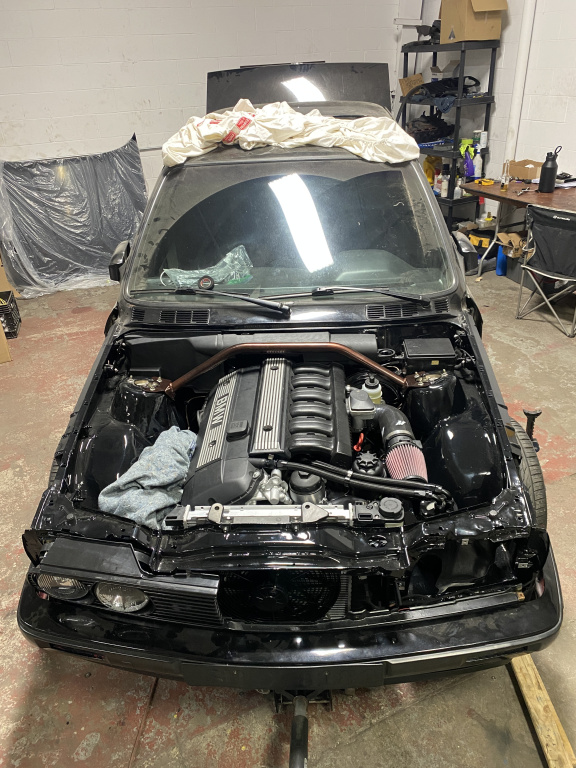

This engine bay is definitely coming together now


This is exactly what I envisioned

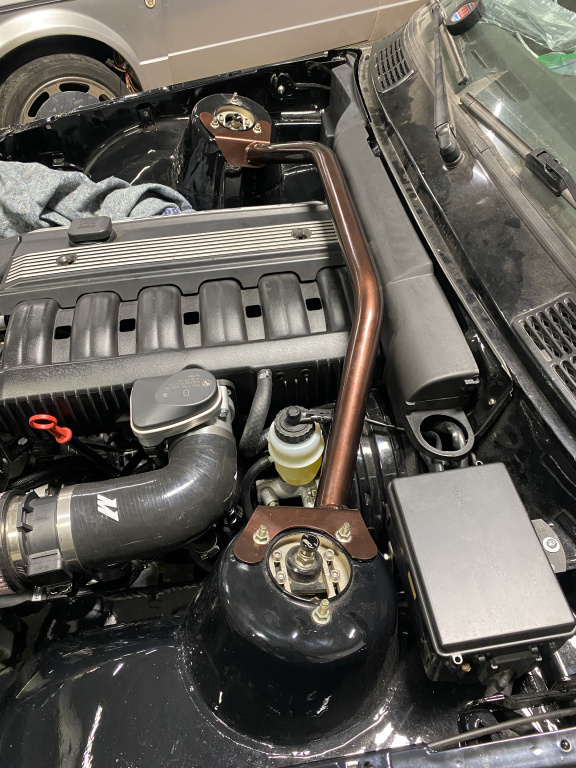

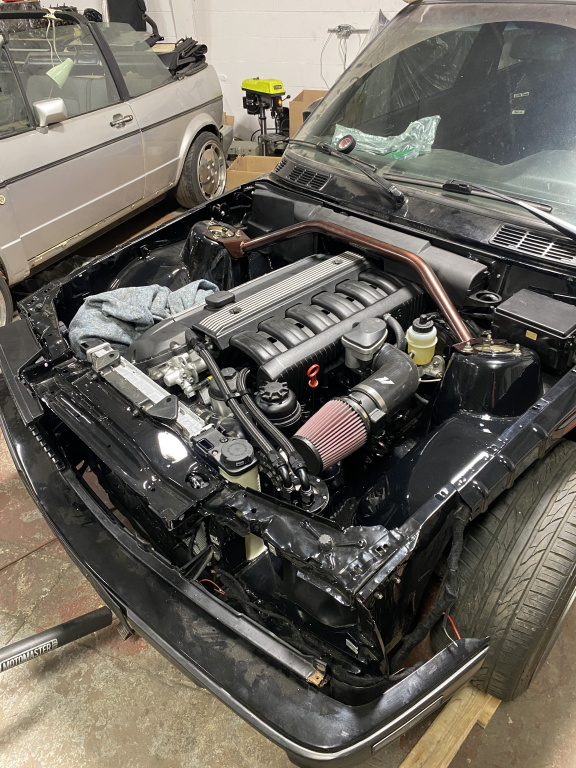

Powdercoated strut bar to match my accent colour! So now I have calipers, swaybars, strut bars and engine mount arms colour matched
Subtle detail but to me it makes the car stand out
