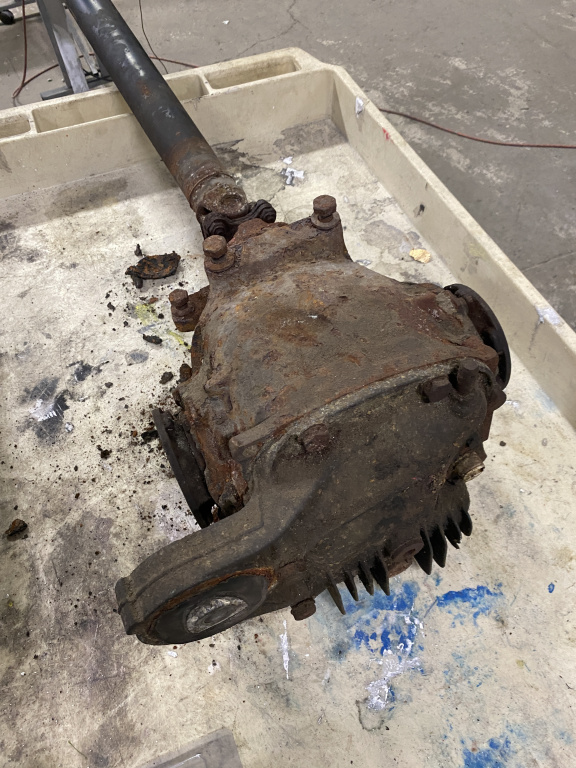

    Been looking for a medium case LSD diff for months and this is the first one I actually found local so I picked it up.
    Going to need a LOT of love before it even goes near my car.
    If I don't find another one in the next weeks, I'll be giving this a refresh

    Click image for larger version  Name:	662.jpg Views:	0 Size:	202.6 KB ID:	10091868
    Bolts caps and fan clutch delete nut installed
    Can't believe this is an OEM BMW part!

    Click image for larger version  Name:	663.jpg Views:	0 Size:	237.6 KB ID:	10091867

    can't stop staring at this thing!

    Click image for larger version  Name:	665.jpg Views:	0 Size:	218.7 KB ID:	10091866

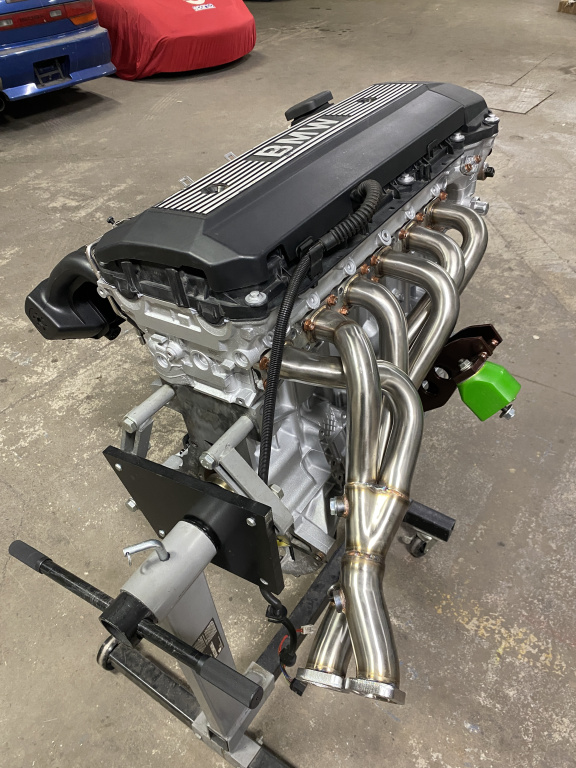

    Valve cover fully installed with refreshed hardware!

    Click image for larger version

Name:	664.jpg
Views:	218
Size:	224.0 KB
ID:	10091865
    Oil pan torqued with new Elring gasket like everything else


    1989 BMW ​325i - M54B30 Swap in Progress
    IG : e30rossi
    Montreal, Canada

    Comment


      Click image for larger version

Name:	666.jpg
Views:	187
Size:	224.8 KB
ID:	10091874
      Dreaming of how this is gonna look!

      Click image for larger version

Name:	667.jpg
Views:	205
Size:	177.0 KB
ID:	10091871

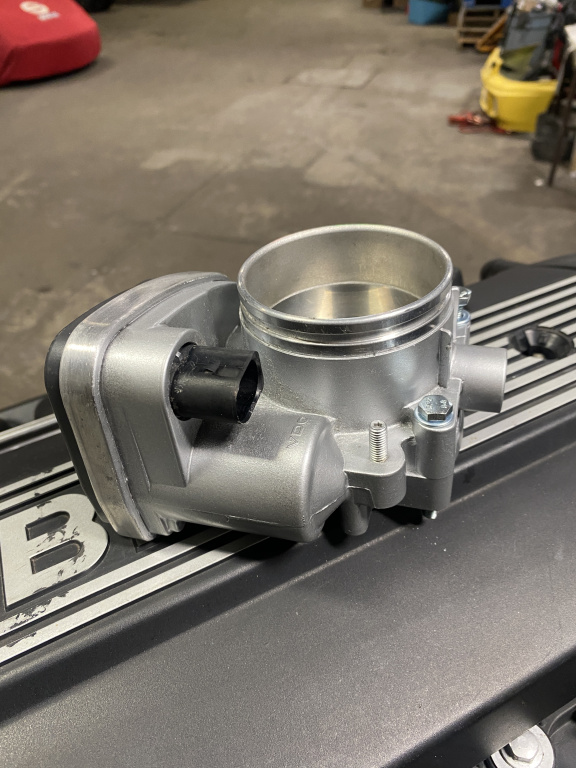

      M54 Throttle Body gets a coat of paint!

      Click image for larger version

Name:	668.jpg
Views:	186
Size:	229.3 KB
ID:	10091873
      M50 Manifold painted with SEM trimblack

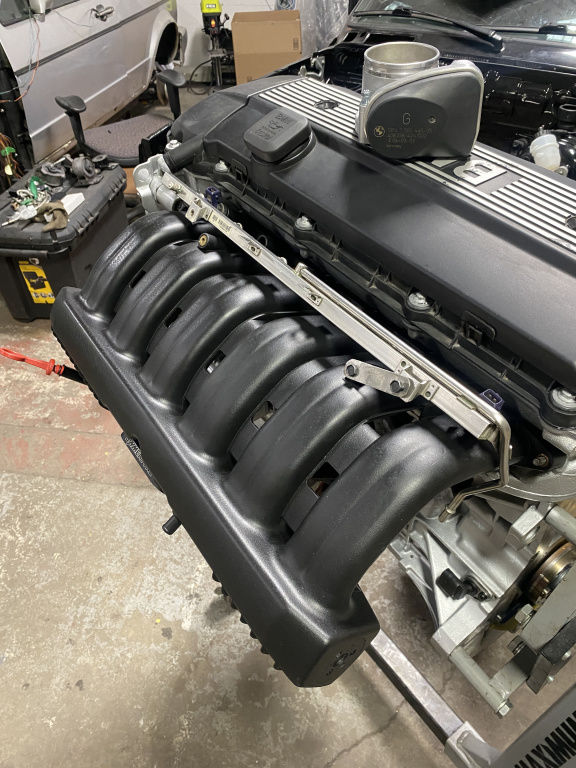

      Mocking up fuel rail with brackets

      Click image for larger version

Name:	669.jpg
Views:	185
Size:	151.8 KB
ID:	10091872
      New gasket

      Click image for larger version

Name:	670.jpg
Views:	188
Size:	168.5 KB
ID:	10091875

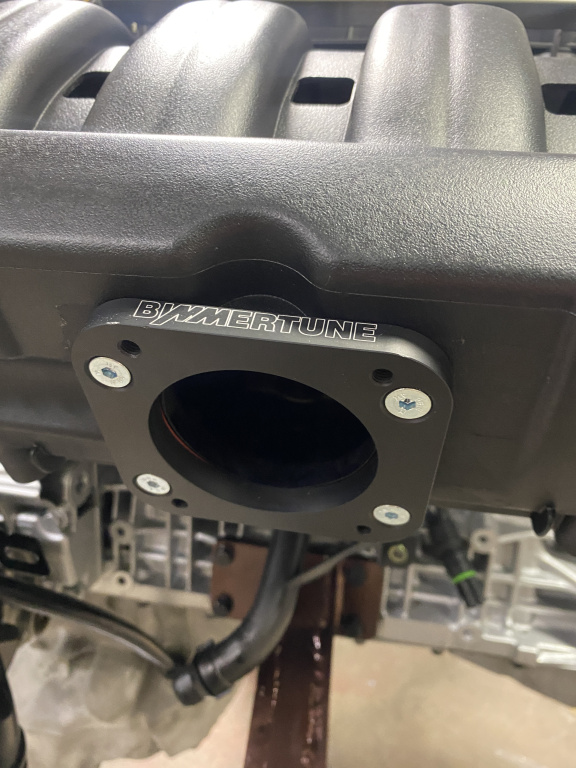

      M50 Manifold to M54 Throttle Body adapter
      Very nice piece from Bimmertune


      1989 BMW ​325i - M54B30 Swap in Progress
      IG : e30rossi
      Montreal, Canada

      Comment


        Click image for larger version

Name:	672.jpg
Views:	202
Size:	226.4 KB
ID:	10091877

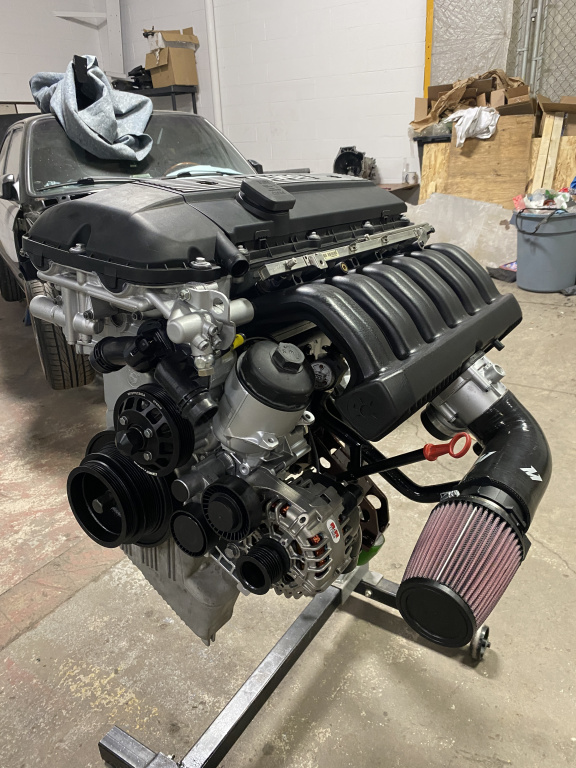

        Mocked up manifold with TB and intake

        Click image for larger version

Name:	673.jpg
Views:	184
Size:	227.5 KB
ID:	10091879
        it's coming!!

        Click image for larger version

Name:	674.jpg
Views:	187
Size:	229.6 KB
ID:	10091878

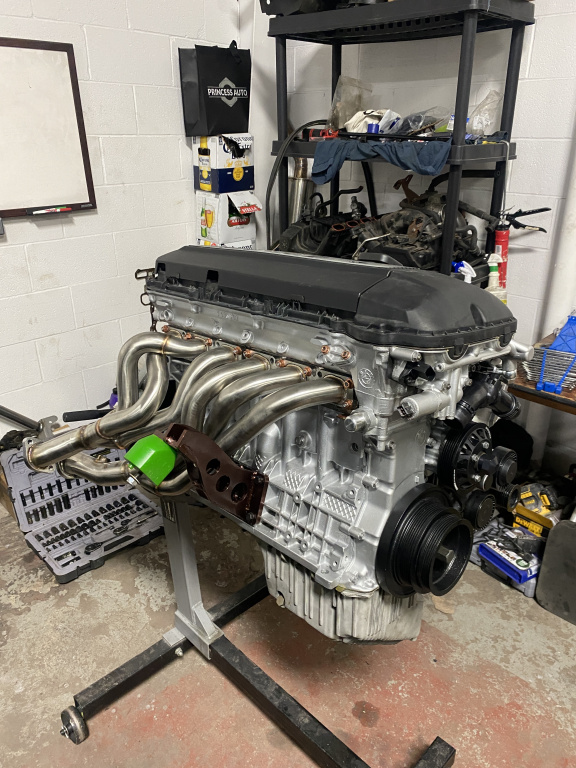

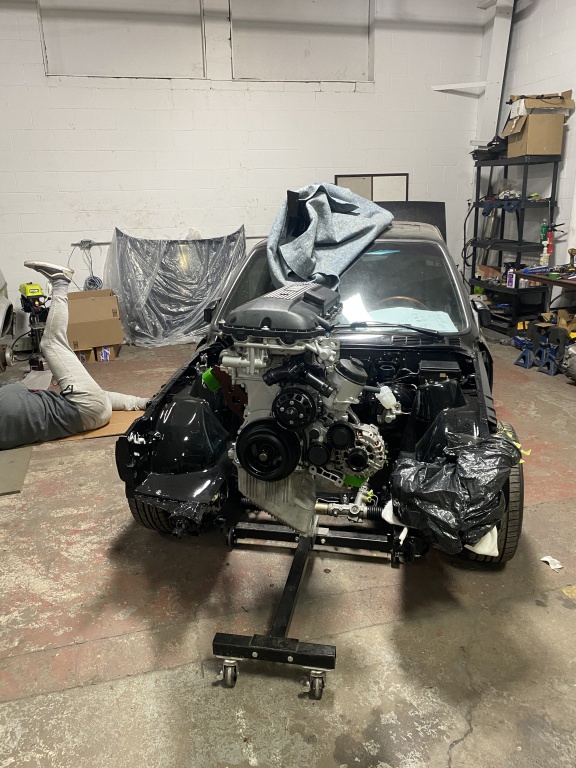

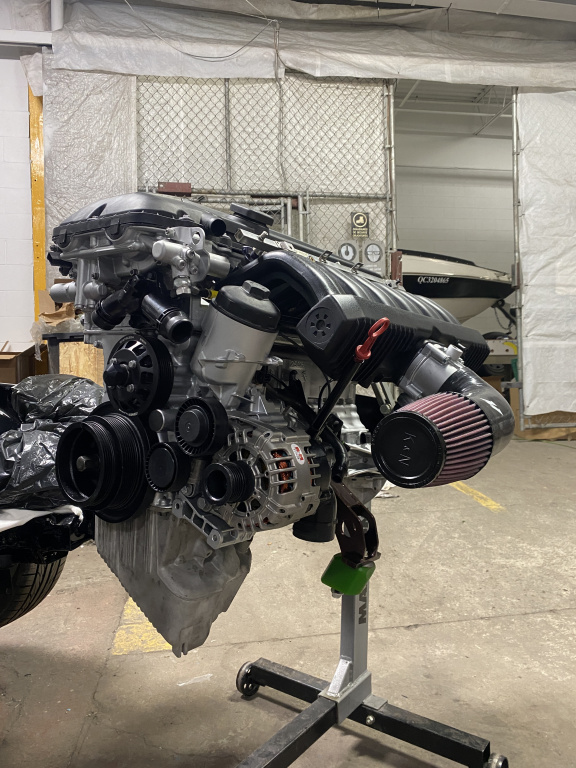

        Looking so complete now! Not much left to go

        Click image for larger version

Name:	675.jpg
Views:	177
Size:	229.2 KB
ID:	10091880
        Even put some wiring back on

        Click image for larger version

Name:	676.jpg
Views:	178
Size:	236.3 KB
ID:	10091881

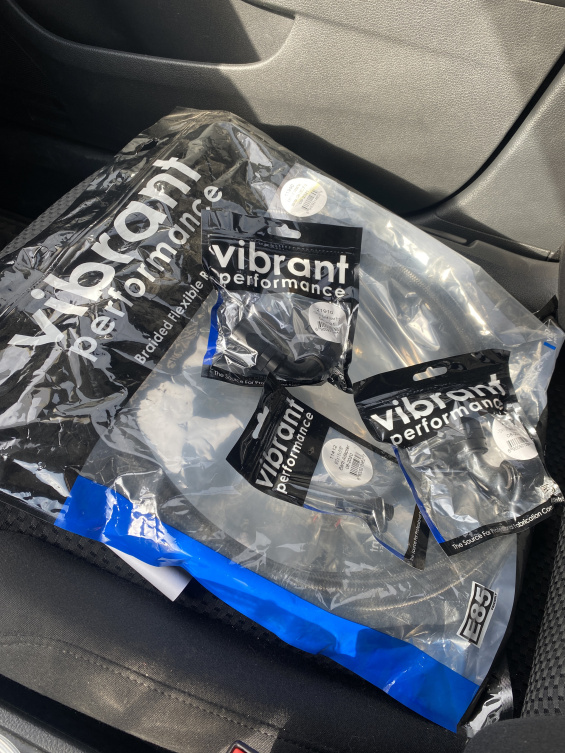

        Received some goodies today, piecing together my catch can setup with only the best Vibrant parts


        1989 BMW ​325i - M54B30 Swap in Progress
        IG : e30rossi
        Montreal, Canada

        Comment


          Looks so good! Makes me want to use a 24V as a base for my turbo build instead of my m20. Maybe one day!

          Comment


            Originally posted by Cairn View Post
            Looks so good! Makes me want to use a 24V as a base for my turbo build instead of my m20. Maybe one day!
            Thanks man! It might sound stupid but at first I definitely chose m5x because I like how it looks in the engine bay way more than an m20. Of course it has it's other benefits too


            1989 BMW ​325i - M54B30 Swap in Progress
            IG : e30rossi
            Montreal, Canada

            Comment


              Man that looks clean!
              What paint did you use on the aluminum, and what was the prep like?

              I didn't do anything beyond degreasing the raw aluminum on my build and it doesn't look anywhere near as nice as yours!

              Comment


                Sub'd
                FEEDBACK:
                http://www.r3vlimited.com/board/showthread.php?t=316212

                BMWCCA #398608
                IG @yagayo38

                "The Best E30's were built with two camshafts four cylinders and sixteen valves!".

                Comment


                  Originally posted by Panici View Post
                  Man that looks clean!
                  What paint did you use on the aluminum, and what was the prep like?

                  I didn't do anything beyond degreasing the raw aluminum on my build and it doesn't look anywhere near as nice as yours!
                  I degreased it all and it was pretty clean but as I put my new parts next to it I couldn't help myself hahha! Just a quick sand and hit it with the good old Dupli-Color Engine Enamel (Aluminum Color)


                  1989 BMW ​325i - M54B30 Swap in Progress
                  IG : e30rossi
                  Montreal, Canada

                  Comment


                    On aluminum parts, I like to do glass bead blasting. Had one of my E46 M3 diff cover blasted with glass beads and it looks like new or better. You can also do soda blast or even sand blast with higher grit.
                    2003.5 BMW E46 M3 Laguna Seca Blue/LSB 6mt
                    2006 BMW E46 M3 Individual Estoril Blue/Black 6mt
                    2024 Toyota Land Cruiser Black

                    Comment


                      Originally posted by Gtfour View Post
                      On aluminum parts, I like to do glass bead blasting. Had one of my E46 M3 diff cover blasted with glass beads and it looks like new or better. You can also do soda blast or even sand blast with higher grit.
                      I blasted everything with plastic media but it's not as abrasive as sand or glass. Most things come out nice but I didn't want to risk putting the block or head in there😂


                      1989 BMW ​325i - M54B30 Swap in Progress
                      IG : e30rossi
                      Montreal, Canada

                      Comment


                        Originally posted by E30Rossi View Post

                        I blasted everything with plastic media but it's not as abrasive as sand or glass. Most things come out nice but I didn't want to risk putting the block or head in there😂
                        Yeah plastic media is good to clean without damaging anything but sand & glass will leave a nice surface finish
                        2003.5 BMW E46 M3 Laguna Seca Blue/LSB 6mt
                        2006 BMW E46 M3 Individual Estoril Blue/Black 6mt
                        2024 Toyota Land Cruiser Black

                        Comment


                          Originally posted by Gtfour View Post

                          Yeah plastic media is good to clean without damaging anything but sand & glass will leave a nice surface finish
                          Yeah that's the thing. At the shop I'm working at, I have access to the machines on the weekend but I can't change the media that's in it. So I deal with what I have since it's there and free to use 😂


                          1989 BMW ​325i - M54B30 Swap in Progress
                          IG : e30rossi
                          Montreal, Canada

                          Comment


                            Click image for larger version

Name:	677.jpg
Views:	130
Size:	208.3 KB
ID:	10093198

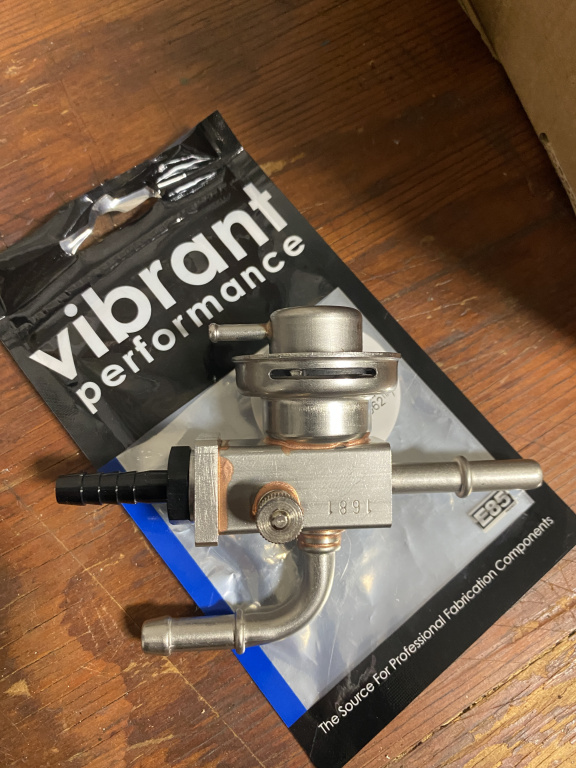

                            Used the S54 FPR Housing, with M54 FPR and Vibrant Fitting (#11412) M12x1.5 to 5/16 Barb to join to stock fuel lines

                            Click image for larger version

Name:	678.jpg
Views:	128
Size:	208.5 KB
ID:	10093201
                            Installed, with the OEM quick disconnect line from the M54. Need to find a nicer solution to prevent the line from rubbing on the paint but this will work for now

                            Click image for larger version

Name:	680.jpg
Views:	151
Size:	208.0 KB
ID:	10093197

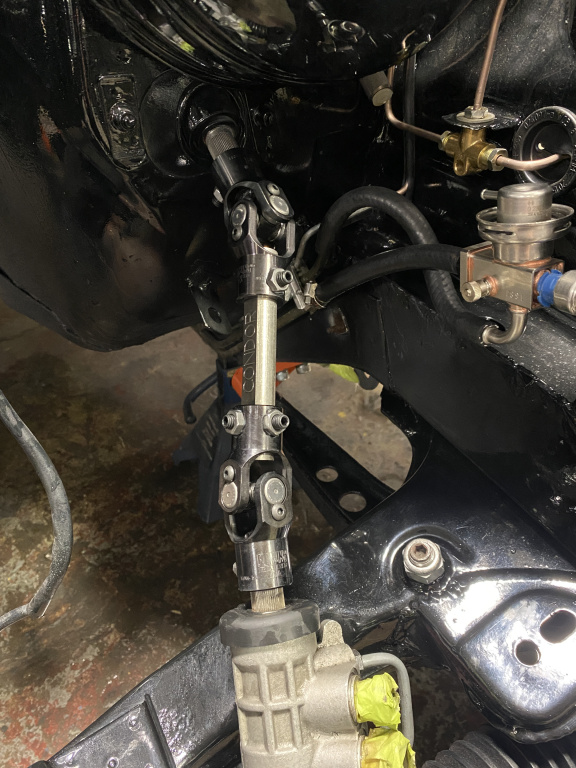

                            Can't wait to feel steering with no loose in it!

                            Click image for larger version

Name:	681.jpg
Views:	132
Size:	226.0 KB
ID:	10093199

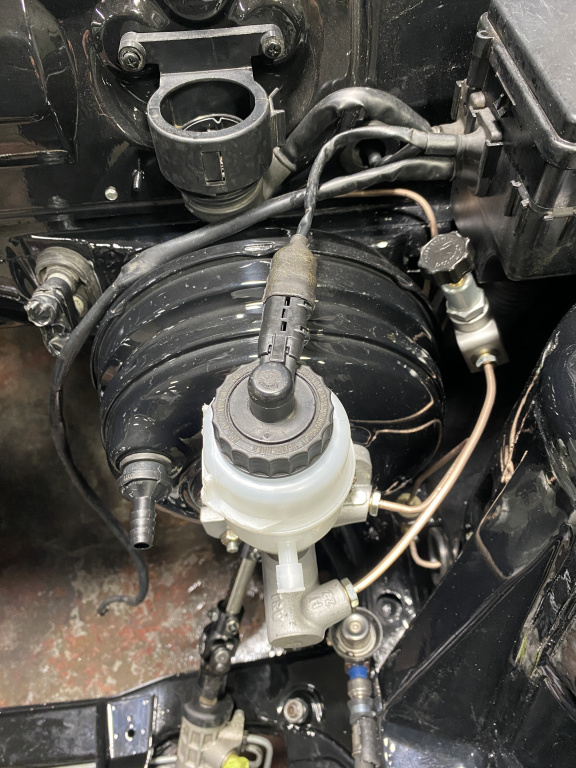

                            After test fitting the strut bar, I realized the proportioning valve had to be moved because it was interfering.
                            Had to reroute the lines. Limited on placement and fed up of making lines but this will work!

                            Click image for larger version

Name:	682.jpg
Views:	129
Size:	245.0 KB
ID:	10093200
                            Gave the engine bay a quick clean-up since it was getting nasty with the dust in the shop


                            1989 BMW ​325i - M54B30 Swap in Progress
                            IG : e30rossi
                            Montreal, Canada

                            Comment


                              Click image for larger version  Name:	683.jpg Views:	0 Size:	268.3 KB ID:	10093203
                              Much better to see the paint again!

                              Click image for larger version  Name:	684.jpg Views:	0 Size:	228.1 KB ID:	10093204

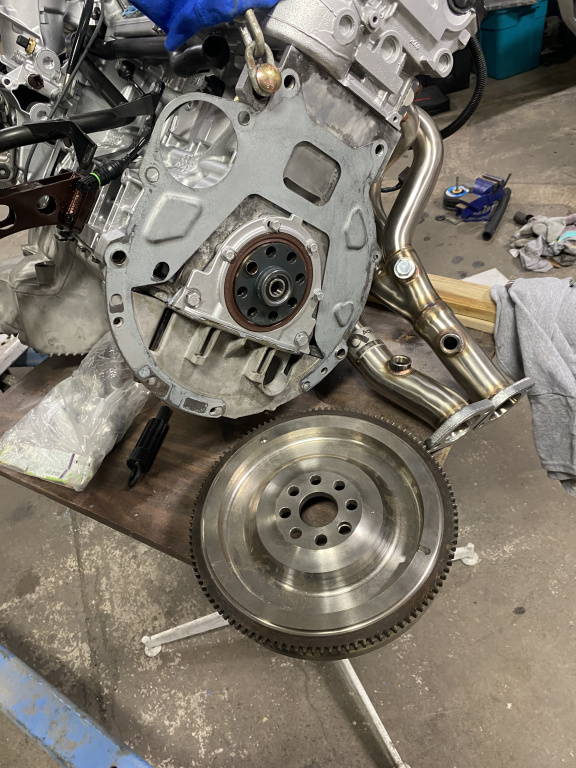

                              Getting ready to install the motor! Rear main seal time

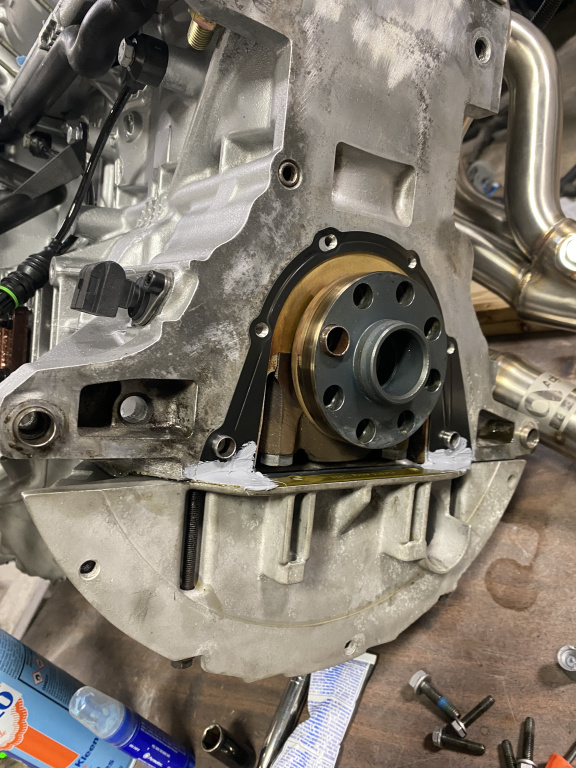

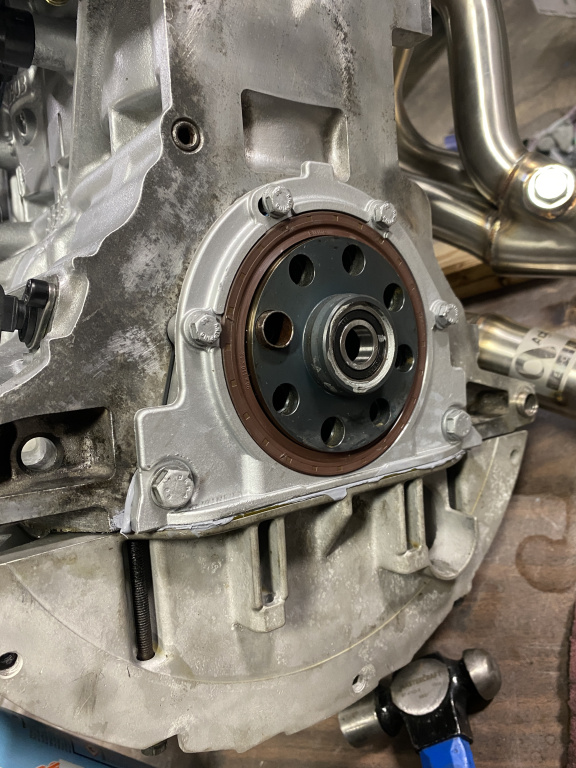

                              Click image for larger version  Name:	685.jpg Views:	0 Size:	214.9 KB ID:	10093206
                              Cover installed, pilot bearing installed

                              Click image for larger version  Name:	686.jpg Views:	0 Size:	242.1 KB ID:	10093207
                              Valeo single mass flywheel

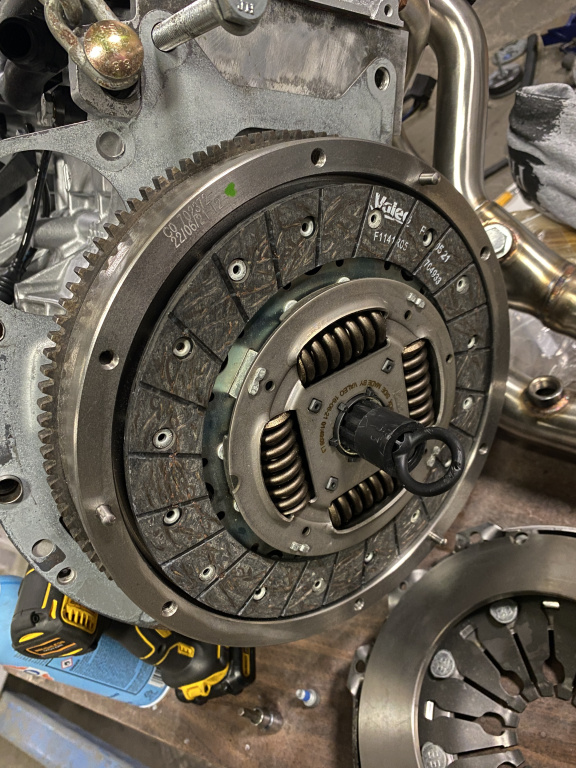

                              Click image for larger version  Name:	687.jpg Views:	0 Size:	253.7 KB ID:	10093205
                              Flywheel and clutch installed!


                              1989 BMW ​325i - M54B30 Swap in Progress
                              IG : e30rossi
                              Montreal, Canada

                              Comment


                                Click image for larger version

Name:	688.jpg
Views:	130
Size:	266.7 KB
ID:	10093214

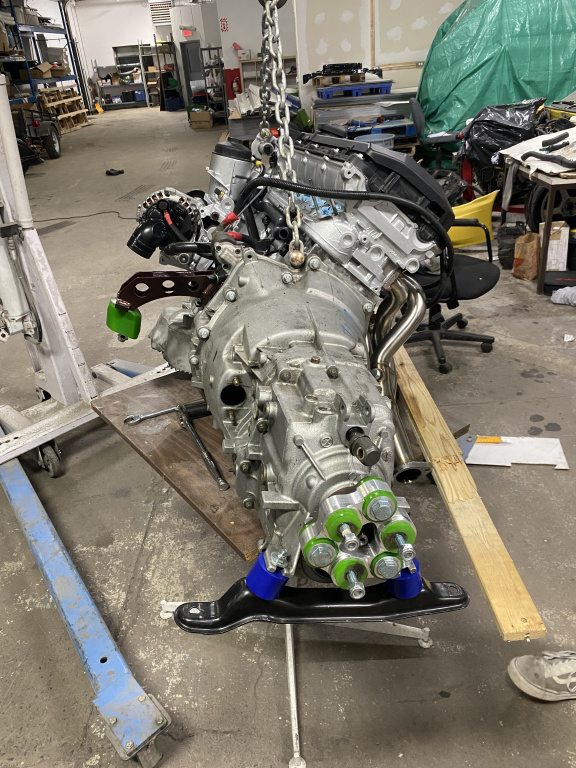

                                Transmission on with mounts!

                                Click image for larger version

Name:	689.jpg
Views:	141
Size:	248.8 KB
ID:	10093210

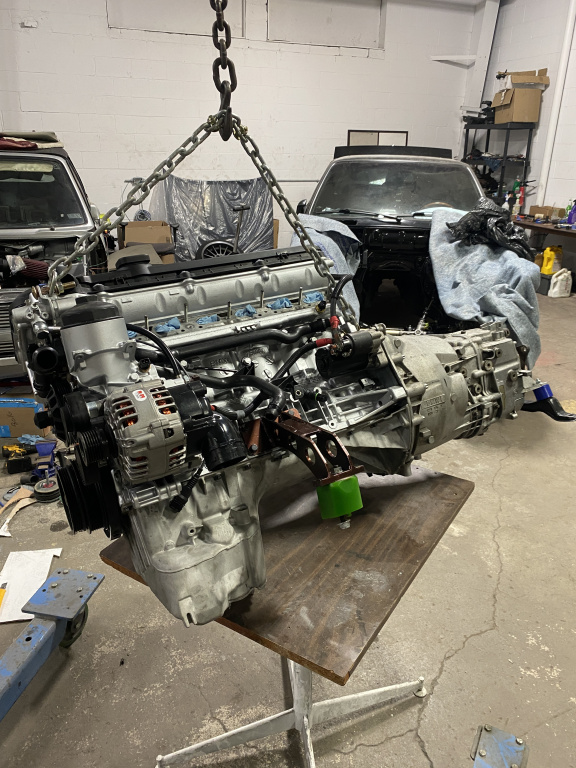

                                What a unit!

                                Click image for larger version

Name:	691.jpg
Views:	128
Size:	236.8 KB
ID:	10093212

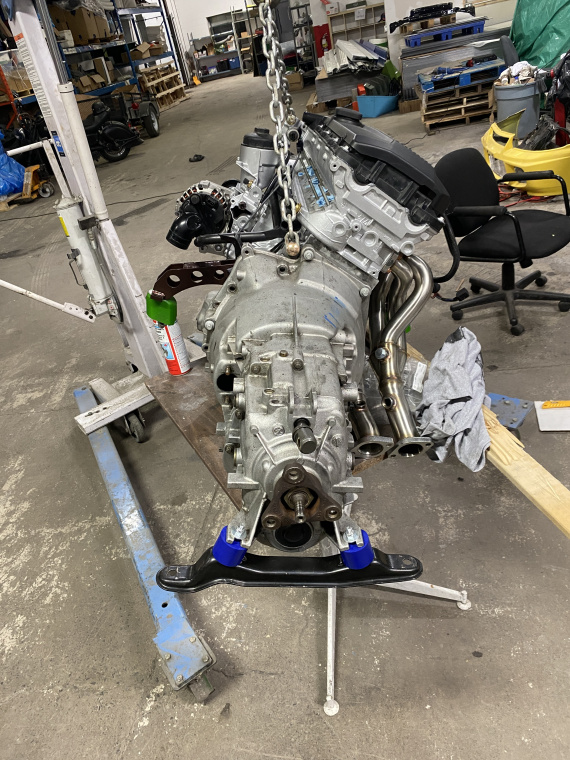

                                Ready to go into its final place

                                Click image for larger version

Name:	690.jpg
Views:	127
Size:	267.2 KB
ID:	10093211

                                Click image for larger version

Name:	692.jpg
Views:	128
Size:	260.4 KB
ID:	10093213

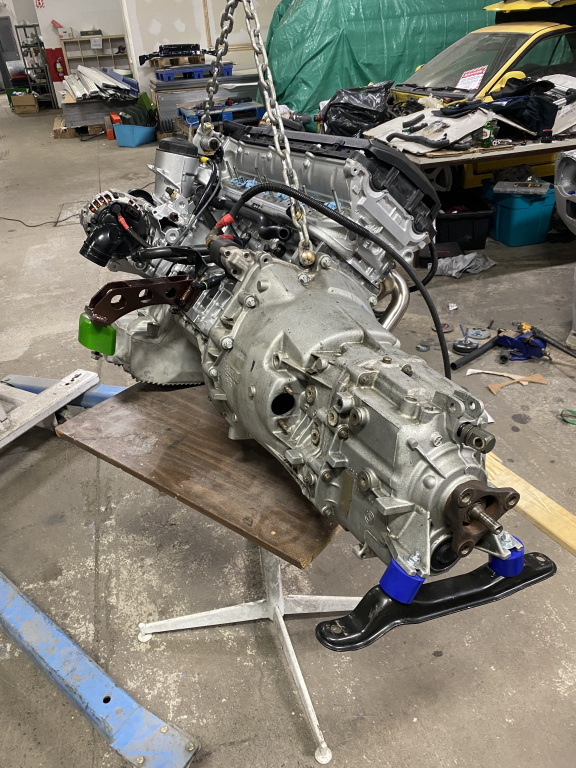

                                Revshift 24V swap giubo installed. Not sure yet if I will run this on the street
