E30Rossi's Full Build - Overhaul - 5 Lug - Bay Shave - M54 Swap (Pic Heavy)

[E30Rossi]

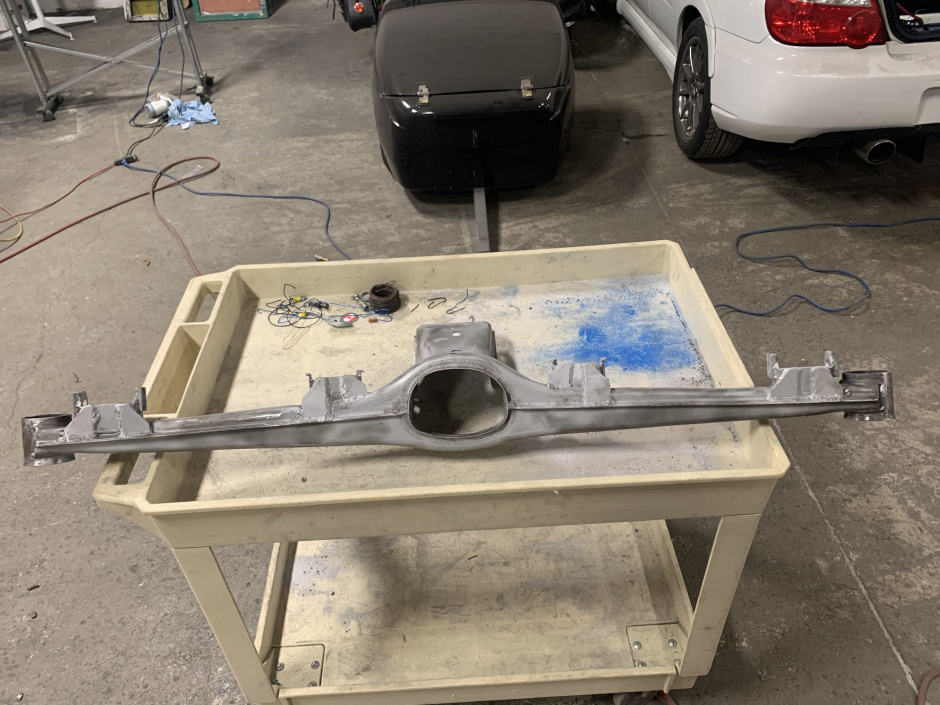

Subframe sandblasted, Didn't fit in our powdercoat oven so had to send this one out!

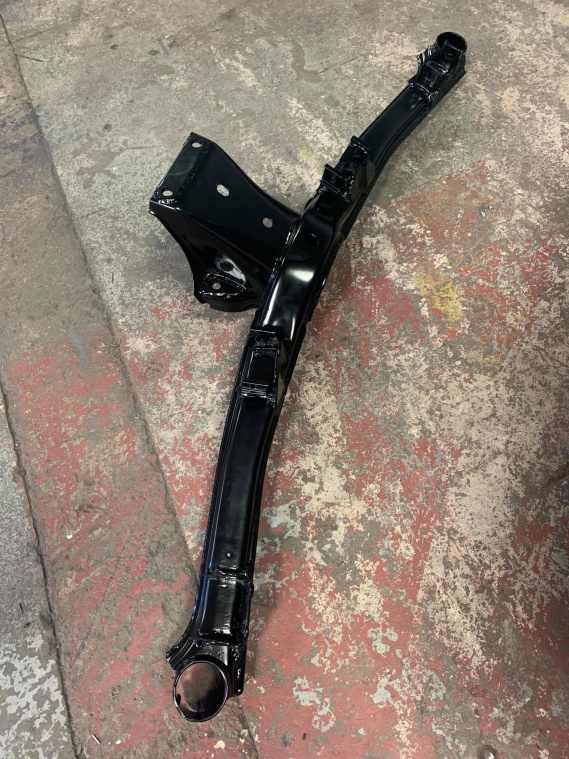

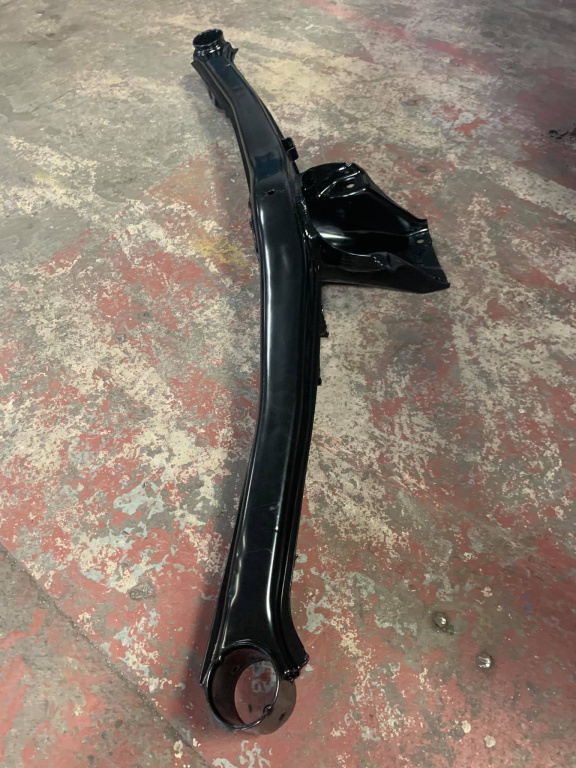

Back from powdercoat! Only part outsourced

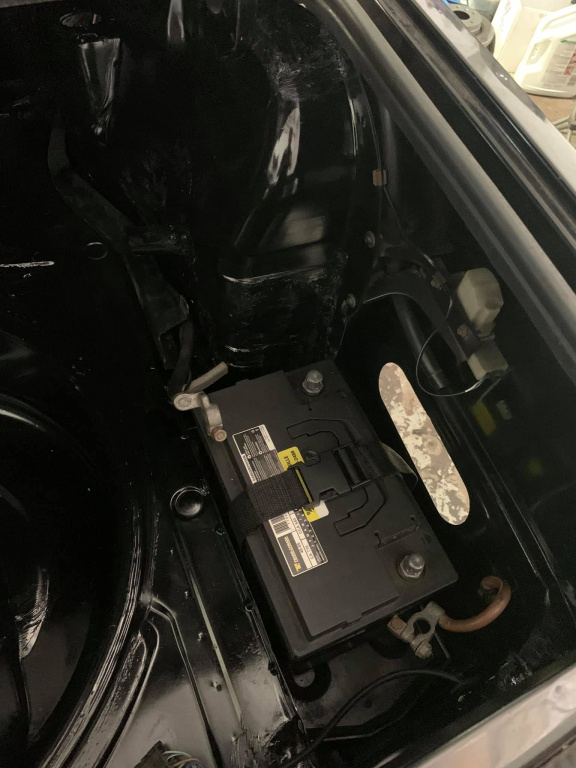

New Battery installed with marine style strap hold down

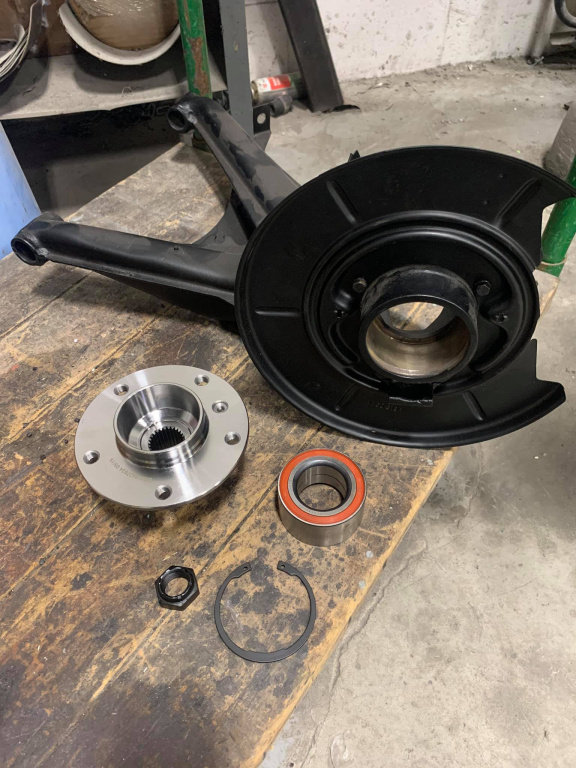

Z4 Rear hubs for 5 lug swap, with new wheel bearing and hardware

[E30Rossi]

Let's get back to the interior for now!
Decided I wanted a car that I could talk in on long rides, after getting rid of all the oem sound deadening, wanted something that would not add much weight but still do the job
I ended up ordering Kilmat on amazon, and I was blown away with the quality of this! Do not regret adding this extra step!

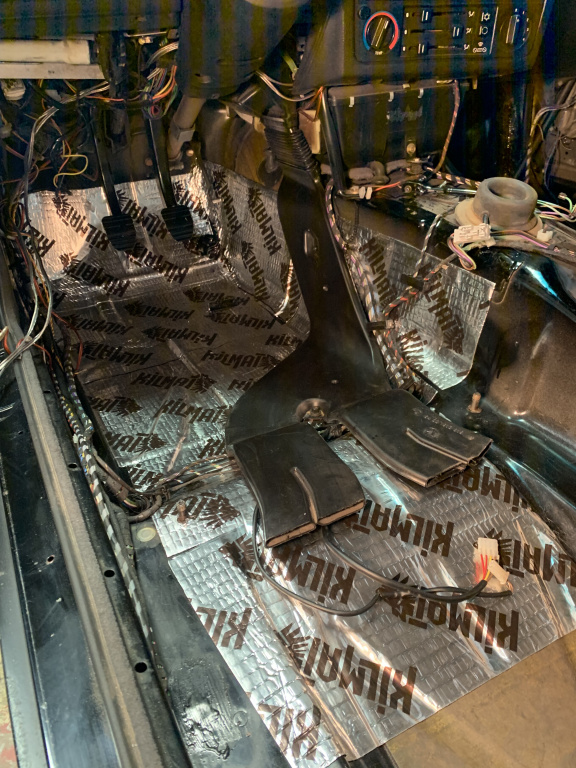

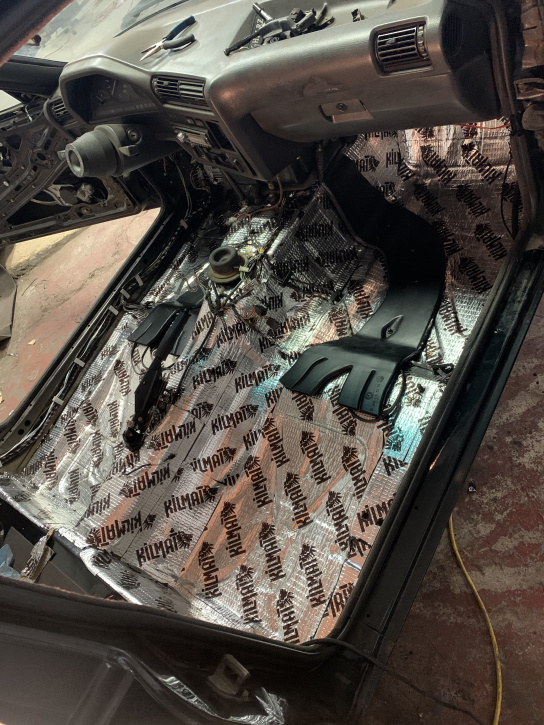

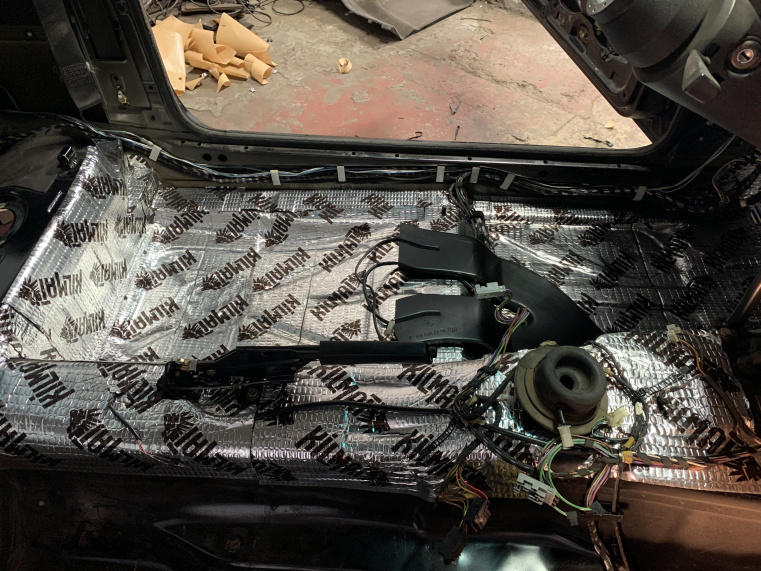

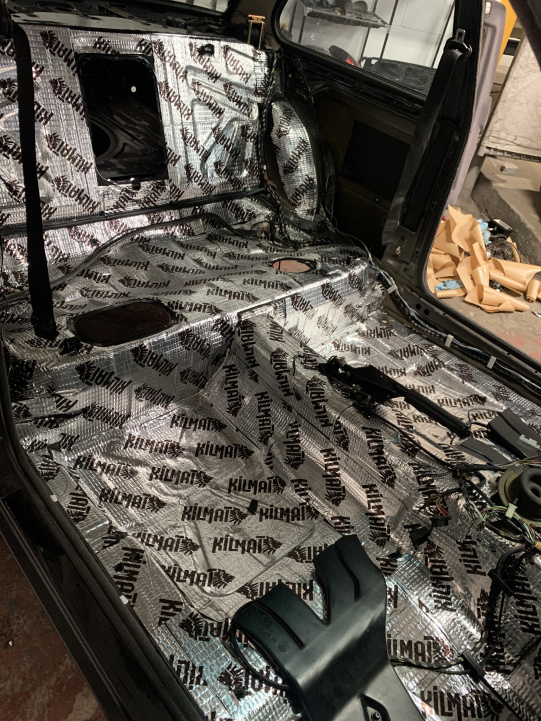

Started installing the Kilmat and resinstalling interior components


Rolls on super easy and very thin to easy to cut out studs and holes!


Might've gone a little crazy since they recommend 60% coverage but I couldn't help myself!

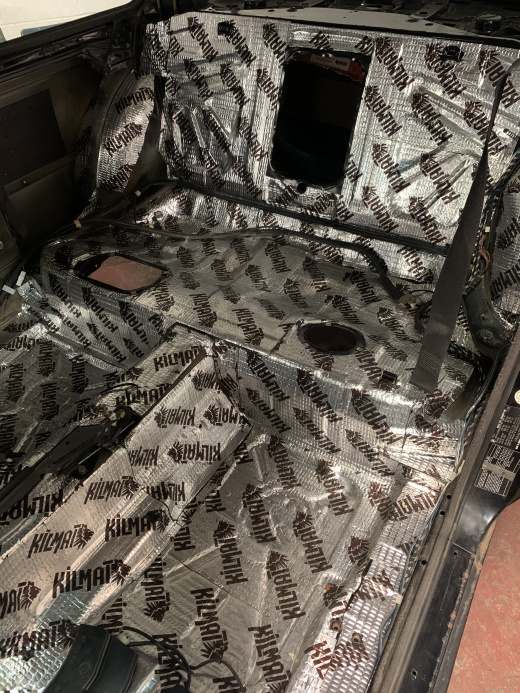

I later covered the inside of the doors, inside of rear quarters, speaker deck and entire trunk as well

[E30Rossi]

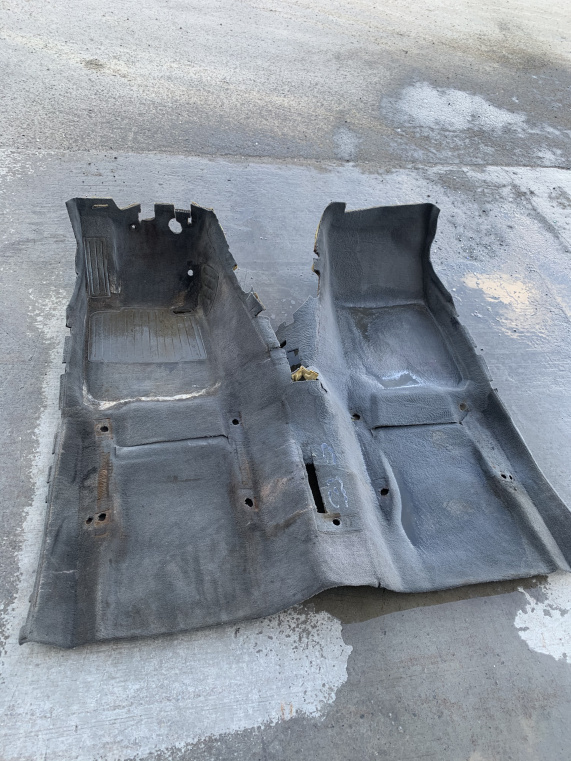

Next on my list, do something with this disgusting carpet

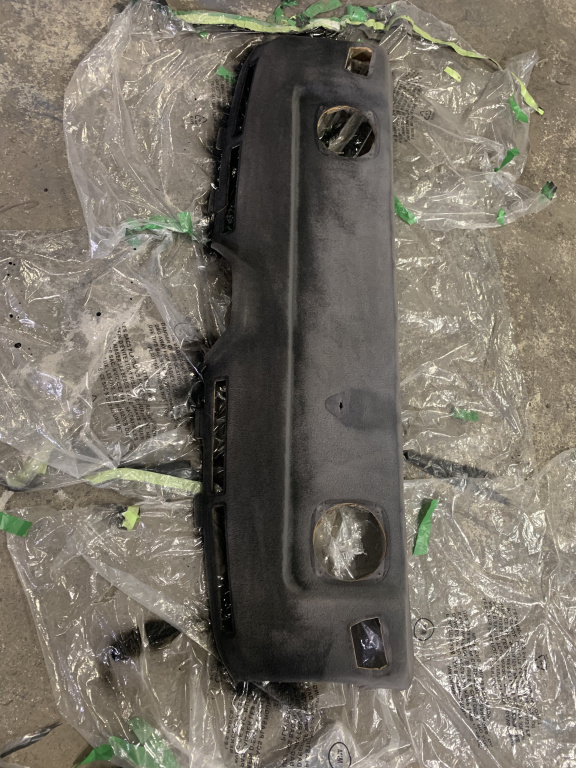

Testing upholstery paint on the rear speaker deck, if you brush it after painting, comes out real nice!

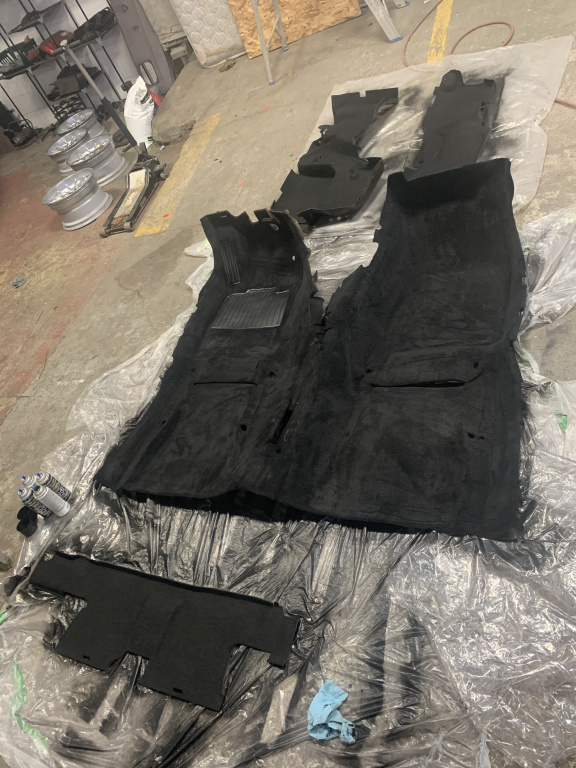

Much much better, have to do trunk carpet too!

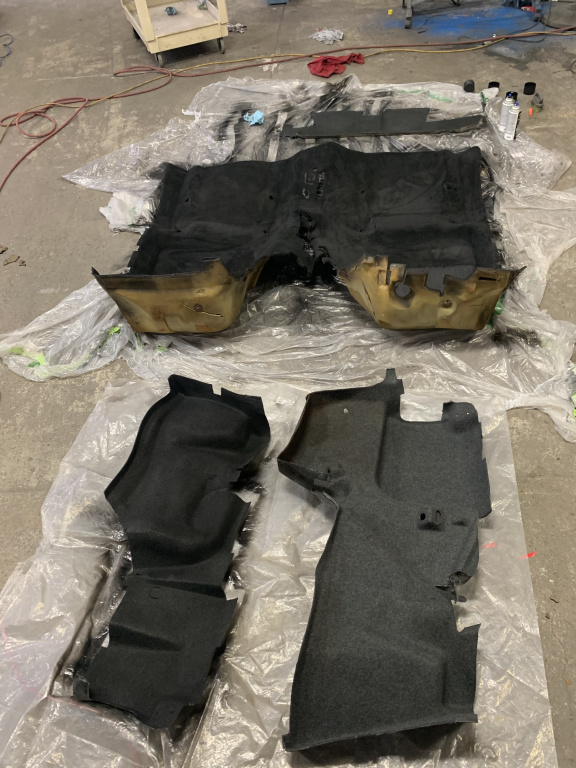

Looks so much better painted black

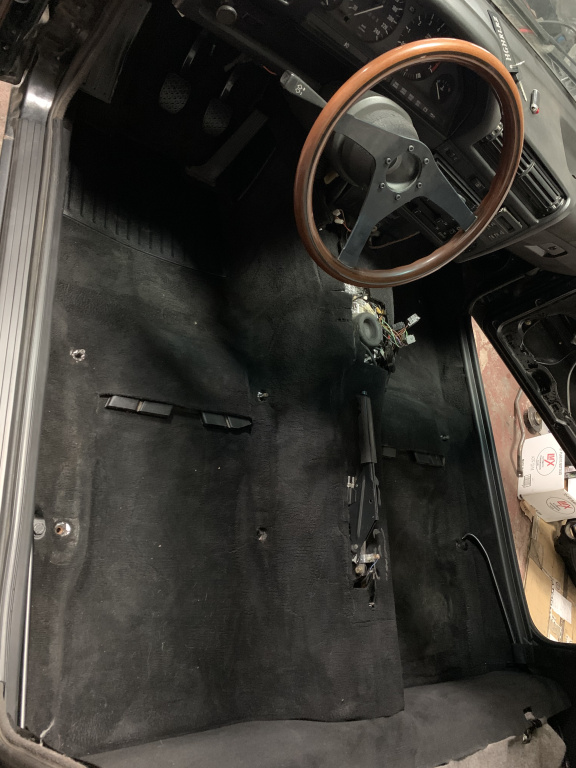

Carpet back in the car, what a difference!!!

[E30Rossi]

Worth the effort !

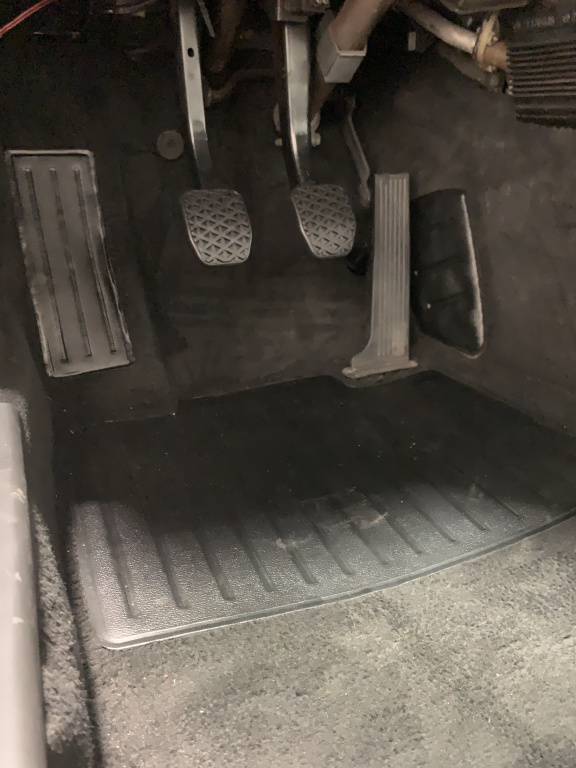

Brand new OEM Pedal rubbers - again it's all in the details

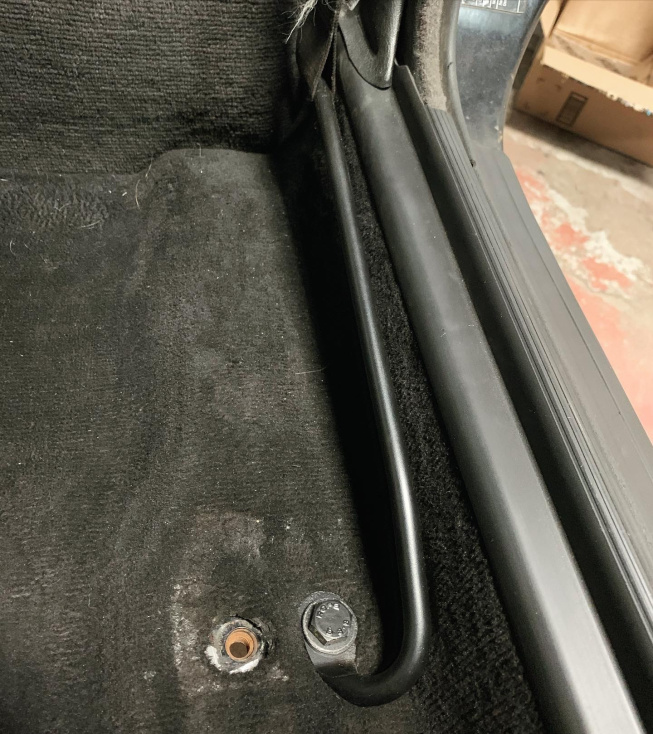

Powdercoated seatbelt rails back in


Speaker deck looking brand new

[E30Rossi]

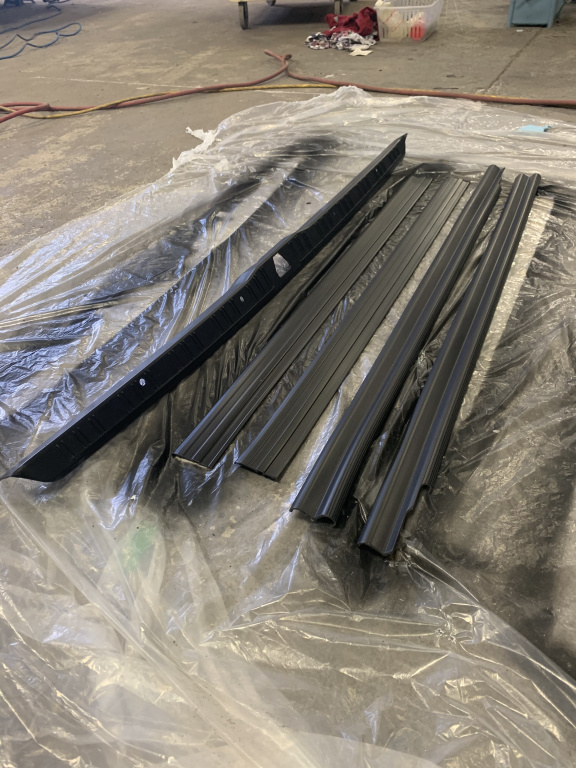

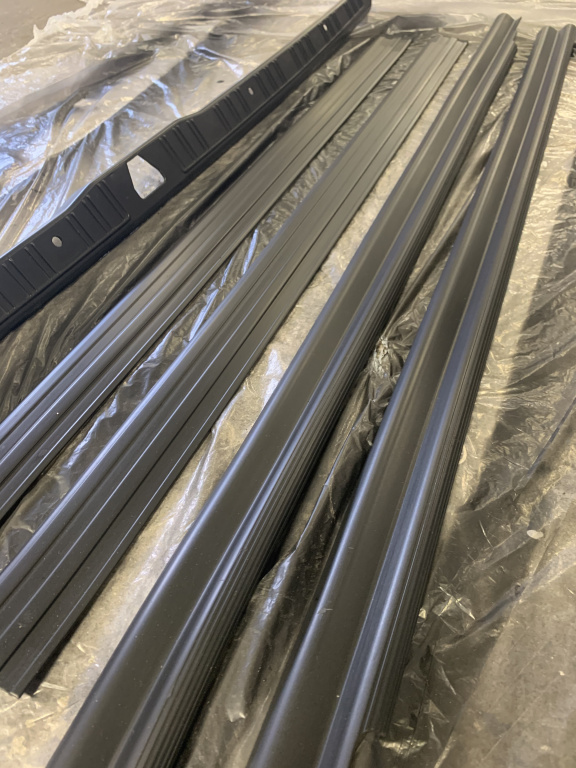

Door and trunk trims get a coat of SEM Trim Black to complete the refresh


Factory fresh finish

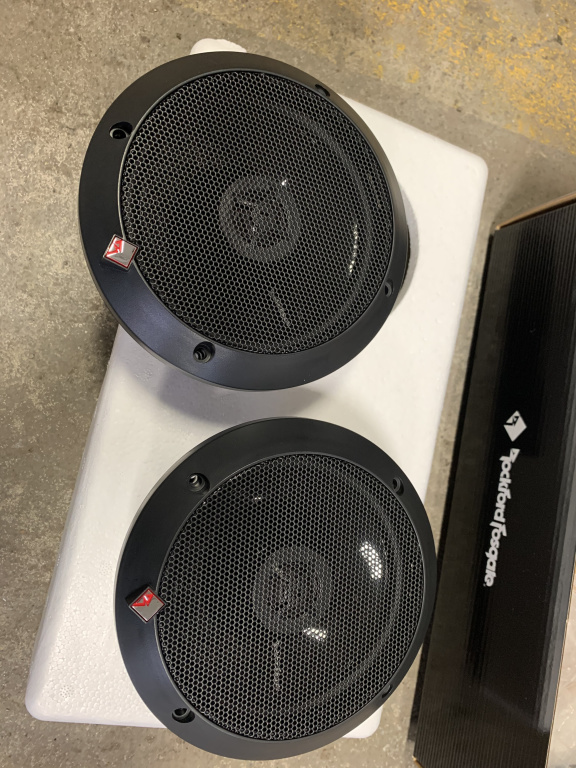

New speakers to replace the OEM 30 year old speakers

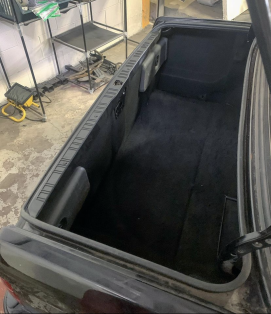

Trunk gets sound deadening too because why not :P At this point I was just addicted

[E30Rossi]

Let's get started on refinishing these wheels!
Sanded down all the curb rash by hand
Learnt how to sandblast and powdercoat wheels on my own
Messed up the first one and started over but the 12 hours of work to finish the set was beyond worth it
My favourite part of this build


Sandblasting

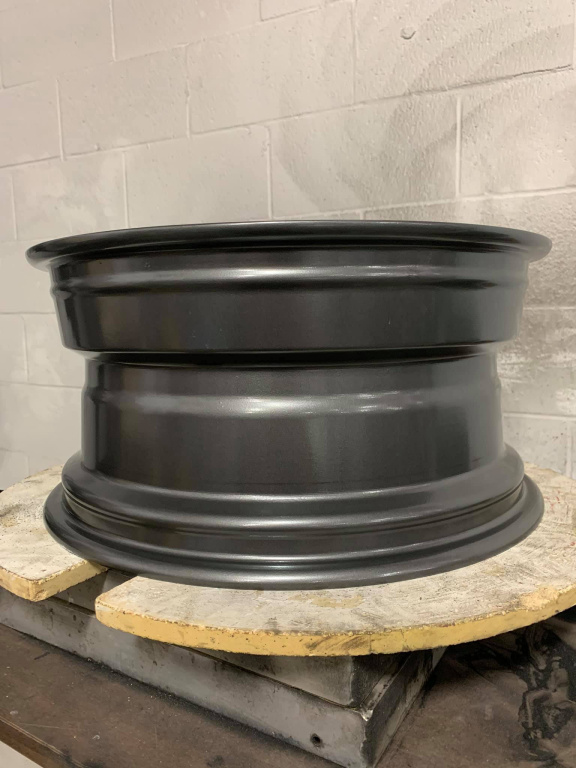

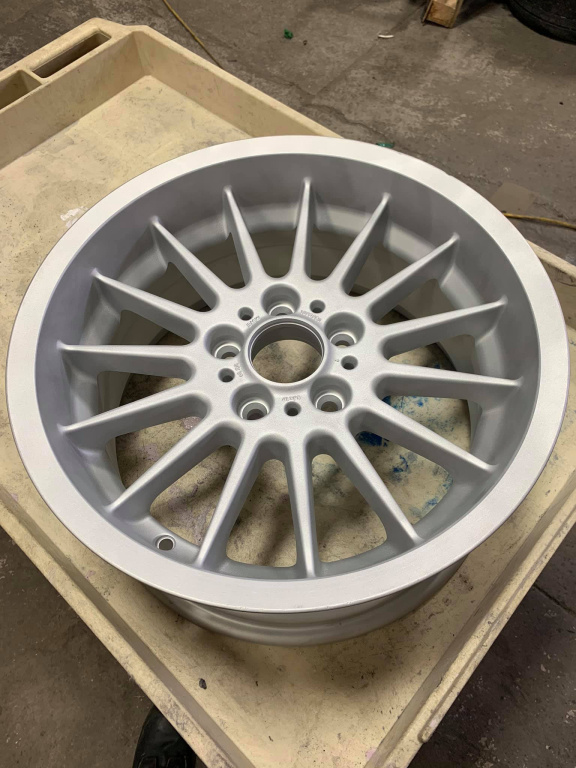

Ready for powdercoat


Colour tease


Looks AMAZING


More than happy with this result! Got some cheap used tires for test fitting purposes

[E30Rossi]

First test fit with the wheel to get an idea of the look, LOVE IT


My favourite build photo to this date

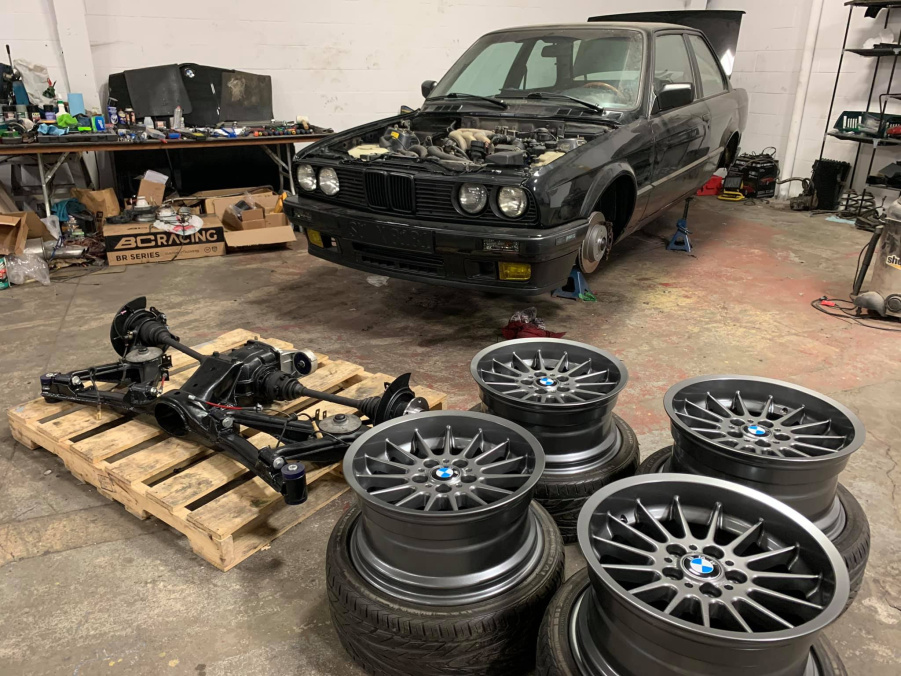

I spent hours researching part numbers, learning every single component
and getting ready for this moment
I wanted every nut bolt and bracket to be powdercoated, painted or replaced
Organization makes things soooo much easier
When I dismantled the car, I put every bolt in seperate ziplocks based on what they came from
This made refreshing each section that much easier because I knew where everything was

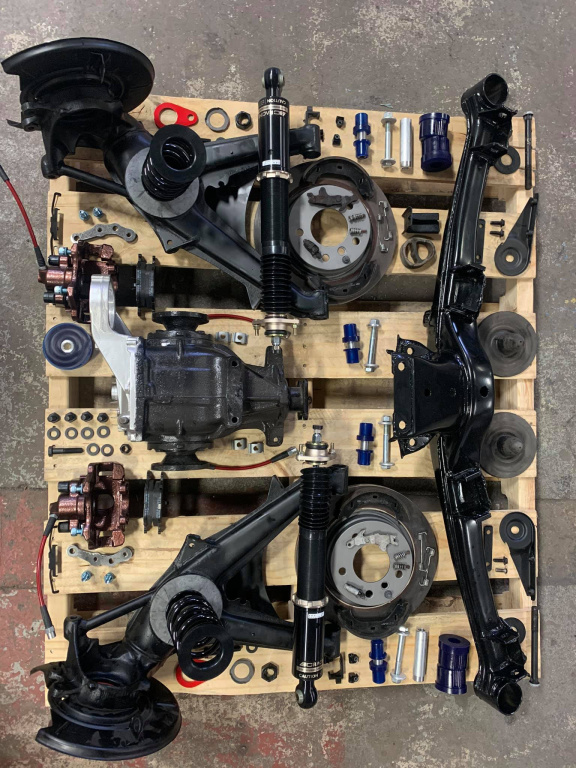

Everything ready to go back together!!

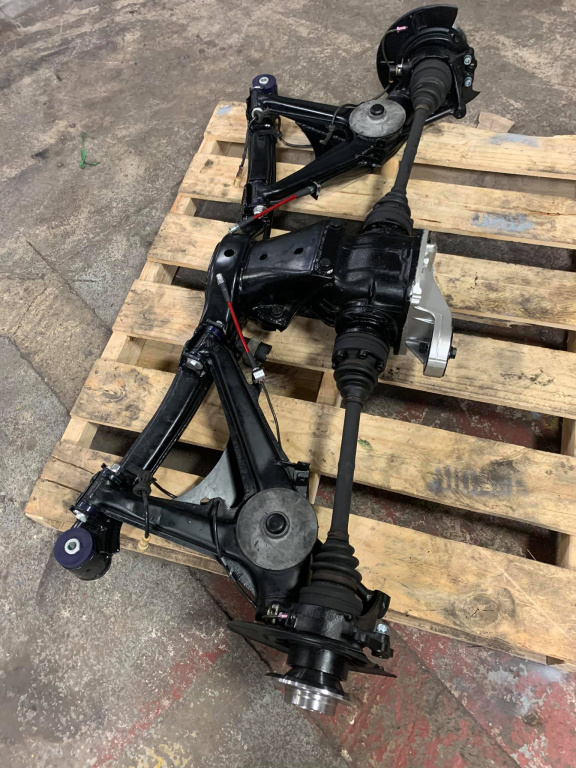

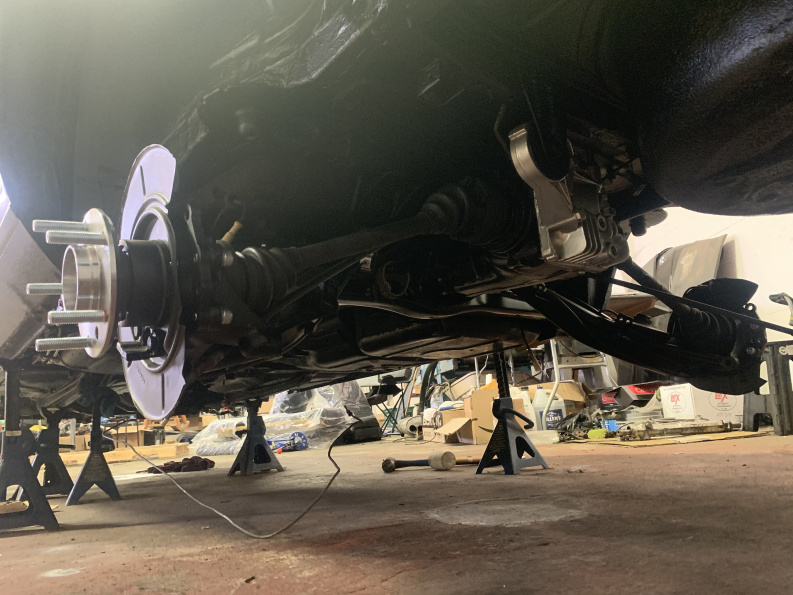

Fully assembled rear end! 1000x better looking and performing than when I took it out
This made the past year worth all the struggles and patience

[E30Rossi]

Picked up some Studs and lug nuts from Motorsport Hardware
I hate wheels falling on me when I remove lug bolts

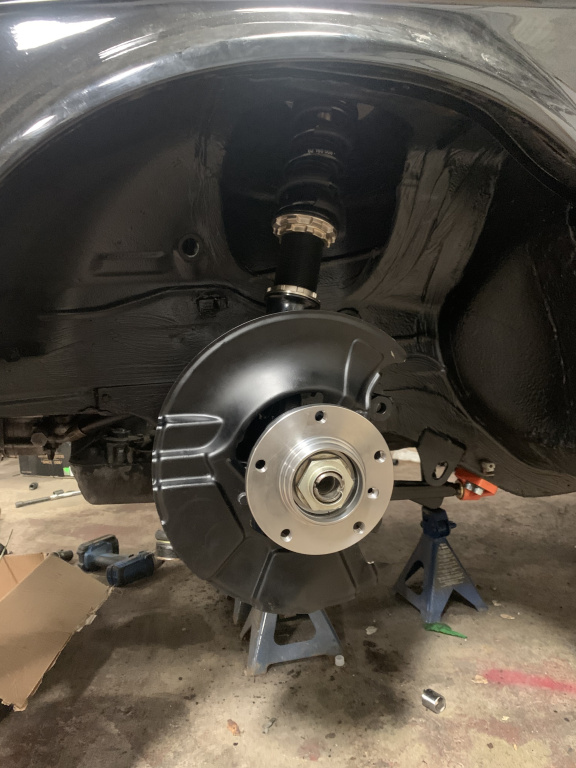

Started front end assembly, looking good as new! This is where I got super excited for the end!

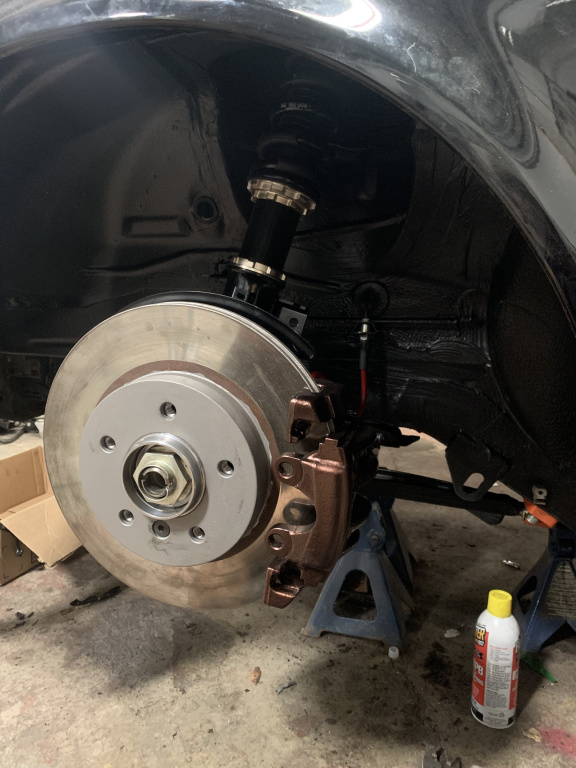

Brakes installed

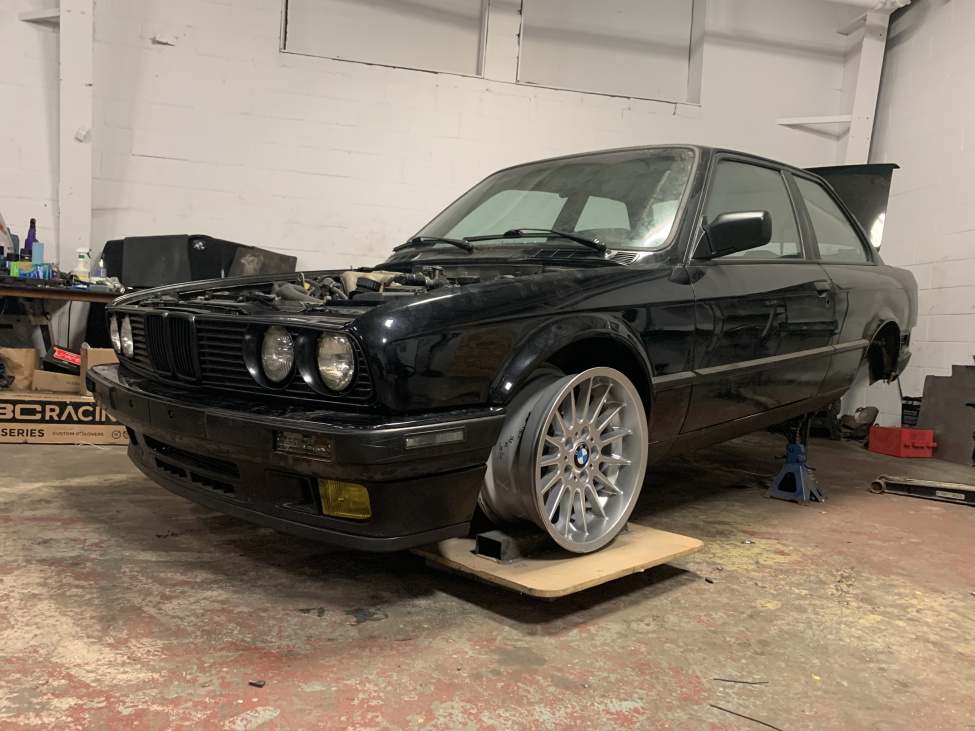

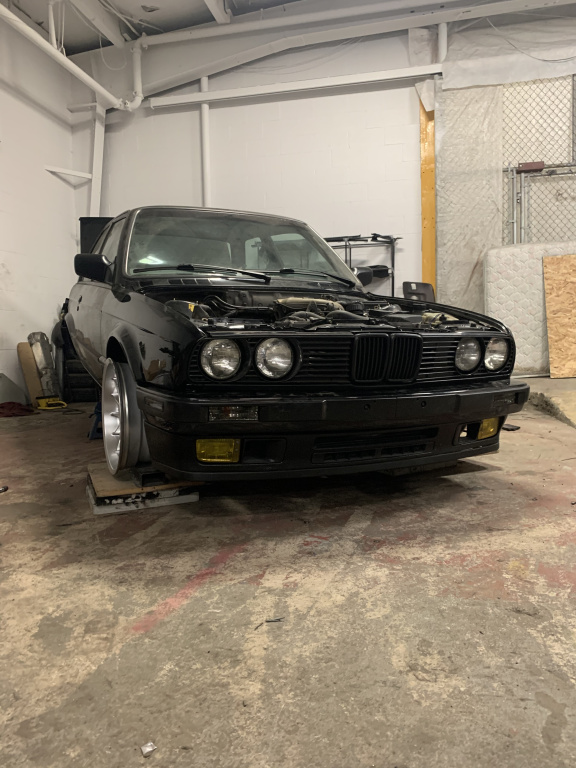

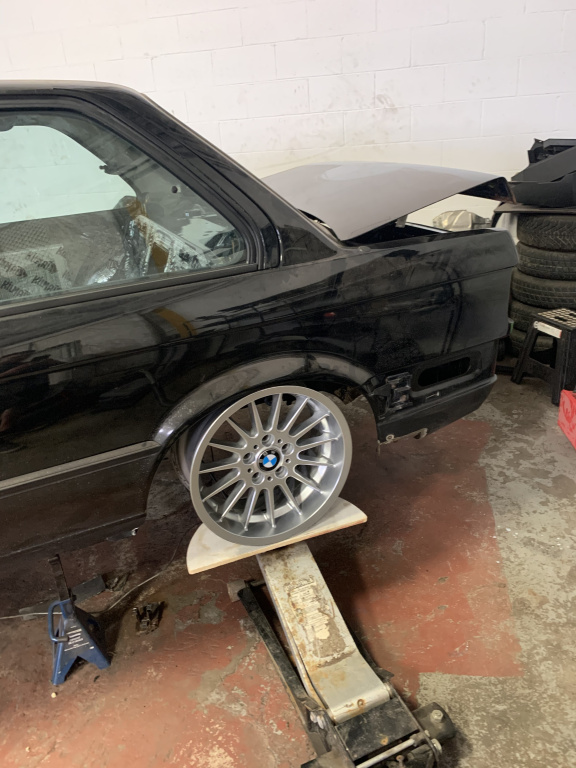

First proper test fit of the wheels



Fitment looks like it will be perfect!

[E30Rossi]

In love!! 6 months of work staring to show progress of what I envisioned





Test Tires mounted and ready to go!

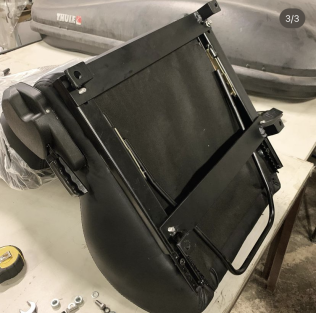

We made some custom mounts for the seats since the way I previously installed them was veryyy sketchy

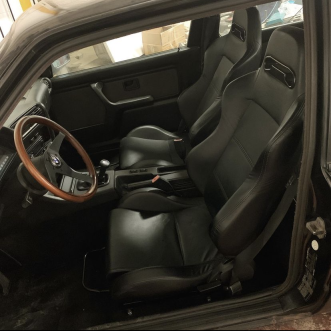

Much Cleaner interior now!!

[E30Rossi]

Painted trunk carpet back in

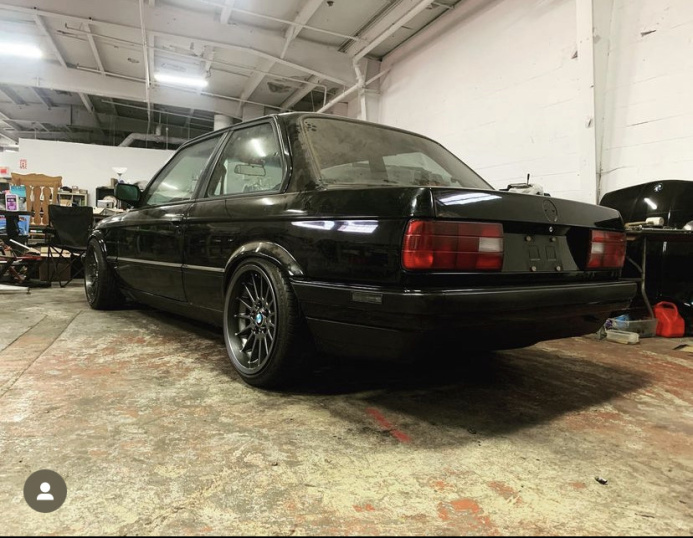

She's FINALLY on the ground! Best feeling everrrrr



Way overdue for a car wash after a year and a half



LOVE the final look!


And she's back home after her first drive post-alignment!

At this point I was the happiest person in the world!! What an accomplishment for a first time!

[E30Rossi]

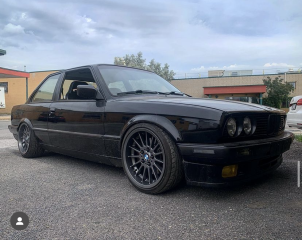

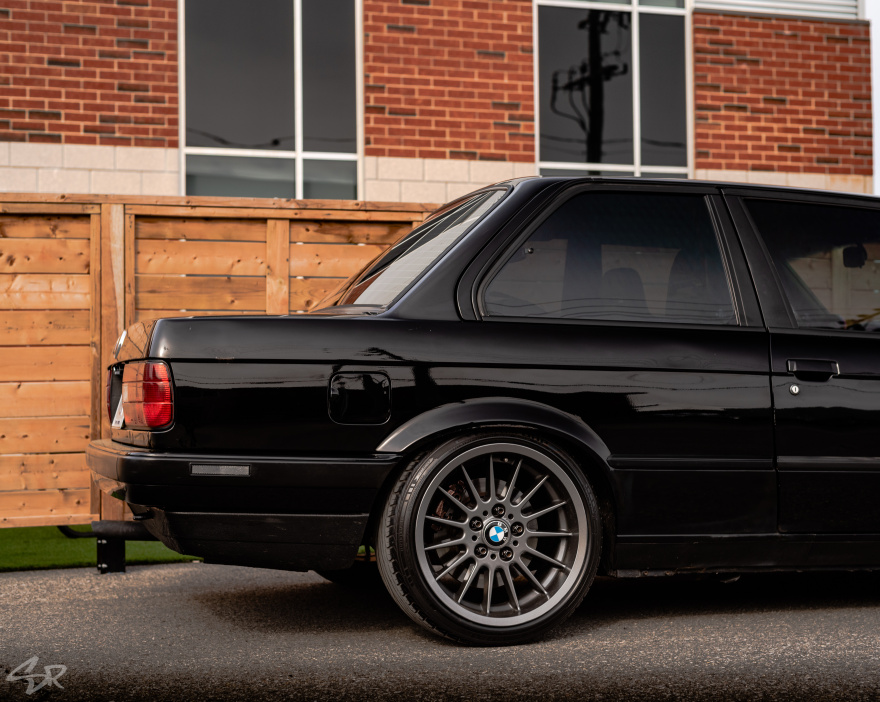

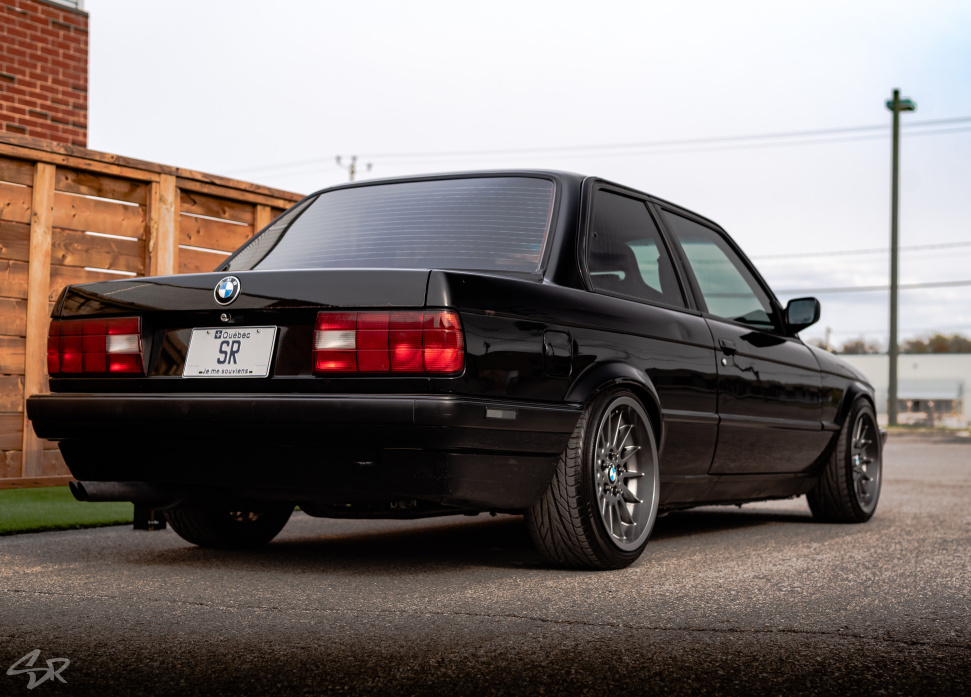

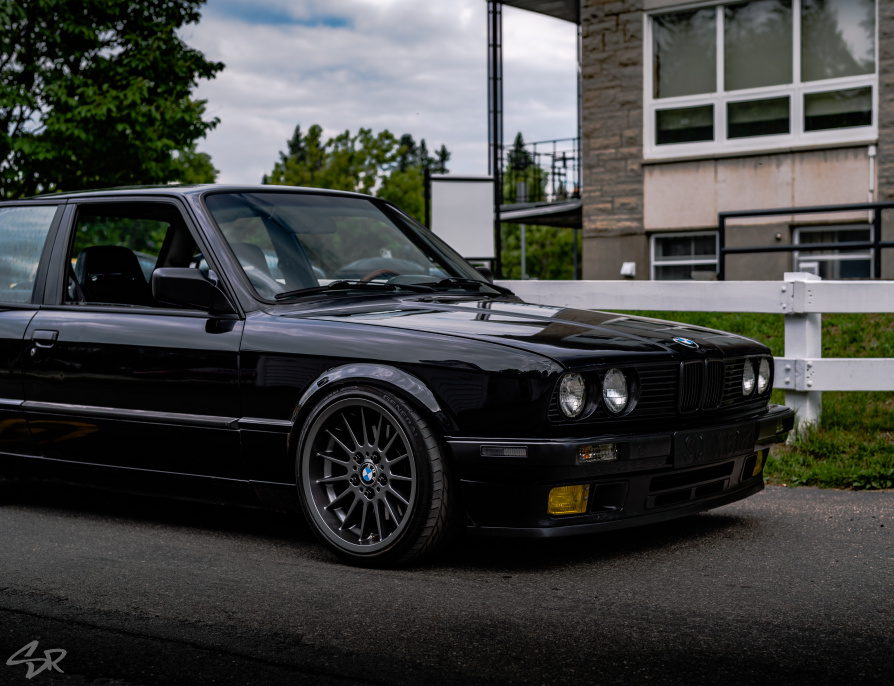

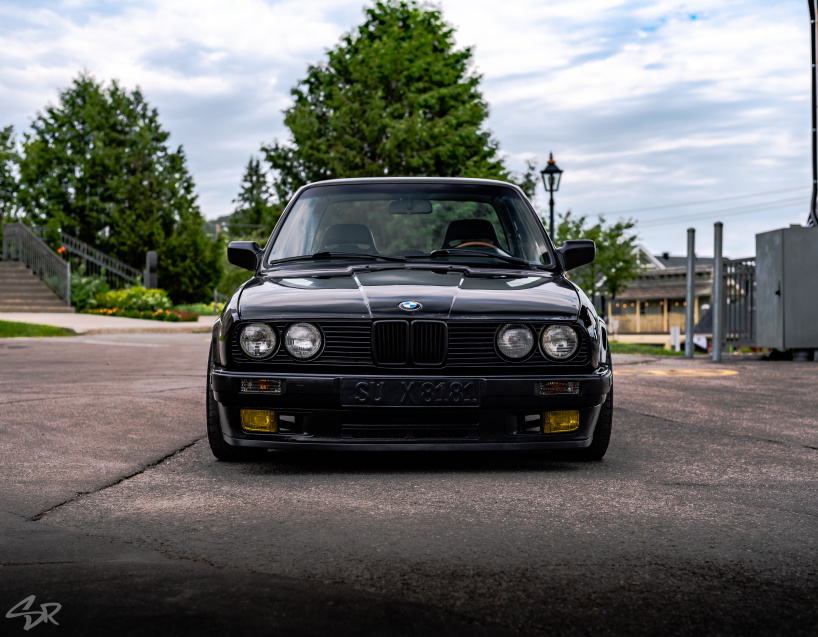

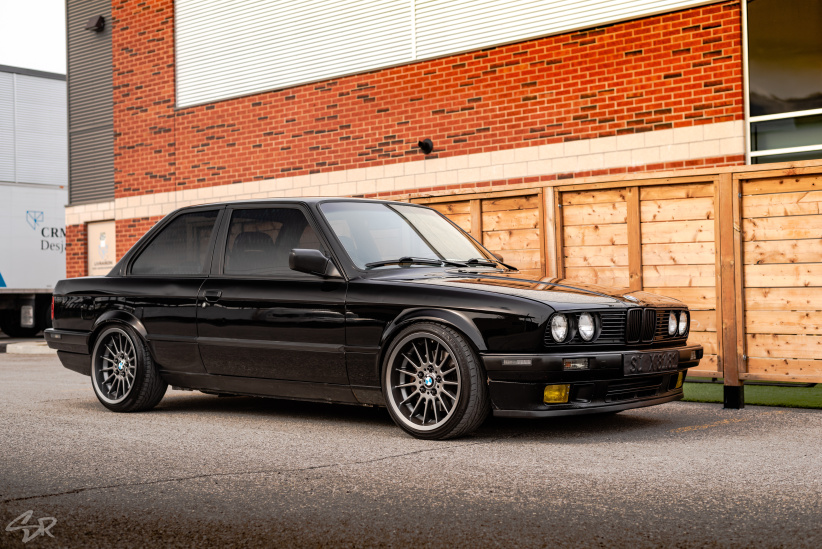

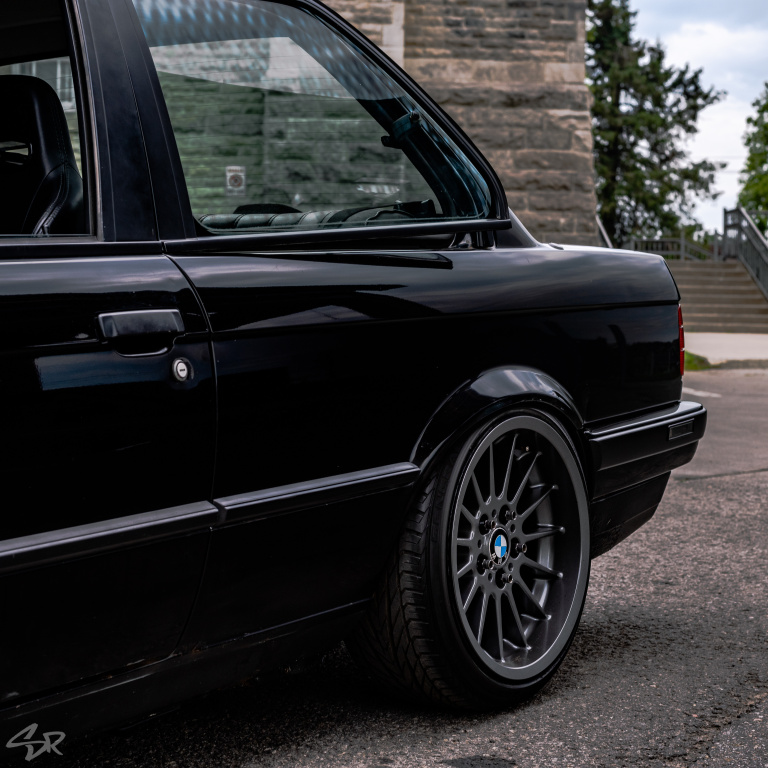

First photoshoot of my build once it was done! IG: photography_sr

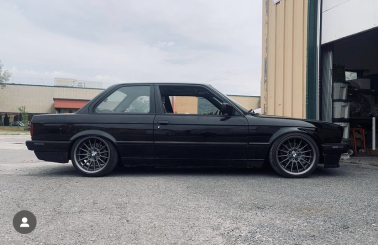

After this, raised the car 3/4" all around as it was rubbing on the top of the tire at the pinch weld, never rubbed ever again after!

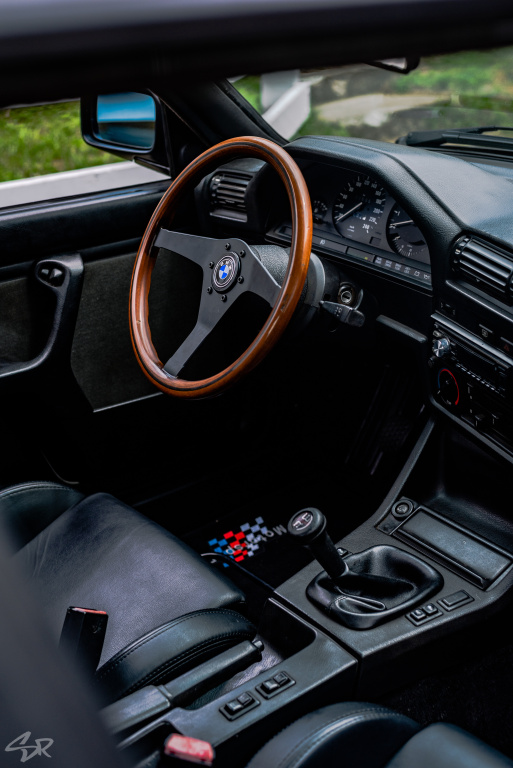

Added some BMW Motorsport floor mats to finish the interior along with a new shift knob and boot

[E30Rossi]

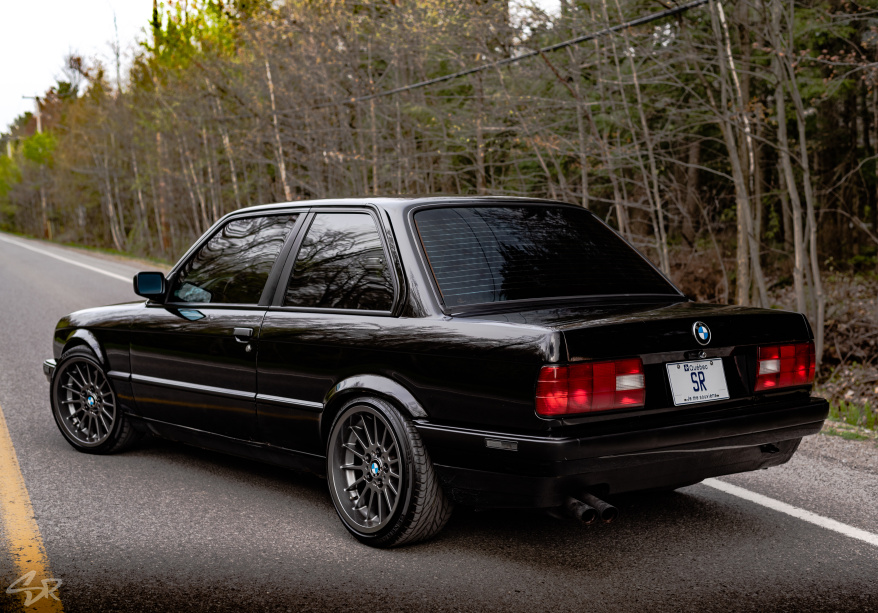

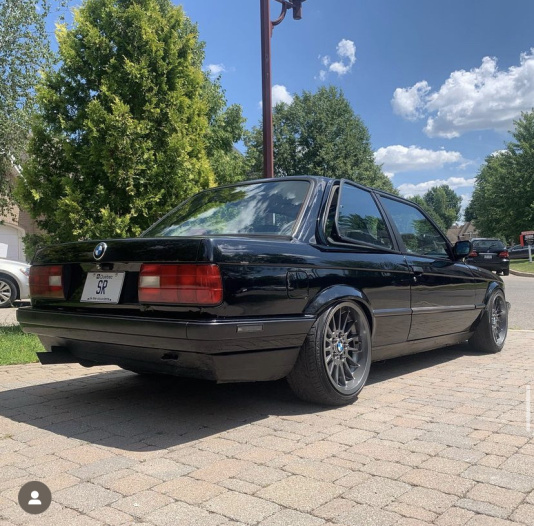

Next mod is not usual a popular one, but in my personal opinion it completed the look for me , 20% window tint all around









Car didn't change anymore for 2020, just enjoyed it as much as I could after all the time, money and effort poured into it!

[It's Soda Not Pop]

Looking good my man. Something about refreshing everything makes you feel good. It's like a weight being lifted off of you. Very solid.

[E30Rossi]

Looking good my man. Something about refreshing everything makes you feel good. It's like a weight being lifted off of you. Very solid.

Exactly! Just knowing i've gone over every nut and bolt, and don't have holes under my carpet, and nothing is sketchy when I'm driving, makes all the efforts worth it!!

[E30Rossi]

a few photos that were forgotten!

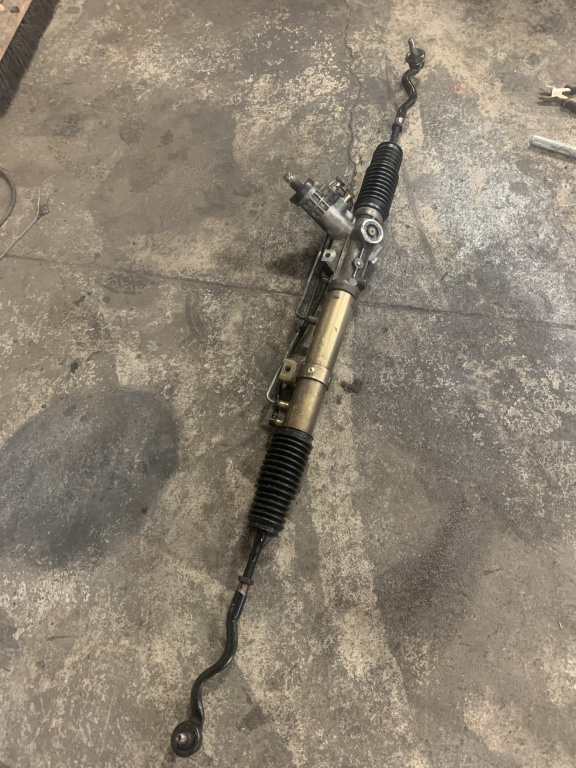

Z3 Steering Rack

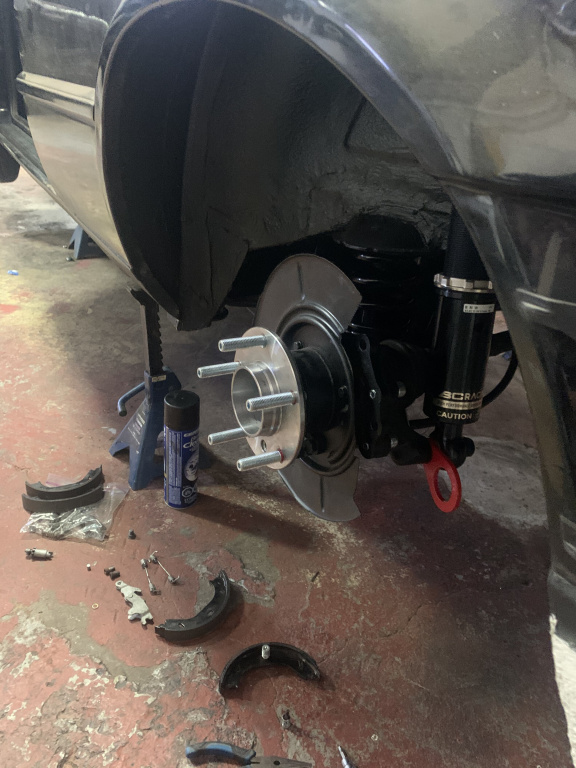

Rear subrame assembly installation with wheel studs

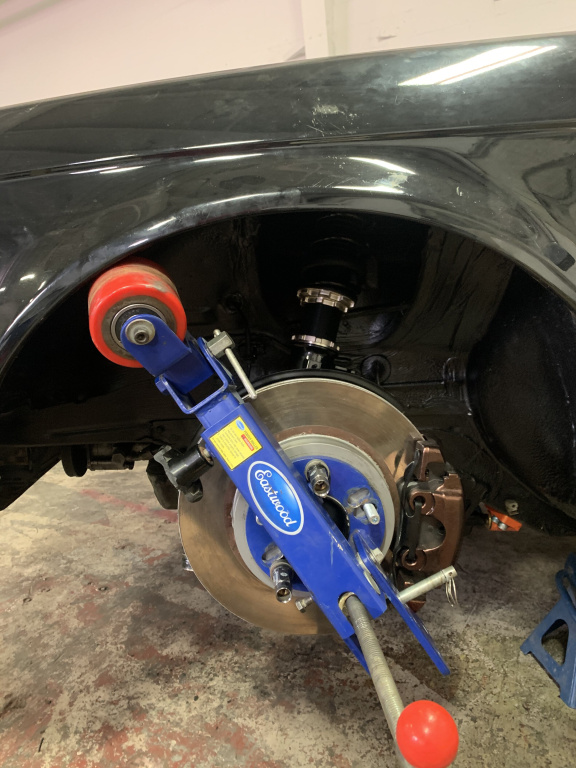

Fender rolling to fit the wheels
