E30Rossi's Full Build - Overhaul - 5 Lug - Bay Shave - M54 Swap (Pic Heavy)

[E30Rossi]

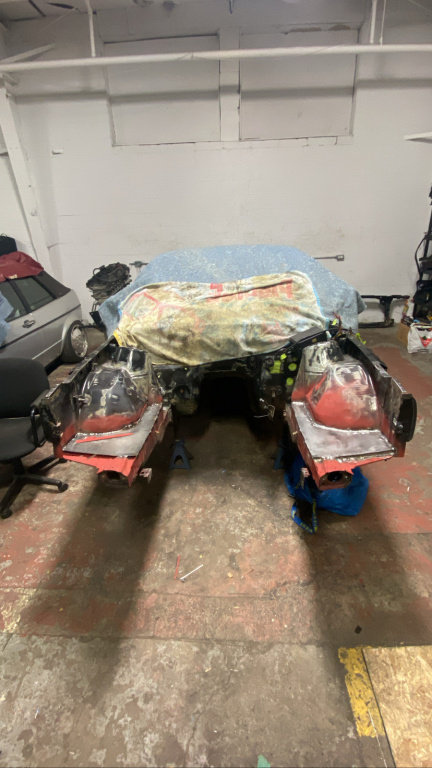

On to the next side! Rust converted applied and Ready to be coated

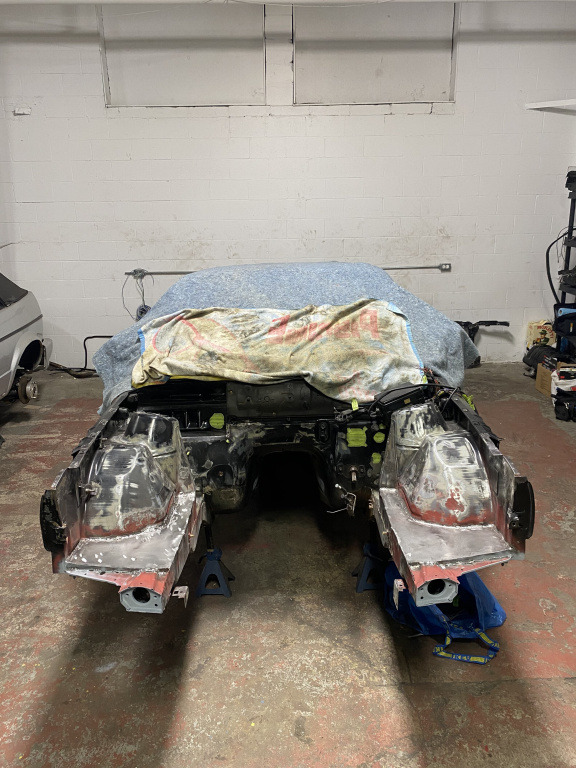

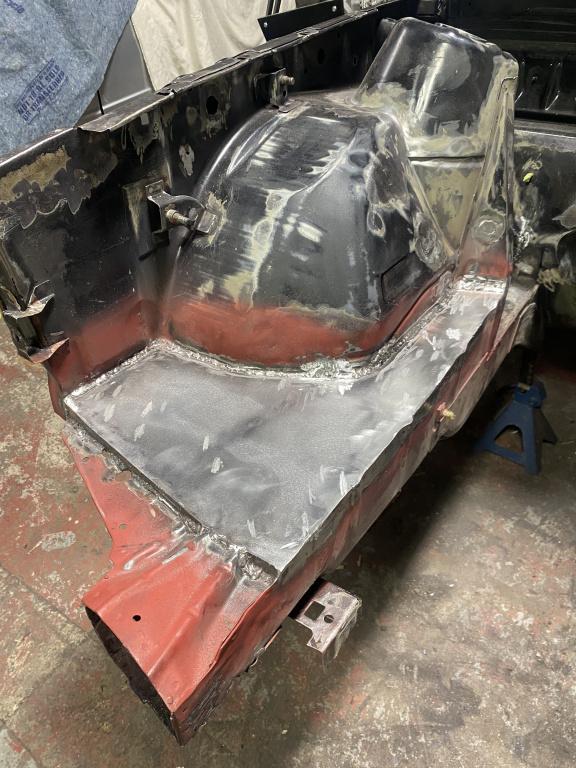

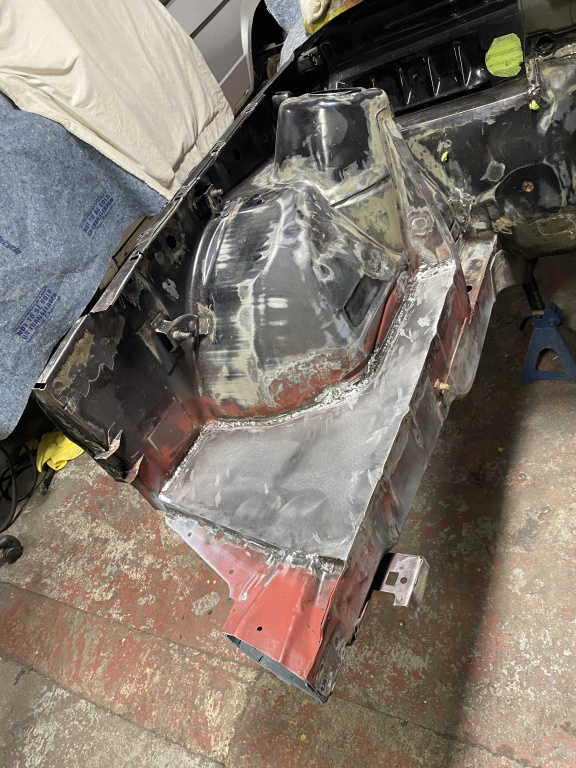

Driver side cut down to size


Plated off

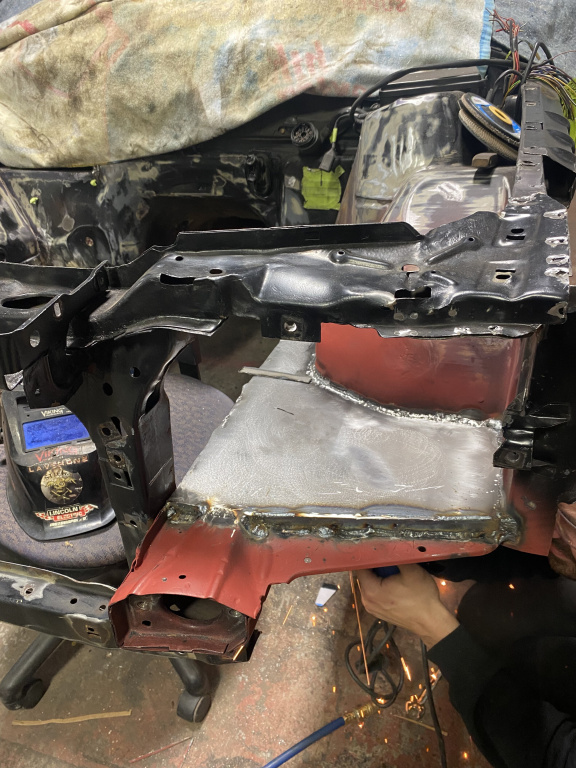

Test fit rad support again

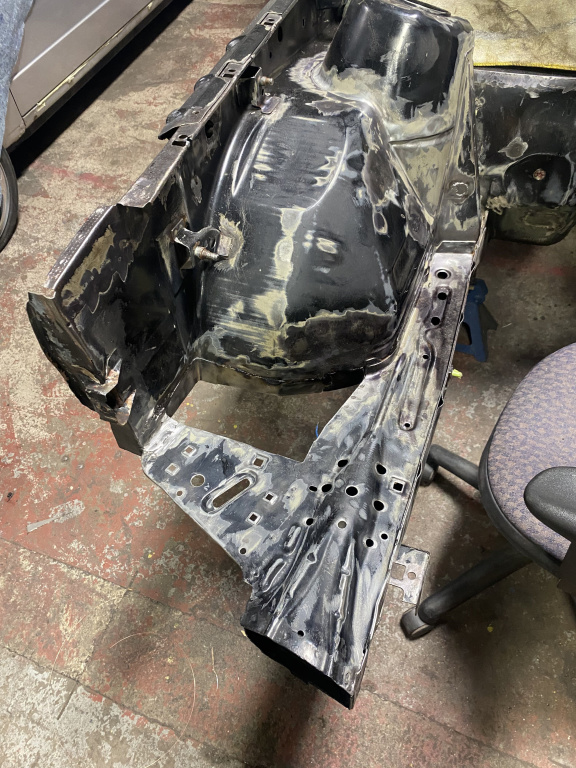

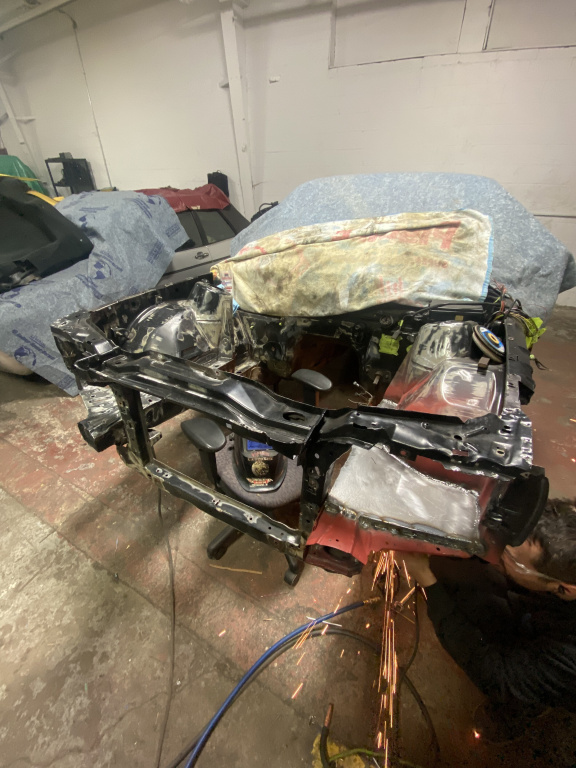

Reshaping inner fender

[E30Rossi]

Getting somewhere! this is wayyy more work than I anticipated
but when is it not?

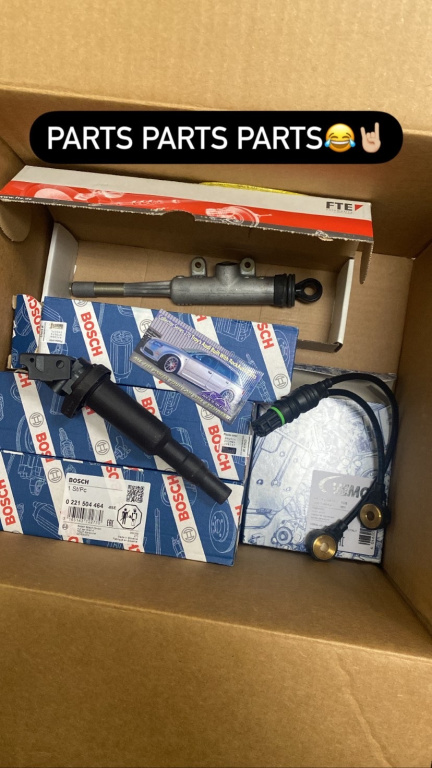

RockAuto goodies

Clutch Master Cylinder
Knock Sensor
6 New Coilpacks

I want this car to be as reliable as possible, everything is being replaced

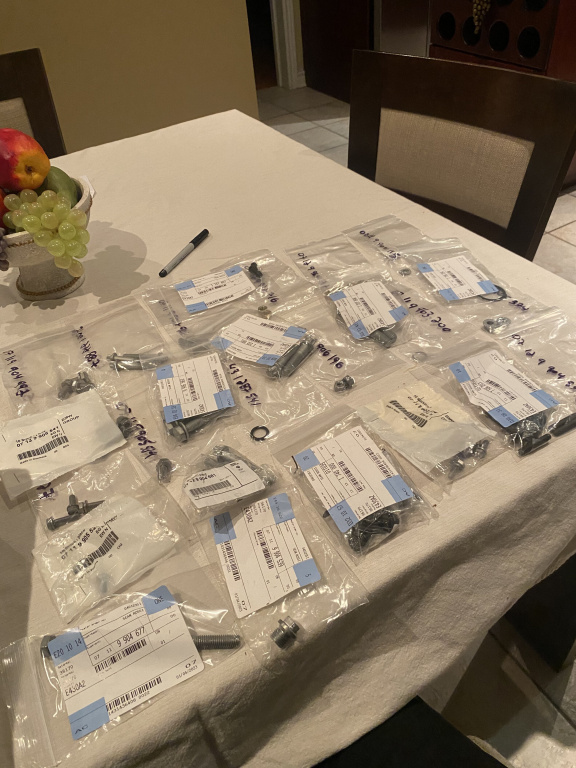

305$ Bolt order at BMW
Was missing a lot of bolts with the swap, motor to tranny bolts, oil pan bolts, intake manifold bolts, exhaust manifold studs, bolts for all the pulleys and accessories
Spent hoursssss on realoem and ecs to look up part numbers but I can't stand a fresh build with rusty bolts so everything that isn't ridiculously expensive is getting changed for NEW

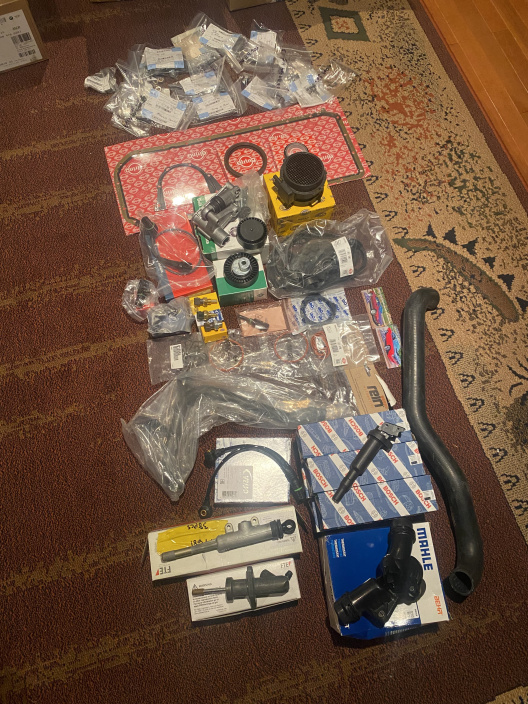

Rest of RockAuto order arrived

Clutch Slave Cylinder
Thermostat Housing
Water Pipe on Motor
MAF Sensor (ordered wrong one)
Oil Pressure Switch
E30 Cluster Temp Sensor
M54 Temp Sensor
Intake Manifold Gaskets - m50 manifold
Throttle body gasket - m50 manifold
Throttle body gasket M54 throttle body
Oil filter housing gasket
Oil pan gasket
Idler Pulley
Air Intake Temp Sensor (m54)
Cam position sensor - exhaust side
Cam position sensor - intake side
Gates 21900 Rad hose
Valve cover gasket set
Crankshaft seal gasket
Rear main seal
Front main seal
Oil filter cap gasket
crank position sensor
Hydraulic belt tensioner + pulley and hardware

Missing anything?
I have a few more parts on order!

Forgot about Vanos seals... Debating on doing them now, any thoughts? should I wait until I tear down the motor in a few years?

[E30Rossi]

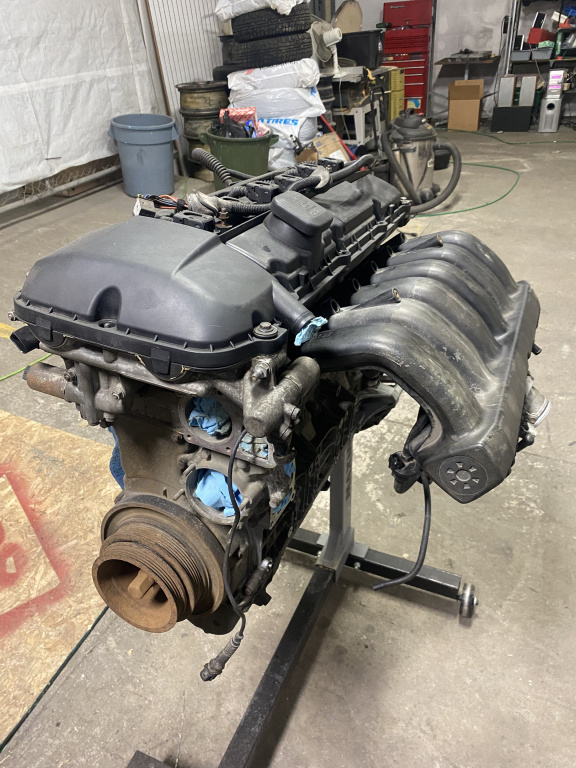

Scored a great deal on an M50 intake manifold!
This is going to look so good once it's all together


Needs some cleaning for sure
and still don't know what to do with the crank pulley

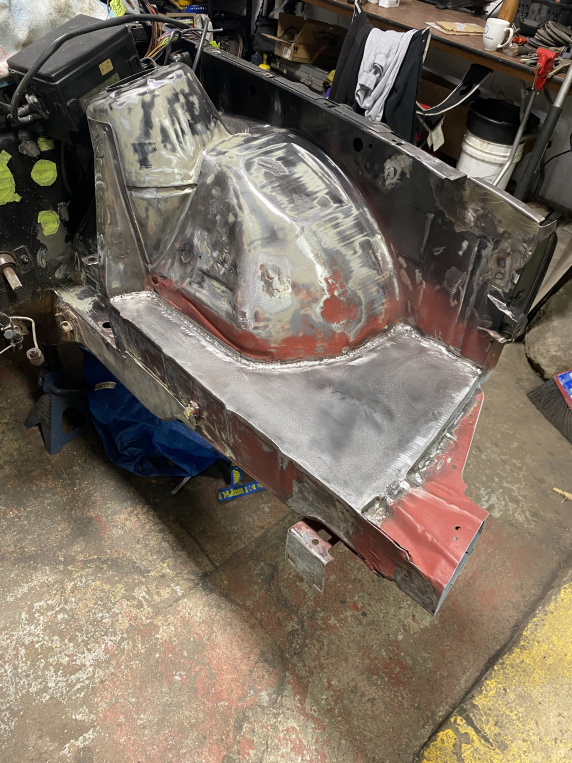

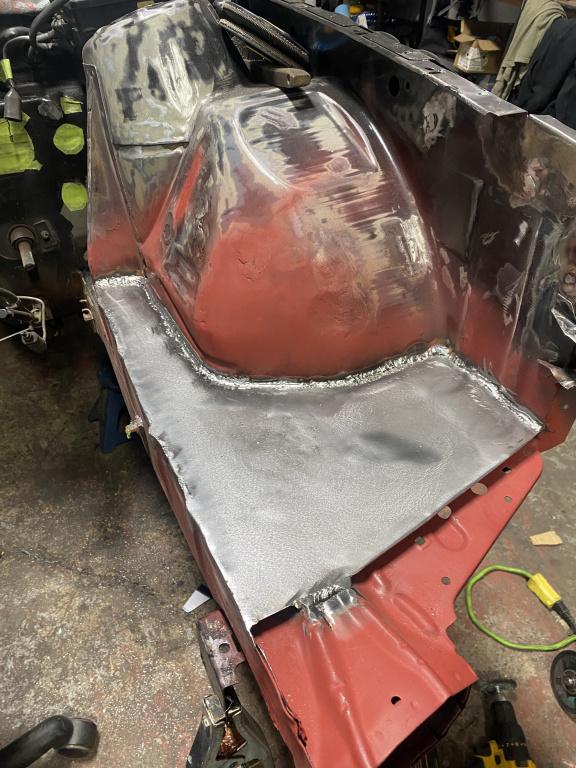

Both plates welded in and blocked off, ready to move on!
PROGRESS


Looking good!

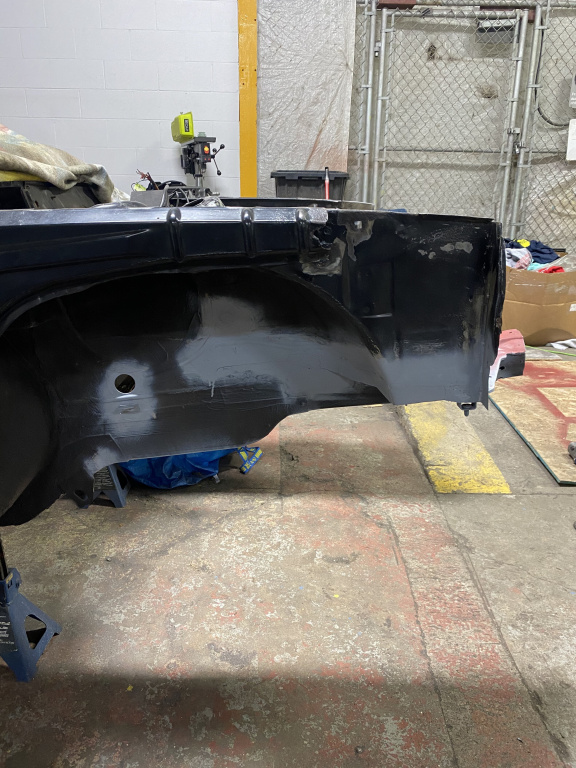

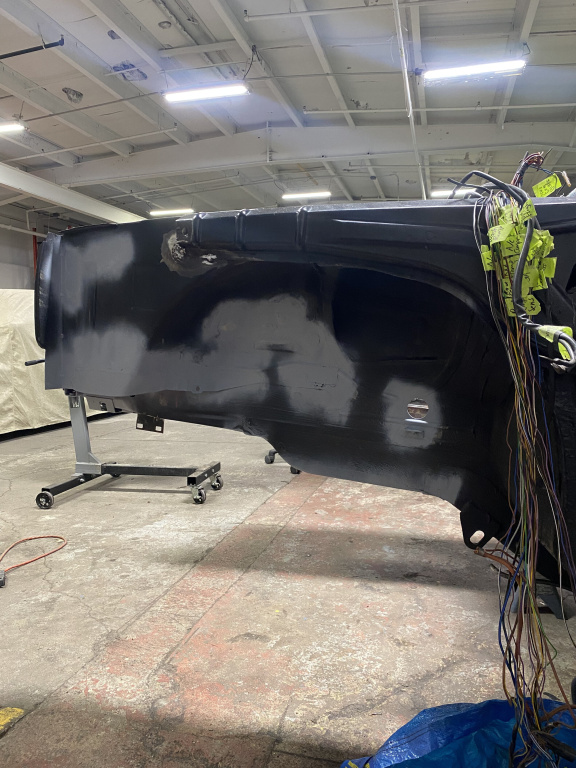

Primed fender well, ready for undercoating

[E30Rossi]

Grinded down any rust underneath, cleaned up welds and hit it all with Self-Etch Primer and then Filler Primer
Ready to undercoat the wheel wells and get to the next step of putty in the engine bay!



Driver side


Griding down welds, never ends


This part honestly lasts forever


Driver Side ready to be coated as well now

[E30Rossi]

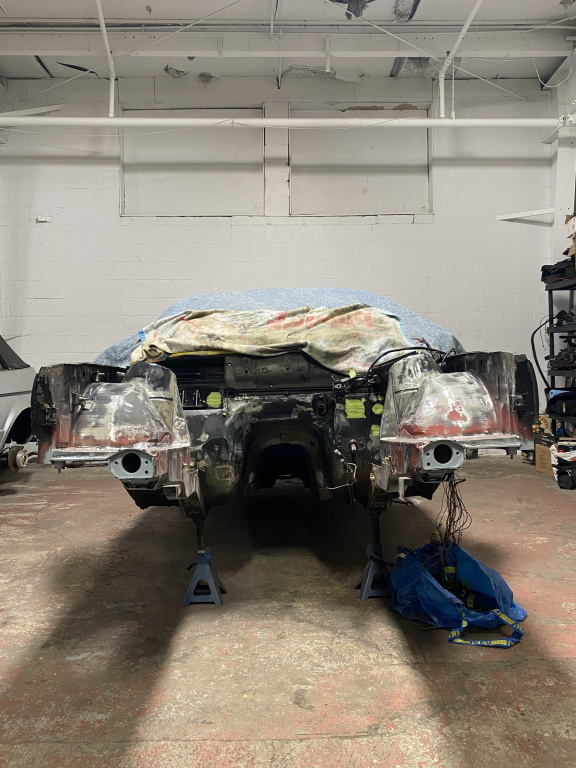

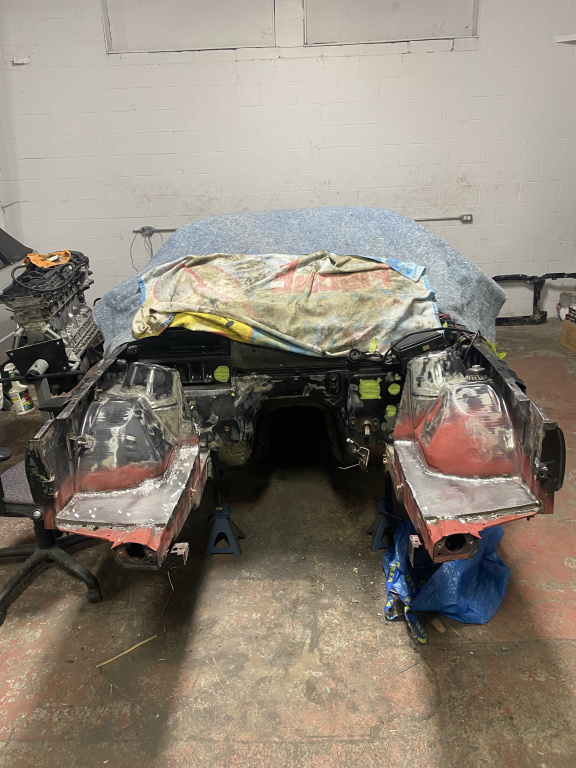

Well this is as she sits at the moment
We are officially up to date
Time to get to work on putty this coming weekend
Hopefully I can get progress done quickly
Lots of parts stacked up, but winter is going fast
