    Sometimes...yes. ET12 wheels, and the tire is hooking the lip on compression sometimes. We got the Eastwood fender roller, but before we do that we're going back to the stock drop hats / spring seats to raise the front a half inch. The back looks a bit high, but when it's loaded down it's OK clearance so he doesn't want it lower.

    Click image for larger version  Name:	ZZZ2.JPG Views:	0 Size:	53.7 KB ID:	9897625

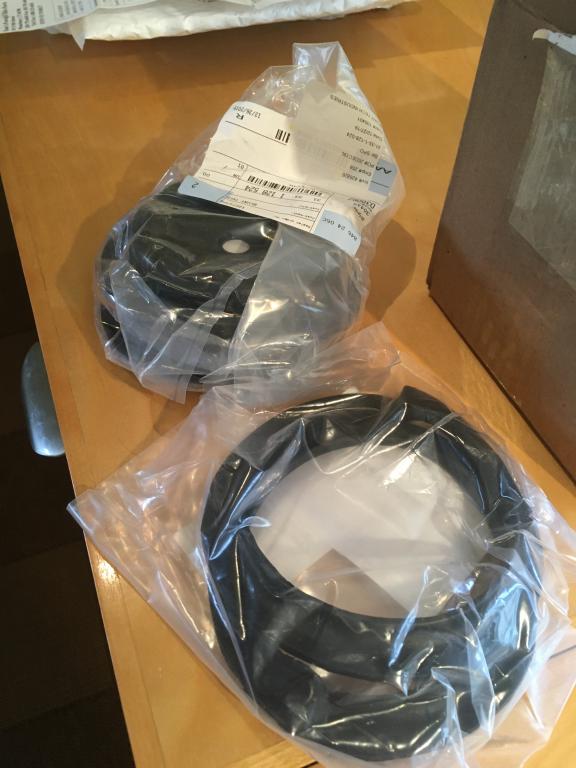

    From our pals at Blunttech. New rubber spring isolators as well.

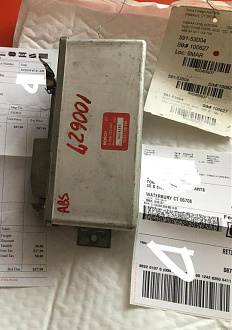

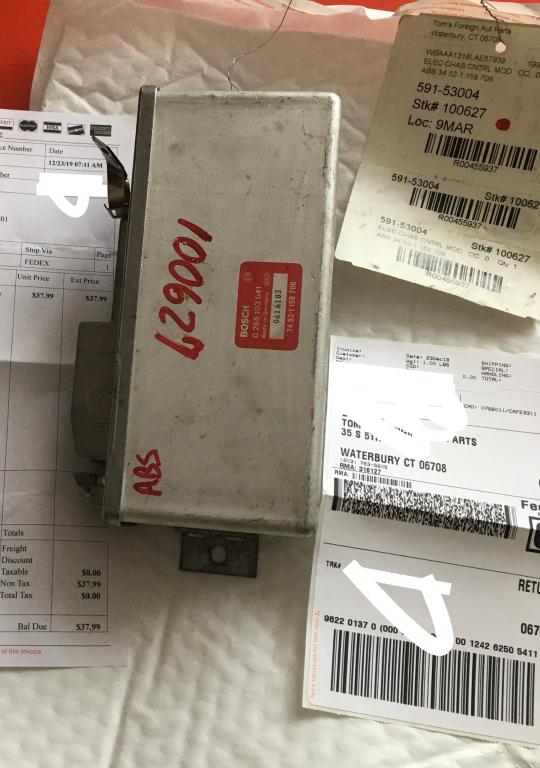

    Also a new used ABS electronic module to see if that gets the ABS working correctly. Tom's in CT.
    Click image for larger version  Name:	ZZZ1.JPG Views:	0 Size:	58.9 KB ID:	9897627

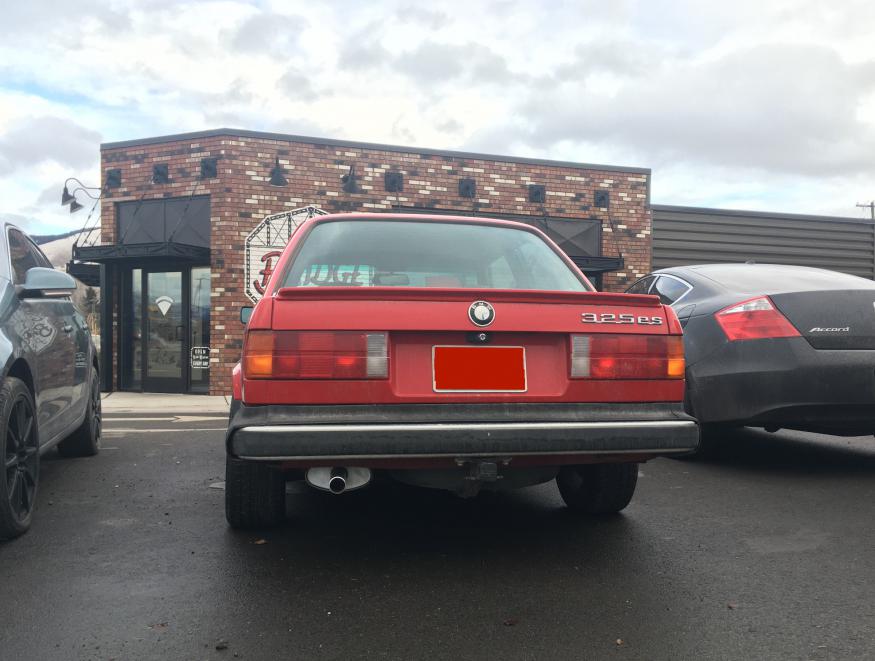

    And a new muffler yesterday. 5 years (really?), rotted out.
    Seems like they put the can way forward, with a long tailpipe. Oh well, wear part. Sounds good.
    Click image for larger version

Name:	image_147450.jpg
Views:	167
Size:	68.7 KB
ID:	9897628

    Comment


      Still havent swapped the 5-speed in?
      Simon
      Current Cars:
      -1986 BMW 325e & 1968 Datsun Roadster 2000
      Previous Car Count : 21 ... and climbing...

      Make R3V Great Again -2020

      Comment


        Nope. His budget and lack of time with working and school. I did get power, lights, and HEAT in the garage!

        Comment


          Originally posted by LateFan View Post
          Nope. His budget and lack of time with working and school. I did get power, lights, and HEAT in the garage!
          Does this mean the Alfa will get some love?!?
          Simon
          Current Cars:
          -1986 BMW 325e & 1968 Datsun Roadster 2000
          Previous Car Count : 21 ... and climbing...

          Make R3V Great Again -2020

          Comment


            Originally posted by LateFan View Post
            Rebuilding a Vickers power steering pump.

            If you take yours apart, you may find that you have one of the few pumps that aren't a ZF. They look very similar on the outside. I found a rebuild kit at my local parts store and was quite pleased with myself. But not one seal or o-ring in the kit fit anywhere. Wrote to Blunttech and none of their suppliers could get a Vickers kit.
            It seems that the rebuild kit is available now.

            https://www.getbmwparts.com/oem-part...0d-32411133023
            https://www.ecstuning.com/b-genuine-...t/32411133023/

            Does it look correct?


            Comment


              Originally posted by 2mAn View Post

              Does this mean the Alfa will get some love?!?
              Yes it does! But there's a complicated reservation / priority system to keep the old Volvos running, my wife's car inside, the E30 ongoing updates, and household fixit projects, don'tcha know.


              Vincenze - that looks handy if it's right. I had to try and match o-ring diameter and thickness with industrial suppliers. The seal seemed easy - same brand and # after 30 years!

              Click image for larger version

Name:	IMG_4981 copy.JPG
Views:	146
Size:	86.3 KB
ID:	9897787

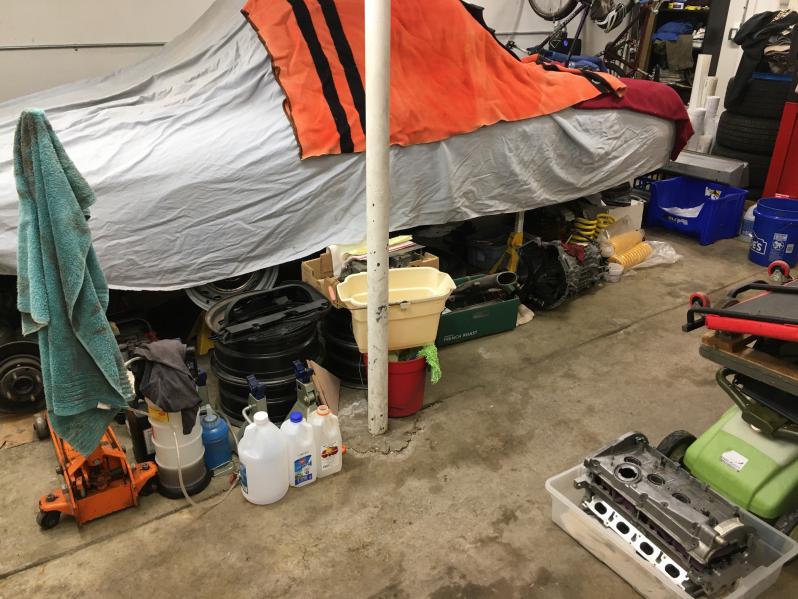

              I spy.....
              Boxes of forgotten Alfa parts under there (who knew?), Audi engine, BMW transmission, Alfa intake and Webers in a box, Alfa springs, Alfa rear axle, 6" widened steelies test fit on the rear, Volvo snow wheels, kid's spare wheels and tires, blue bin of Volvo parts, and light....LIGHT! I cleaned for two hours because I could see all the crap and sawdust and spiderwebs. We tossed some junk, my wife totally reorganized her gardening shelves, and it's so different. An hour with the heater on (5000W electric) and it's sweater weather in there, but with no insulation yet, it doesn't hold it and it's pretty much of a waste of energy. But I'll budget insulation and get that going. I'll only run it for a project. I think we figured it's maybe 70 cents an hour running full-time, depending on your power rates. It has off-switch, thermostat, and 3000W/4000W/5000W settings, safety shut-off, dedicated circuit. Brand is "Comfort Zone," 240V. Two 20A outlet circuits along the side walls at 48" in conduit, 30A 240 heater circuit, and a 20A lighting circuit with all LED (Costco) shop lights. I put the lights around the perimeter of cars to see while working. You can pull-chain them so they're not all on.

              Comment


                Addendum -
                And I don't know if it'll be warm enough to paint suspension parts, which means painting in the basement and stinking up the house, or putting them back on old and grimy....

                Comment


                  ARGH!!

                  Click image for larger version

Name:	IMG_5245 copy.JPG
Views:	113
Size:	78.7 KB
ID:	9904592 Click image for larger version

Name:	IMG_5247 copy.JPG
Views:	107
Size:	36.4 KB
ID:	9904593 Click image for larger version

Name:	IMG_5248 copy.JPG
Views:	105
Size:	64.4 KB
ID:	9904594 Click image for larger version

Name:	IMG_5250 copy.JPG
Views:	106
Size:	79.4 KB
ID:	9904595

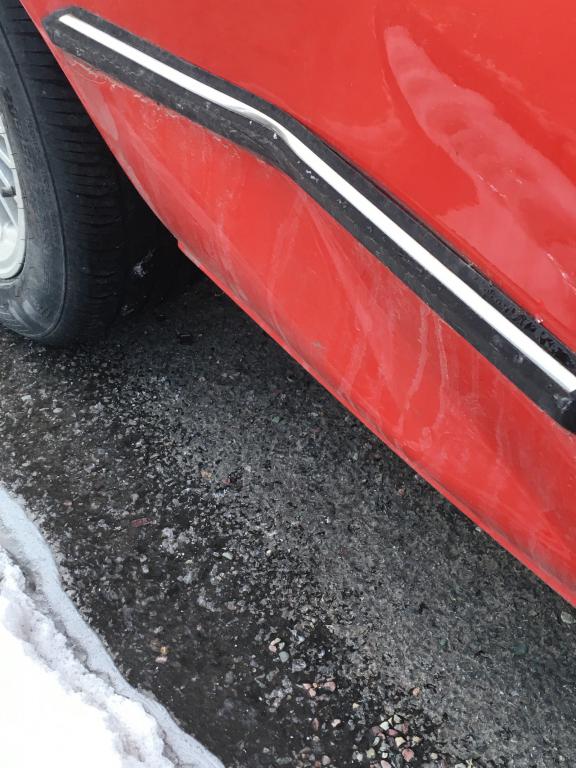

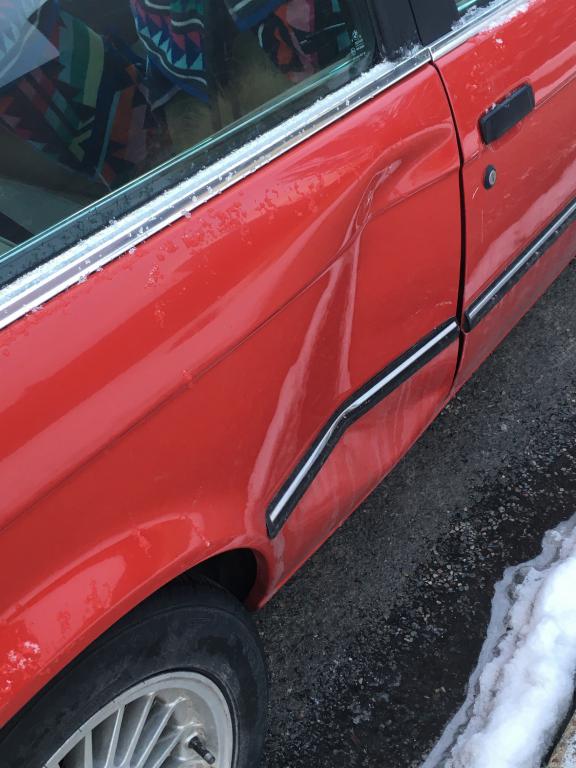

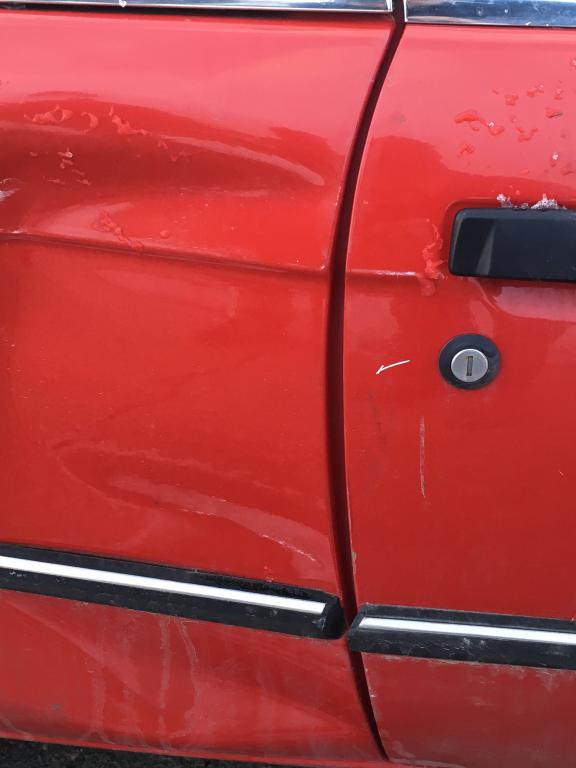

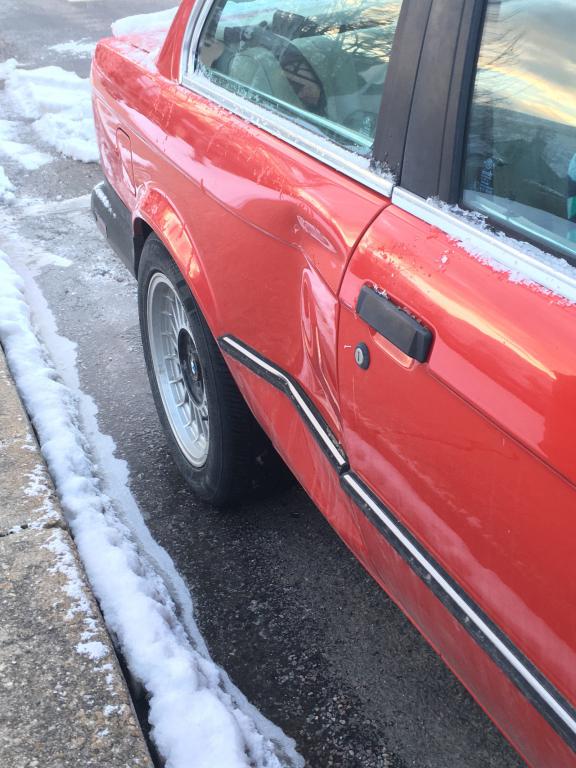

                  A woman in an SUV backed into him sitting still in a parking lot. Appears it didn't touch the door, wheel arch, window trim, or the sill.
                  Tomorrow we'll find out more from her insurance, and we need to figure out if it gets cut off and new welded on, or if this can by pushed out from behind the back seat trim panel.

                  Comment


                    I would think you could get 99% of that out with some careful hammer and dolly work and some shrinking/stretching.
                    2000 A4 1.8TQ | 1988 325is | 1976 280Z | 1953 CJ3B

                    Comment


                      Do we need to scramble around for similar car sales and prove this is worth X dollars if they claim the repair will be more than 80% of that value? We don't want to deal with salvage title or any of that.

                      Comment


                        I went to a vintage car repair shop to get recommendations for body shops that can do real metal work. Got a couple of names they use. He said you'd be better cutting off the whole quarter panel and replace, rather than cutting at the wheel arch or someplace. No butt welded joints, no panel warpage. He said the metal is likely stretched and pushing it out might produce a lot of wrinkles to fill.

                        Comment


                          That's why you'd shrink it.

                          https://www.youtube.com/watch?v=X8cruauERmI

                          For the record, I'm hardly any kind of expert, and have not tried any of this myself, but it just shows what can be done with metal if you really want to keep it intact. I'd liken it to trading in your bad alternator for a new one at autozone vs going to an old school repair man who will simply repair the old one. Replacing the whole quarter for a shop is likely faster/easier and they don't want to spend the time working the metal because it either takes too long or they just don't have the skill.

                          I don't know how much you actually care about keeping the original metal intact, but I would guess that it's doable. I'd agree that total replacement is probably the way to go if it's decided that it can't be pulled out vs a patch.
                          2000 A4 1.8TQ | 1988 325is | 1976 280Z | 1953 CJ3B

                          Comment


                            Really interesting to see that work. I guess the issue is whether there's room to do all that working from inside the car. I can also see where a butt seam isn't desirable on the fender. But you've got to find and ship a whole quarter panel. So you'd weld in the door jamb, at the sill of the window under the trim, down the trunk gutter seam, behind the taillight, and along that sill ridge? Or all the way down to the pinch seam under the sill?

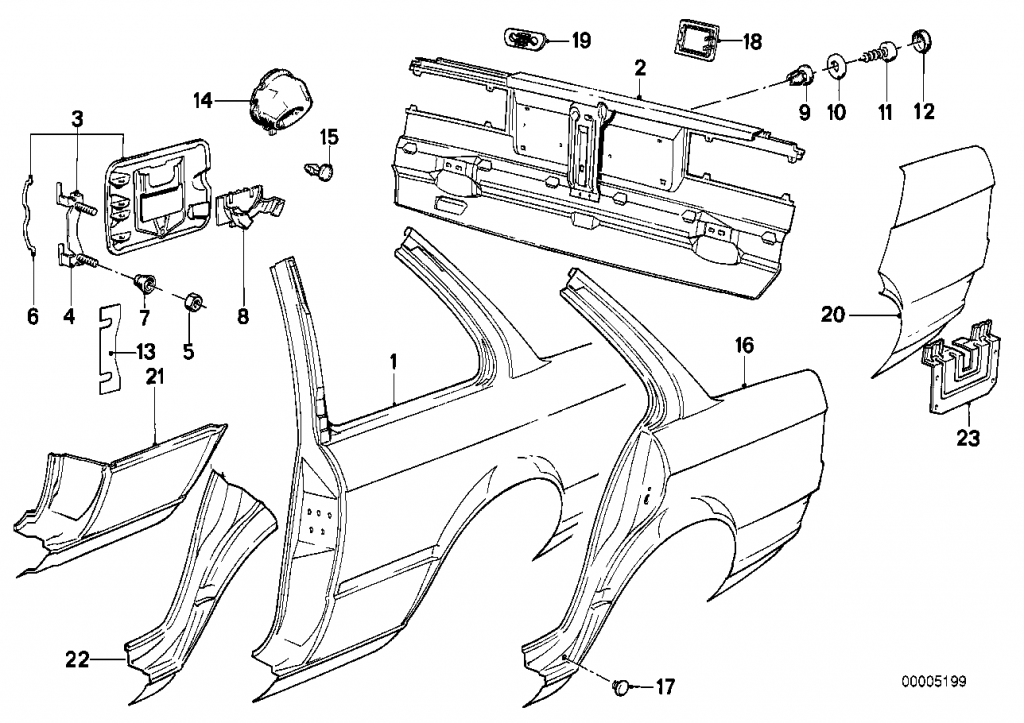

                            I don't imagine a "rear side panel" is actually $387 new, or still available (#1). There are a few shells out there, usually with front damage.
                            Click image for larger version  Name:	E30 sail panel diag.png Views:	0 Size:	363.3 KB ID:	9905337

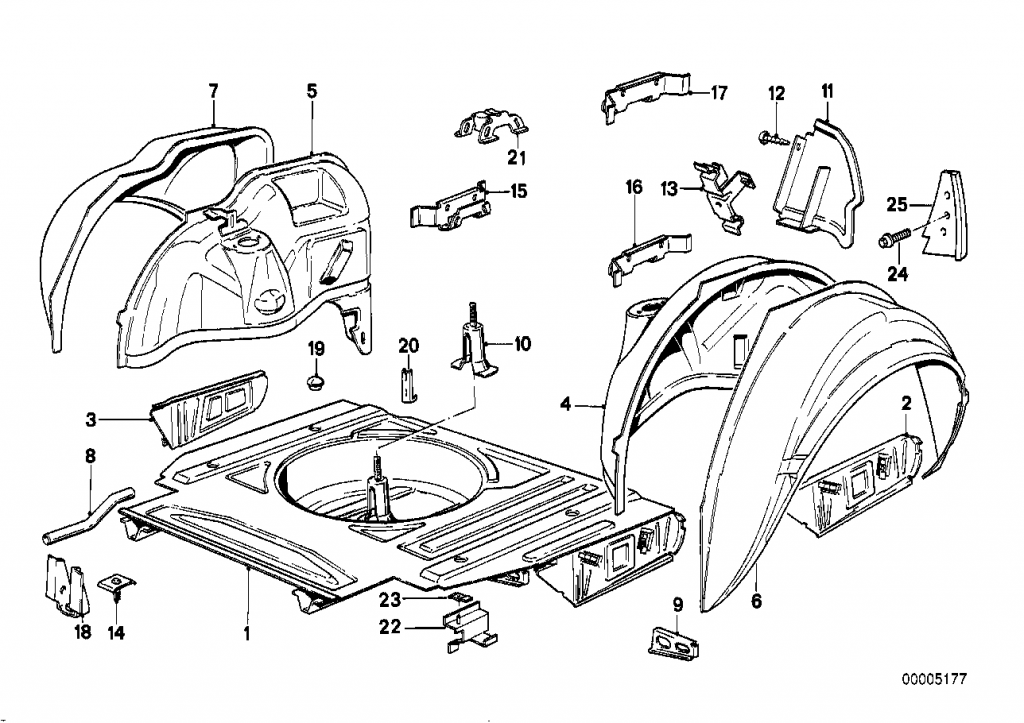

                            And I'm not clear on how it welds to the fender liner shell #6. That could produce a lot of heat right on the backside of the fender / arch.
                            Click image for larger version  Name:	E30 rear wheel liner diag.png Views:	0 Size:	360.9 KB ID:	9905338

                            Comment


                              BMW parts guys confirm that panel is NLA. Are aftermarket panels junk?

                              Car-part.com search shows several 2-door pre-'87 quarter panels in my region, at $150-200. Shipping is an issue I'll bet. More money to ship, less labor on metal work (maybe).

                              Comment


                                OK, went to three body shops today - son was in class and at work. One seemed worried and thought the whole quarter panel would have to come off. The other two said, Oh, no problem, we can work this metal, not that big a job. Estimates on the spot. Well below the car value so they didn't seem worried about that.I have another one to see Monday, which has a good metal guy and very good painters. They do classics and hot rods and Porsches and everything.

                                Fingers crossed.

                                We'll need to find that short side molding piece from the door to the rear wheel arch. Don't know if that's available.
