    I've replaced the cowl on mine and I would avoid it unless its absolutely essential. The brackets for the wiper motor and blower fan had rust developing under them, tiny dots of corrosion similar to yours on the panel itself. Rust had also
    broken through to the fuse box bracket.. So I replaced mine so I could take all the seam sealer out and ensure there was zero rust. Removed all the brackets and rewelded them back on after rust was removed.
    Painted everything up, welded the panel back in, seam sealed all the edges as per factory and hand brushed over the seam sealer up inside the cowl with BC and CC to seal it in. Its a bastard of a job tbh lol.

    If it was just the brackets that needed attention I would probably just drill out the spot welds from the inside and repair it with the lid still on and rust treat the rest.

    Click image for larger version  Name:	086 (2).jpg Views:	0 Size:	209.3 KB ID:	10093672
    Click image for larger version  Name:	IMG_0371.jpg Views:	0 Size:	198.4 KB ID:	10093671
    Last edited by bangn; 05-13-2023, 03:48 AM.
    Boris - 89 E30 325i
    84- E30 323i

    Comment


      #17
      Originally posted by bangn View Post
      I've replaced the cowl on mine and I would avoid it unless its absolutely essential. The brackets for the wiper motor and blower fan had rust developing under them, tiny dots of corrosion similar to yours on the panel itself. Rust had also
      broken through to the fuse box bracket.. So I replaced mine so I could take all the seam sealer out and ensure there was zero rust. Removed all the brackets and rewelded them back on after rust was removed.
      Painted everything up, welded the panel back in, seam sealed all the edges as per factory and hand brushed over the seam sealer up inside the cowl with BC and CC to seal it in. Its a bastard of a job tbh lol.

      If it was just the brackets that needed attention I would probably just drill out the spot welds from the inside and repair it with the lid still on and rust treat the rest.

      Great write up! Thanks for sharing your experience.
      Yes unfortunately it is necessary for me as well, and as you now know the job is a tough one, which is why I'm nervous, but I gotta do it.

      Also makes sense to paint inside the cavity while you have the panel out.

      I'm gonna try to avoid hijacking this thread any more, so thanks everyone!

      Comment


        #18
        Wow. Thank you so much for documenting this process. Will be invaluable if/when I decide to take this on.

        Comment


          #19
          regarding your roof lining, I would just drop the edges down around the doors and windows and tape them up to the roof. I wouldn't pull the material off the sunroof opening as its can be pretty touch and go not tearing it around the corners. Thankfully when putting it back on the edges that were previously glued down are already shaped to go back into roughly the same spot, its just a tensioning game with the seal. However if your sunroof cartridge looked like mine below, then you will need to pull it down with the foam to treat it otherwise it will just get stained . I actually had to make a new one from the corner tears

          Click image for larger version  Name:	20131128_203446.jpg Views:	0 Size:	199.9 KB ID:	10093717

          For the gummy dots on your door frame, I used a ball of blu-tac.

          Door weather sheeting you could try a kit like this, otherwise you just need a thin enough clear plastic really you can cut to shape
          Find many great new & used options and get the best deals for Door Restore Kit 2DR car door card trim waterproof plastic membrane at the best online prices at eBay!

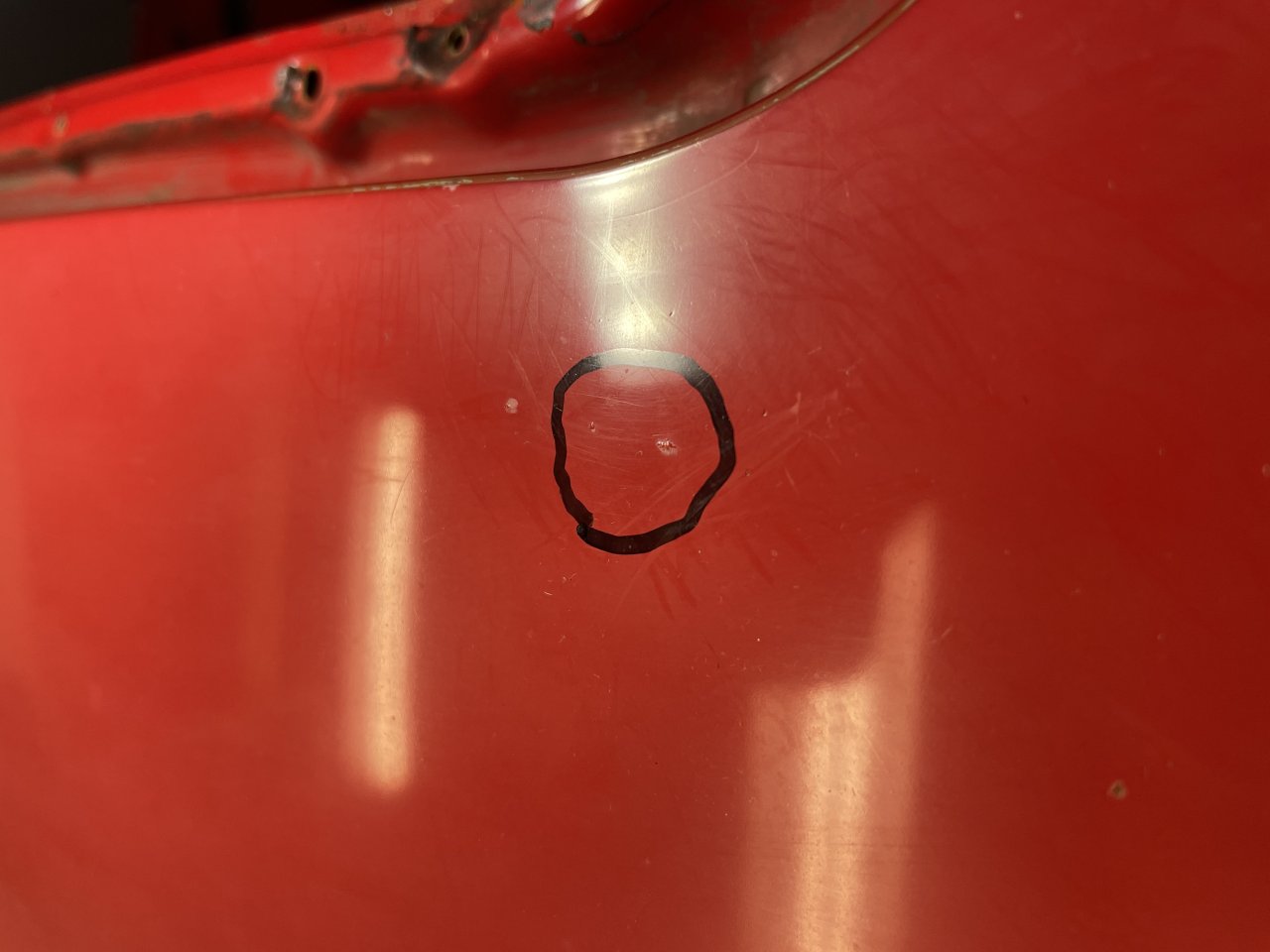

          The clear circles might have to get inventive as there was no part number I could find for these, clear vinyl sticker sheet you could cut down or roll of clear stickers in either vinyl or pvc? I used a roll of clear 3m edge protector tape and cut out some circles
          Boris - 89 E30 325i
          84- E30 323i

          Comment


            #20
            Originally posted by bangn View Post
            regarding your roof lining, I would just drop the edges down around the doors and windows and tape them up to the roof. I wouldn't pull the material off the sunroof opening as its can be pretty touch and go not tearing it around the corners. Thankfully when putting it back on the edges that were previously glued down are already shaped to go back into roughly the same spot, its just a tensioning game with the seal. However if your sunroof cartridge looked like mine below, then you will need to pull it down with the foam to treat it otherwise it will just get stained . I actually had to make a new one from the corner tears

            Click image for larger version Name:	20131128_203446.jpg Views:	0 Size:	199.9 KB ID:	10093717

            For the gummy dots on your door frame, I used a ball of blu-tac.

            Door weather sheeting you could try a kit like this, otherwise you just need a thin enough clear plastic really you can cut to shape
            Find many great new & used options and get the best deals for Door Restore Kit 2DR car door card trim waterproof plastic membrane at the best online prices at eBay!


            The clear circles might have to get inventive as there was no part number I could find for these, clear vinyl sticker sheet you could cut down or roll of clear stickers in either vinyl or pvc? I used a roll of clear 3m edge protector tape and cut out some circles
            Awesome info, thanks!

            Transaction Feedback: LINK

            Comment


              #21
              The last few days have been busy, but I have had some time here and there to make progress. The car is fully disassembled now, or at least as disassembled as I need it to be before delivery to the body shop.

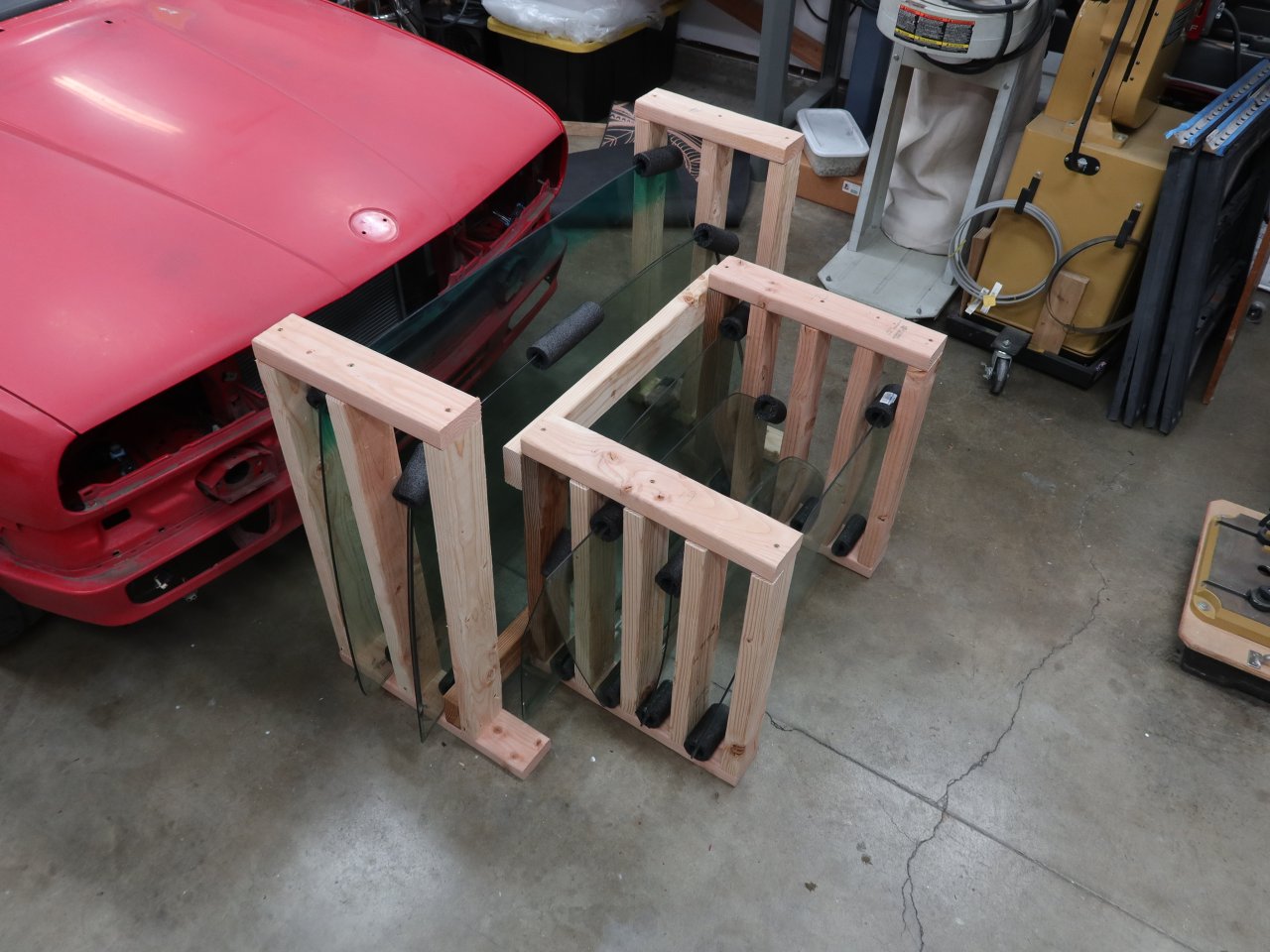

              I made a little temporary rack for the glass out of some 2x4's and extra pipe insulation. While it is out I will give it a good cleaning.




              Does anyone know where to get the little goo-filled rubber pad thing that is on the left side of the trim piece in the image? These were getting pretty old and starting to leak. Maybe I missed them in RealOEM, but I did not find them there.

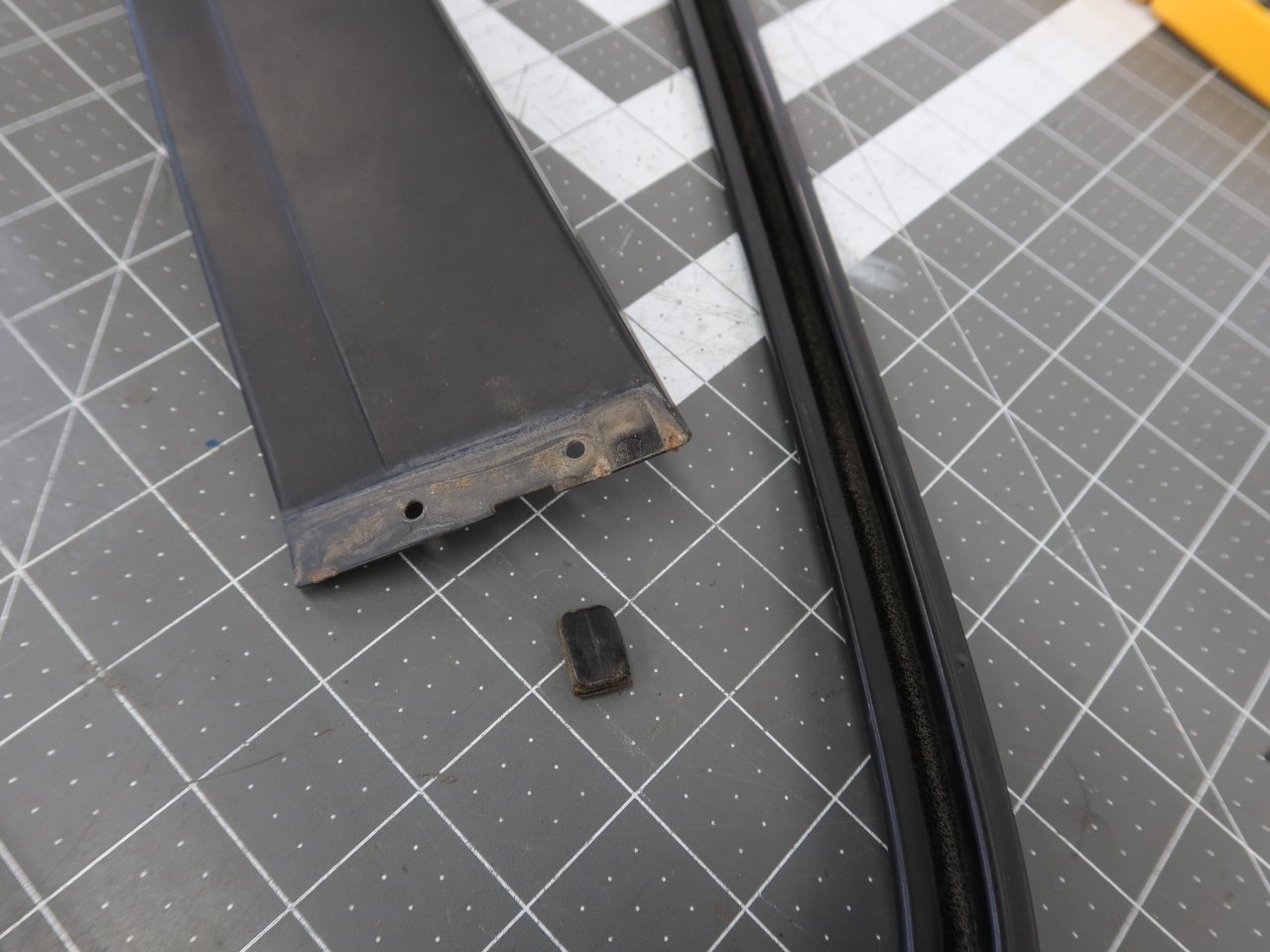

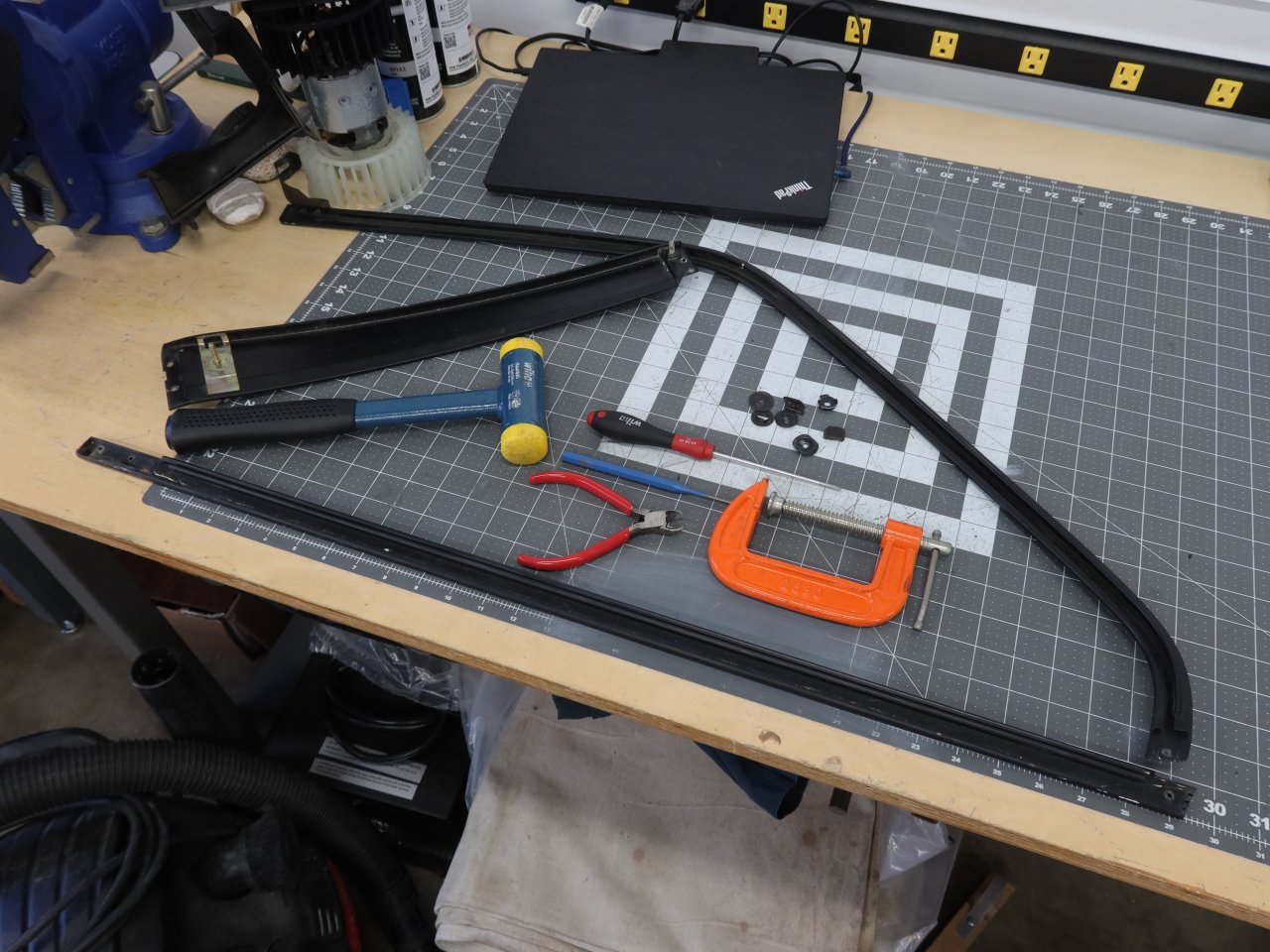

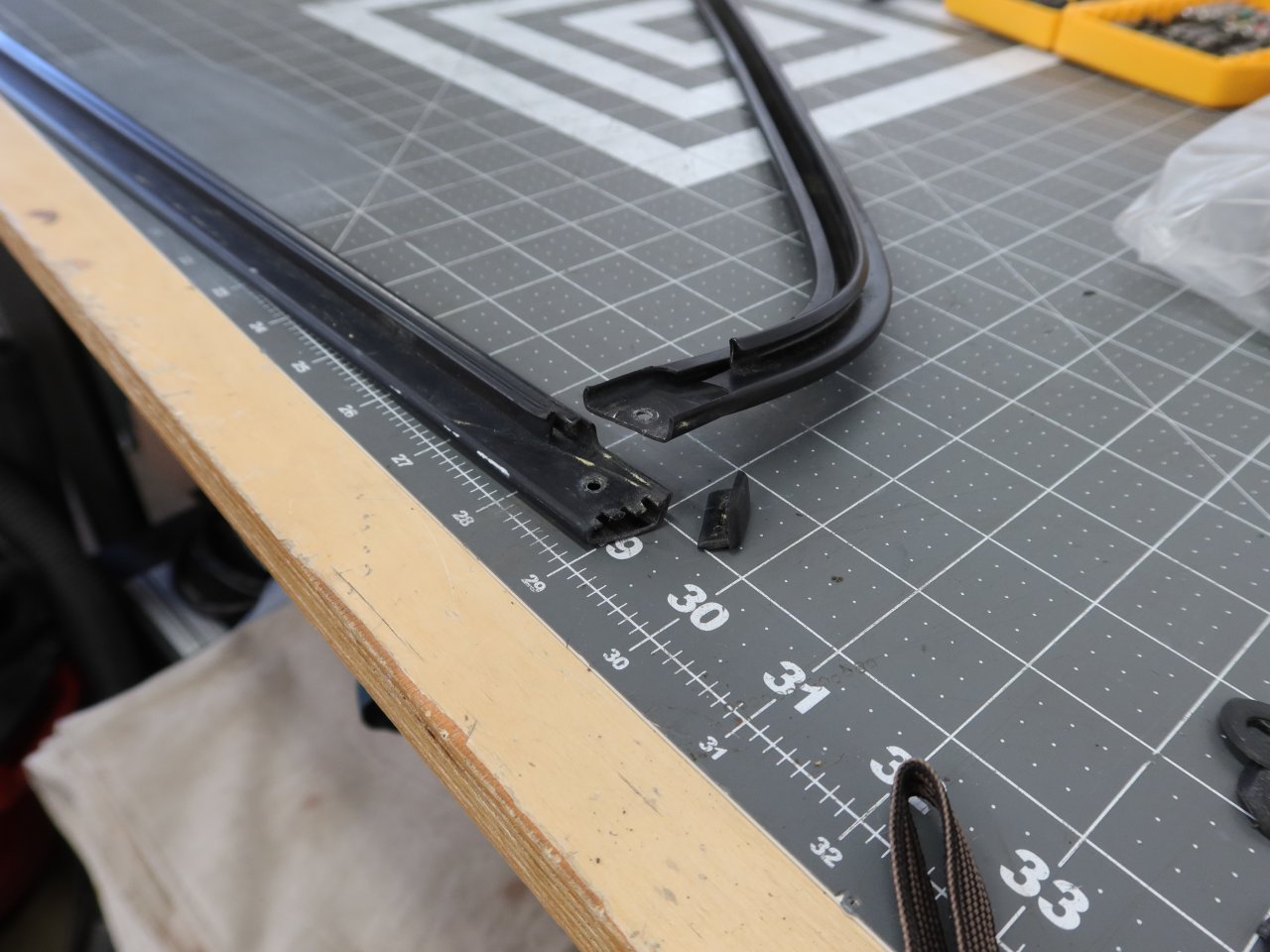

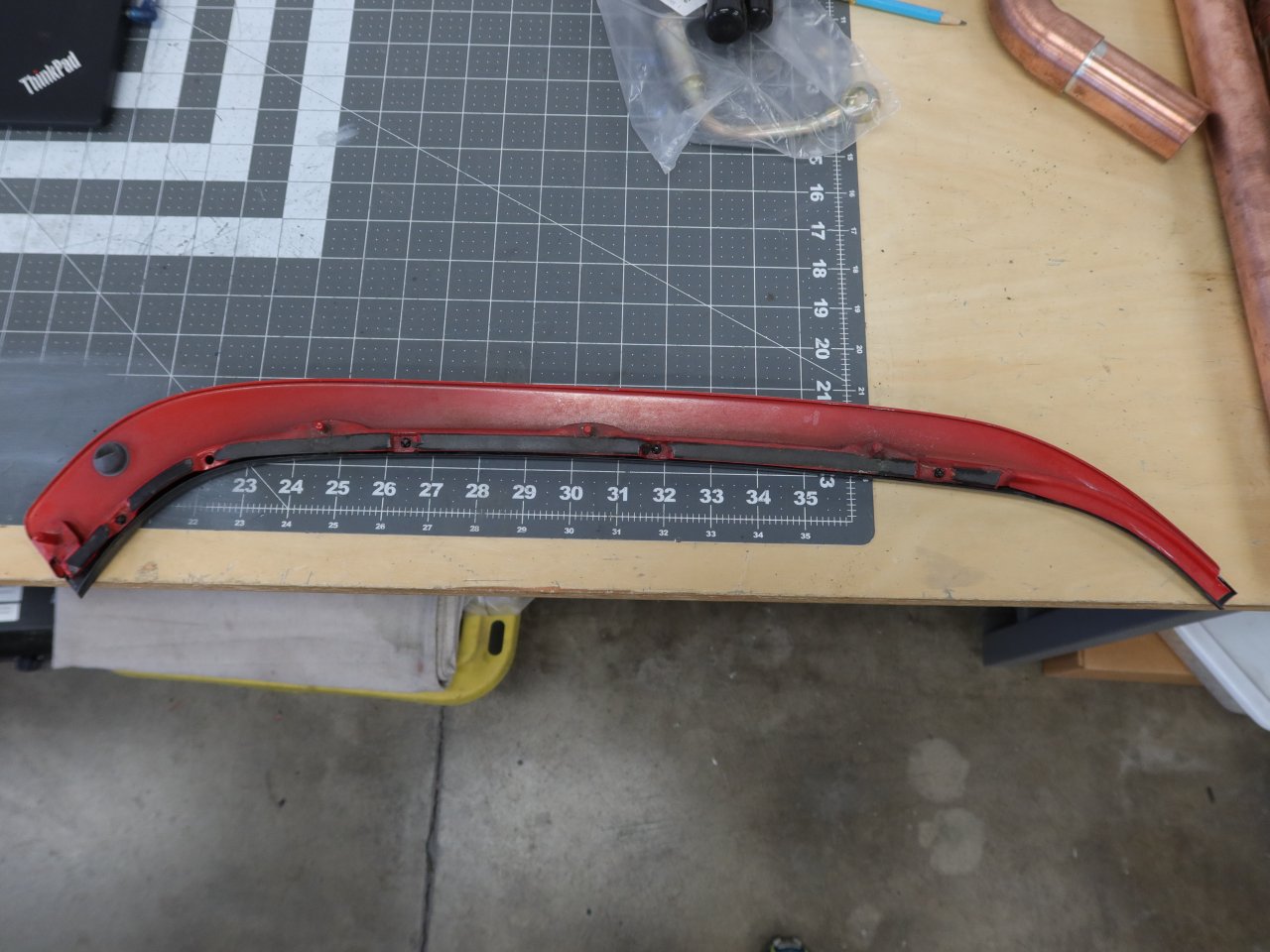

              One thing that I decided to do was to disassemble the trim for the rear side windows. It will make painting easier and ensure that there are no funny lines or gaps. On top of that, a couple of the thinner spots got slightly bent during removal, and I have been able to straighten them out very well with the parts separated. The flat flanges in the thinner parts where the pop rivets go were the trouble spots, and some careful squishing with a C-clamp flattened them right out. The holes are sized for 3mm rivets, and 1/8" size ones seem to fit as well. Length-wise, I think that they need to be 3mm or shorter to actually work. So, somewhat TBD there, more to come.

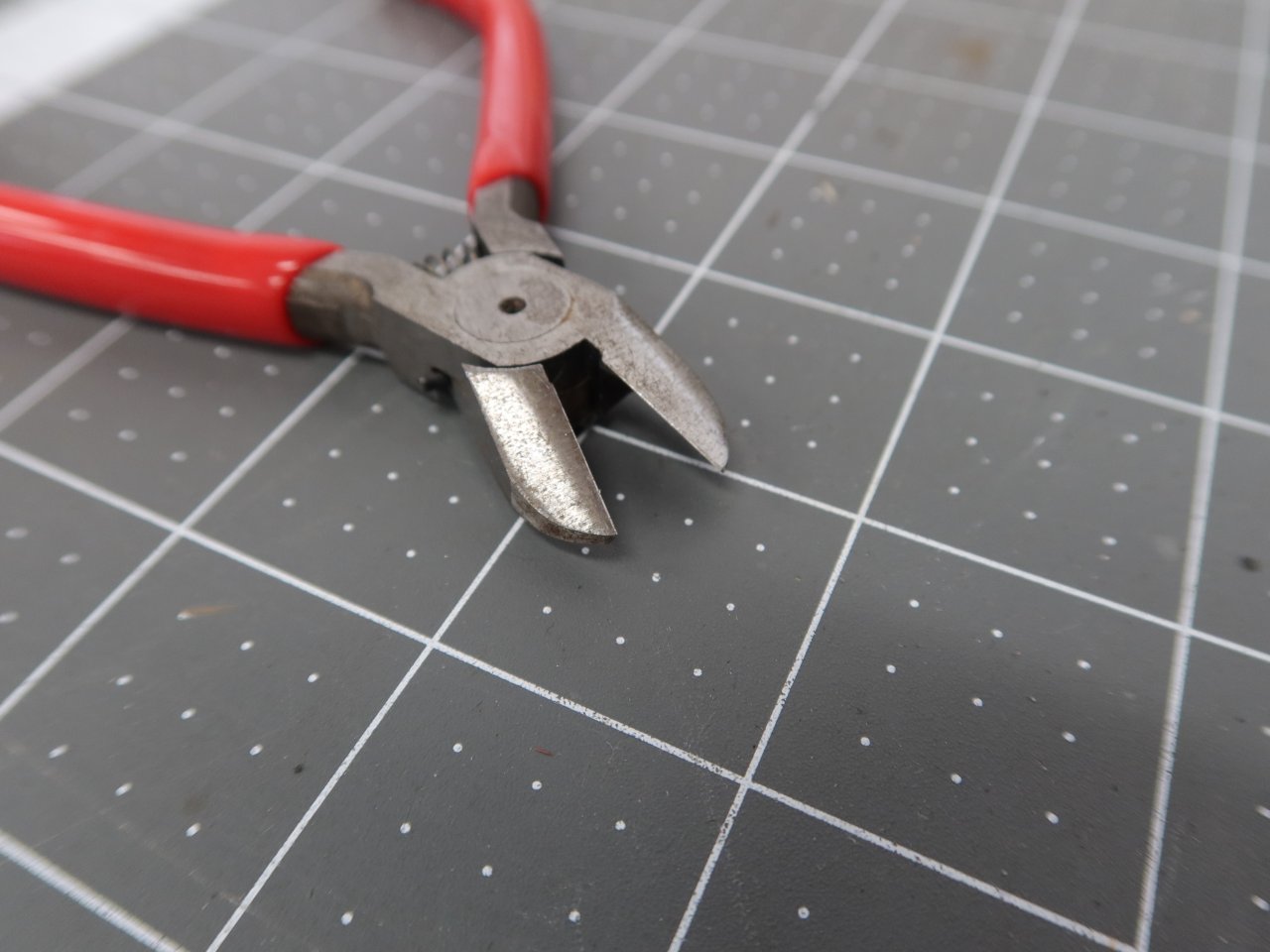

              To get the old rivets off, since they were just aluminum, I used some flush cutters. Do not try to do this with normal diagonal cutters, it won't work. A couple of the old rivets were fairly corroded and almost fell off lol.

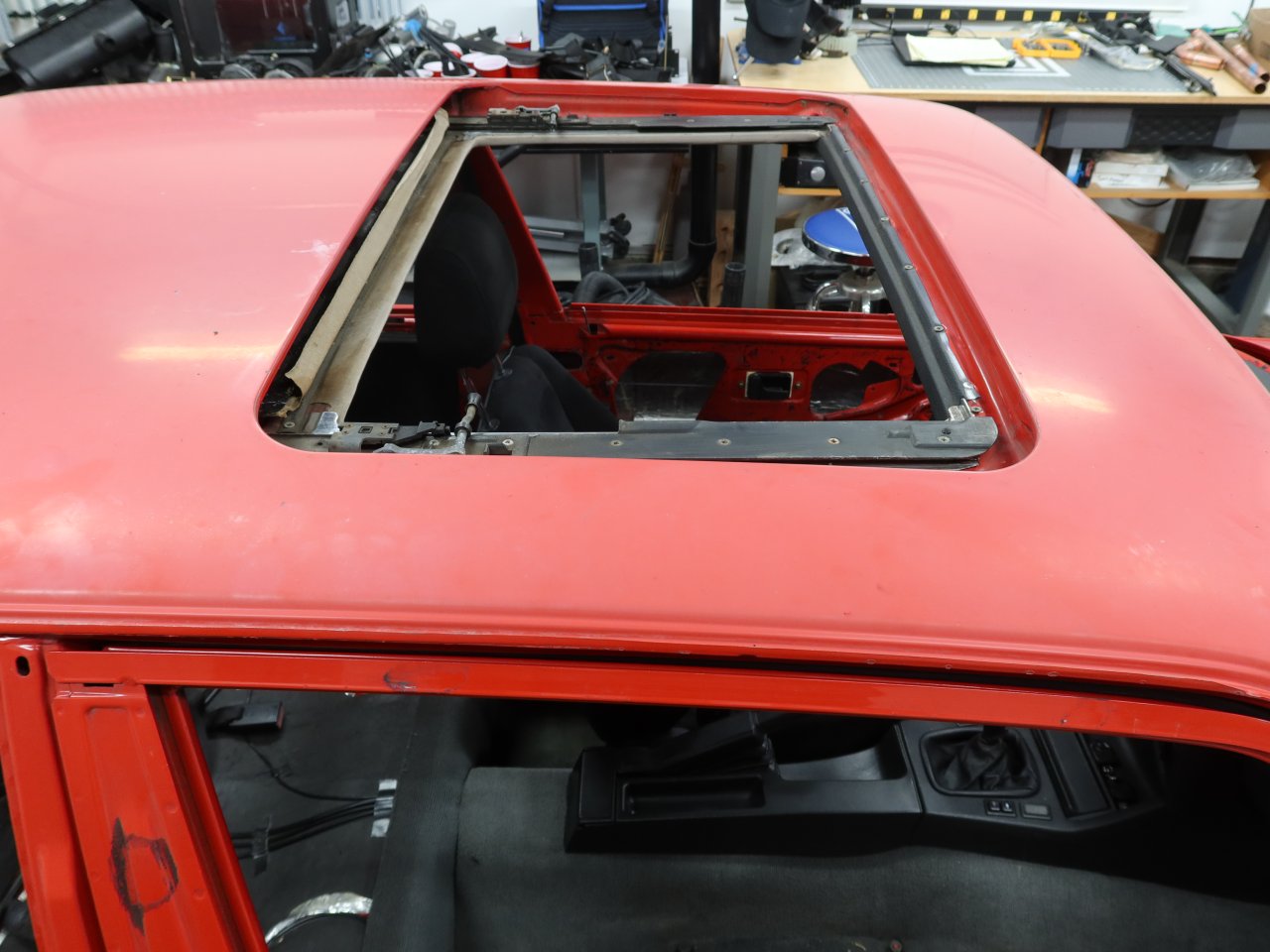

              The sunroof came out, and I took the easily accessible moving parts out with it. The plastic and metal "gate" parts that the panel bolt on to developed some small cracks around the insert molded nuts. Nothing really problematic, but enough that I thought about replacing them. Holy crap, those things have become expensive! As much as I am trying to do a reasonable job of refreshing the car, I cannot justify the added expense at the moment, especially considering how bad the design is. They are still perfectly functional and only really cracked superficially, so I am probably going to 3D scan them and have some SLS Nylon ones printed which can take the metal parts from the originals. Anyway, there is no rush there, and I guess that I can always "give up" and buy new ones if needed someday. Project costs have been increasing steadily as I make lists of more necessary items, some of which have more than doubled in price since the last time I replaced them.

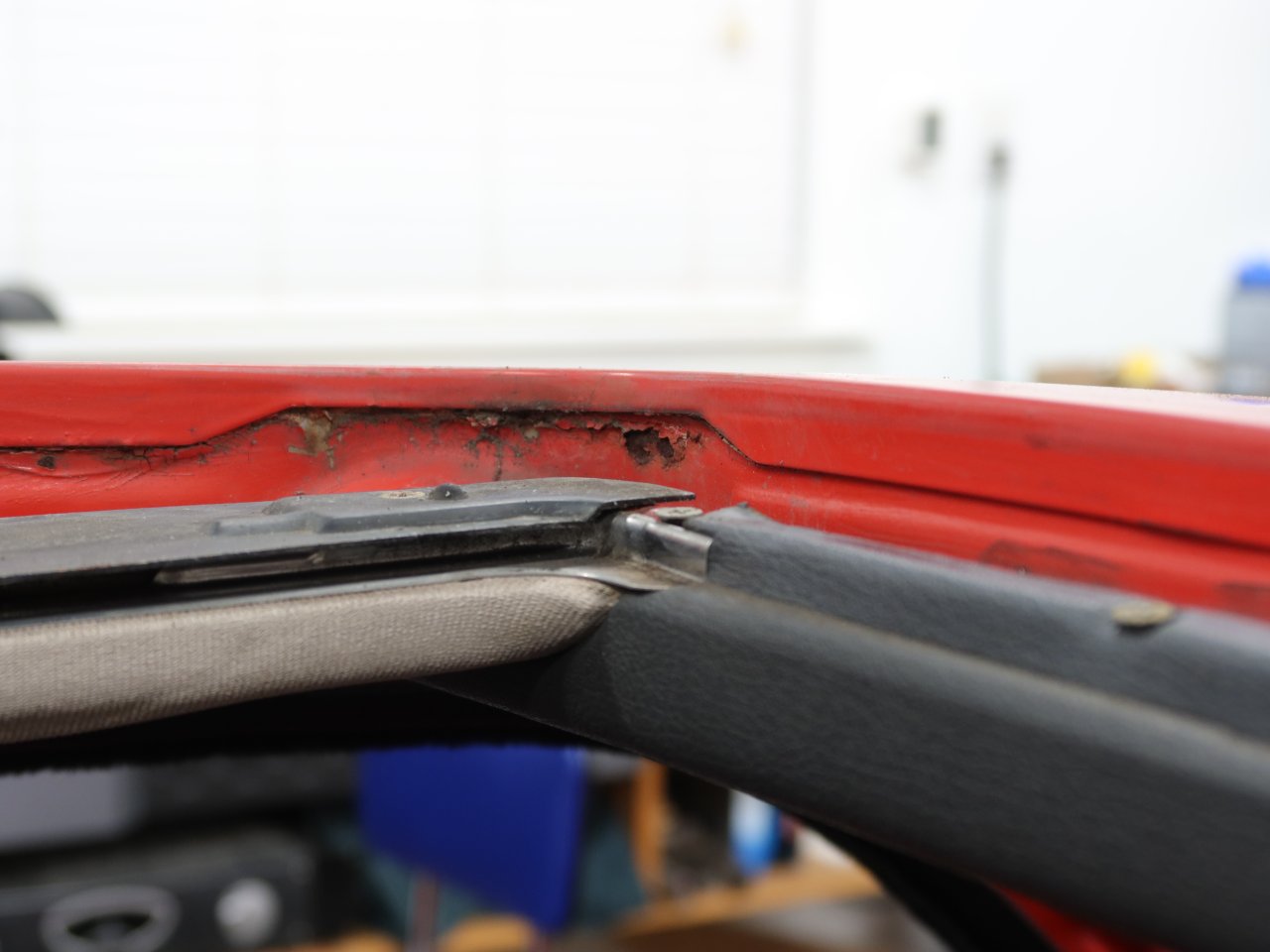

              The sunroof recess has some minor surface rust in a couple of spots at the front, and the body sealer/paint are starting to fail. I knocked off the nasty bits with a brush, and it looks like something that rust converter and new sealer/paint can handle. The new sunroof seal should also help in the future.

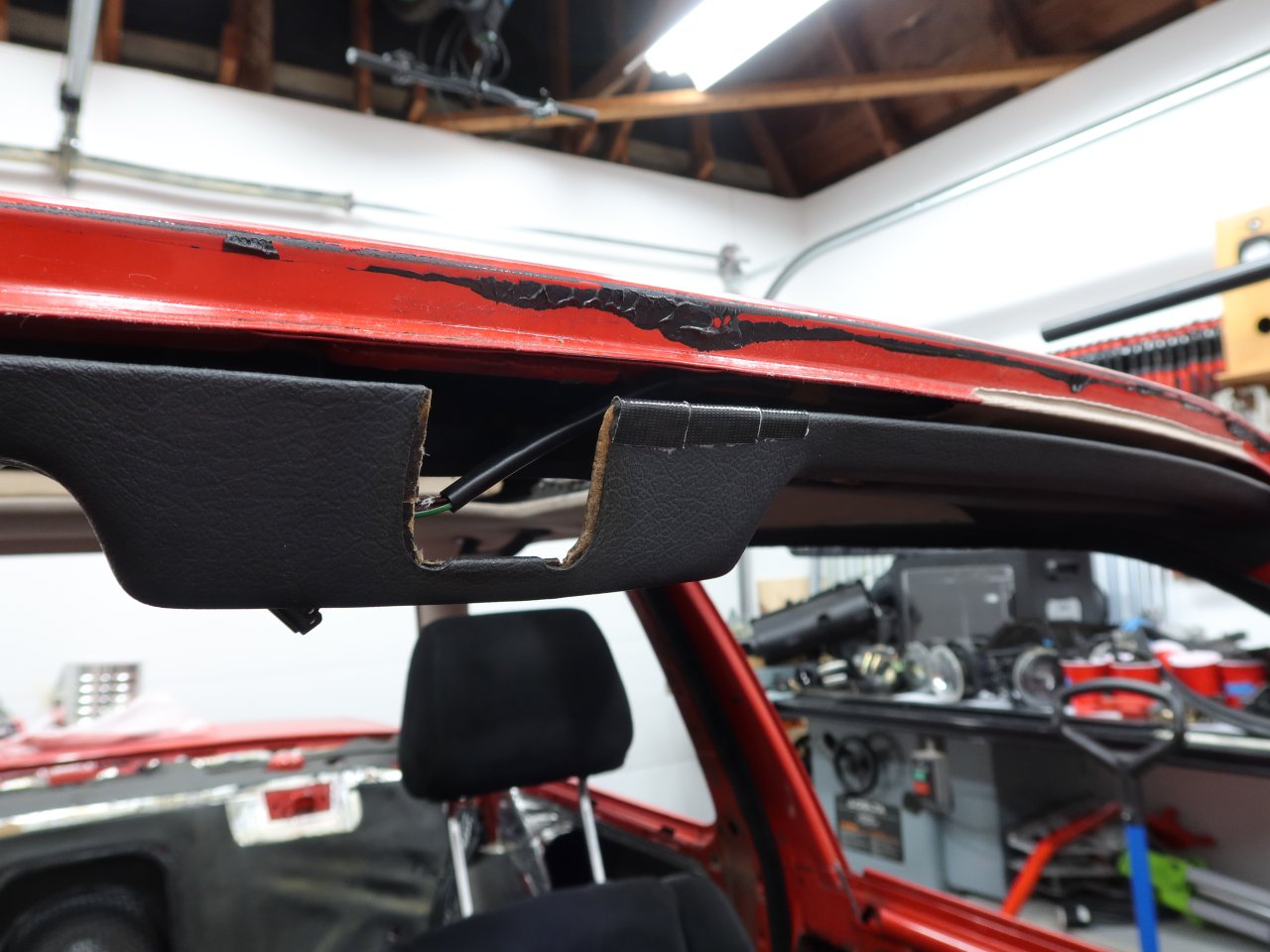

              I noticed that the vinyl on the driver's side of the front headliner box for the check panel was starting to delaminate and shrink, so I temporarily stretched it back into place with some Gorilla tape. I will be sanding the chipboard substrate under the covering with some 60 grit, cleaning things with alcohol, and applying some upholstery adhesive to get it all back into place more permanently.

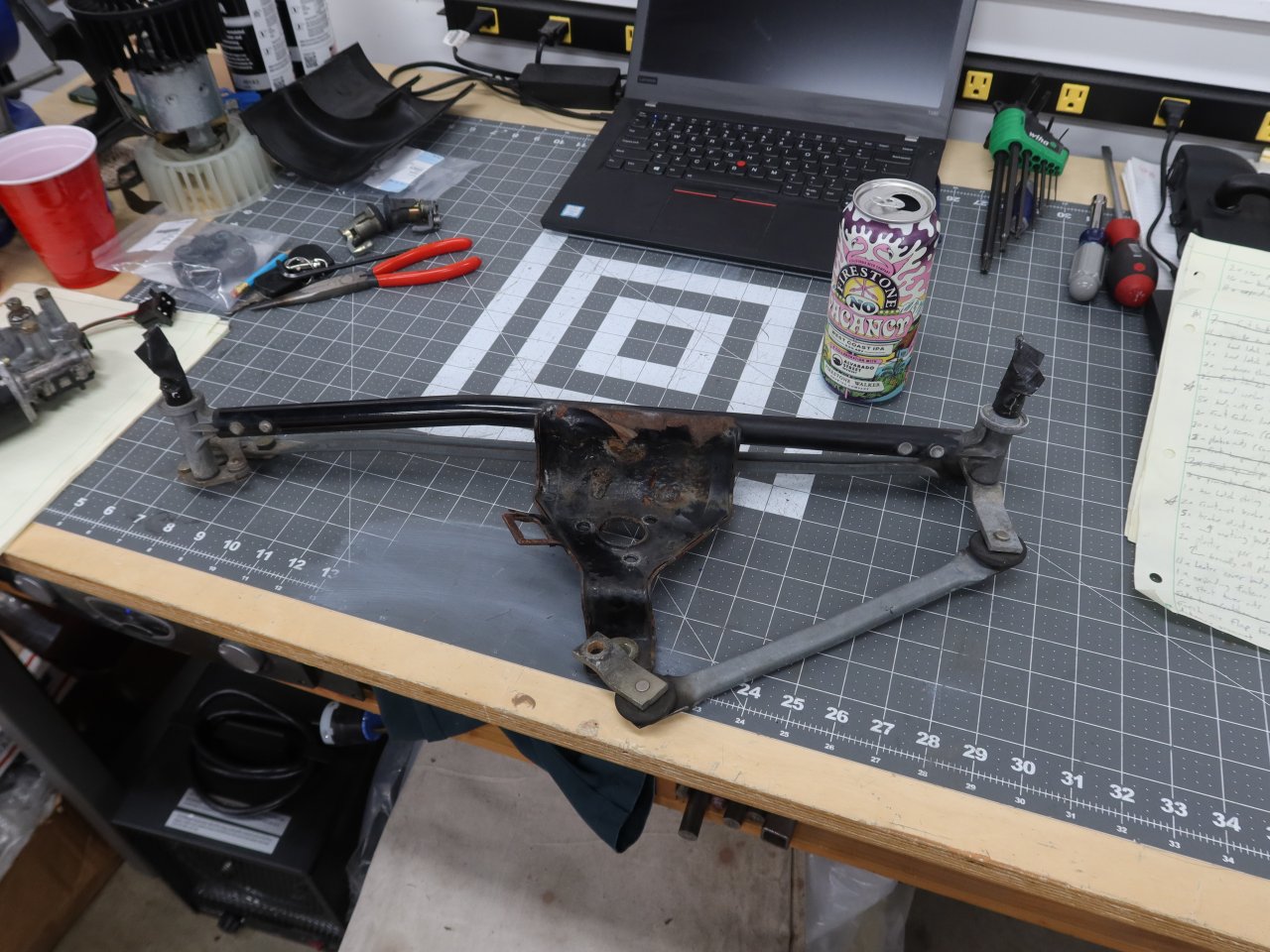

              I did also take a closer look at the wiper arm linkage assembly. While I could drill out the rivets, disassemble it, and have the steel parts cleaned & re-powdercoated, I am just going to buy a new assembly. The price is a little high, but worth the peace of mind. The motor is a separate item, and even more expensive than the linkage. Being that I am looking to not waste money here, I gave the motor a quick inspection. The verdict is that it is in very good condition and perfectly usable with the new linkage. The plastic cover for it needs replacing as it developed a small hole, but the motor itself is perfectly reusable.




              The wipers and track for the intermittent parking function were in fine shape.

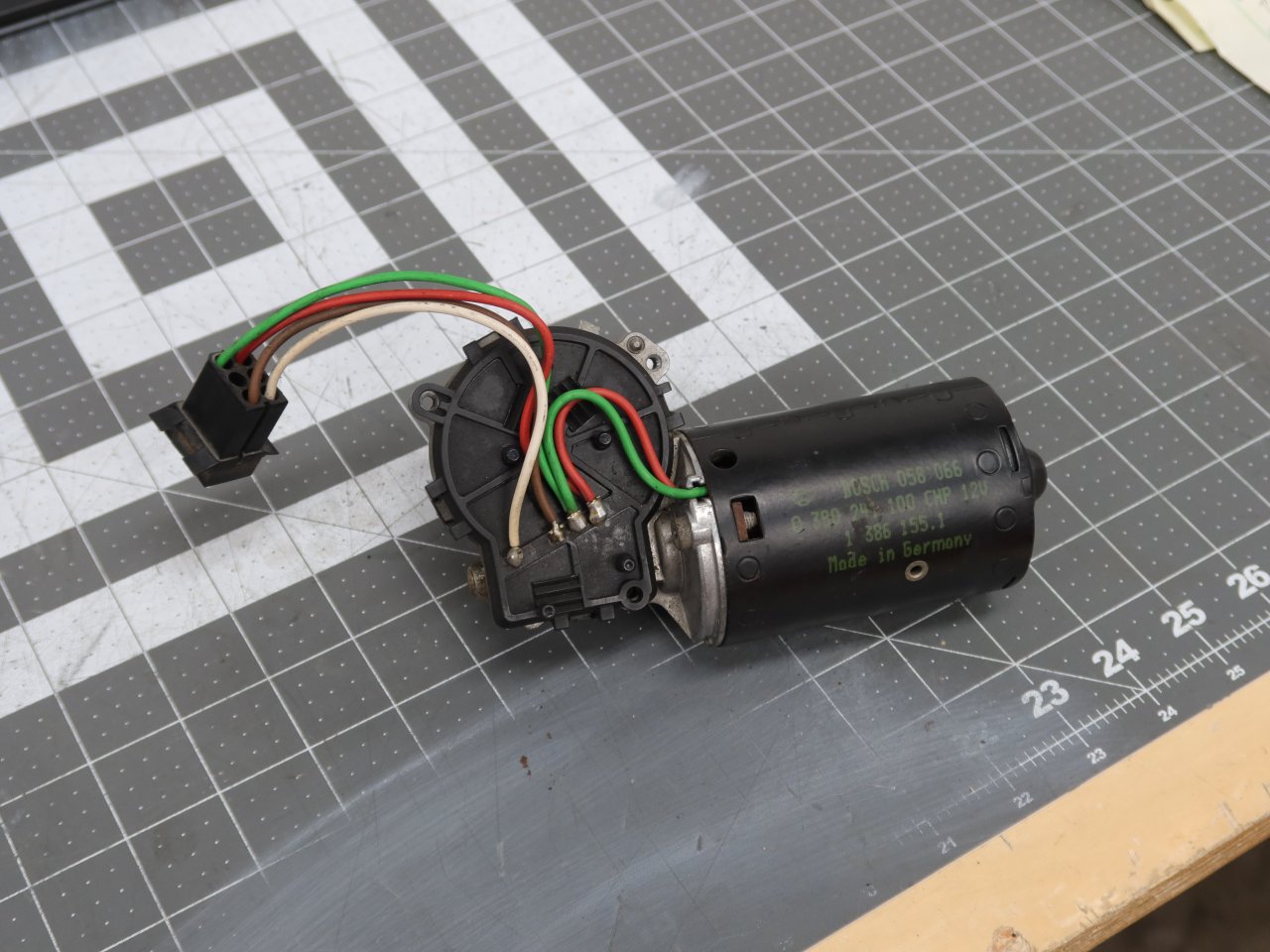

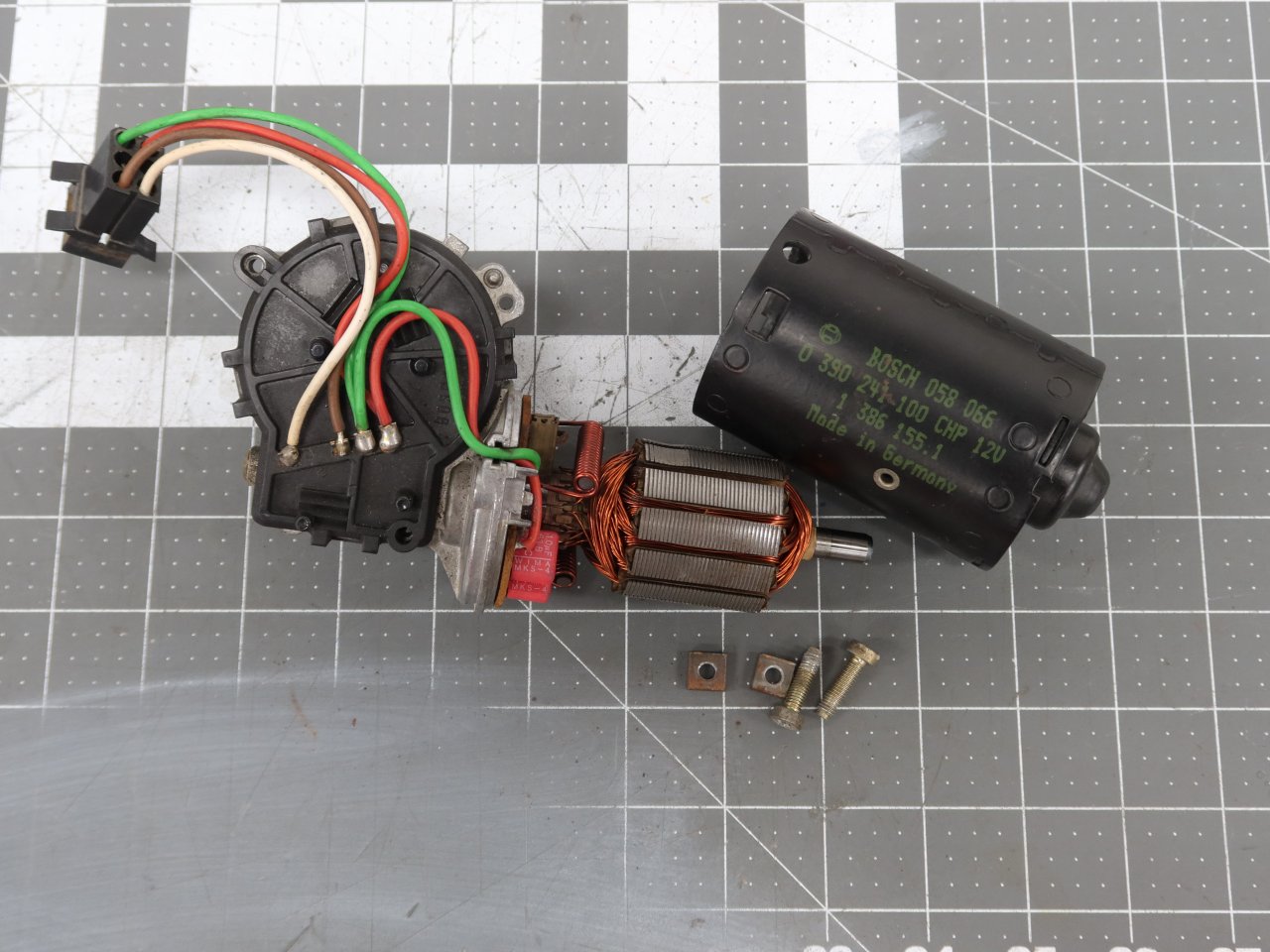

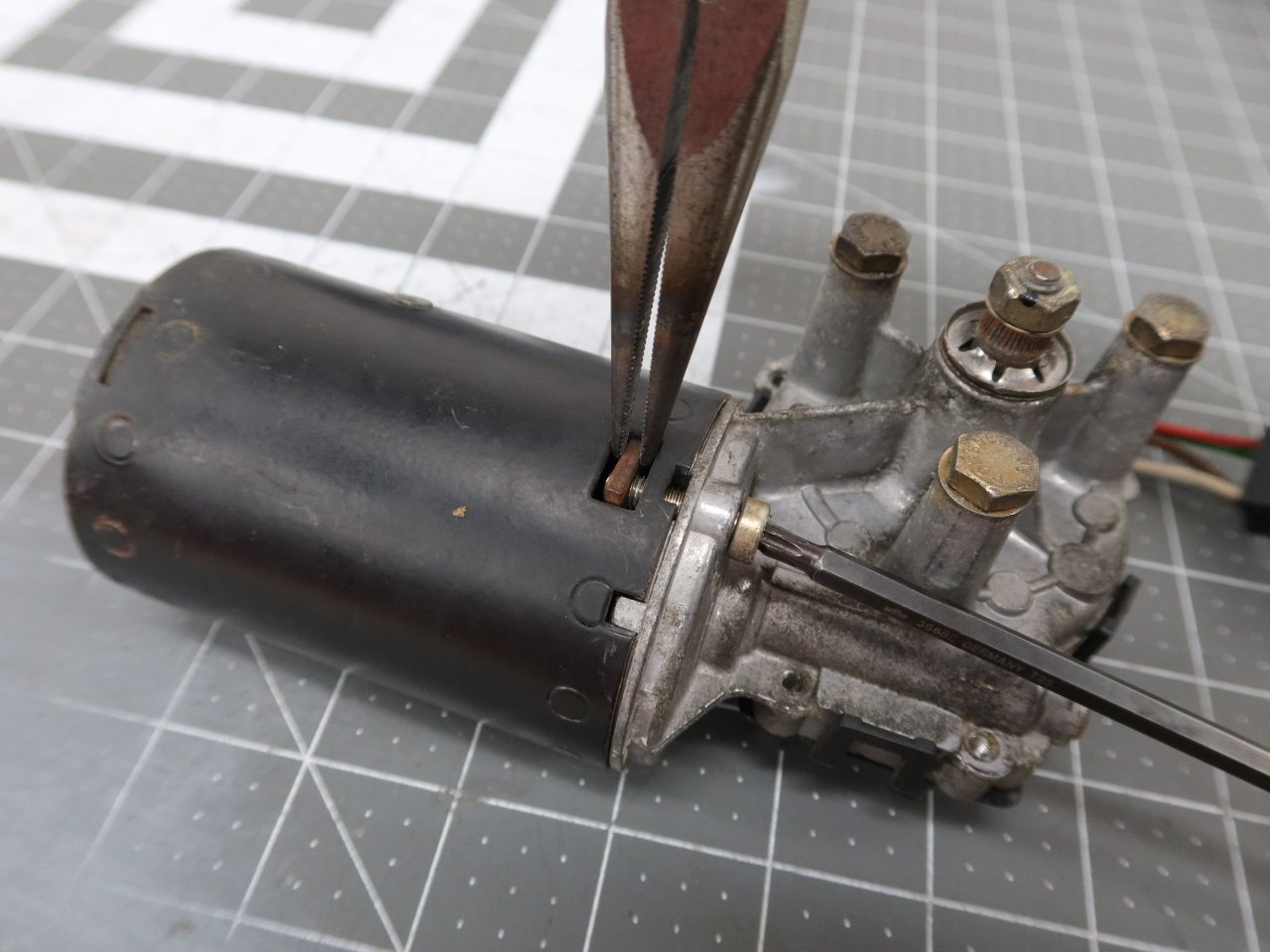

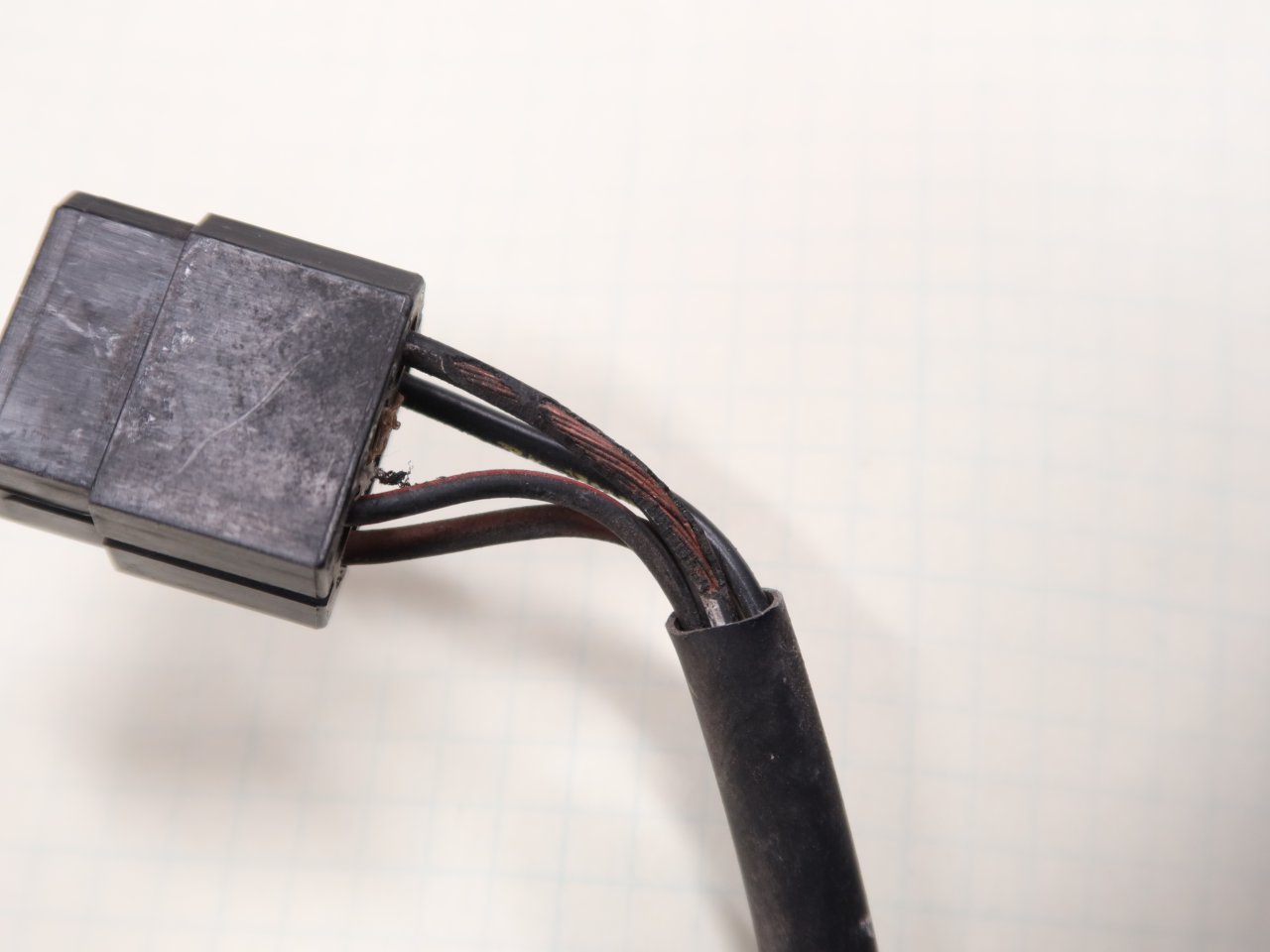

              Getting the rotor and brushes out was very easy. Just grab the little lock nuts with some needle nosed pliers so that they do not fall in when you remove the screws (T25 heads), and it comes right apart.

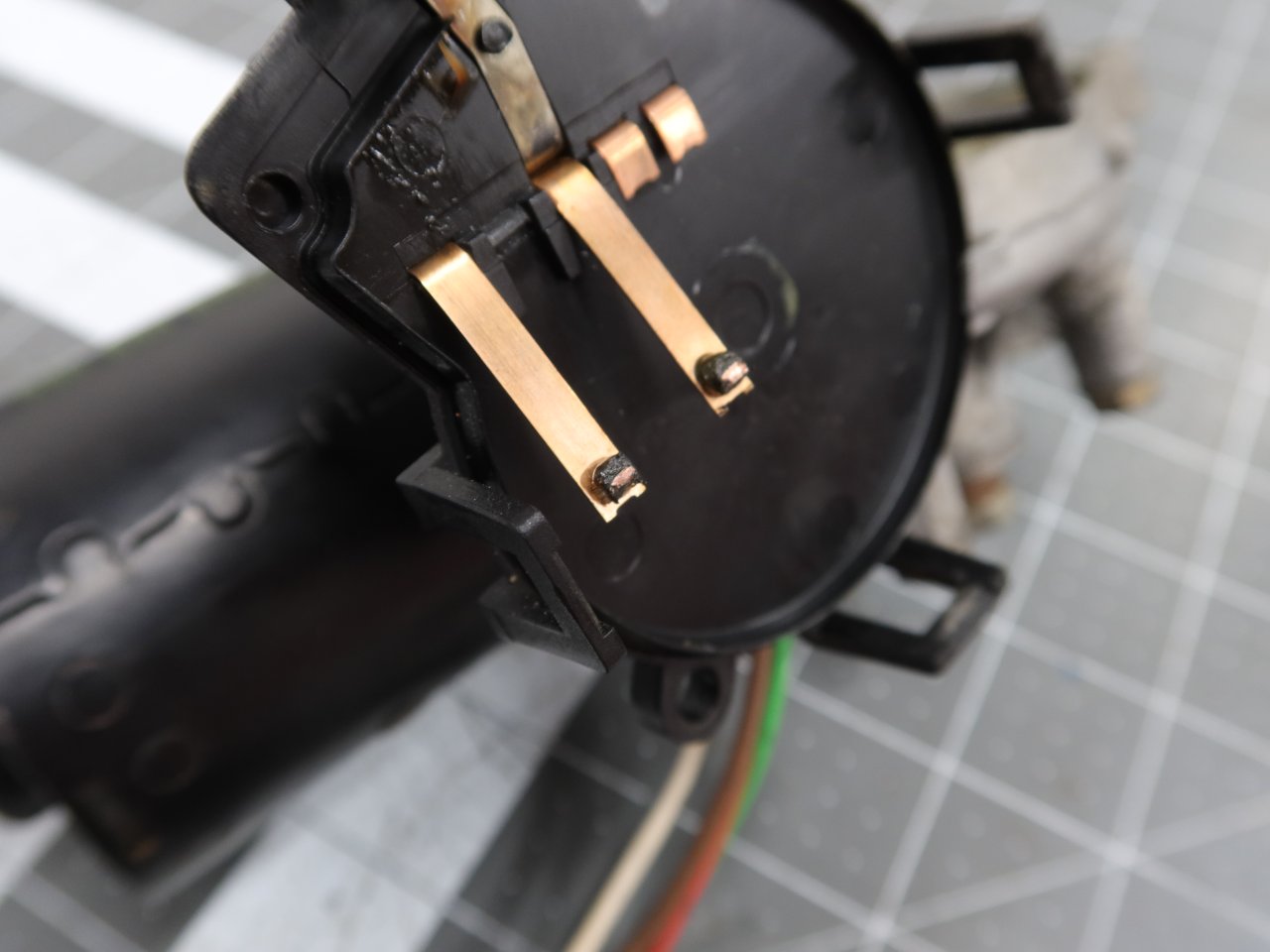

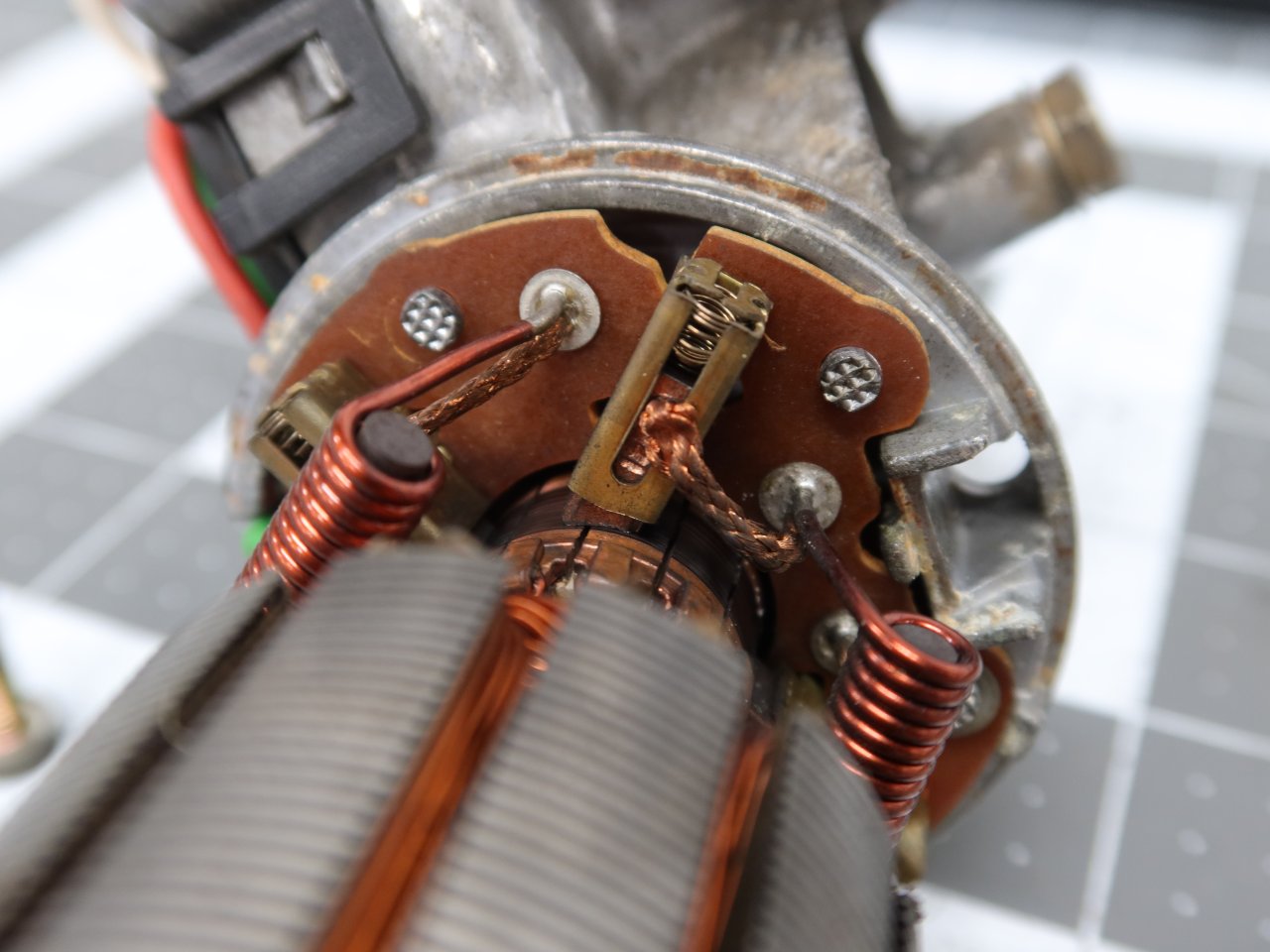

              Brushes looked good and had plenty of life. I guess that is one "advantage" of living somewhere that has been in a varying state of drought for the last decade or more...the wiper motor is rarely used!




              The old linkage...salvageable, but I don't have the time or interest. Maybe I will rebuild it and sell it later on.

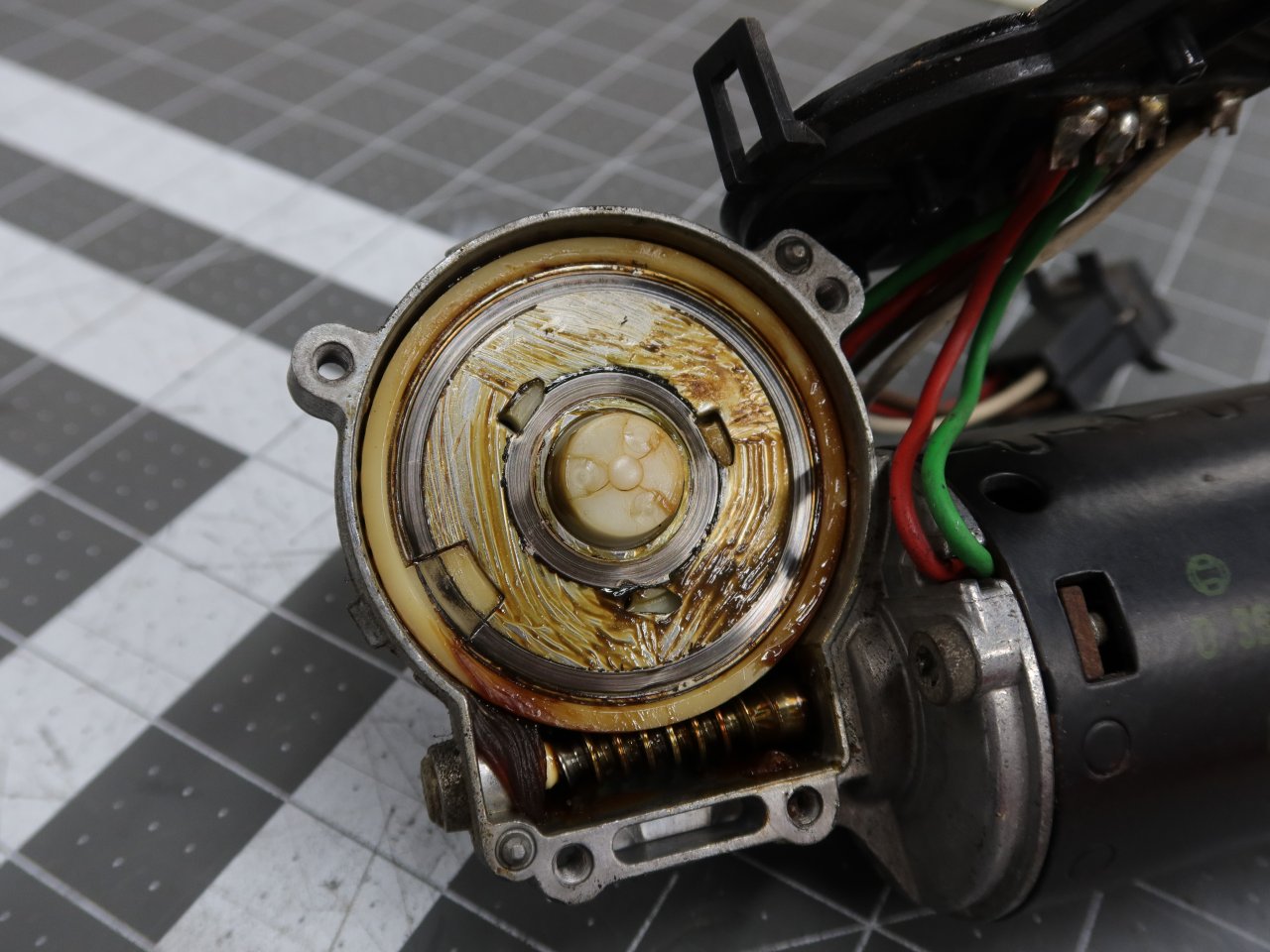

              I tested out the motor on the car after cleaning and reassembling it. When I was doing that, I noticed that one of the wires on the (chassis side) harness had its insulation stripped off. I think that it was probably sticking up and rubbing on a linkage arm. Thankfully it does not look like the copper is damaged. I will use my terminal extraction tools to pop it out, clean it, and apply some Raychem DR-25 heat shrink tubing.







              So that is where things are at as of this evening. I have some replacement black trim items on order now which I need to get ASAP since they will be painted with all of the rest of the black trim pieces, and it is best to do it all at once with the same batch of paint. The items include the driver's side bumper trim (Euro versions) inserts, the center rear bumper trim insert, windshield washer nozzles, and windshield wiper arm nut covers. Unfortunately, a couple of the bumper trim pieces seem to be "on order" from Europe with an ETA of early-to-mid June, and I really hope that those dates do not get moved out. The black trim parts may all end up being painted well after the rest of the car.

              I also have new brake cooling duct inlets (the front-most ones in the valence) coming since the originals had some of the little clip retainer parts snap off during removal. Those will be painted red to match the rest of the car.

              Transaction Feedback: LINK

              Comment


                #22
                I spent a few hours today pulling the car apart further. Upon discovering that CATuned makes a headliner kit (which still requires a LOT of careful work to properly install...I may have an upholstery shop near my house do it), I decided that it was time to do the headliner since much of the prep for doing that is already done (glass removal).

                The sunroof mechanism and headliner are things that I have never before taken apart, so it was a little slow going as I did it. I have a ton of pics from the day which show all sorts of details for the sunroof assembly and headliner, and maybe at some point I will dump them all into a public Dropbox folder or something.

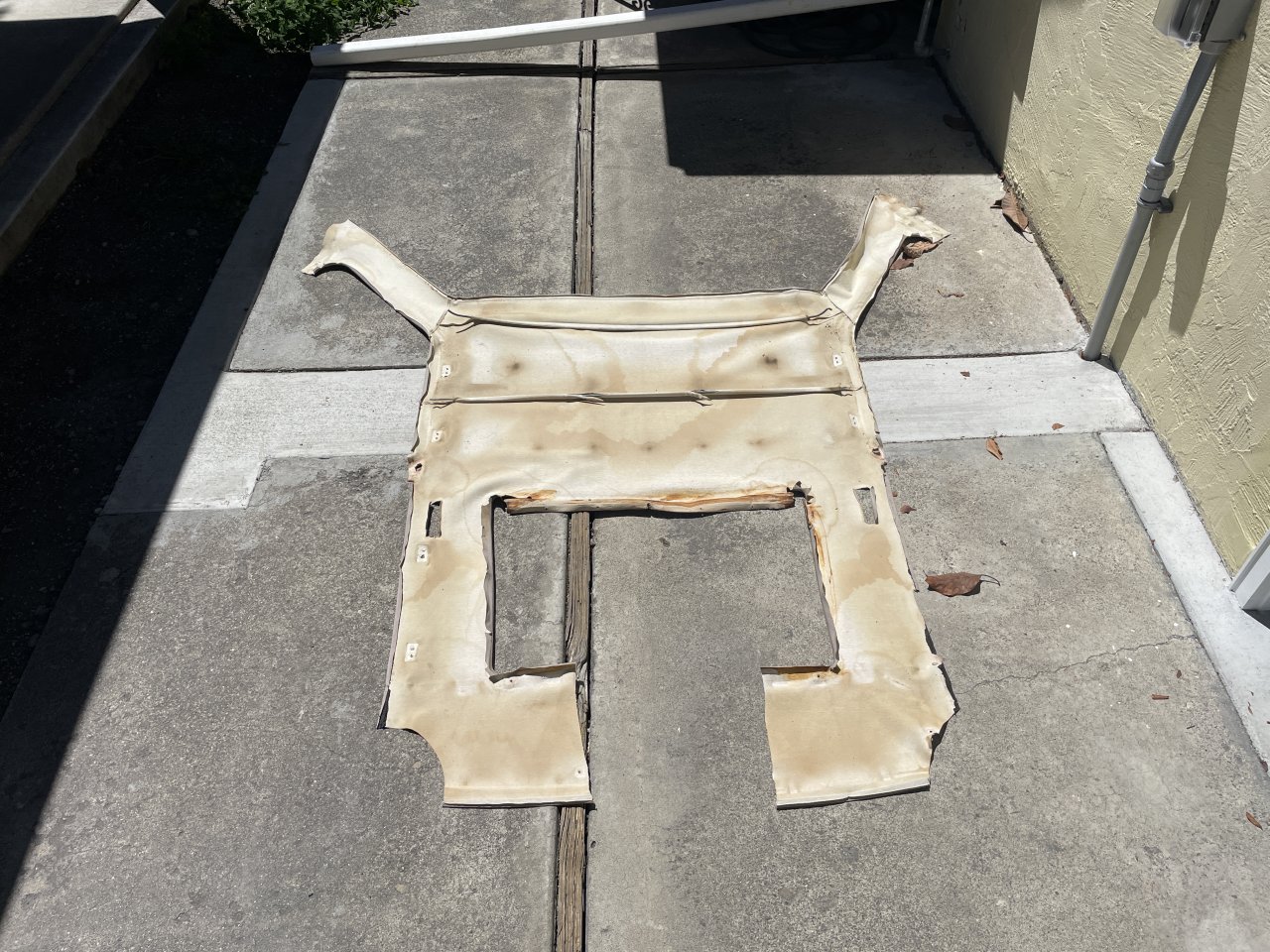

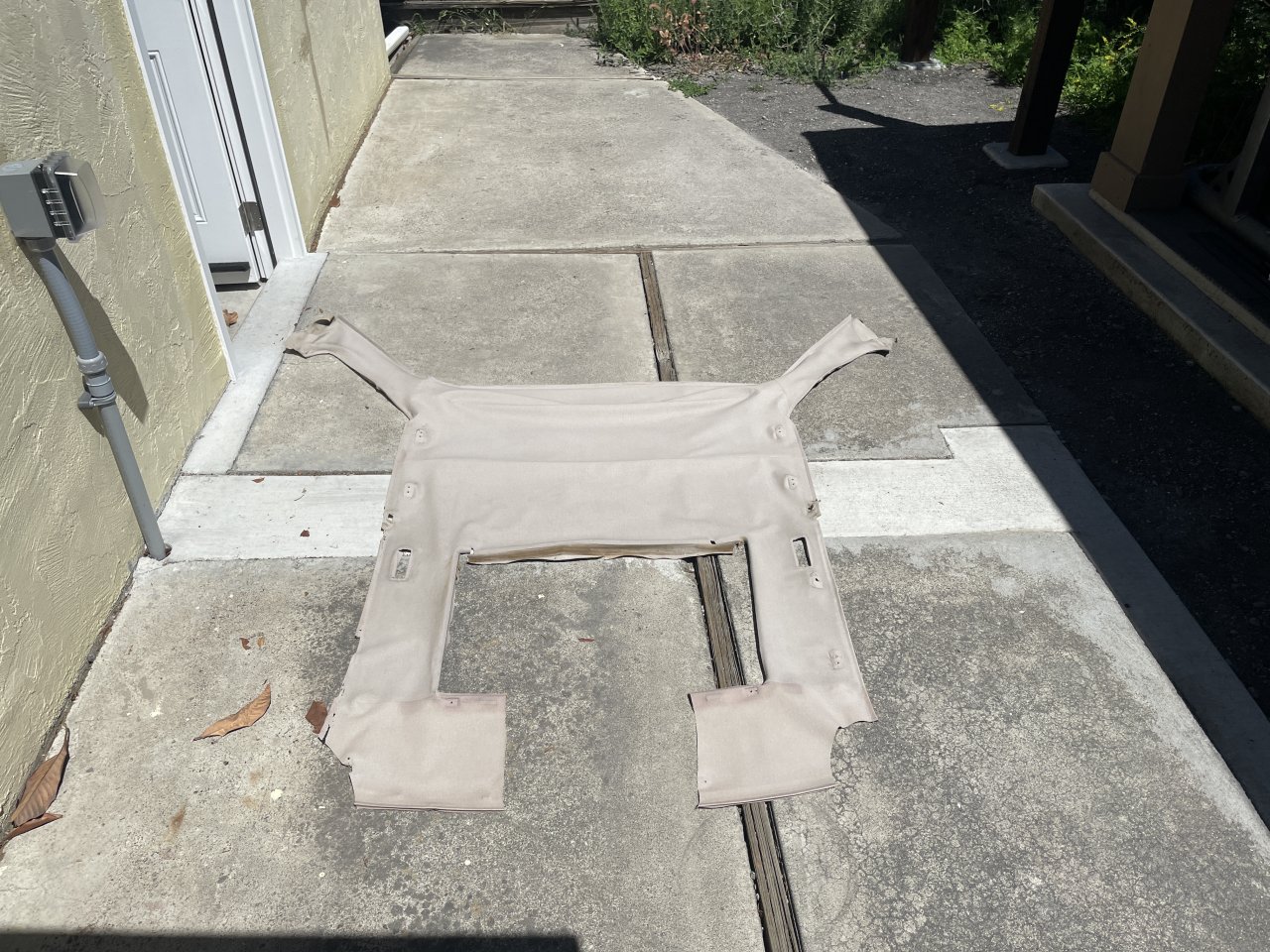

                The headliner was honestly in pretty good shape, with no visible rips and no giant stains on it. There was a little chunk missing right at the edge near the middle of the driver's door seal (visible in the pics) which I had managed to keep pulled tight to the frame with some tape for many years. Given how fragile the material was by this point though, I made the decision to pull it. As you will see later on in this post, it was a good thing that I did pull it, and it very likely would have needed to come down anyway at the body shop.






                The most difficult part of getting the sunroof parts out (not *strictly* necessary for the headliner, but I want to give everything a proper cleaning) was prying it up off of this non-curing sealant stuff without bending it. I did succeed, but it involved some mild cursing!

                Does anyone know what this gray material is and if it can be purchased? It almost seems more like anti-vibration filler than any sort of water seal (and water should not be getting up that high anyway!

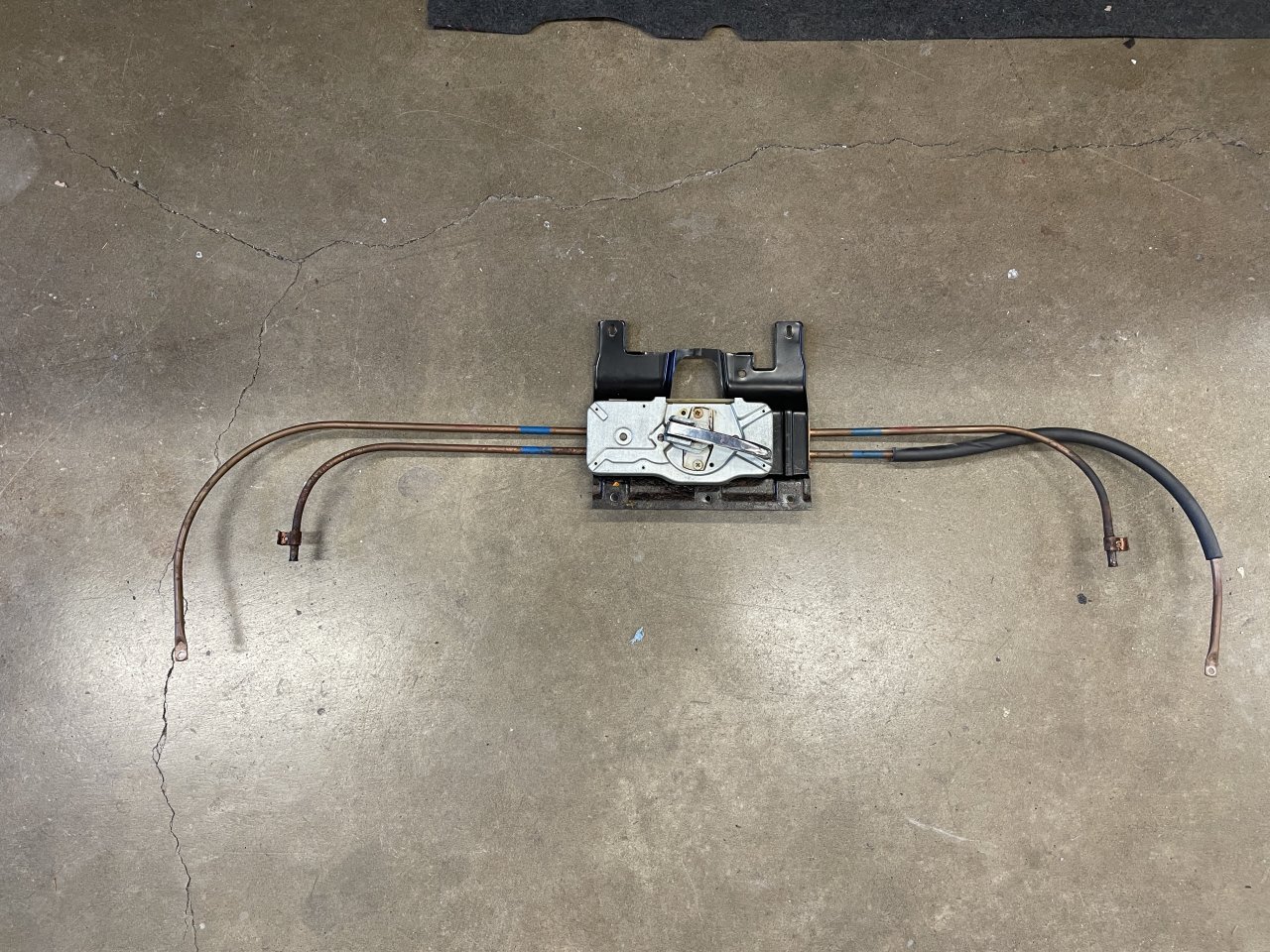

                Just for kicks, I pulled the manual sunroof cable housing as well. With this out, there's really nothing left up there to be in the painter's way. There are a total of 9 fasteners holding this thing in.
                - 2 up top in the sunroof opening: Philips head screws
                - 2 on bottom at the outsides where the closed ends of the cable tubes are secured
                - 5 in the middle holding the mechanism body (2 visible at the front, 3 hidden under the foam

                For the ones under the foam, I cut a couple of holes with a hole saw, running it by hand. The foam is glued up there and I wanted to avoid breaking it, although in hindsight this was unnecessary since the middle part came unglued anyway when I was doing this.










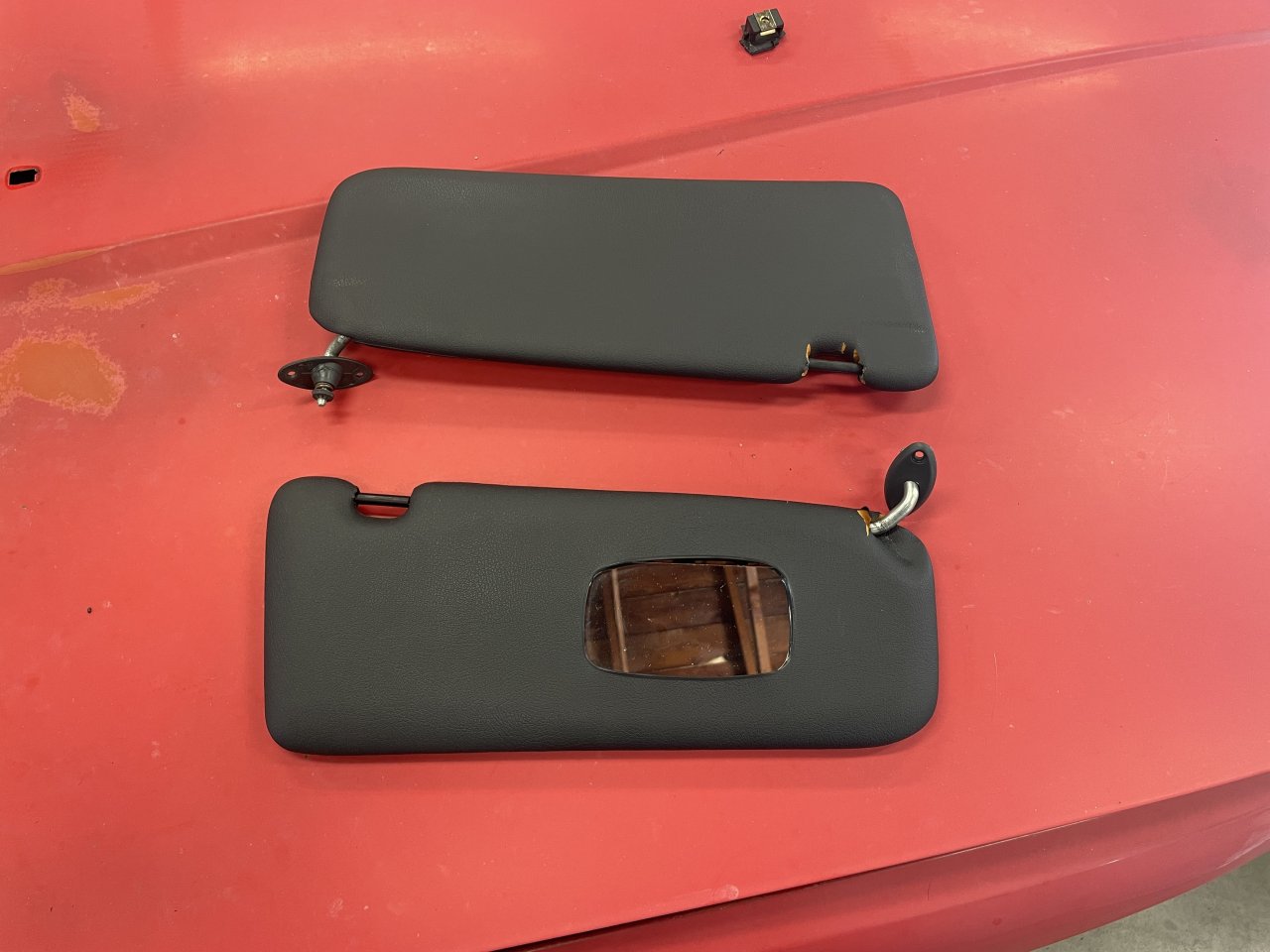

                The front headliner cover thing was in pretty good shape for its age, but in need of some TLC. The vinyl is peeling off here and there, the black plastic mount boss things on the back side are broken off where they were glued on, and the thin region at the very front which is under the mirror mount is broken and in need of some reinforcing. Also the visors are starting to crack. Since I will be looking into having a shop do the headliner, I might as well see if they can re-cover these, and the A-pillar covers too, with fresh textured vinyl.

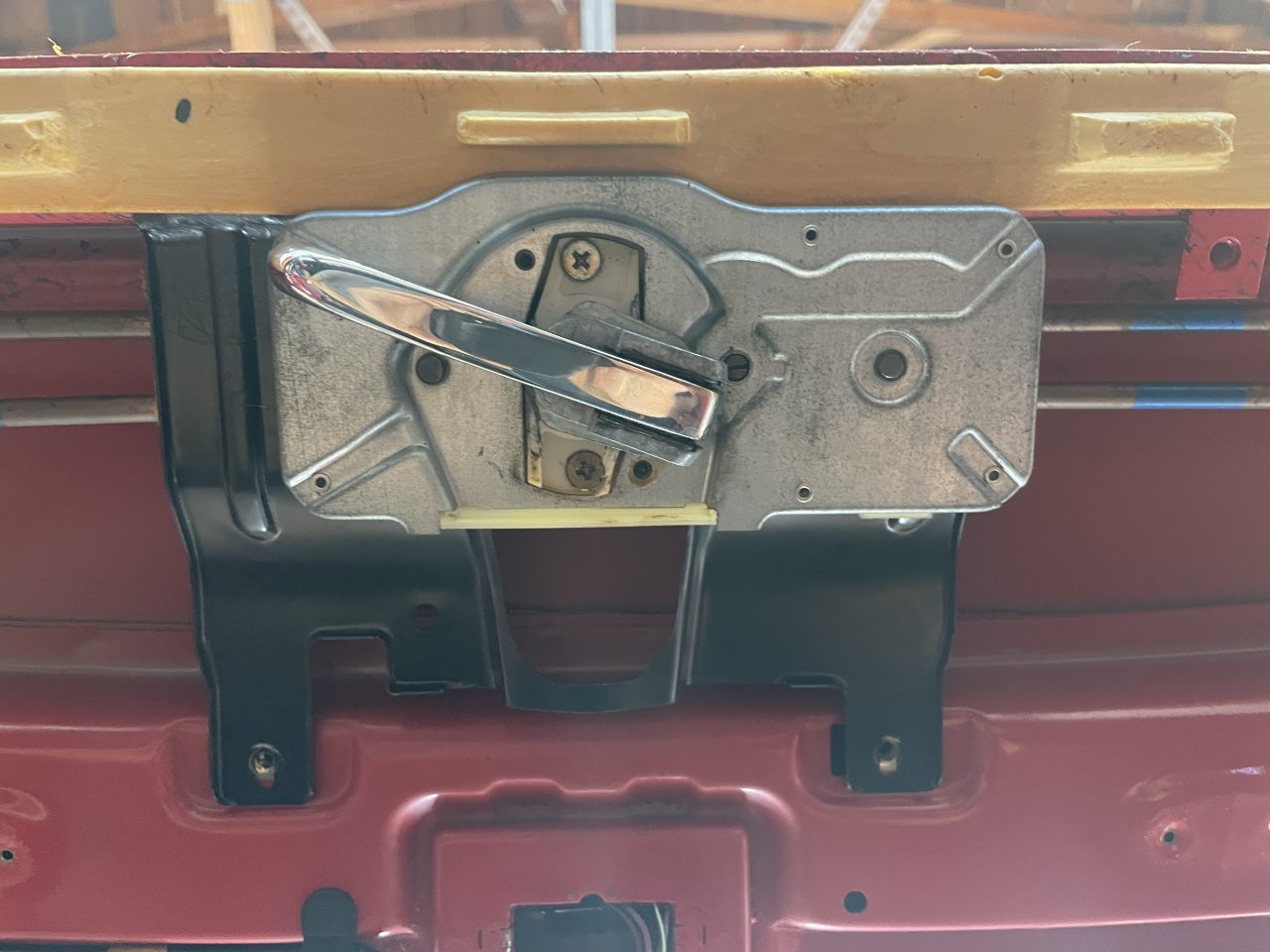

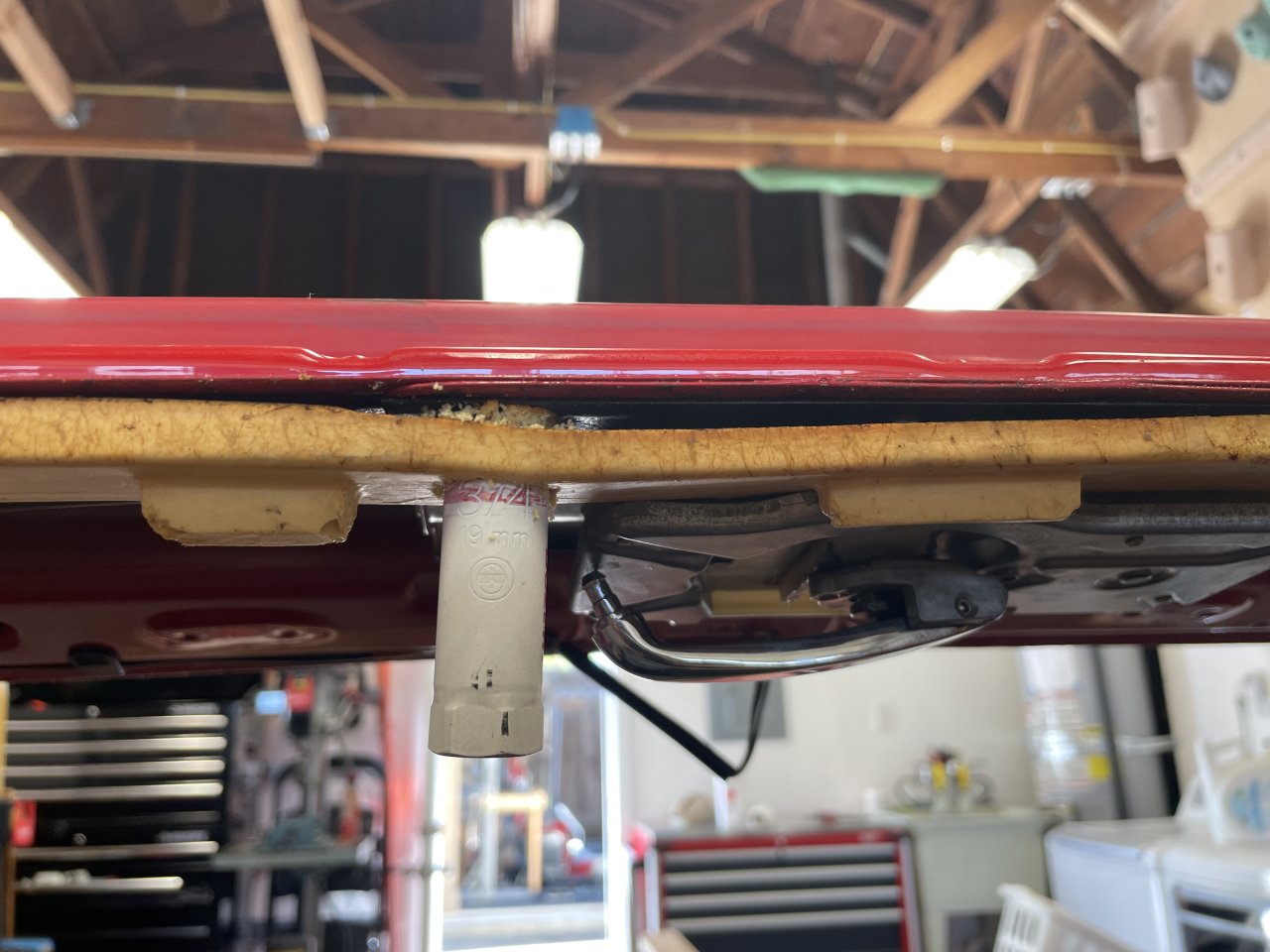

                Now, one thing that has irked me with the map-light rear view mirror is that it has vibrated a lot while driving. This is due to two things. One is that the spring-loaded mirror mount just is not tight in the base plate up in the roof, and I can deal with this in the future with a rubber spacer on the mirror flange. The little adjustment screw that presses on the windshield helps, but it seems to have caused another issue (and it was maxed-out anyway), which is the second problem. The base plate thing is a separate part which is riveted in to the inner metal panel under the roof. The rivets are not accessible, and the base plate is NLA. There are a couple of threads on here where people had the rivets break off and that sort of thing.

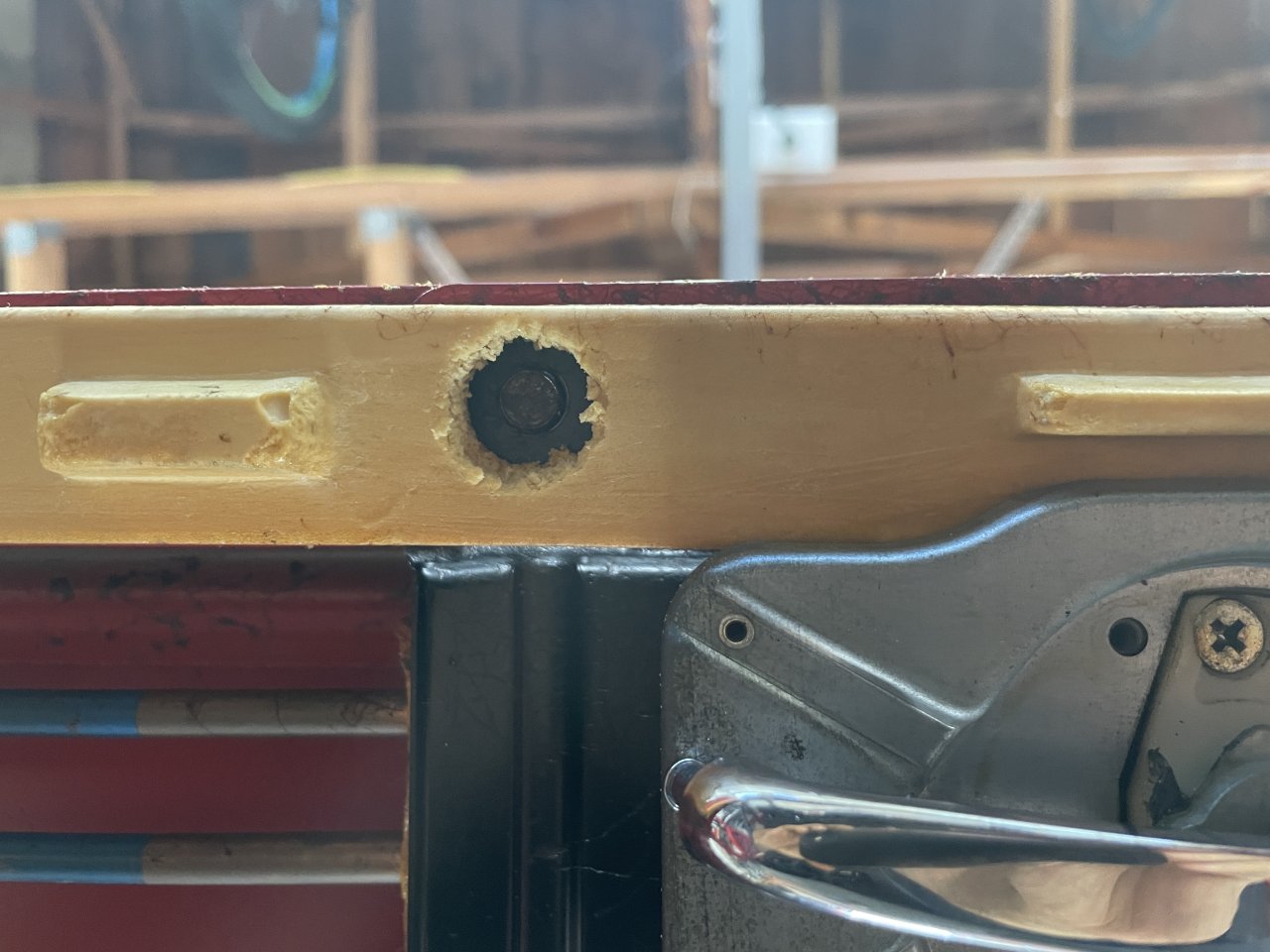

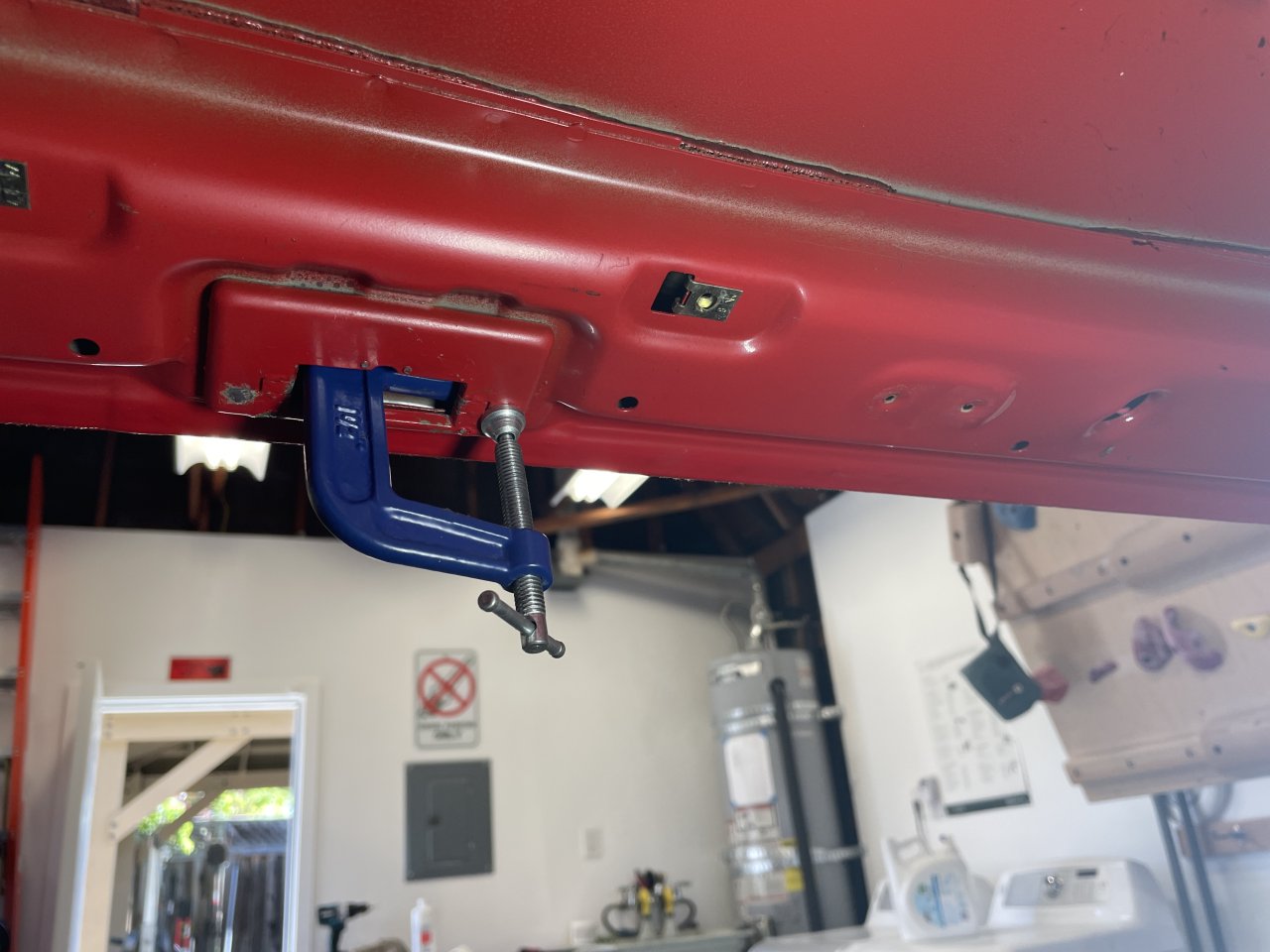

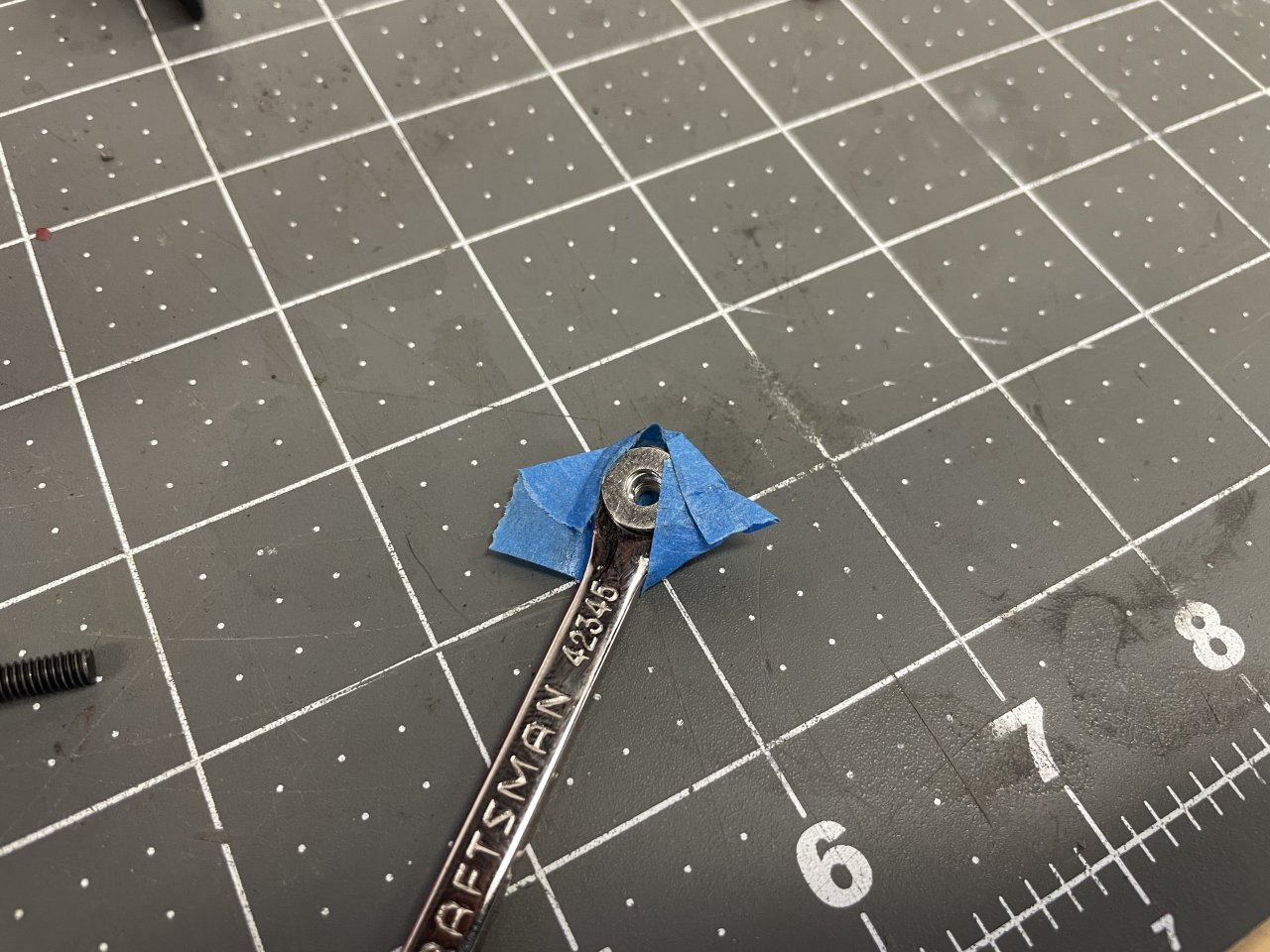

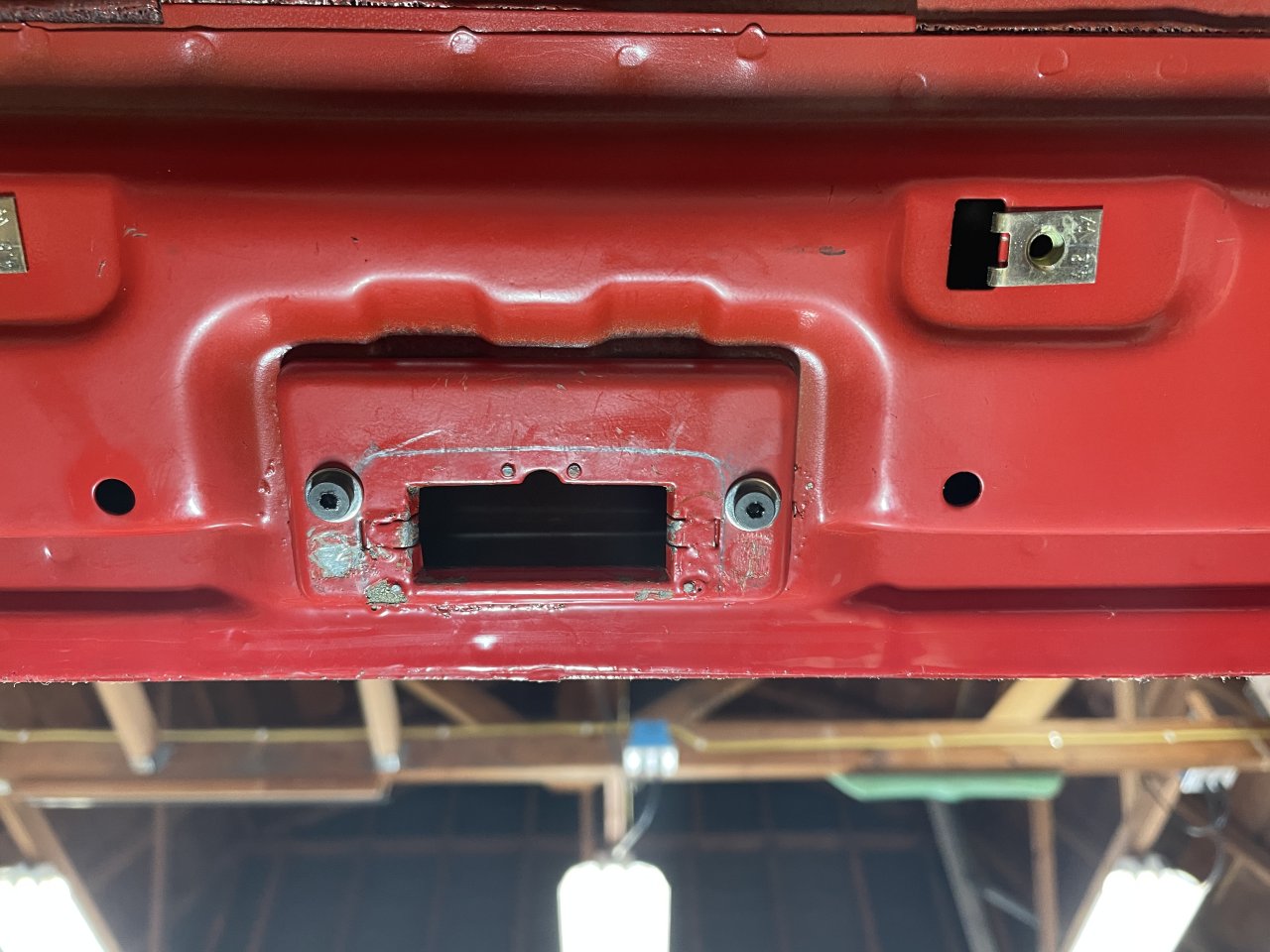

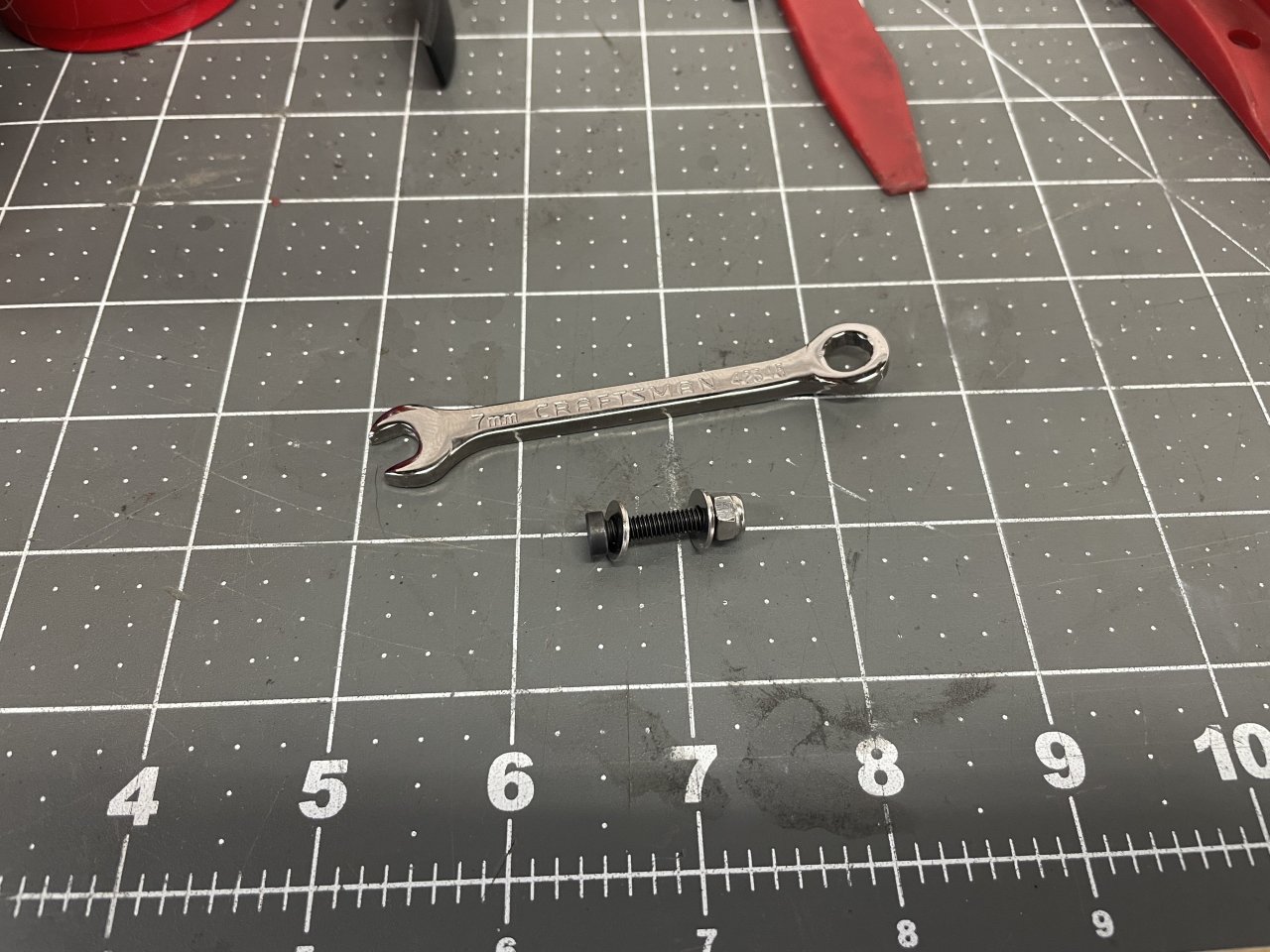

                In my case, the rivets had started to loosen, likely from excessive pulling force from the mirror's spacer screw. I was able to fully reseat them with a small C-clamp, and the thing had zero play in it afterward (there was maybe 0.25mm of vertical play at the front before that). However, there is nothing stopping it from loosening up again, and who knows how secure those rivets even are after stretching and mashing. So, I drilled a couple of holes next to the rivets and added some M4 fasteners. This thing is not going to loosen up again. Getting the washers and locknuts up inside was a little bit of a pain, but masking tape and a mini wrench had me covered. Ugly and cheesy? Yes. Will I worry about this coming loose again? No.

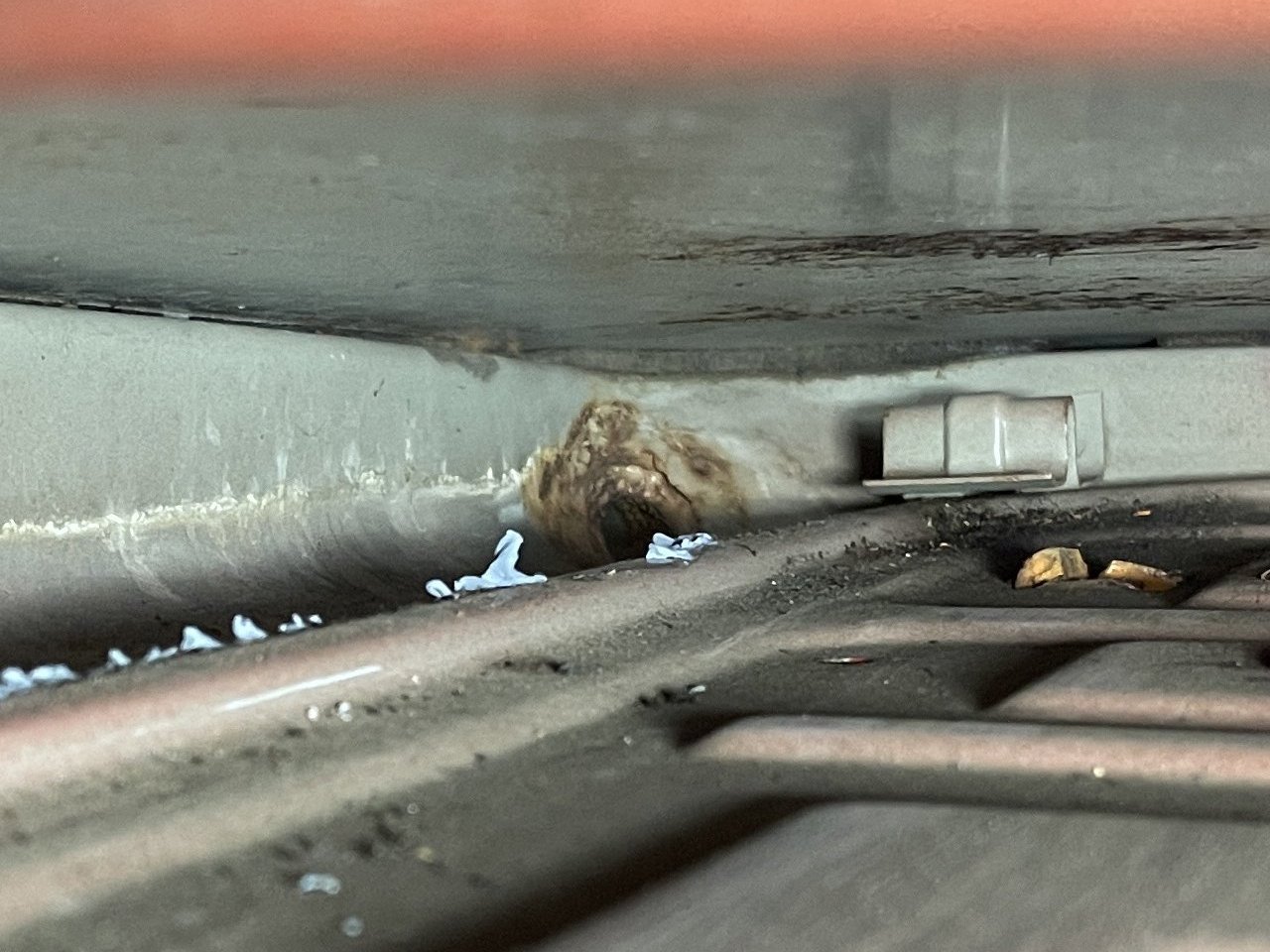

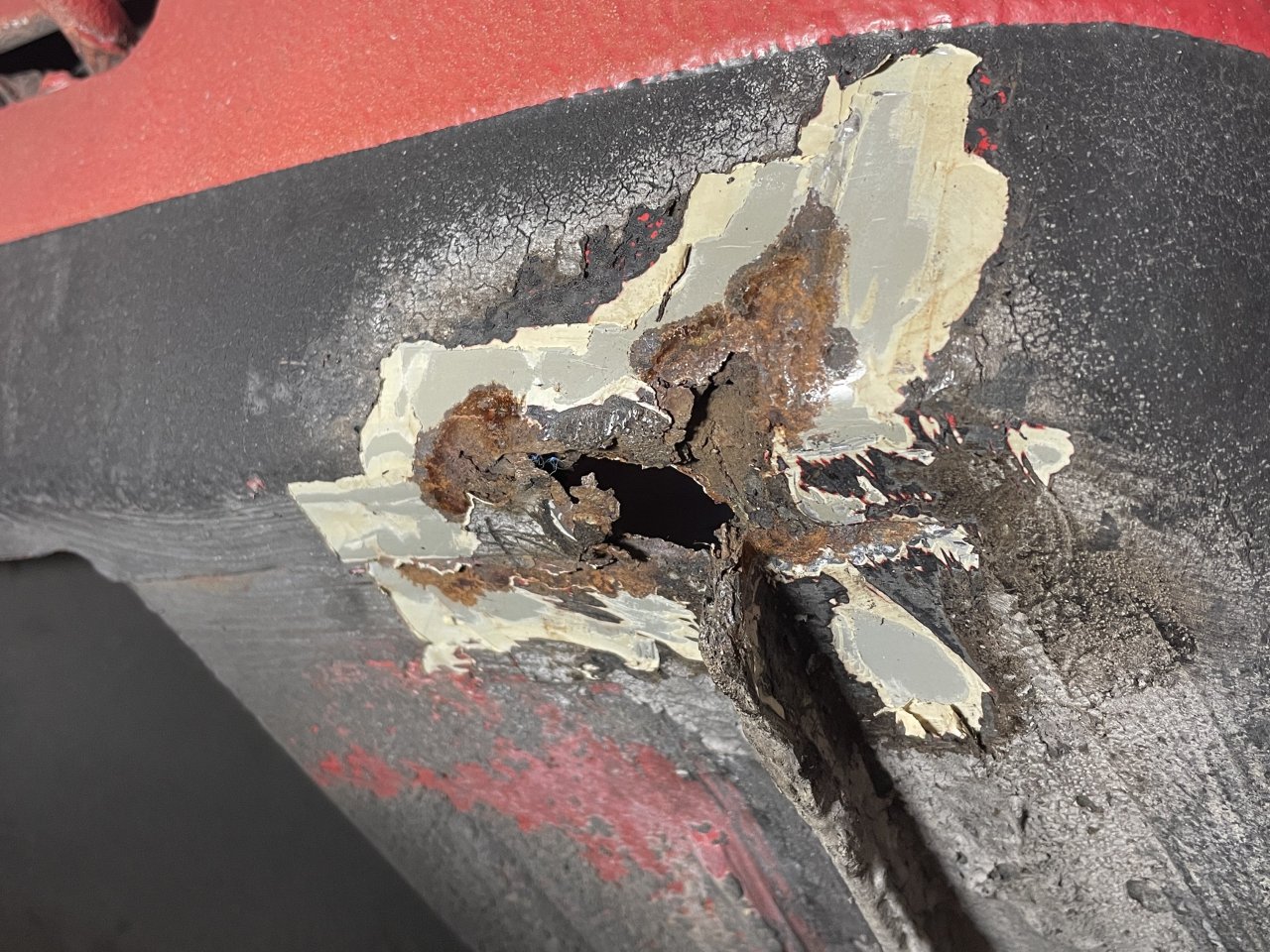

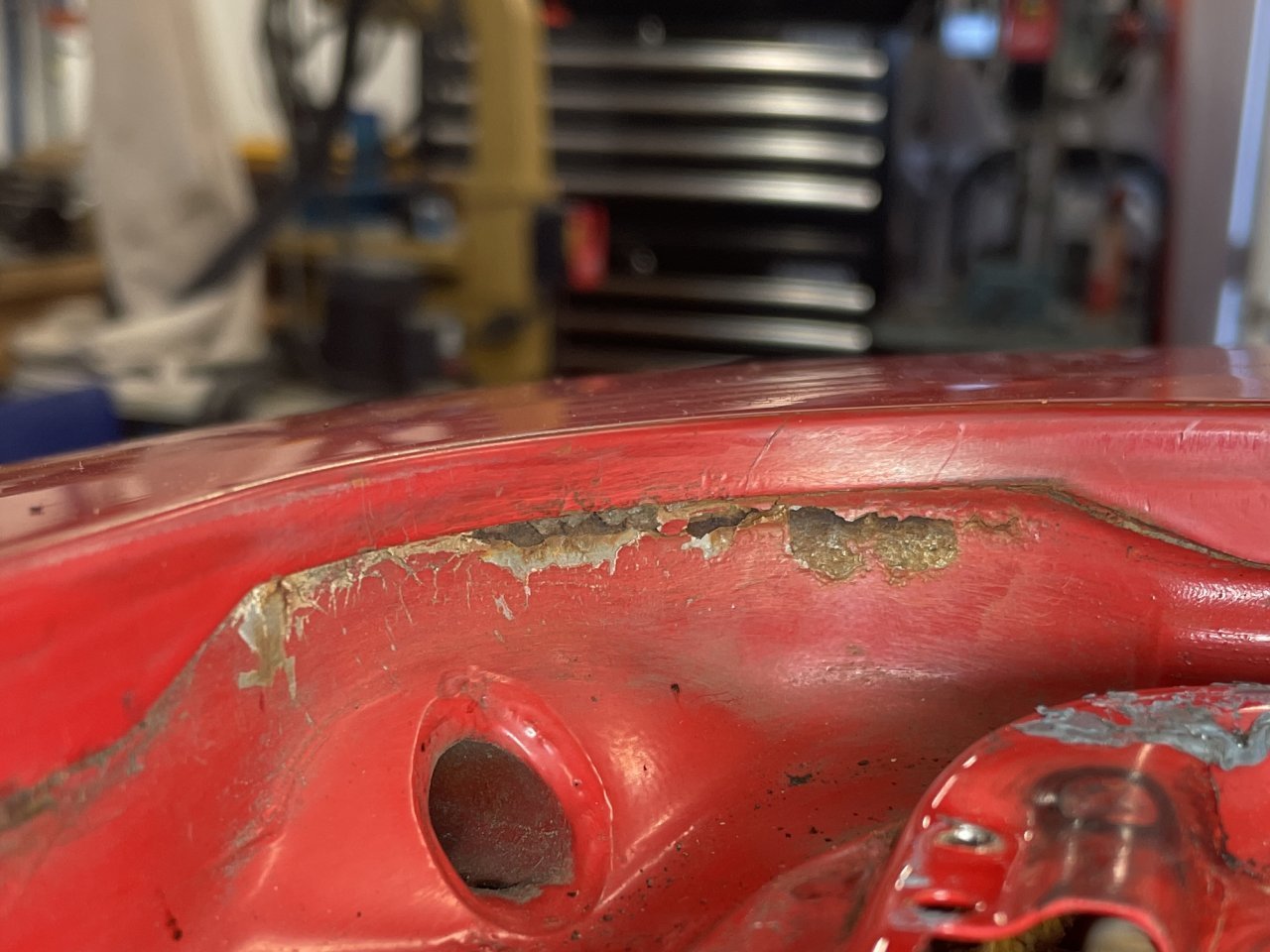

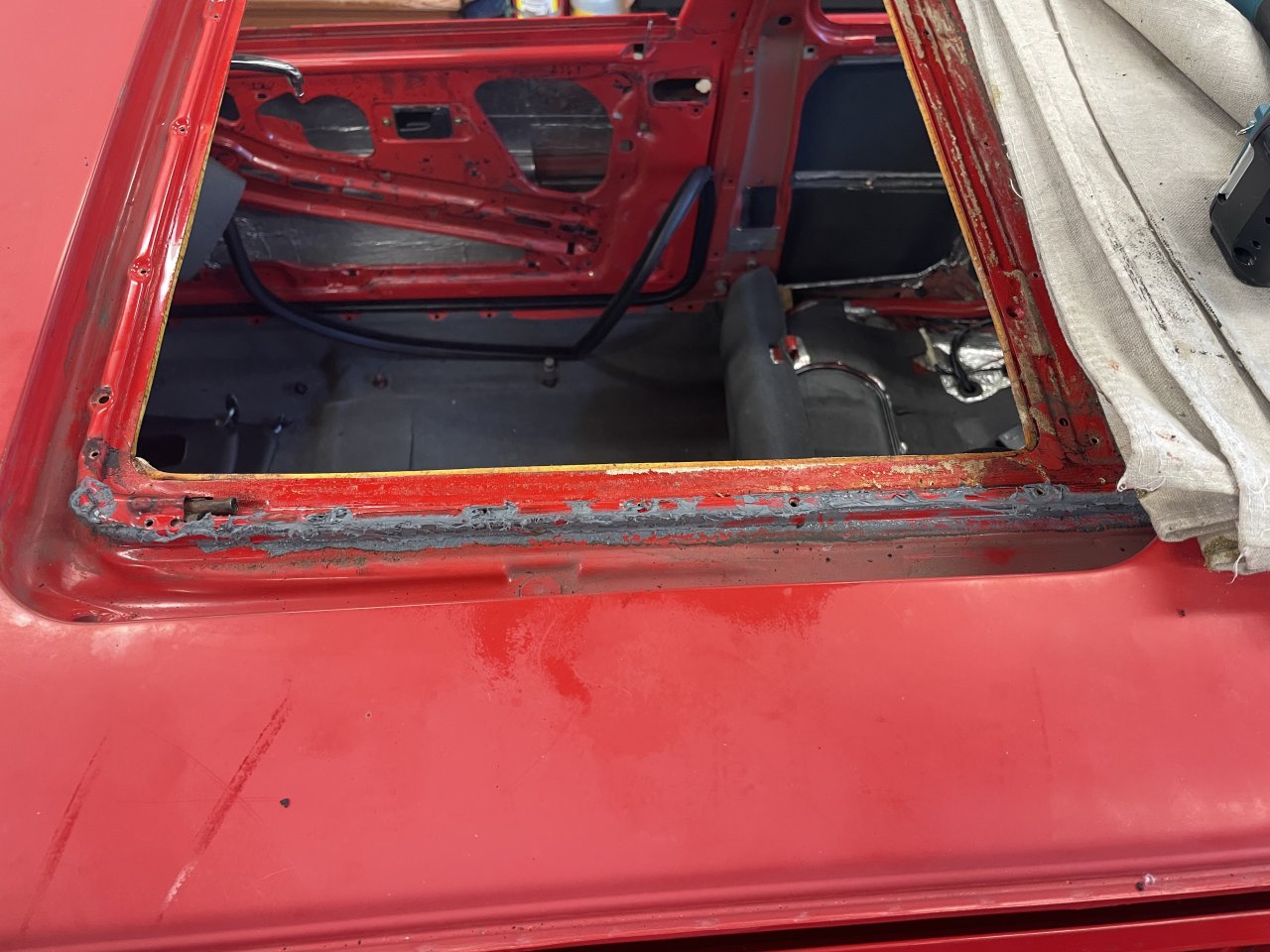

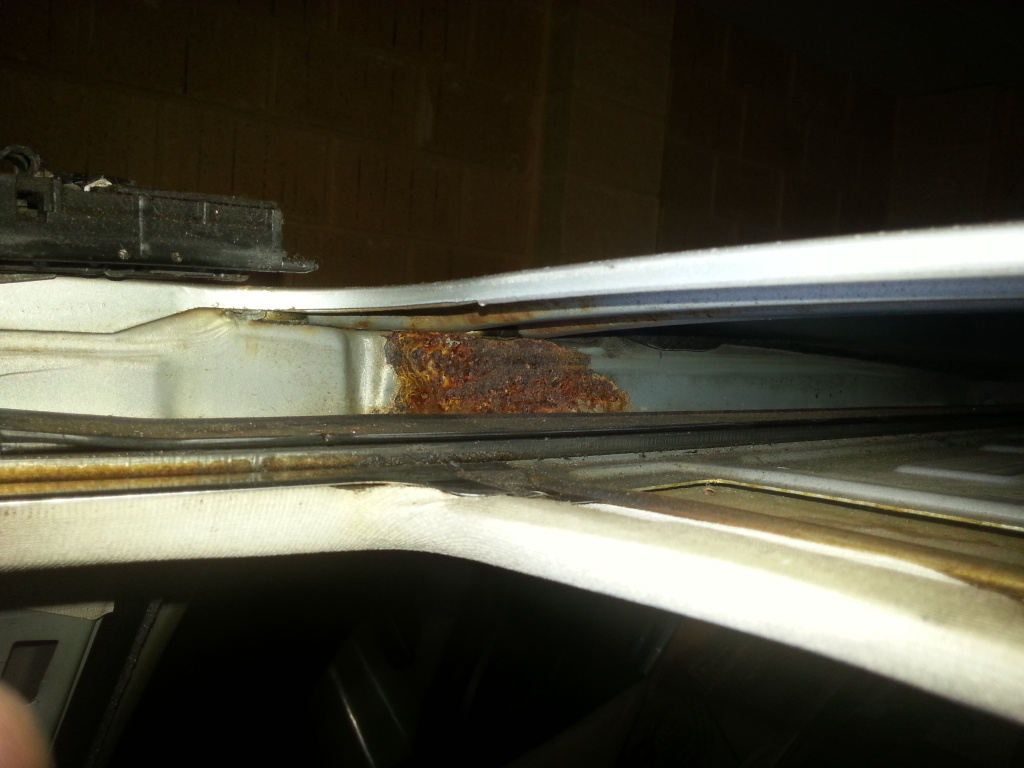

                Now, on to an unfortunate discovery, albeit one that is not unfamiliar to many E30 owners. Enemy number one: RUST. I sent some pics off to my guy at the body shop for evaluation, so TBD what he thinks. At best this is a borderline case probably, which MIGHT be manageable with careful surface cleaning, conversion, and injection of body sealant. Also, I may need to keep the car covered or in the garage whenever it rains for the rest of time, and immediately dry this area after washing.

                The metal is not completely compromised as far as I can tell. I ran a plastic trim tool over the whole area, driving it down hard, and nowhere did the metal crumble or give at all. However, there are a couple of very tiny raised spots in the paint, which make me think that there are pinholes or areas where things are getting way too close for comfort. Until this is sanded down to bare metal, we won't know. Obviously, the sunroof housing is also compromised to some level in the area too, but again I was not able to break through anywhere with the trim tool. I am really hoping that some love with a wire wheel, media blasting, rust converter, and body sealer this will get a reasonably long-lasting fix. If there are some pinholes, they may be repairable with some small TIG welds to fill them (hopefully?). Let me know your thoughts on this one!

                As I said further up, it is good that I pulled the headliner.

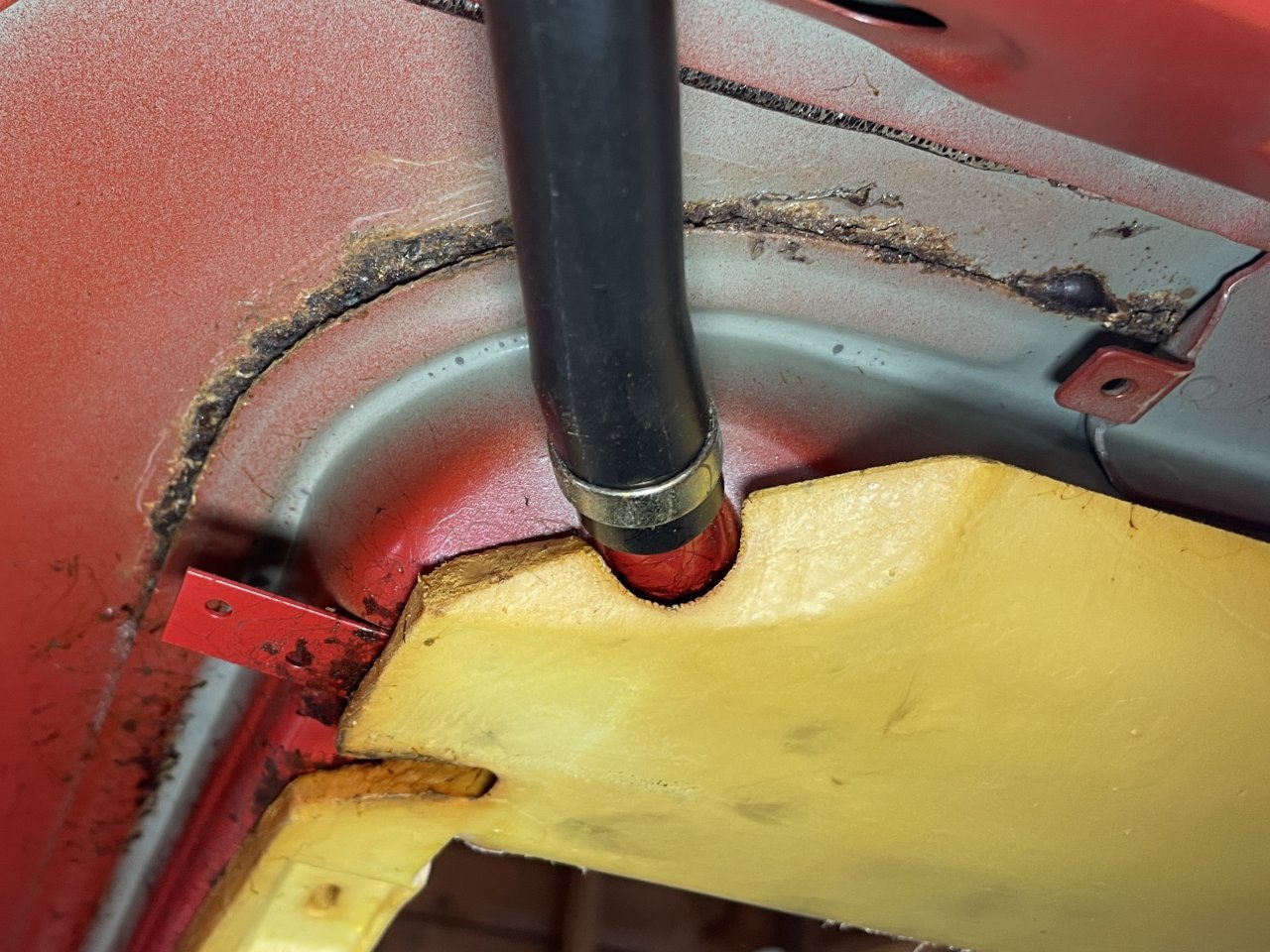

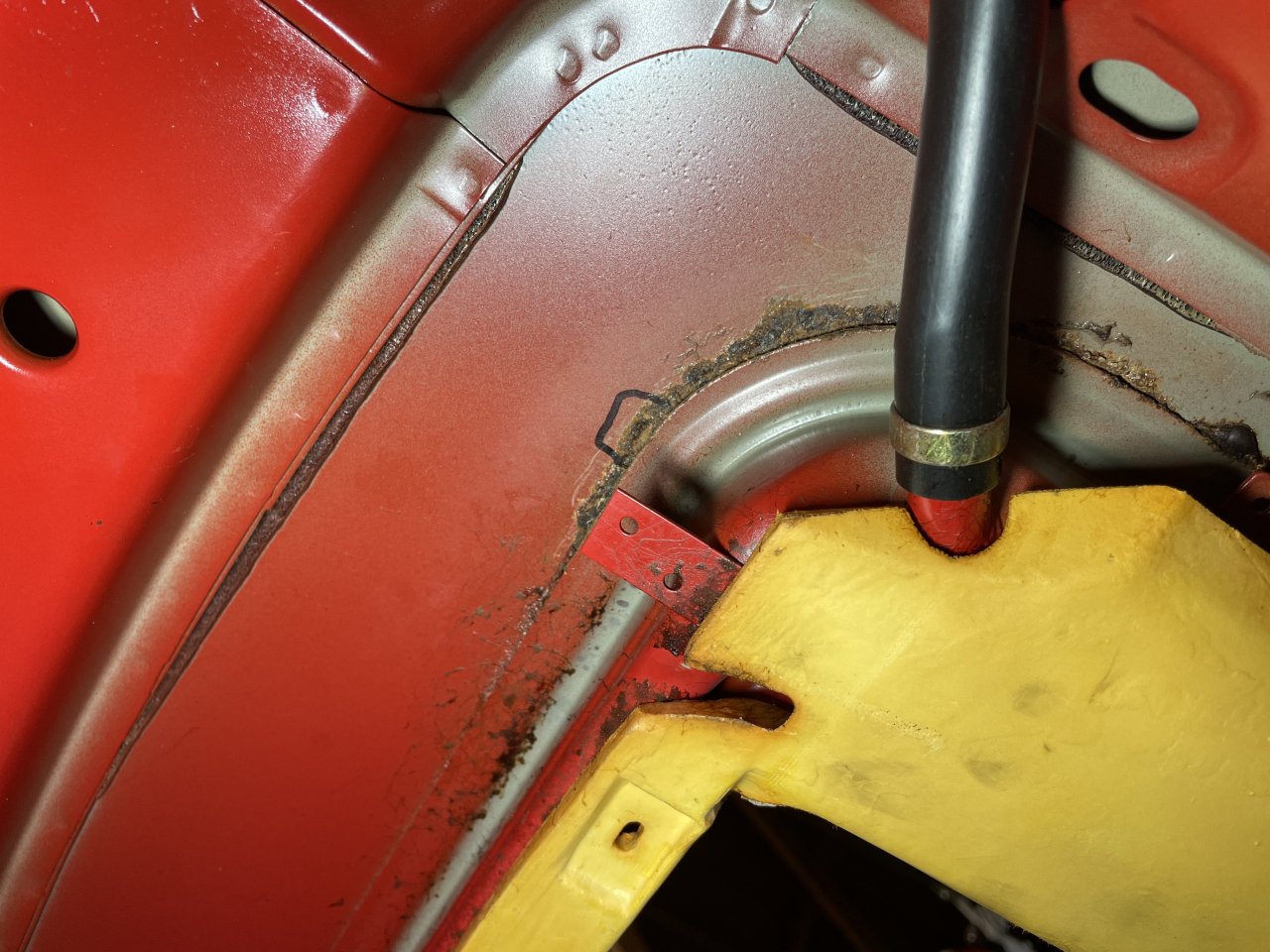

                With the sunroof stuff out, I got a look at the back of the tray too. The passenger side shows that the cancer is getting a foothold there as well. The thing is that swapping in a clean used carrier is really getting well beyond the scope of my time and money limits for this project. There's not much that can be done back there without removing the tray, and there are zero signs inside the car that the rust has progressed much, so I am OK with leaving it and ensuring that the car spends as little time as possible exposed to falling water. I did snake-out the 4 drain tubes, and all 4 were clear, so whatever caused these issues was not due to plugged drains. The sunroof panel's seal was also a good tight fit with the roof, so I am really not sure how this was happening. Then again, 30 years is a long time and a lot can happen.

                Also, the rust-looking stuff up on the roof in front of the drain hole is just overspray from when BMW was gluing the foam panels up. I definitely had a near heart-attack when I first saw dark brown spots all over up there!




                So that is where things are at now. I am sort of bummed out about the roof, and I am hoping that there is still a "right" way to make a repair without getting into donor-roof territory. We'll see I suppose.

                Transaction Feedback: LINK

                Comment


                  #23
                  You are making really good progress and I am enjoying following your thread.


                  See post number 139 in the thread below for the info on the small round rubber bits that fit on the lower part of the C-pillar trim.





                  The sticky gray material under the sunroof slides is just a butyl rope material, you can get a roll of it at most decent hardware or big box stores. I used this but there are many different versions:

                  Comment


                    #24
                    Originally posted by mjweimer View Post
                    You are making really good progress and I am enjoying following your thread.


                    See post number 139 in the thread below for the info on the small round rubber bits that fit on the lower part of the C-pillar trim.





                    The sticky gray material under the sunroof slides is just a butyl rope material, you can get a roll of it at most decent hardware or big box stores. I used this but there are many different versions:

                    https://mdbuildingproducts.com/produ...rd-ws-30-gray/
                    Wow, thanks! Super helpful for me. You did a great job of documenting stuff, and I have a lot of reading to do over there. One of the items that I do not think has a part number is the little plastic spacer that goes on the top stud for the B-pillar exterior trim. When I removed them they broke, unfortunately. So I may be 3D printing some replacements from ASA since I got good measurements from the originals.

                    You took a good pic of one of them installed:



                    I checked through all of your paint-related posts...great work fixing up the rusty spots. I am crossing my fingers that the shop does not run in to any more when they sand everything down...I already had to spend some money on some replacement sheet metal for the rear battery tray area where the rust was actually starting to get serious. Unlike the roof, there is no question what needs to be done under the battery tray. It looks like the previous owner had some sort of repair done there at one point since I didn't slather the black sealer on...and I have owned this car since 2005 so I guess I really was not paying enough attention here. I guess it is good that we have been in a major drought here for most of the last decade!

                    Anyway, the piper must be paid, and this little repair is adding a not-insignificant additional cost to the project.






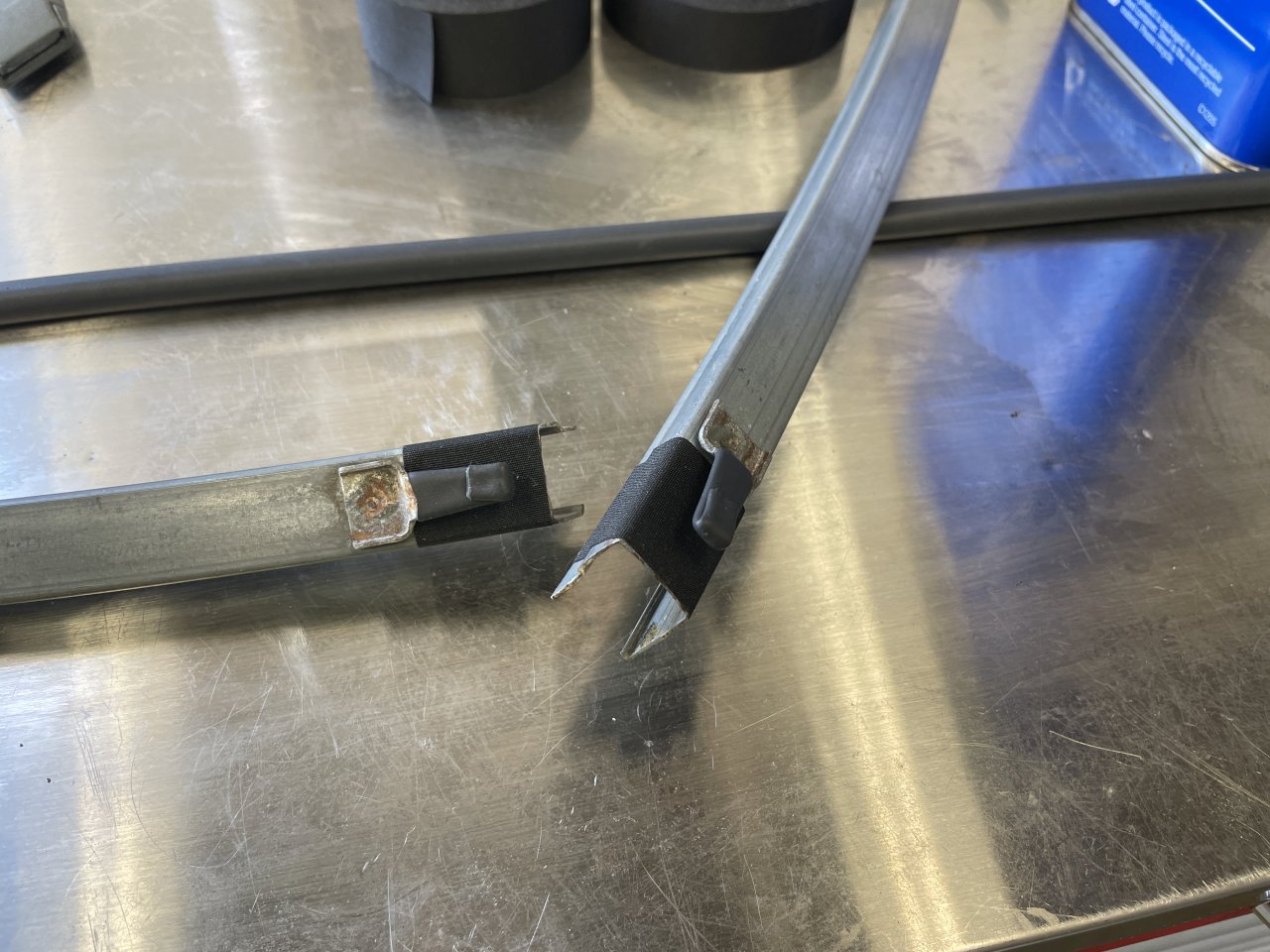

                    Since the car is now properly disassembled, I started in on cleaning up the parts that I plan to reuse, which I am not sending to the body shop for paint. First up were the inner door window guides. They are in great shape overall, and just needed a little TLC in the areas where they slide onto the door's integrated channels. I have all sorts of automotive grade stuff left over from building the harness for my aftermarket ECU, so I put some adhesive lined ATUM shrink tubing in a few places, as well as some of the TESA 51036 tape (engine-bay rated!).










                    The tape: https://www.tesa.com/en-us/industry/...e-a-51036.html
                    (I recommend buying it from a reputable source...eBay is full of fake Tesa tapes)

                    For motorsport quality harnessing supplies, such as heat shrink tubing, one of my go-to's is here: https://www.prowireusa.com/

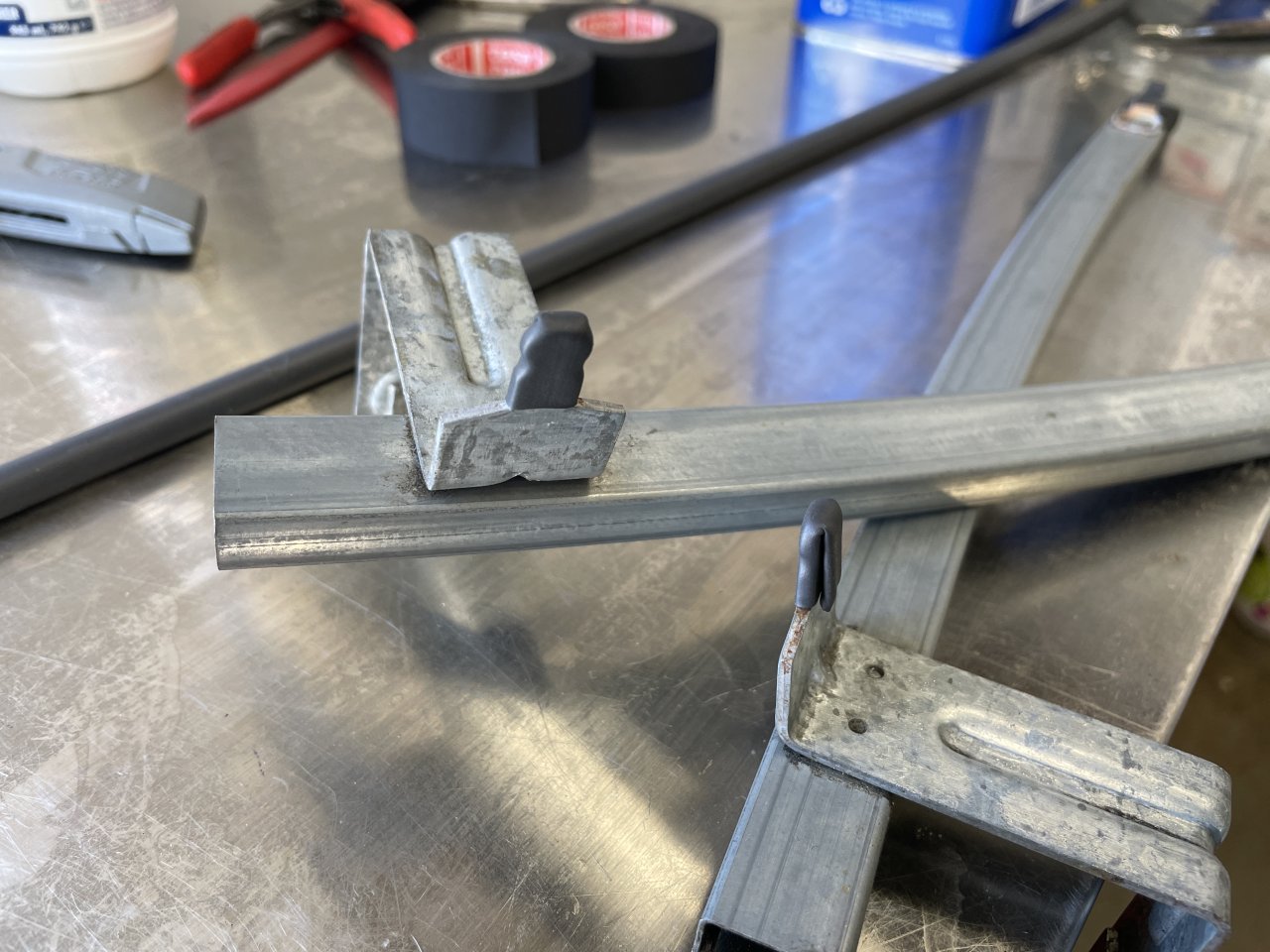

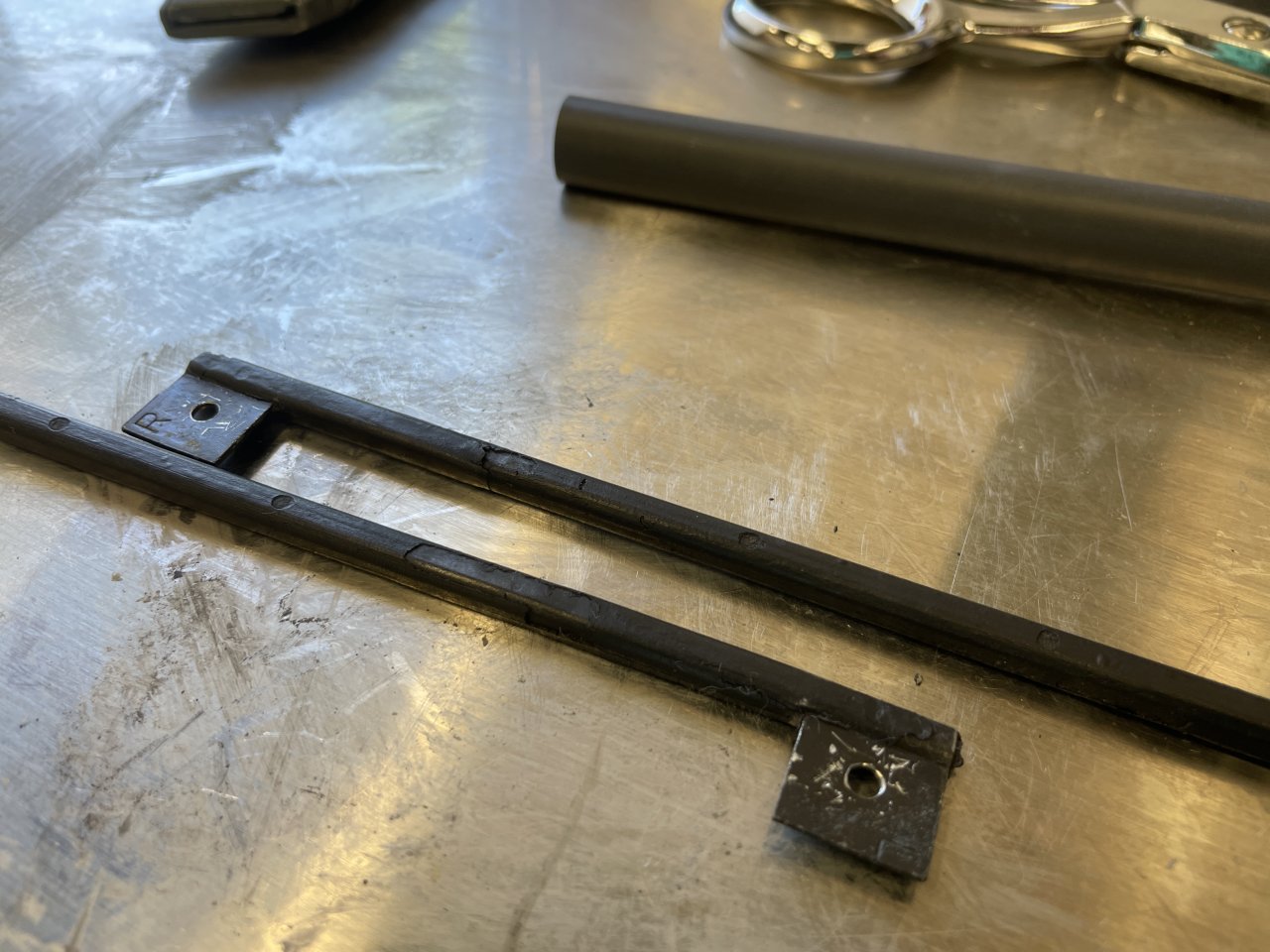

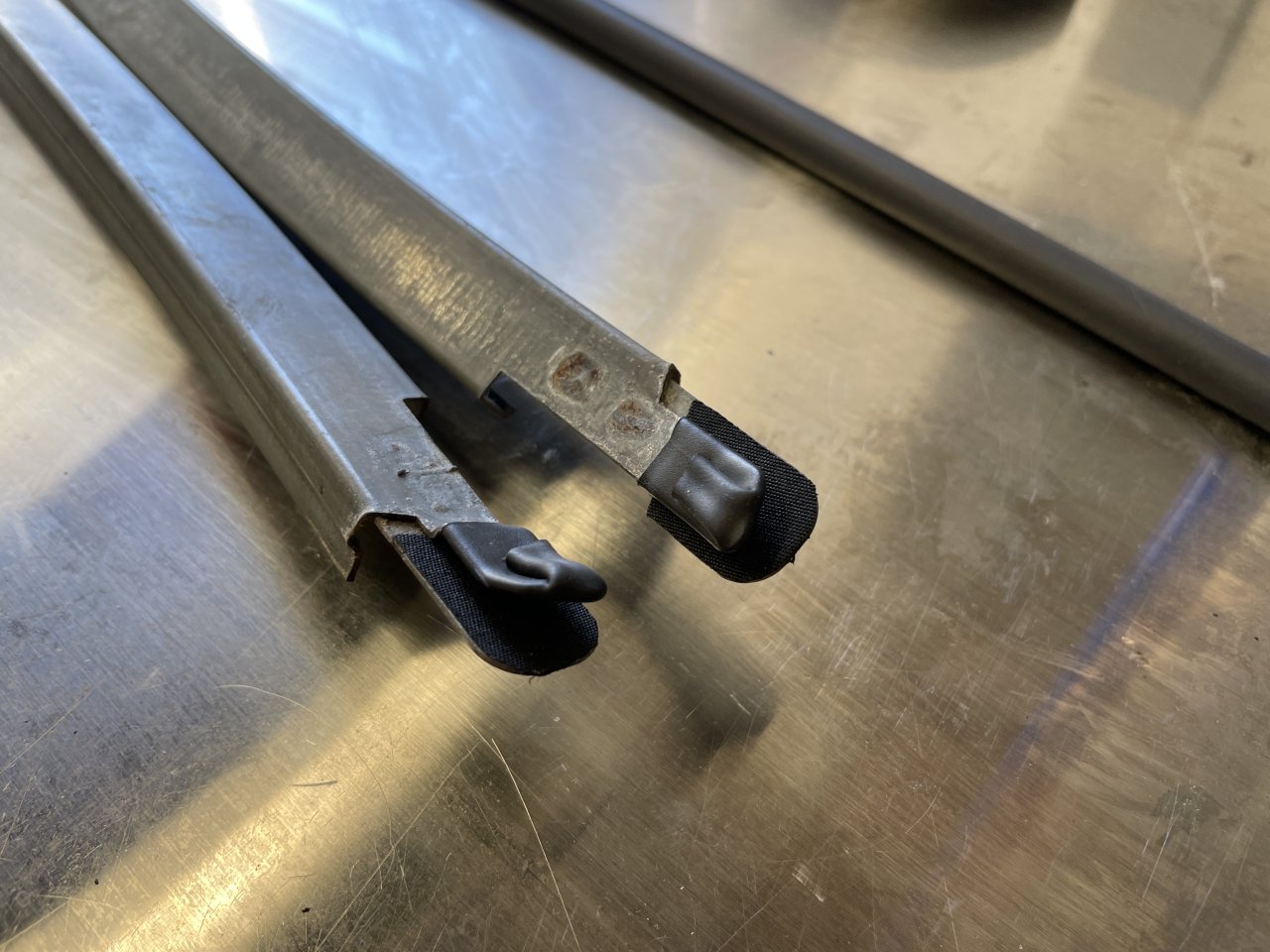

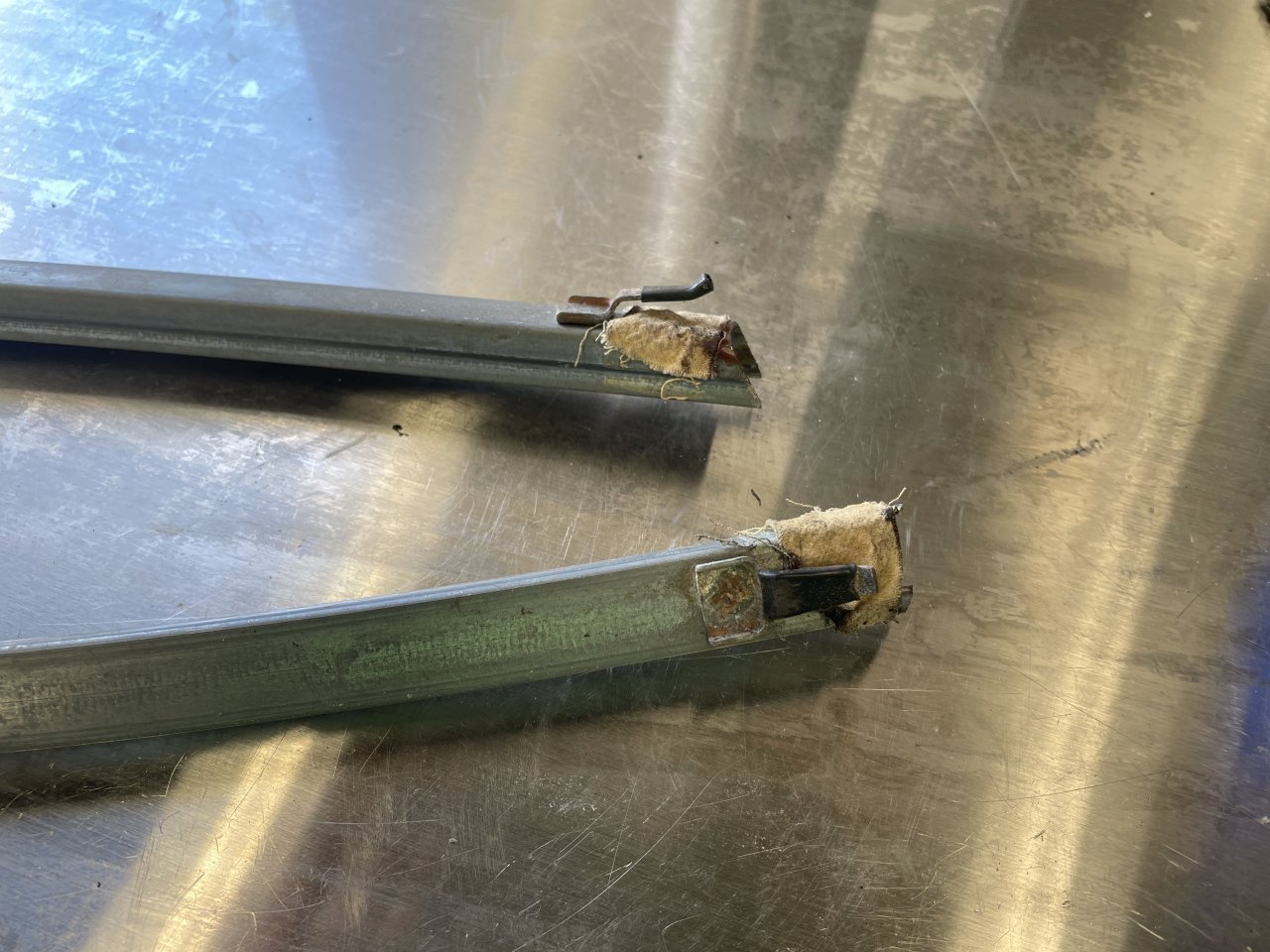

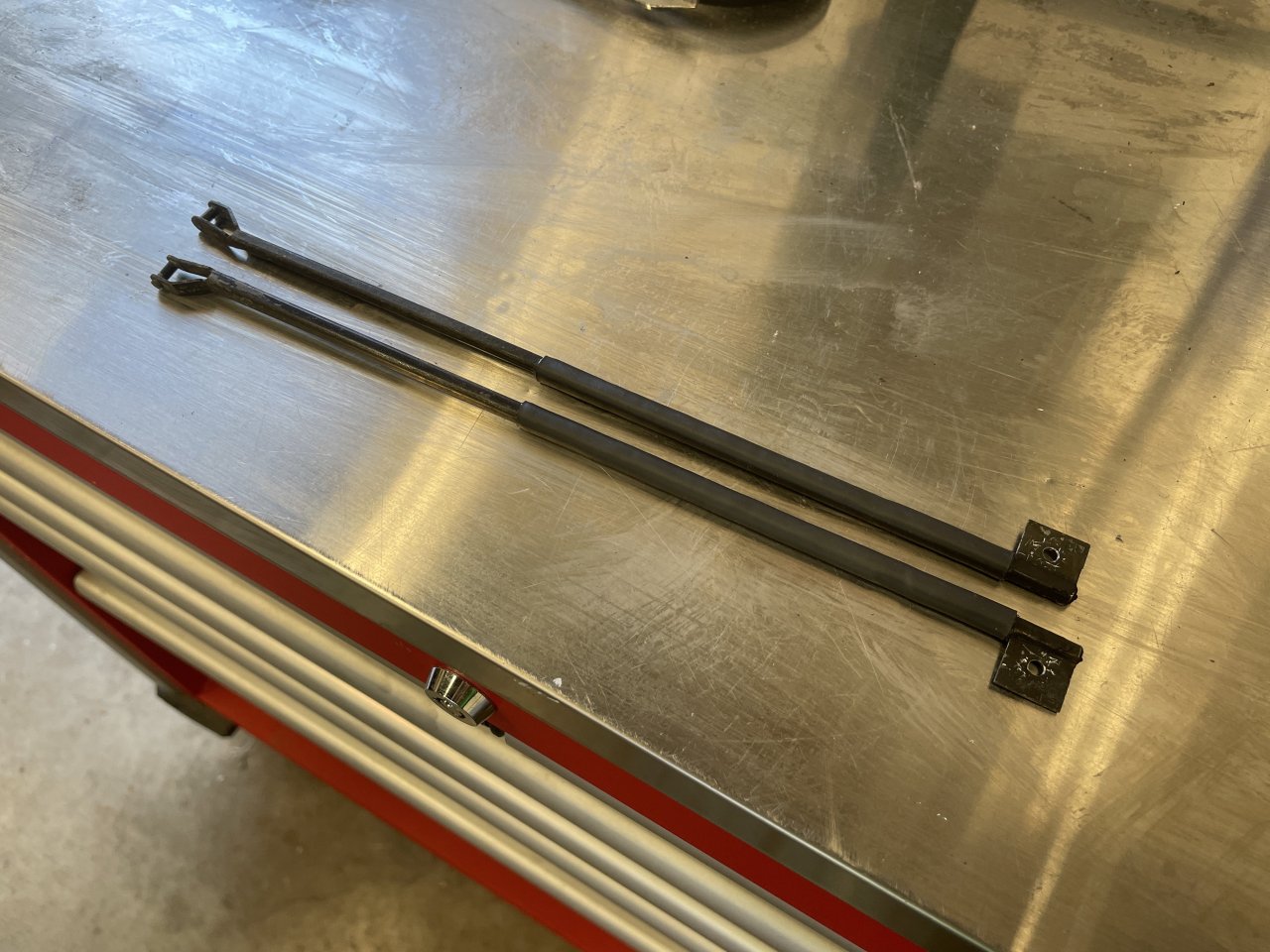

                    The little arms for the sunroof headliner have some rubber overmolded onto the metal. It was starting to wear off here and there, so I remedied this with more ATUM. You can still buy the arms, but I am entering cost-control mode and this is not a showroom car. I will probably sand down the exposed metal parts and hit them with some satin SEM trim black.

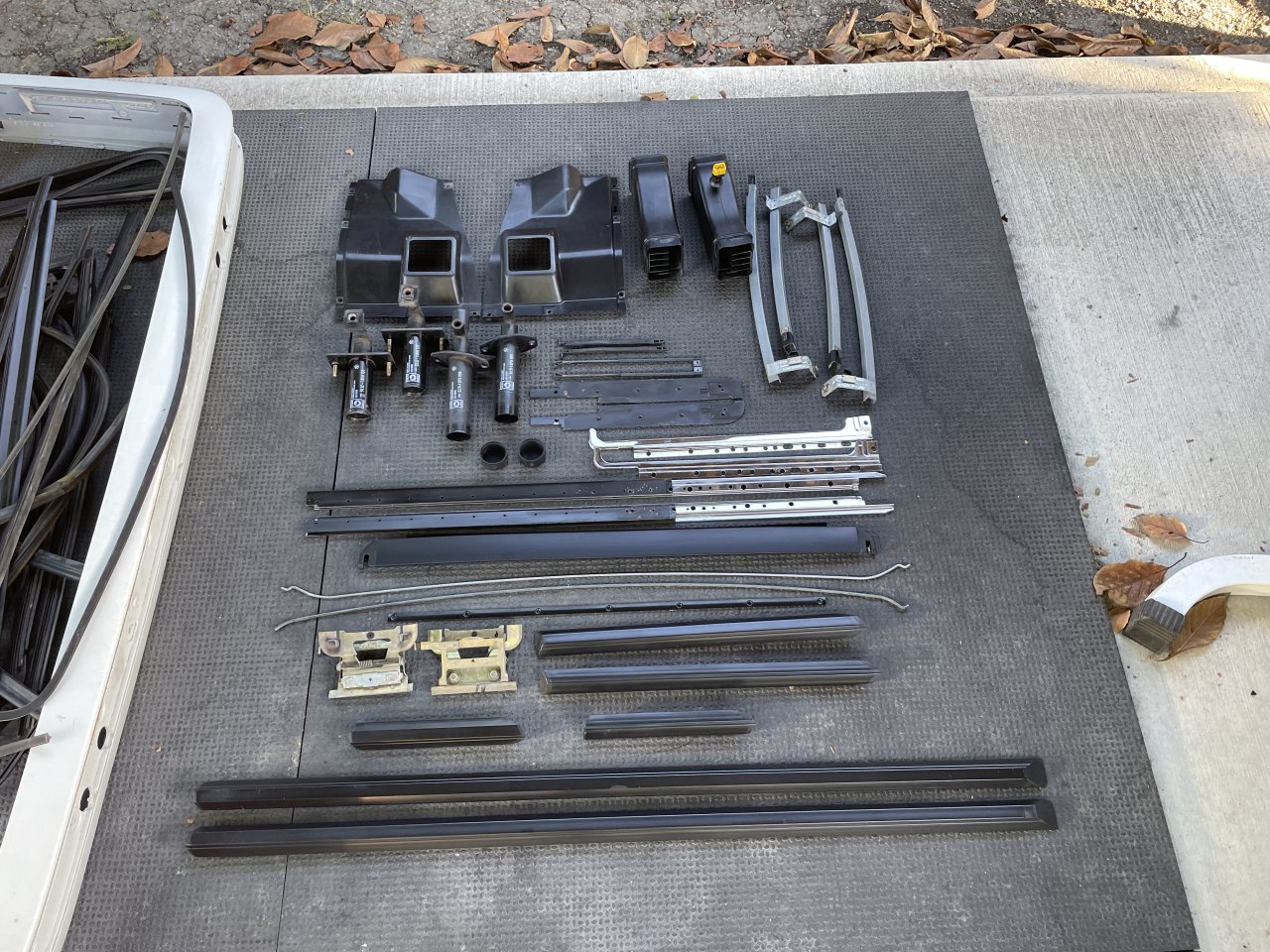

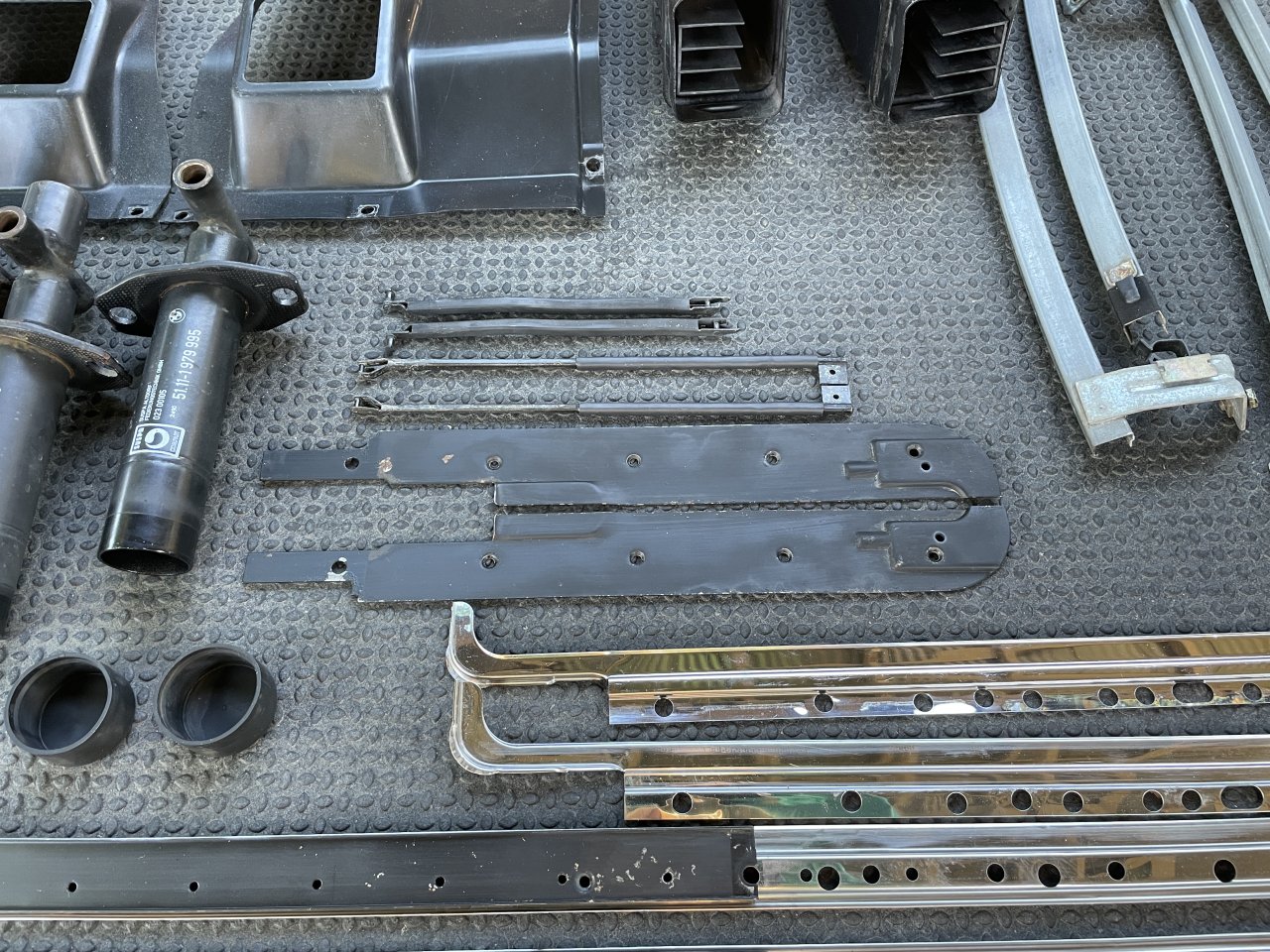

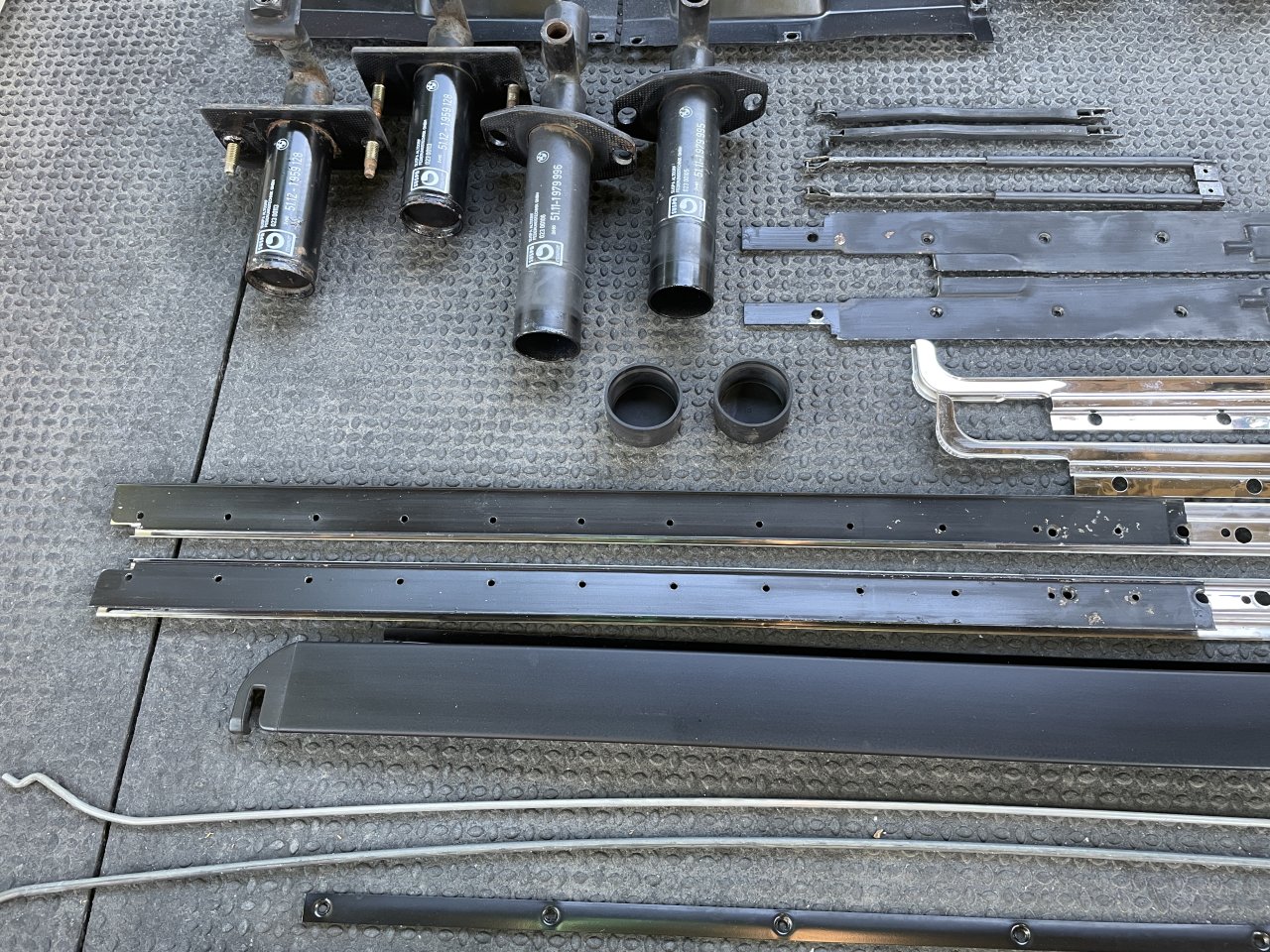

                    Here is the rest of the exterior / sunroof stuff that I am not replacing. It all needed some good scrubbing, and the channels in the long guides were a hassle to degrease. My thumbs have some nice cuts in them from the chrome metal covers and the inner metal strips in the side moldings. The moldings are unfortunately NLA, and even if they weren't they seem to be stupid expensive. I forget when I last replaced them, probably some time in the last 5-7 years, so they are still in pretty good shape overall. The driver's door molding has a bit of a groove worn into it from the fender from over-opening the door. There was a bit of a dent in the passenger side door molding from someone whacking it in a parking lot too. The dent was not really visible at all from the outside, but the metal carrier had visible distortion inside. I remedied this very carefully with a hammer and some punches to straighten out the metal, and now it looks perfect!

                    There are several other parts that I need to sand and paint black with the SEM paint as well. I have a couple of cans of the black, but I need to order the accompanying primer and clear coat.








                    I was able to refresh the brake duct tubes and lower front fender liners. There were no cracks or chips in them, so some washing with Simple Green and wiping with acetone (it takes the nasty old cosmoline right off!) had them looking great. The big upper liners are cracked and broken, so those are being replaced with new OEM ones.

                    I still need to give the plastic underbody cover for the engine area some TLC, and the window regulators will be receiving a thorough cleaning and lubrication later this week.

                    That's all for now!

                    Transaction Feedback: LINK

                    Comment


                      #25
                      Lovely progress. Coming along nicely.

                      Comment


                        #26
                        NIce progress. I feel blessed to have a slicktop. I am more and more convinced to do the prep work and remove it all myself. Just need to find a shop and start the hunt.
                        Alex 88 m5 | 91 318is | 19 Subaru Ascent
                        BMW Tool Rentals & Fender Roller

                        Comment


                          #27
                          Following this one, it's good to see the process in detail. It's really interesting to see all of the parts laid out like that, I haven't seen it before.

                          My sunroof area is significantly worse than yours, but I still think your sunroof cassette and associated panels will need to be removed to fix it properly since there is rust between the panel seams. I'm guessing it'll be cheaper to convert my car to a slicktop than to repair all of the rust around the sunroof cassette and the hidden rust that inevitably will be in it as well, but your car has less than half the rust up there that mine does. Mine looked about like yours when I got it - one pinhole near the sunroof showed up shortly after I bought it, now it has multiple 1-3mm holes around the cassette over the driver's seat which are currently wire-brushed, treated with ospho and sealed with superglue. For me, the floor rust is good welding practice and then do the battery box can follow, with chip guard on it would be hard to tell that the welding isn't perfect.

                          IG @turbovarg
                          '91 318is, M20 turbo
                          [CoTM: 4-18]
                          '94 525iT slicktop, 600WHP or bust, forged M50B30 + S366SX-E project - updated 6-25

                          Comment


                            #28
                            Originally posted by hozzziii View Post
                            Lovely progress. Coming along nicely.
                            Thanks, yeah I am relieved to be done with the disassembly part of it. A lot was learned along the way!


                            Originally posted by monty23psk View Post
                            NIce progress. I feel blessed to have a slicktop. I am more and more convinced to do the prep work and remove it all myself. Just need to find a shop and start the hunt.
                            Slicktop for the win! I do love having the sunroof on nice days, but if I had been able to find a slicktop back when I was buying this car I would have done it. The extra head room would be nice too...when I have a helmet on, I have to open the sunroof and lean over lol.


                            Originally posted by varg View Post
                            Following this one, it's good to see the process in detail. It's really interesting to see all of the parts laid out like that, I haven't seen it before.

                            My sunroof area is significantly worse than yours, but I still think your sunroof cassette and associated panels will need to be removed to fix it properly since there is rust between the panel seams. I'm guessing it'll be cheaper to convert my car to a slicktop than to repair all of the rust around the sunroof cassette and the hidden rust that inevitably will be in it as well, but your car has less than half the rust up there that mine does. Mine looked about like yours when I got it - one pinhole near the sunroof showed up shortly after I bought it, now it has multiple 1-3mm holes around the cassette over the driver's seat which are currently wire-brushed, treated with ospho and sealed with superglue. For me, the floor rust is good welding practice and then do the battery box can follow, with chip guard on it would be hard to tell that the welding isn't perfect.‚Äč
                            How long would you say it was between when you bought the car (with things in about the same state as mine) and now with the millimeter size holes? Has the car been in the rain much?

                            Yeah, I am bummed to see the rust there, and I know that anything short of full cut-and-weld is not a solution, only a delay of the inevitable. If a local donor car appeared tomorrow with a rustless roof (sunroof or not), I still wouldn't do it because I am fairly confident that I would be looking at $10K in additional labor, and I am not even sure f this shop would be willing to basically more than double the amount of time and labor for this since they have a high volume of normal repair business to handle.

                            I am in awe of the restorations that some other people on here have done, but I just don't have the time or money for that sort of thing. There's a tough conversation in my head here. On the one hand, I am spending a not-insignificant amount of money on the parts and paint job, so obviously the idea of leaving the roof in this state begs the question of "why bother?" On the other hand, I think that careful cleaning and sealing combined with keeping the car out of the rain should buy me several years of additional enjoyment form this car. The humidity here basically never gets above 70%, and I can keep the car covered and/or garaged when it rains. In the end, when the car is finally in a state where I will either need to do the roof swap or scrap it, I am still not out as much money as someone who buys a new M-series after 5 years of depreciation.

                            As far as mitigation, I am also leaning toward wire brushing, converting, neutralizing, and injecting with seam sealer. The body shop can sand down the whole perimeter in the sunroof bay and apply sealer in there before painting. Since this bit of rust was not part of the original estimate, I need to go talk to them about what they can or will do there, versus prep that I may be better off doing myself. I may also be able to make some small stainless scrapers to get into the gap between the roof and tray to get as much crap out of there as possible before filling.



                            Of course, discussion and opinions are welcome here. If I'm being an idiot feel free to let me know! And if anyone has had a similar situation and made a temporary repair of some sort that has lasted a decade, I am interested to hear about it.

                            Transaction Feedback: LINK

                            Comment


                              #29
                              Oh, and varg did you just spray the converter on the visible areas, or did you spray it into the joint? I am researching converter products and am wondering if they would cause any adhesion issues if they are applied and then left on, particularly in something like the roof-cassette joint.

                              Transaction Feedback: LINK

                              Comment


                                #30
