E30 Aerodynamics

[dvallis]

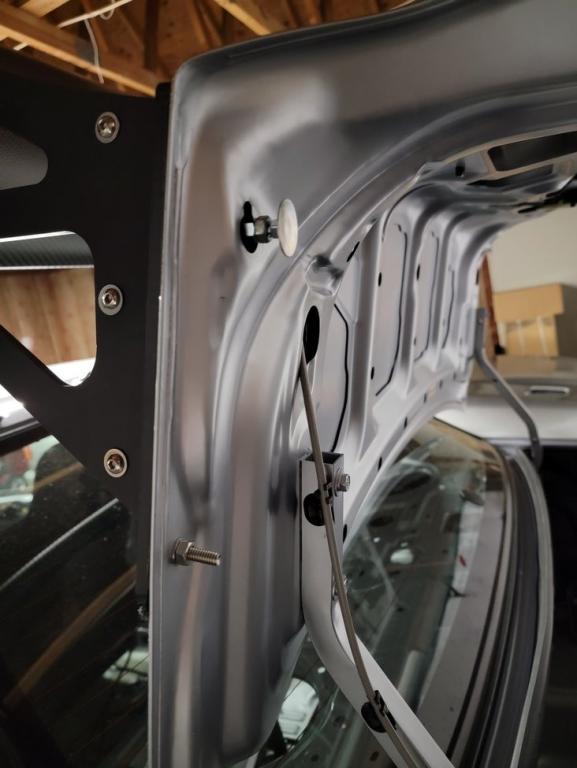

Wing sits directly on box frames built into the trunk lid and is close to the rear quarter reinforcements. I can stand on either corner with no flex. We're good. Lap times TBD but the car is noticeably more stable at speed.

[Digitalwave]

None. Haven't run the car yet.

[tyeler18]

Evo's are notorious for folding the trunk lids with a lot of rear down force. This is actually an on going discussion on the evo board. A lot of guys replace the rubber trunk stoppers with an elevator bolt and then replace the forward wing mount bolt with a hood pin through the frame. Keeps the front from lifting and the rear from folding down. I think the e30 trunk lid has more structure to it though. Its certainly heavier.

[redneckvtek]

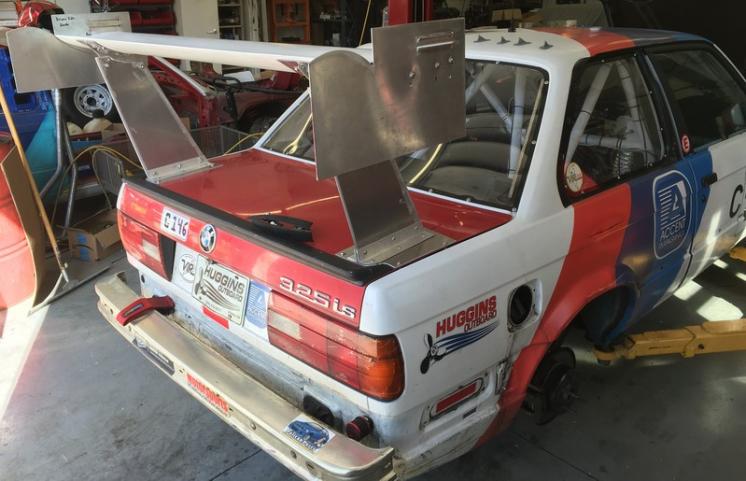

This wing has 20,000 race miles on it on this chassis and this trunklid with multiple tire wall impacts. Trunklid is good to go. I have to readjust the rubber trunk stoppers after each race but thats it.

[Digitalwave]

I might try that elevator bolt idea for the trunk stoppers, just for something more solid and that you can fully lock into position.

[dvallis]

We're starting the splitter build this weekend. Found a late bumper and air dam locally. Will build this out to a full race front end, keep the current one for street.

[superleggeram3]

Some aero enhancements I’ve made on mine. All made a good difference

[Panici]

Some aero enhancements I’ve made on mine. All made a good difference

Wow that flat bottom looks wild!
Any shots of the support structure?

[superleggeram3]

Unfortunately I don’t have many pictures but I had to weld a series of brackets on the underside and used rivnuts. That combined with the number of fixings and appropriate thickness of carbon fibre means no flex in the floor.

I left the exhaust partially exposed as managing heat from that would have been quite difficult.

[moatilliatta]

superleggeram3 Pretty trick! thanks for sharing. Id much rather have better under body aero than ugly wings. BTW I think I follow you on Instagram :)

[superleggeram3]

moatilliatta Thank you. It’s a tricky balance of sticking with the classic and iconic look of an m3 but at the same time my personal “want” to hang with modern cars like a 991.2 gt3 rs on track.
