    Is this Pump Gas-able?

    Hey R3V-

    I recently acquired this freshly built 2.8L M20, and it seems pretty aggressive. The bottom end consists of an M52b28 crank, 135mm Carrillo rods, and custom JE pistons, that appear to be quite high compression.

    The head is worked over and has Ferra valves, a 304 cam, etc.

    I want to run it on pump gas, but it looks like this will be a no go on the current setup.

    Cranking compression was 210psi.

    What's the path of least resistance to running this thing on the street?

    Untitled by Bobbie Morrone, on Flickr
    1990 Brilliantrot 325iS Build Thread
    1989 Zinnoberrot M3 Build Thread

    #2
    I think you can get a thick MLS gasket?
    Simon
    Current Car:
    -2000 330i Estate, the dad-mobile
    -2002 MR2 Spyder, the solo-mobile



    Make R3V Great Again -2020

    Comment


      #3
      Originally posted by 2mAn View Post
      I think you can get a thick MLS gasket?
      That was my plan- I need to find a way to get a reading on dome volume (clay mold and fill to measure CC’s) to get the proper sized HG.

      I’m really just hoping that digger comes in here and gives me a magical answer that makes me feel warm and fuzzy inside.

      Obviously ethanol and ITBs would be ideal, but not exactly practical.

      The cranking compression seems moderate, which I assume is due to the bigger cam. Cranking compression on Linda’s 3.1L is 240psi LOL
      1990 Brilliantrot 325iS Build Thread
      1989 Zinnoberrot M3 Build Thread

      Comment


        #4
        What is the static compression on Linda's 3.1L?

        I have a used stroker that was advertised as 10:1 but cranking compression is ~235 PSI (W/ a 274 cam).
        It was sort of running on pump gas if I didn't push too hard...

        I am hoping to measure CC with a burette at TDC and BDC. (My engine is still assembled.)

        Comment


          #5
          What did it run on before with the PO? any issues?

          The thing is cranking CR tells you only so much. 210psi is not a deal breaker for pump swill, though a 14:1 static engine with big cam that cranks the same as a 10:1 static and small cam will be more knock prone as when the thing comes on cam the bigger cam engine makes more VE and cylinder pressure (or at least it should as that's the purpose of a big cam). Generally it does this only at mid range and topend so at low rpm it can be better.

          What are the deets on the pistons as far as bore/cc/cr that the PO told you?
          Those pistons look awfully a lot like the 14.5:1 2.8L from Victoria that runs on e85 and Webers

          I'd be tempted to run them with 1mm squish, colder plugs and see what ignition timing it will take. I've heard from several sources who have tested that setting with a proper squish circa 1mm is more likely to cut down on likelihood of knock than using a thicker gasket with sub optimal squish in the 1.5 to 2mm range.
          There are several ways to cut down the CR if you want to go down this route
          • A thicker gasket but as above this can be worse unless you go quite a bit thicker and then this hinders burn characteristics.
          • Then there is removing some meat from the combustion chamber (this may have already been done with the bigger valves perhaps you could cc the chambers)
          • You could machine a shallow dish in pistons in situ but will be a pita without some fixture that makes them all the same.
          89 E30 325is Lachs Silber - currently M20B31, M20B33 in the works, stroked to the hilt...

          new build thread http://www.r3vlimited.com/board/showthread.php?t=317505

          Comment


            #6
            Originally posted by Tinkerer007 View Post
            What is the static compression on Linda's 3.1L?

            I have a used stroker that was advertised as 10:1 but cranking compression is ~235 PSI (W/ a 274 cam).
            It was sort of running on pump gas if I didn't push too hard...

            I am hoping to measure CC with a burette at TDC and BDC. (My engine is still assembled.)

            Linda is 10.5:1 with a 284/280 Billet IE cam.


            Originally posted by digger View Post
            What did it run on before with the PO? any issues?

            The thing is cranking CR tells you only so much. 210psi is not a deal breaker for pump swill, though a 14:1 static engine with big cam that cranks the same as a 10:1 static and small cam will be more knock prone as when the thing comes on cam the bigger cam engine makes more VE and cylinder pressure (or at least it should as that's the purpose of a big cam). Generally it does this only at mid range and topend so at low rpm it can be better.

            What are the deets on the pistons as far as bore/cc/cr that the PO told you?
            Those pistons look awfully a lot like the 14.5:1 2.8L from Victoria that runs on e85 and Webers

            I'd be tempted to run them with 1mm squish, colder plugs and see what ignition timing it will take. I've heard from several sources who have tested that setting with a proper squish circa 1mm is more likely to cut down on likelihood of knock than using a thicker gasket with sub optimal squish in the 1.5 to 2mm range.
            There are several ways to cut down the CR if you want to go down this route
            • A thicker gasket but as above this can be worse unless you go quite a bit thicker and then this hinders burn characteristics.
            • Then there is removing some meat from the combustion chamber (this may have already been done with the bigger valves perhaps you could cc the chambers)
            • You could machine a shallow dish in pistons in situ but will be a pita without some fixture that makes them all the same.

            Yep, that's what I figured I'd find re: cranking compression - I expected Linda to be lower with the cam I used, but the small chamber head and weird piston design didn't help, I'm assuming.

            With mid range and top end increasing in VE/cyl pressure, my worry was that weird mid-range knock that seems to plague many stroker M20s would be present.

            I finally got ahold of the builder and ding ding, they're 14:1, and they already took material out of the chamber to get it all set up properly. 84ish mm bore, and he didn't have the CC info I was hoping for.

            He ran it on 93 - I had a plug from the motor and it didn't show signs of detonation, but I don't think he drove it- just broke it in and then lost interest.

            Also, that is fantastic info via 1mm squish. I need to measure it up, and then shoot for that number.
            1990 Brilliantrot 325iS Build Thread
            1989 Zinnoberrot M3 Build Thread

            Comment


              #7

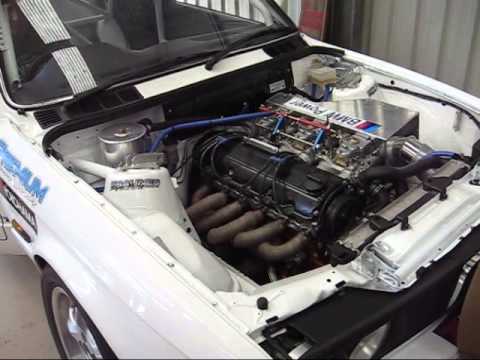

              Well I'll be damned..... I did some digging and that Victoria/Weber 2.8L is 14:1, and I think these are the exact pistons that they used in this motor. See below for a shot of their JE 14:1 piston.

              Picture085_zps5d36ad21 by Bobbie Morrone, on Flickr

              1990 Brilliantrot 325iS Build Thread
              1989 Zinnoberrot M3 Build Thread

              Comment


                #8
                you should probably cc the chambers, pistons and work out the actual static CR for point of reference but id run it assuming you have a standalone with good control over everything
                89 E30 325is Lachs Silber - currently M20B31, M20B33 in the works, stroked to the hilt...

                new build thread http://www.r3vlimited.com/board/showthread.php?t=317505

                Comment


                  #9
                  Originally posted by digger View Post
                  you should probably cc the chambers, pistons and work out the actual static CR for point of reference
                  This. Anything else is speculation, and since the head is off it's borderline trivial to measure everything needed to determine compression ratio.
                  @turbovarg
                  '91 318is, M20B25, T3/T04E 60 trim (18psi), megasquirt, coilovers, Z3 rack, cold AC
                  [b u i l d]
                  [Car of the month: April 2018]

                  0c8b7c9527af628a346878feb14bf757

                  Comment


                    #10
                    Agreed- I just don't have a good way to CC the pistons, or I'd already be on it. Will be CCing the chambers tomorrow.
                    1990 Brilliantrot 325iS Build Thread
                    1989 Zinnoberrot M3 Build Thread

                    Comment


                      #11
                      Ccing piston is similar to chamber.
                      89 E30 325is Lachs Silber - currently M20B31, M20B33 in the works, stroked to the hilt...

                      new build thread http://www.r3vlimited.com/board/showthread.php?t=317505

                      Comment


                        #12
                        just drop the piston exactly 5cc into the bore.

                        And use Vaseline. No, to seal the rings, you perv!

                        I agree- without static numbers, you're never going to know.
                        WITH static numbers, you can make an educated guess.

                        t
                        now, sometimes I just mess with people. It's more entertaining that way. george graves

                        Comment


                          #13
                          Thanks all. I have a question that is likely a dumb one, but it's holding me back.

                          When calculating dome volume, do I only calculate the dome area that sits above deck, or does the whole dome get calculated from where it is slightly below deck?

                          Saying dome this many times is not satisfying..... dome

                          5cc = 0.9mm down into the bore, so with TobyB's suggestion, I am assuming that the entire thing gets calculated, essentially from rings up (where it'll hold fluid).

                          Untitled by Bobbie Morrone, on Flickr
                          Untitled by Bobbie Morrone, on Flickr
                          1990 Brilliantrot 325iS Build Thread
                          1989 Zinnoberrot M3 Build Thread

                          Comment


                            #14
                            The reference for piston cc's is the top of piston from a compression height perspective (CH), i.e. this is the datum. This isnt the actual top of dome, it's the corner where the "chamfer" starts.

                            Use grease in the corner/edges to help it seal and prevent liquid getting into the crevice between the top ring and CH.

                            the piston position w.r.t deck is defined using the same datum as above, this also needs to be measured. Yours look like it about 1mm below deck. So your deck clearance is +1mm (insert actual number)
                            89 E30 325is Lachs Silber - currently M20B31, M20B33 in the works, stroked to the hilt...

                            new build thread http://www.r3vlimited.com/board/showthread.php?t=317505

                            Comment


                              #15
                              Digger,
                              you might be saying this, but I'm not getting it.

                              To cc a piston in the bore, stick a dial indicator on it.
                              Lower it some arbitrary amount. (I said 5mm, but it can be anything that lets you put a flat cover over)
                              Then put your head cc cover plate over, add fluid until it's full, then
                              do the math to figure out how much of the arbitrary cylinder volume the piston crown is filling.

                              So let's say if you lower the piston 10 mm, and then get a volume of 40 cc,
                              your piston crown volume is ((8,4/2)^2 *pi ) = 55.4 - 40 or 15.4 cc.
                              Which you subtract from the chamber volume to get the tdc volume.

                              clear as mud?

                              t
                              worked it out on a napkin

                              now, sometimes I just mess with people. It's more entertaining that way. george graves
