    The rubber lines should be no problem as long as you mount them securely and out of the way. Also, you do not need to put hose clamps on twist-loc fittings.

    I believe the rubber lines are a larger diameter than the stock hard lines as well.

    Edit* I would recommend finding and mounting the fuel filter/regulator in a good location and then route your fuel lines avoiding sharp bends.
    -Nick

    Comment


      Originally posted by Nick_08 View Post
      The rubber lines should be no problem as long as you mount them securely and out of the way. Also, you do not need to put hose clamps on twist-loc fittings.



      I believe the rubber lines are a larger diameter than the stock hard lines as well.


      With everything that's been going wrong with my swap, i figured why not to put some extra security to it, that's the rubber line that came from the tank, i just connected it to the filter, the other line is the RT feed so i have to find a fitting to make it from that little hose to the bigger hose to the filter.
      Then I'll connect the feed line with the hose i got from the kit with a reducer fitting to the steel line under the car.


      Sent from my iPad using Tapatalk
      e30Ls1 Swap IG: 1dirty30

      Comment


        This is what I did with mine



        Mounted in the same spot Nick used, bent a new 3/8" hardline from the filter/regulator all the way to the front.

        In the front I flared the line for a 3/8" quick disconnect fitting then used a short 3/8" SAE J30R9 hose to connect to the fuel rail. Works like a charm never had a problem.

        Alpine White 1989 E30 Coupe - LS1/T56

        Comment


          Has anyone personally used a PSI harness?


          Sent from my iPad using Tapatalk
          e30Ls1 Swap IG: 1dirty30

          Comment


            Me.
            Alpine White 1989 E30 Coupe - LS1/T56

            Comment


              Originally posted by Q8y_drifter View Post
              Me.


              Do you remember howd you connect the starter and fuel pump to it? I'm confused with the directions and wiring is not my strong point.


              Sent from my iPad using Tapatalk
              e30Ls1 Swap IG: 1dirty30

              Comment


                Starter
                1. Large battery cable from battery positive to starter positive stud (large stud on bottom).
                2. Smaller starter solenoid wire (Must be 12V+ cranking only) from C101 to starter solenoid (small stud).

                I'm using a standalone switch panel so I've deleted C101 entirely, but from what I've read online the starter solenoid wire is pin 18 black/yellow. You can confirm with a multimeter if you cycle the key through the ignition switch positions.

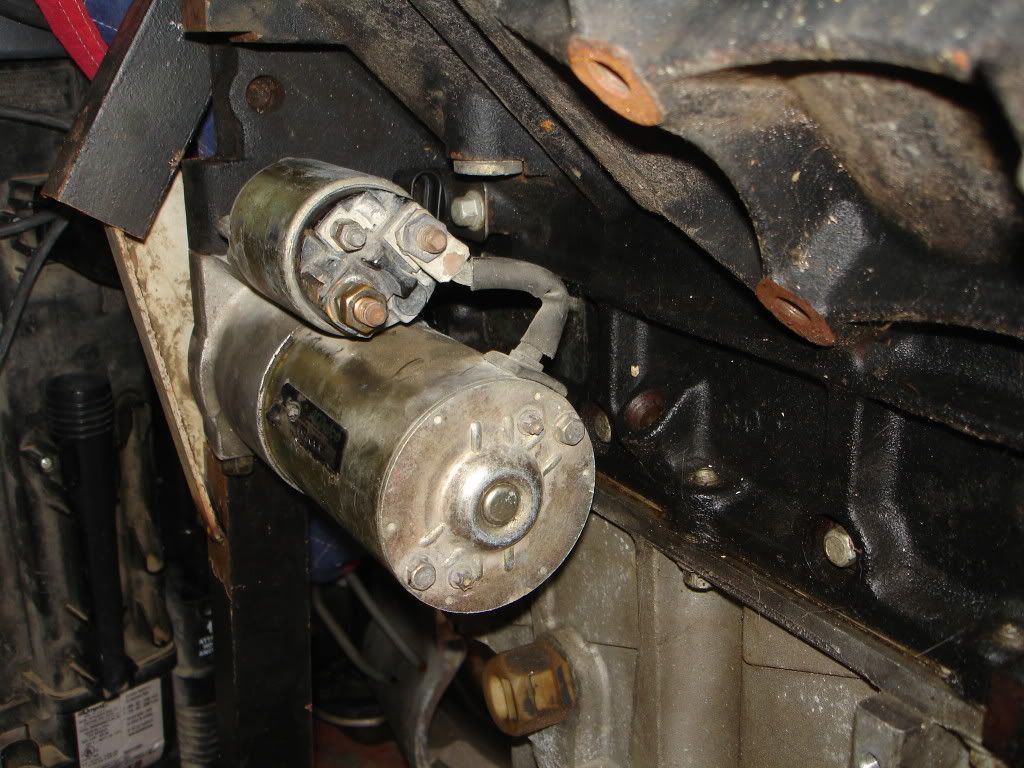

                Borrowed pic from Google to show starter studs.




                Fuel pump
                Page 11 on the PSI manual shows the wiring for the pump. Just make sure you use a thick quality wire for the fuel pump feed wire from the relay.

                Edit: I vaguely remember the fuel pump relay was already prewired by PSI on mine so all that was required was to connect the feed wire to the pump and make sure the pump is well grounded as well. I can check my car in a couple days if you want.
                Last edited by Q8y_drifter; 02-06-2017, 10:51 AM.
                Alpine White 1989 E30 Coupe - LS1/T56

                Comment


                  Originally posted by Q8y_drifter View Post
                  Starter
                  1. Large battery cable from battery positive to starter positive stud (large stud on bottom).
                  2. Smaller starter solenoid wire (Must be 12V+ cranking only) from C101 to starter solenoid (small stud).

                  I'm using a standalone switch panel so I've deleted C101 entirely, but from what I've read online the starter solenoid wire is pin 18 black/yellow. You can confirm with a multimeter if you cycle the key through the ignition switch positions.

                  Borrowed pic from Google to show starter studs.




                  Fuel pump
                  Page 11 on the PSI manual shows the wiring for the pump. Just make sure you use a thick quality wire for the fuel pump feed wire from the relay.


                  I had it to the black and yellow wire and it still wouldn't work. I connected a wire from the starter directly to the c101 18th pin. And nothing happened. That's why I was trying to go through the harness


                  Sent from my iPhone using Tapatalk
                  e30Ls1 Swap IG: 1dirty30

                  Comment


                    The harness does not control the starter in any way. Have you tried connecting a wire from the battery directly to the starter solenoid to test the starter?
                    Alpine White 1989 E30 Coupe - LS1/T56

                    Comment


                      Originally posted by Q8y_drifter View Post
                      The harness does not control the starter in any way. Have you tried connecting a wire from the battery directly to the starter solenoid to test the starter?


                      Starter turns. It's new. On the harness it says two wires go to the starter. Just don't know how it connects to the c101


                      Sent from my iPhone using Tapatalk
                      e30Ls1 Swap IG: 1dirty30

                      Comment


                        The wire from the harness that goes to the starter supplies the PCM with 12V+. Technically you can wire that directly to the battery or alternator to get 12V+.

                        Stupid question, the factory fuse box is hooked up to the battery right?

                        I'm not very familiar troubleshooting the factory E30 ignition/starter wiring so hopefully someone else can chime in.
                        Alpine White 1989 E30 Coupe - LS1/T56

                        Comment


                          E30ls1

                          Factory box is hooked up to the battery. Idk I worked on it for a couple hours and was just tired and figured to ask y'all


                          Sent from my iPhone using Tapatalk
                          e30Ls1 Swap IG: 1dirty30

                          Comment


                            Sorry for being naive but what year is your car (you said early model before, but you have a c101). There is small harness differences. This thread covers it all: http://www.r3vlimited.com/board/showthread.php?t=163088

                            Quote from linked thread "Pin#18 – Black/Yellow – START – From the start position of the ignition switch to c101 then on to terminal 50 in the starter. This is the signal that tells the car to engage the starter motor and turn the car on. Powered only when the key is in start mode. In early cars the functions of c101 pin 15(see above) were combined into this pin. Instead of the unloader relays being grounded right at the starter they were grounded at the starter through this pin. i.e. the unloaders relays were connected to the start signal before c101 in the car instead of inside the starter. Obviously you need to hook this one up."

                            You shouldn't have a pin 15 I'm assuming.^

                            When you turn your key to the start position it should have 12+V at pin 18. Once you confirm that take a look at your harness and using a multimeter take the wire your going to use for pin 18 and test continuity at the other end your going to connect to the starter (just to make sure your using the right wire).

                            Obviously you need to make sure you have the large power wire connected from battery to the solenoid as well.

                            Should work...you need to make sure the fuse box is getting power too! Or there will be no power at pin 18.

                            GL -Nick
                            -Nick

                            Comment


                              Originally posted by Nick_08 View Post
                              Sorry for being naive but what year is your car (you said early model before, but you have a c101). There is small harness differences. This thread covers it all: http://www.r3vlimited.com/board/showthread.php?t=163088

                              Quote from linked thread "Pin#18 – Black/Yellow – START – From the start position of the ignition switch to c101 then on to terminal 50 in the starter. This is the signal that tells the car to engage the starter motor and turn the car on. Powered only when the key is in start mode. In early cars the functions of c101 pin 15(see above) were combined into this pin. Instead of the unloader relays being grounded right at the starter they were grounded at the starter through this pin. i.e. the unloaders relays were connected to the start signal before c101 in the car instead of inside the starter. Obviously you need to hook this one up."

                              You shouldn't have a pin 15 I'm assuming.^

                              When you turn your key to the start position it should have 12+V at pin 18. Once you confirm that take a look at your harness and using a multimeter take the wire your going to use for pin 18 and test continuity at the other end your going to connect to the starter (just to make sure your using the right wire).

                              Obviously you need to make sure you have the large power wire connected from battery to the solenoid as well.

                              Should work...you need to make sure the fuse box is getting power too! Or there will be no power at pin 18.

                              GL -Nick

                              That's the one i had it connected to and nothing. i don't know. i'll get to it when i finish this fuel filter situation. Trying to fit it in where the external pump was at is kind of hard with the limited amount of space.

                              also it's an 87 325es
                              e30Ls1 Swap IG: 1dirty30

                              Comment
