Panici's '87 325is E30 - Boosted In Bronze

[Panici]

I'm looking forward to seeing your car in person someday soon, hopefully before the snow arrives.
Excellent work so far! ;)

Dang pretty good progress.

Those little pullers are amazing when you need to install a halfshaft. Looks like you are doing awesome work on this car!

Thanks guys :) It means a lot to hear some words of praise after all this.
I'm glad my hard work shows.
My long-term goal is to make this a restoration rather then just making the car functional.


-

Today's progress:

Bent and flared the remaining hardlines on the rear subframe. Had to use some 2-part epoxy to keep one of the old trailing arm clips on the TA, as they are NLA from BMW.

Bent and flared the body side rear hardline. Installed with a new distribution "T" block. Had to get creative with some zipties in order to mount and space the line, as well as to reinforce some of the broken body-side plastic brackets.

I think the rear brakeline may have been previously replaced, because when I copied the bends, my new line wasn't tucked up to the body like it should have been. The copper line came in handy here, as I had to make more then a few changes as I went.


Happy that I went with Nickel-Copper Alloy brakeline. Much easier to work with and bend by hand. Only issues i've had was with the flaring, which is easy to get wrong as the copper is so soft.

[Panici]

For some reason, I was exhausted today. I still pushed myself to work and I got a little done. Heading to bed early tonight.


I started by installing the new e-brake cables. I found the trick to install them into the TAs is first some antisieze. Then put a tight fitting wrench over the rubber line, in front of the metal section. Hammer the side of the wrench and it seats the cables nicely.

Then I went about following the e30zone guide for replacing the e-brake hardware (since it's been 2 months since I took it apart, I forgot the finer details). Unfortunately, the instructions said to put the smaller notch of the shoes at the top (near the adjuster), which is incorrect. Once I got one side together I realized the adjuster wouldn't sit properly, and had to take it all apart and do it again (and those springs are a challenge!)

I got the new calipers installed, and was surprised to see my paint is still not dry a few weeks later (after I got brake dust into the paint on one side :( ). I think they will need a few heat cycles of braking to bake the paint.

One of the included guide pins was bent, and when I went to get the old pin from my old calipers, I noticed the surface difference. The picture doesn't do it justice, it is quite rough compared to the other (smooth) pin. I may use the smooth pins from my old calipers.

Too bad I didn't paint the rust on the rotors, they really let the look of the assembly down. That can be a future project, I just want the car to be drivable before the end of august.

[Panici]

Good news!
I finally got the subframe assembly bolted back onto the car! :)
Only have about a half day's work to get all the ancillaries back on.

I also tweaked the position of the new hardlines. I don't believe this is how the factory lines are run. I only had the existing lines as templates, and chances are they have been replaced.

I had to use zipties and a piece of clear hose to make sure the hardline above the rear beam wouldn't rub.


Here are some SLR photos of the completed rear assembly, as promised.
I'll start with two animated Before/After pictures:




-



-

-



































-

And now a few shots during/after the subframe install.
The wood blocks are to take the stress off the half-shafts, as I probably won't get a chance to finish up for a few days.

-

[Panici]

Very happy to have finished up the subframe install today! :)


Went for a short shakedown run, and everything seems good! So far i've noticed less vibration (probably that new driveshaft u-joint), but a highway test tomorrow will be revealing.

Looks like I got a little drop from those thinner springpads. Car should be sitting almost even when I replace the old (sagging) front tophats.

Visually, both sides at the back have a similar amount of toe-in. Goes to show you how bad the old bushings were, they were throwing out the alignment in the rear.

My pressure bleeder made quick work of bleeding the rear brakes. I used some Lucas Synthetic DOT 4.
I attempted to bleed the fronts as well, but the passenger side front didn't cooperate. Next year I'll put on the rebuilt/painted front calipers.

I brimmed the gas tank with Shell 91 to test my new fuel filler hose, and I'm happy to say it no longer leaks from the fill hose. Unfortunately I must also have a leak from the top of the tank, I'll have to drop it next year to investigate further.

-


Stainless shock mount reinforcement plates - Made by r3v member "conway", and Turner Motorsport Rear shock mounts (HP Aluminum/Rubber)

[2mAn]

Cars looking real good!

[ElJimo]

This is my inspiration right now. I'm about to rip out my entire rear suspension as well.
Well done! looks great.

[SkiFree]

Nice work. Copper-nickle is great stuff, it does like to be supported a bit more than the stock coated-steel. Also, the bmw-factory hardlines tend to be pretty sloppy on the older cars.

[Panici]

Cars looking real good!

This is my inspiration right now. I'm about to rip out my entire rear suspension as well.
Well done! looks great.

Thanks guys! :)

Nice work. Copper-nickle is great stuff, it does like to be supported a bit more than the stock coated-steel. Also, the bmw-factory hardlines tend to be pretty sloppy on the older cars.

Ah, so those may have been factory lines? Were they all bent by hand on older cars?



I had my parent's driveway and our SLR camera to myself for once, so I snapped some pictures before I started packing for the school year.












------------------------

Some updates: Went for a long drive yesterday, and am happy to report that the car feels great! No more clunking from the rear when launched or shifted hard, less vibration at highway speeds, and more stability at higher speeds.

However, I was very disappointed this morning to find my front bumper paint to be flaking off. This is the Duplicolor Bumper coat stuff, of which I laid down 7(!) coats after some proper prep work.
It was on there for less then four months. :(

I hope the Duplicolor trim paint I used for the grilles and kidneys holds up better. :/

I guess I'll need to re-do the front trim when I tackle the rear trim next year. Going to have to find a new product to use as well.



-

I was going into slight withdrawal from stopping all the E30 work, so I started working on one of the many "party tricks" I have planned for the car.

Magnetic rear license plates. The idea is (for pictures, or at a show) to be able to quickly pull off the real plate, and throw on a euro (which looks much better IMO)

Here is my progress thus far. Obviously I have some rust to address, as well as the open holes to the trunk. I used some strong rare earth magnets, 2-part epoxy, and some TESA cloth electrical harness tape for padding.









--

[Tuee]

Awesome job on the rear subframe man, I took mine out like 2 years ago and forgot how the brake lines were routed but your pics helped out! Thanks! Keep up the good job. +1 for another Canadian car.

[Panici]

Awesome job on the rear subframe man, I took mine out like 2 years ago and forgot how the brake lines were routed but your pics helped out! Thanks! Keep up the good job. +1 for another Canadian car.

Glad the pics helped :) Thanks for the kind words!
I see you're in Ontario as well? There is an "Ontario E30" facebook page with some local cars on it, if you weren't aware.

Cheers!

[Panici]

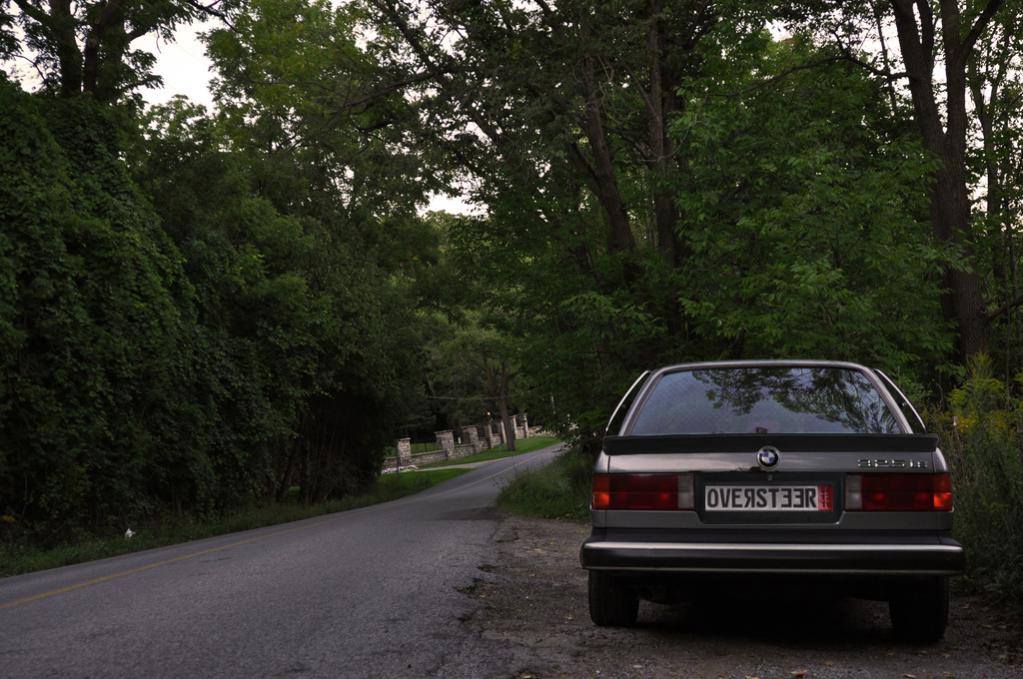

Today I finally got a chance to take some decent pictures of my car with an SLR. It's been at least two years since I've shot cars, I forgot how much fun it is!

Here are my favorite shots:

[Panici]

I took my E30 to a shop (gasp!) to get my exhaust leak fixed.

Had them weld in some staggered stainless v-bands in place of the factory flanges.
The shop did top rate work as I wanted, but I sure paid for it.

No pictures of the flanges yet, i'll be sure to get some next time i'm under the car.



-

I tired my hand at photoshop to help me decide the rear end look i'm after.
Compare to the original photo in the post above this one.
-

Here is the euro rear plate filler, with the E28 535is pfeba heckspoiler I have planned.


And here is the plate filler + pfeba heckspoiler + Racing Dynamics rear valance (still looking to buy one of these)


-

Some other edits of my photos, for your enjoyment.









.

And a picture of my complete trunk toolkit, since I finally got around to mounting it. (except for the manual window/sunroof crank?)

[2mAn]

It looks "done" to me, especially since you're driving it now. What else is planned besides the cosmetic stuff mentioned?

[Panici]

Car has been feeling good since the rear end swap.
I've put the rear end to the test with a few launches, and MANY chirped 1-2 and 2-3 shifts.
No more clunking on hard upshifts like there was before.

It looks "done" to me, especially since you're driving it now. What else is planned besides the cosmetic stuff mentioned?

Thanks! :)
But I still have a lot of work to do.

There is a TON of cosmetic work to be done (both restoration and upgrades).
Actually, I have barely done any cosmetic work to the car so far. I've been focusing on refreshing all the mechanical systems.

Longterm plans include building a turbo M52b28 (aiming for ~450hp, tuning myself with a megasquirt), all necessary chassis upgrades to handle the more powerful motor, full stripdown (possibly including a rotisserie and/or acid dip) and a full respray of the chassis and all panels.

-----------------------------

Today I successfully deleted the fuel cooling system.

I have a trackday planned, and I thought it would be prudent to replace the rubber fuel hoses in my engine bay.
All of these pictures of E30s with engine bay fires had me spooked.

What's a fuel cooling system you ask? Here is some info:

http://www.r3vlimited.com/board/showthread.php?t=170015

http://www.realoem.com/bmw/enUS/showparts?id=1113-USA-12-1986-E30-BMW-325i&diagId=16_0301

For reference, I used 4' 1/4" (4.25 feet) of fuel injection hose (ID 5/16") to replace both lines.

The removed items weighed a total of 1.9kg, subtracting the 150g for the new hose, the total weight reduction was 1.75kg (3.85lbs)

I should note, that I had to remove the airbox and intake elbow, as well as put the car on ramps to allow enough working space.

Original configuration went across the engine bay, and interfaced with the AC system. It looked like this (each arrow is a piece of rubber hose) :
Supply hardline -> plastic joiner -> fuel rail -> fuel cooler inlet hardline -> fuel cooler -> fuel cooler outlet hardline -> Return hardline


Final configuration used two pieces of hose, like this:
Supply hardline -> fuel rail -> Return hardline


Here's a shot of the pile of removed parts.

[Roadrunner]

Your car is looking great! :up: Are you bringing it to the maxbimmer cruise this weekend?
