    Originally posted by roguetoaster View Post
    For folks that see your wheel well cover I'd strongly suggest reusing the original steel wheel well and making some filet cuts/flanges to allow it to fit the hole. Works well, and is a lot stronger than AL. Only downside is that you may need a bit of seam sealer to finish the filet gaps.
    that's a clever idea to re-use material. one thing to keep in mind with that is the cuts you will need to make it fit will have gaps like you mention and therefore wont be the full strength of the full circle. not that strength really matters in that area IMO. keep in mind the wheel well is right inside both the frame rails and the crossmember the diff support mounts too. I can assure you my aluminum sheet is plenty strong in the sense it needs to be which is the strength to resist wind blowing it out from the bottom and trunk contents busting it open from the top. In fact the aluminum angle crossmember I riveted the two halves too is slightly stronger than the 1mm bmw steel and more importantly it is more rigid which is important because im mounting an exhaust hanger too it.

    Comment


      Originally posted by LowR3V'in View Post
      highly experienced welder, by u only use stick :D
      well for me MIG is like driving an automatic; there's no skill, no honor in it.

      don't be ignoring my TIG skills now though ;)

      Comment


        so one thing I discovered last night when I test fit up the brakes is that my wheel studs would not fit the holes in the rotor due to the ridge that separates the threads on the stud. what ill have to do as a solution is turn down that ridge on my lathe on the studs and that will allow the studs to thread all the way in with the rotor in place

        Click image for larger version

Name:	20191003-183334.jpg
Views:	467
Size:	43.1 KB
ID:	9875692


        I worked on mounting my cv axles and one of the diff side caps came off during shipping and the cv joint became disassembled so I had to spend quite a bit of time figuring out how to reassemble the cv joint but now I know the technique. I had to modify whatever you call these metal pieces, mill them and grind them to get them to be able to fit. you can see where i milled the middle section much thinner for clearance.

        Click image for larger version

Name:	20191004-002827.jpg
Views:	438
Size:	59.1 KB
ID:	9875693

        cv axles and suspension are installed

        Click image for larger version

Name:	20191004-014707.jpg
Views:	459
Size:	74.8 KB
ID:	9875694

        Click image for larger version

Name:	20191004-014726.jpg
Views:	450
Size:	79.5 KB
ID:	9875695

        still need to install secondary diff mount though.

        Comment


          then installed the exhaust, everything looking good

          Click image for larger version

Name:	20191004-020922.jpg
Views:	462
Size:	79.4 KB
ID:	9875697

          Click image for larger version

Name:	20191004-020933.jpg
Views:	459
Size:	81.8 KB
ID:	9875698

          one thing im very happy about is that I was right about why my center exit was slightly offset to the right; the midpipe was timed incorrectly. paying attention to that this time the center exit ended up perfectly center which makes me very happy I don't have to chop it up and re weld it to center it. its great.

          Click image for larger version

Name:	20191004-021016.jpg
Views:	454
Size:	82.2 KB
ID:	9875699

          check out how I have the muffler tucked into the bumper:

          Click image for larger version

Name:	20191004-020952.jpg
Views:	466
Size:	67.9 KB
ID:	9875700

          Comment


            Originally posted by hkv View Post

            that's a clever idea to re-use material. one thing to keep in mind with that is the cuts you will need to make it fit will have gaps like you mention and therefore wont be the full strength of the full circle. not that strength really matters in that area IMO. keep in mind the wheel well is right inside both the frame rails and the crossmember the diff support mounts too. I can assure you my aluminum sheet is plenty strong in the sense it needs to be which is the strength to resist wind blowing it out from the bottom and trunk contents busting it open from the top. In fact the aluminum angle crossmember I riveted the two halves too is slightly stronger than the 1mm bmw steel and more importantly it is more rigid which is important because im mounting an exhaust hanger too it.
            Fair enough, was really only looking at it from a trunk usability standpoint, but the crossbrace is quite the improvement over a flat sheet.

            Comment


              Bigger brakes seem like a good idea

              Comment


                When the exhaust gets hot, it’ll grow an inch or 2.

                I was up above it, Now I'm down in it ~ Entropy - A Build thread.
                @Zakspeed_US

                Comment


                  Originally posted by Designer2w View Post
                  Bigger brakes seem like a good idea
                  no doubt

                  Comment


                    Originally posted by moatilliatta View Post
                    When the exhaust gets hot, it’ll grow an inch or 2.
                    I had not considered that at all. although I think 1-2 inches is pretty far fetched. my daily driver has a full 3" 304SS turbo-back(same exhaust pipe specs as the ecobeamer) and I don't notice it getting longer at all but I don't look for that either, ill check and see how much that grows when hot to see what to expect.

                    I would expect 0.1"-0.5" thermal expansion which would be fine but I might cut a little bit more clearance in the bumper just in case.

                    thanks for the heads up, that's definitely something to keep in mind because I only have like 0.4" clearance between the end of the muffler and the bumper

                    Comment


                      so it turns out my steering shaft was hitting the alternator which is kinda weird I thought it was gonna clear, but that oversight was probably a good thing because the steering rack side u joint in that steering shaft was pretty toast so I should've just decided to replace it in the first place rather than trying to use it which would have made removing it much easier. I never removed it because it was stuck pretty good. so trying to get it off with the engine and all that in there was a pain.

                      after trying to pull it off for a few mins I decided to take the war path and just grind it off, it fought back and dropped some hot bits of aluminum on me and burned my neck but the heat from cutting it helped get it off and it went easy after i put a cut on the other side of the clamp side to allow it to spread more.

                      Click image for larger version

Name:	20191005-020332.jpg
Views:	409
Size:	73.2 KB
ID:	9876200


                      so now I have a new steering shaft with fresh u joints and it clears the alternator good

                      Click image for larger version

Name:	20191004-185822.jpg
Views:	366
Size:	49.9 KB
ID:	9876201




                      one other fitment issue that emerged is that the drivers side steering rack mount I cant bolt it up because the oil pan is too much in the way. what I ended up doing is mount it on the forward bolt holes but in the same position by drilling and tapping bolt holes about 1" deep on the bottom and the top. works good

                      Click image for larger version

Name:	20191007-024434.jpg
Views:	411
Size:	65.2 KB
ID:	9876202

                      Click image for larger version

Name:	20191007-024423.jpg
Views:	397
Size:	76.9 KB
ID:	9876203

                      Comment


                        muffler exhaust hanger is all taken care of.
                        Click image for larger version

Name:	20191006-172445.jpg
Views:	384
Size:	44.4 KB
ID:	9876208




                        I modified all of my wheel studs to fit the rotors

                        Click image for larger version  Name:	20191005-020127.jpg Views:	0 Size:	67.6 KB ID:	9876205

                        I installed the studs and the brakes and rotors onto the rear wheel hubs. red threadlocker on the studs and medium strength threadlocker on the brake components

                        Click image for larger version  Name:	20191006-181036.jpg Views:	0 Size:	80.1 KB ID:	9876206

                        im almost done with the secondary diff mount as well. I had to remove the diff cover because I forgot to seal it up.
                        Last edited by hkv; 10-07-2019, 03:26 AM.

                        Comment


                          so I was working on the secondary diff mount and figured I should cut some more clearance in the bumper while im working back there. not really a downside to having more I figure.

                          Click image for larger version

Name:	20191007-164337.jpg
Views:	401
Size:	43.6 KB
ID:	9876291

                          Click image for larger version

Name:	20191007-165802.jpg
Views:	379
Size:	29.4 KB
ID:	9876292


                          secondary diff is mounted

                          Click image for larger version

Name:	20191007-170658.jpg
Views:	389
Size:	78.0 KB
ID:	9876293


                          filled tranny with synchromesh and filled the diff with synthetic 75w140. imagine frying either of those because you forgot to fill them. lots of brake fittings came in today.

                          Comment


                            finished with the rear end for now I move back to the front. the steering rack is all bolted up so I bolt up the coilovers and then I mount the control arms up and put my bushings in the lollipops and get everything bolted up. I heard your supposed to set the car down soon after replacing the control arms bushings so I quickly bolt up the hubs and wheels. skipping the brakes for now just so I can get the bushings settled.

                            Click image for larger version

Name:	20191008-024244.jpg
Views:	412
Size:	83.4 KB
ID:	9876306

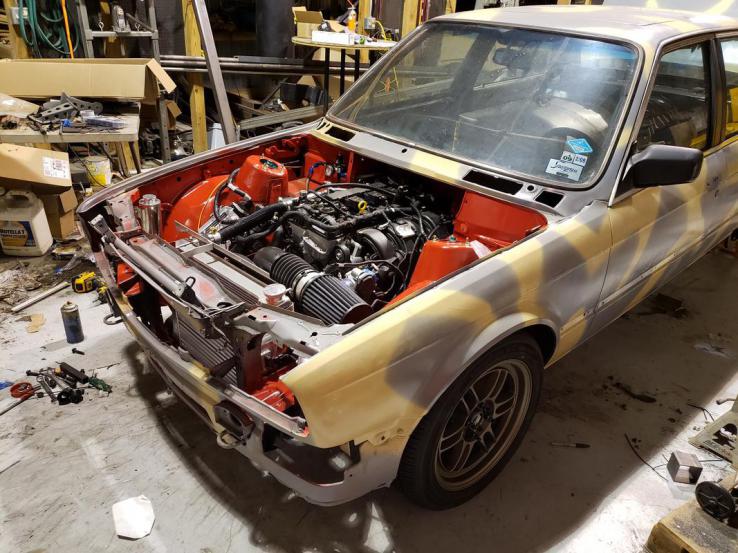

                            the coilovers are set at a pretty good ride height but I might jack the car up another inch or so when everythings said and done. I forgot how low these cars are, this thing is as about as low as my cobra.

                            Click image for larger version

Name:	20191008-024624.jpg
Views:	386
Size:	84.5 KB
ID:	9876307


                            not the best pic but heres what the ground clearance is looking like. the oil pan seems to be the low point of the car, looks like about 2" below the subframe and a little less below the exhaust. in the future when I do other things to the car one big thing I would want to do is a less deep oil pan, something like formyhealth made when he was going for the ecoboost and while im in there do a balance shaft delete.

                            ground clearance as it sits right now looks something like 4", that's not that bad is it? ride height might not actually need to be jacked up any more or atleast not much.

                            Click image for larger version

Name:	20191008-024811.jpg
Views:	397
Size:	78.7 KB
ID:	9876308

                            i like how my wheels fit in the fender as it is.

                            Click image for larger version

Name:	20191008-025156.jpg
Views:	386
Size:	72.7 KB
ID:	9876309


                            Click image for larger version

Name:	20191008-025656.jpg
Views:	381
Size:	85.2 KB
ID:	9876310

                            anyways i will let the car sit a day or two before jacking it back up and then mounting the front brakes, fingers crossed they fit they fit the wheels but the rears fit fine so should be ok.

                            Comment


                              Looks good! Can you tell me more about those rear brakes? Sent from my SM-G973U1 using Tapatalk

                              Comment


                                Originally posted by formyhealth View Post
                                Looks good! Can you tell me more about those rear brakes? Sent from my SM-G973U1 using Tapatalk
                                they are IE rear BBK, you have to bleed both sides(theres 4 bleed screws but you only do the top 2 of course) so apparently they squeeze from both sides. they are super nice IMO. everything's billet machined aluminum, and fits up right. Im super satisfied with the brake kits they are super nice. im using the front brake kit as well.
