    finished the engine bay firewall and the fuel cell firewall and sealed them up pretty good. painted the underside of the car and the engine bay and the motor mounts

    Click image for larger version

Name:	20190928-014707.jpg
Views:	410
Size:	80.4 KB
ID:	9873916

    Click image for larger version

Name:	20190928-014728.jpg
Views:	393
Size:	80.8 KB
ID:	9873917


    then I put the motor back into the car and set up the fpr and lines a bit

    grommets as suggested, they look good and protect the lines.
    Click image for larger version

Name:	20190928-030606.jpg
Views:	396
Size:	81.8 KB
ID:	9873918



    Click image for larger version

Name:	20190928-032554.jpg
Views:	394
Size:	76.4 KB
ID:	9873919

    Click image for larger version

Name:	20190928-032531.jpg
Views:	399
Size:	86.1 KB
ID:	9873920


    Comment


      Click image for larger version  Name:	20190928-032057.jpg Views:	0 Size:	80.9 KB ID:	9873922



      also gave the front subframe a fresh coat of paint, I grinded a good amount off to weld the motor mount so it needed it.

      im going to wire wheel the cabin side of the firewalls to remove rough/sharp edges and then clear coat them. and I will bolt of subframe and engine and all the other stuff but I do have to do a modification to the intercooler. turns out this motor uses 2 MAP sensors; one on intake manifold and one post intercooler. so I have to fabricate a bung for the intercooler map and weld it either to my intercooler or too the intercooler piping post intercooler. that's no big deal.

      once I have the motor bolted up I will drop the rear subframe and then bolt on the driveshaft and the trailing arms and then bolt it back up. then I will work on the ford wiring harnesses and get the thing wired up pretty good and I may do a first start on the motor in a few days just as a test. and I also have a separate wiring harness for all the lighting to deal with as well. brakes also I need to run lines for.

      edit: by the way everything seems to fit good so I think the drivers section of firewall is going to work no issues. theres a port on the back of the intake manifold that is close but probably fine, wont know for sure until I have the motor bolted in place.

      Comment


        Are you considering painting the whole car orange? Or was this always the plan to just paint the engine bay orange? It is kind of funny to me because it looks like chevy orange and it is a ford engine in a bmw. Regardless it looks good.
        How to remove, install or convert to pop out windows
        http://www.r3vlimited.com/board/showthread.php?t=297611


        Could be better, could be worse.

        Comment


          dayyym looks like a motorcycle engine in there.
          Why does it need a map after the cooler and in the manifold? electric bov?

          Comment


            Originally posted by rzerob View Post
            Are you considering painting the whole car orange? Or was this always the plan to just paint the engine bay orange? It is kind of funny to me because it looks like chevy orange and it is a ford engine in a bmw. Regardless it looks good.
            well actually that's red, rustoleum "safety red" lol@safety. it does kinda look like a Chinese orange though. giraffe paint is gonna stay for now.

            Comment


              Originally posted by LowR3V'in View Post
              dayyym looks like a motorcycle engine in there.
              Why does it need a map after the cooler and in the manifold? electric bov?
              haha it actually kinda does look like a motorcycle engine lol. im more of a ducati v twin guy than a 4cyl superbike kinda guy though.

              im not sure to be honest, it is a dual MAP/IAT sensor though so I think its supposed to measure charge air temps/pressure. but its not at all far from the map on the intake manifold so it doesn't exactly make sense to me but I at least understand why its good to have a IAT reading post intercooler instead of just right by the filter so the ECU can tell if the intercooler is heat soaked or not. I don't think ill have that problem though. my intercooler is 3 times bigger than the mustang intercooler.

              it does have an electronically controlled BOV but that is pre intercooler so I don't know.

              Comment

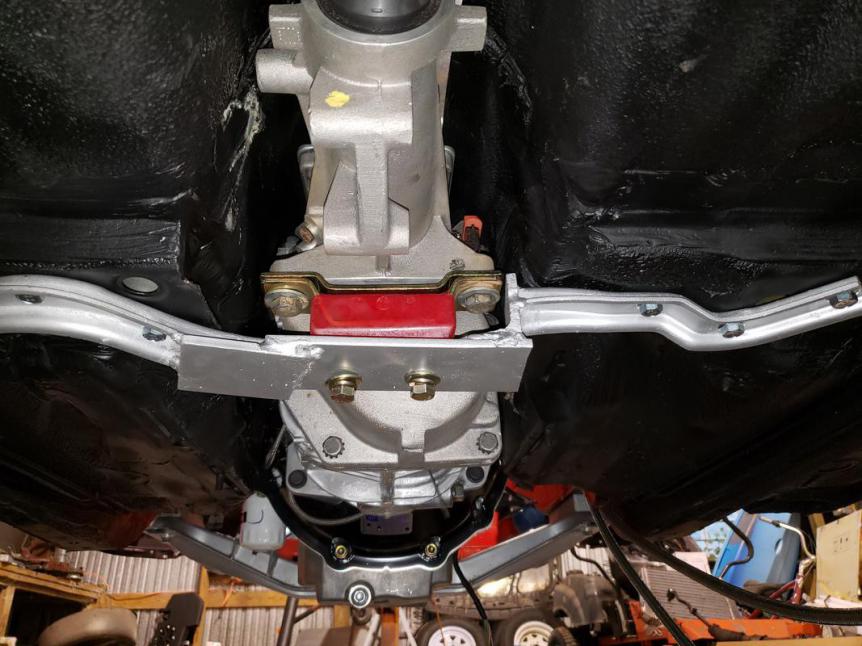

                so I bolted the engine up and holy cow what a pain that was, I wish I had drilled the engine mount bolt holes one size bigger to make it easier but I got it done.

                Click image for larger version  Name:	20190928-191751.jpg Views:	0 Size:	85.9 KB ID:	9874059

                here you can see my freshly painted undercarriage and that I wasnt cheating by supporting the engine with a jack.

                Click image for larger version  Name:	20190928-191922.jpg Views:	0 Size:	81.1 KB ID:	9874060


                here you can see I chopped the firewall a bit because I thought I needed to fit the engine but I think what happened was it was just really hard to get the engine in position with that corner poking out but it probably would have fit if I could have managed to get it in place but the intake manifold was getting stuck.

                Click image for larger version  Name:	20190928-192004.jpg Views:	0 Size:	79.4 KB ID:	9874061

                Comment

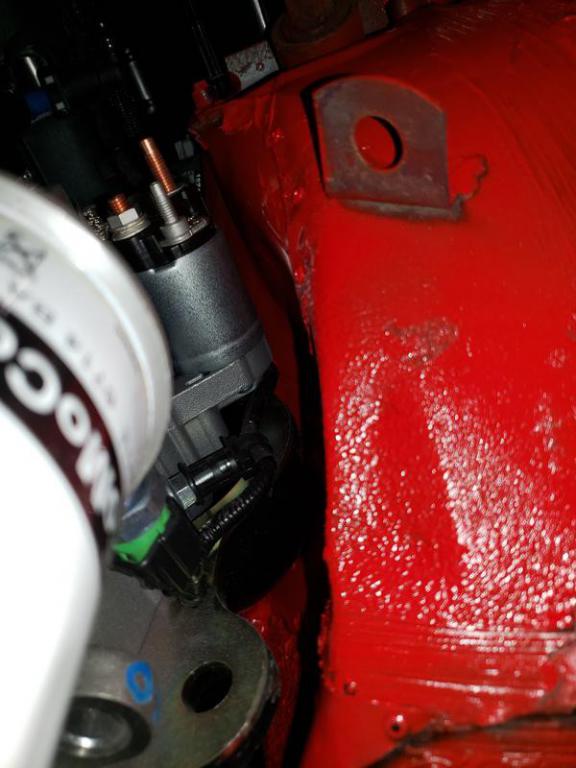

                  not even trying to be too arrogant but I think I really finessed the F*** out of this motor swap judging by how close so many of the gaps are. gaps between the firewall and MAP,intake manifold, starter, HPFP. drivers side motor mount clearance between the alternator and steering rack, tranny and tunnel and all that. most of it was luck but some of it was skill and vision lol.



                  Click image for larger version

Name:	20190928-192028.jpg
Views:	397
Size:	77.7 KB
ID:	9874066

                  Click image for larger version

Name:	20190928-192039.jpg
Views:	394
Size:	79.9 KB
ID:	9874067

                  Click image for larger version

Name:	20190928-192114.jpg
Views:	380
Size:	58.0 KB
ID:	9874068

                  Click image for larger version

Name:	20190928-192053.jpg
Views:	392
Size:	79.9 KB
ID:	9874069

                  Attached Files

                  Comment

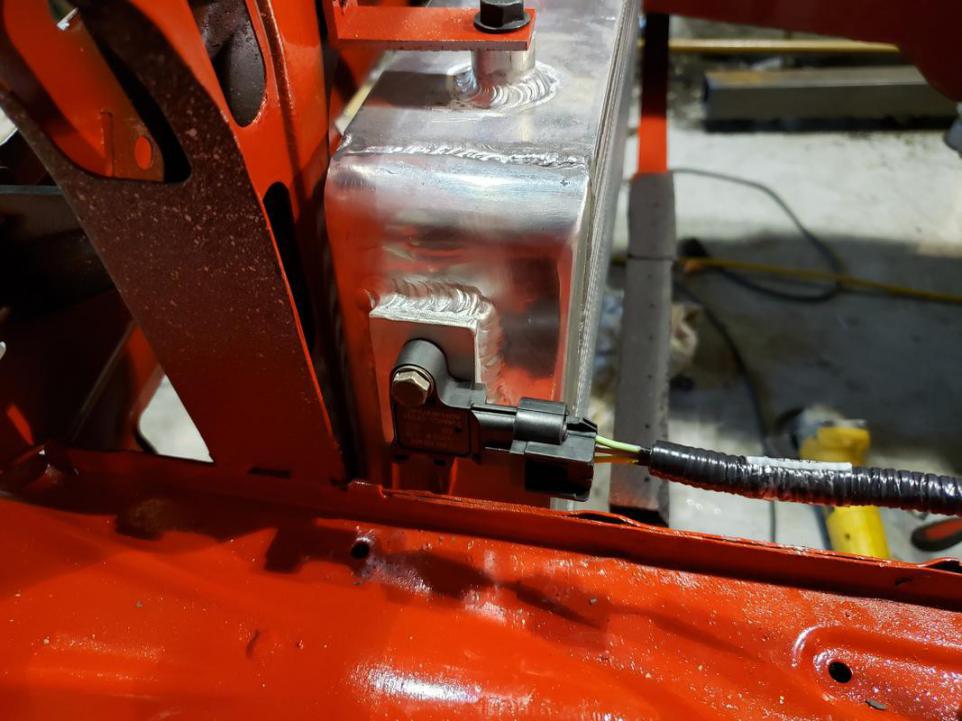

                    fabricated and welded up the MAP bung
                    Click image for larger version

Name:	20190929-125137.jpg
Views:	376
Size:	41.2 KB
ID:	9874190

                    here it is in the car

                    Click image for larger version

Name:	20190929-133508.jpg
Views:	378
Size:	80.8 KB
ID:	9874191


                    view of the engine bay as I wire everything up and get it ready.

                    Click image for larger version

Name:	20190929-140815.jpg
Views:	369
Size:	87.4 KB
ID:	9874192


                    engine is very close to being operational. I may start it as a test to see if I get any DTCs on Tuesday.

                    Comment


                      That isn't technically a MAP sensor (though it does measure pressure), Ford refers to it as a TIP (throttle inlet pressure) sensor. It uses the TMAP (temp and MAP) sensor in the manifold for speed density calculation but the tip sensor in the charge air cooler is used for throttle plate delta pressure measurement. Basically the TIP value determines turbo wastegate canister duty cycle to try to maintain a given delta pressure across the throttle body to improve throttle response by always having a surplus of boost available whenever desired MAP (torque) goes up

                      Comment


                        damn way doesn't megasquirt have that.

                        Comment


                          Originally posted by b5dover View Post
                          That isn't technically a MAP sensor (though it does measure pressure), Ford refers to it as a TIP (throttle inlet pressure) sensor. It uses the TMAP (temp and MAP) sensor in the manifold for speed density calculation but the tip sensor in the charge air cooler is used for throttle plate delta pressure measurement. Basically the TIP value determines turbo wastegate canister duty cycle to try to maintain a given delta pressure across the throttle body to improve throttle response by always having a surplus of boost available whenever desired MAP (torque) goes up
                          thanks for the explanation of what exactly that sensors purpose is, that's pretty cool how everything works together like that. you know your stuff.
                          TIP (throttle inlet pressure) does make more sense as the proper name for that sensor to me although I will say that the instructions I have as well as the wiring harness refer to it as a "TMAP"

                          Click image for larger version

Name:	20191001-022804.jpg
Views:	322
Size:	46.6 KB
ID:	9874692

                          Comment


                            working on the wiring harness a bit I rivet the power distribution box to the firewall and secure some of the lines. ford specifies a maximum 60" distance from the battery to the PDB so that really determines where I can mount the PDB because I also am limited by the location of the ECU in the engine bay. the battery will be located centrally in between the fuel cell an the drivers seat on the backseat

                            Click image for larger version

Name:	20191001-023851.jpg
Views:	329
Size:	86.7 KB
ID:	9874702

                            i wire up the fuel pump and connect the lines so can rivet the cover/floorboard in place. the PDB provides power for the fuel pump so no relays to worry about wiring up.

                            Click image for larger version  Name:	20190929-220018.jpg Views:	0 Size:	79.9 KB ID:	9874696


                            heres my coolant overflow reservoir location

                            Click image for larger version  Name:	20191001-025013.jpg Views:	0 Size:	66.8 KB ID:	9874697

                            i will run a little bit of line to keep and coolant from leaking out onto the front passenger tire path if the car gets hot or something. once the system is settled in no coolant should exit the tank.

                            Click image for larger version  Name:	20191001-025028.jpg Views:	0 Size:	57.6 KB ID:	9874698
                            Last edited by hkv; 10-01-2019, 12:45 AM.

                            Comment


                              I think im going to wait a bit to test start the motor, maybe until the car is pretty much finished. mostly because I have several open ports (intake,coolant) for gauge sending units so Ill probably have to wire up the gauges before I try and start it.

                              Comment


                                You riveted the fuel pump ground? Haha!

                                Have you used rivnuts?

                                Thread is motivating for me to get some progress done!

                                I was up above it, Now I'm down in it ~ Entropy - A Build thread.
