    #61
    Originally posted by hkv View Post
    thanks for the comment. what would you do?
    When you have already proven to be very skilled welder... this riveting looks little bit odd solution. But if it works technically... why not.

    Comment


      #62
      Originally posted by hasa View Post

      When you have already proven to be very skilled welder... this riveting looks little bit odd solution. But if it works technically... why not.
      dang man I appreciate that, I am a big welding enthusiast and I like welding stuff but for thin sheet metal like this riveting is really a better choice IMO. I explain in my unapproved flagged for spam response to lowrev'in that riveting is cheaper, faster, easier and generally ends up looking better than welding in this application. just as strong as welding depending on how its done too.

      even if I did low amp tig which would actually be pretty freaking cool now that I think about it, burn through would be a concern and the prep work would be a pain because having any significant gaps and your joints gonna keyhole. using small stick electrodes would be the other alternative and with that burn through would be even more of a concern but more so than that it would take a fair amount of time to clean up and make it look nice unless I did a super good job.

      now that you have me thinking about it I may give welding a try in some parts of the drivers side firewall if I feel like itd be a good idea over rivets due to the curves and space restrictions

      Comment


        #63
        He can always weld it too when he is done if he felt like it.
        How to remove, install or convert to pop out windows
        http://www.r3vlimited.com/board/showthread.php?t=297611


        Could be better, could be worse.

        Comment


          #64
          Originally posted by rzerob View Post
          He can always weld it too when he is done if he felt like it.
          yeah if have any rivets fail I might do that but that's not gonna happen no matter how hard I beat it up on the track. that's my prediction, well see what happens though who knows

          Comment


            #65
            went to the metal store and the driveshaft shop and got the driveshaft balanced. they were kind enough to paint it too

            Click image for larger version

Name:	20190909-231345.jpg
Views:	208
Size:	45.3 KB
ID:	9868880

            Click image for larger version

Name:	20190911-022403.jpg
Views:	197
Size:	74.3 KB
ID:	9868881

            as you guys know by now; im a fan of rivets

            Click image for larger version

Name:	20190911-001318.jpg
Views:	197
Size:	71.2 KB
ID:	9868882

            double checked the angle of the diff and we are in business. about 2 deg so powertrain placement is finalized. motor mounts coming soon.

            Click image for larger version

Name:	20190911-022211.jpg
Views:	199
Size:	51.5 KB
ID:	9868883



            Comment


              #66
              doing some lathework to make an adapter that will allow me to put a cone filter on my air inlet pipe because the airbox I got with the control pack will not fit at all. ive got to use this IAT sensor so that's why im making the adaptor with this bung for the IAT sensor. not at all looking forward to welding aluminum TBH.

              Click image for larger version

Name:	20190911-021853.jpg
Views:	217
Size:	69.5 KB
ID:	9868885


              other than that not too much progress to show but I did bend the fuel cell hangars as well. but heres a interior pic to show from when i was checking out pedal location. by sheer luck the transmission and the shifter ended up in a good spot and the shift lever seems to be in a good spot aswell.

              Click image for larger version

Name:	20190911-023835.jpg
Views:	201
Size:	83.7 KB
ID:	9868886
              Click image for larger version

Name:	20190911-023851.jpg
Views:	201
Size:	82.7 KB
ID:	9868887


              may end up switching to a straight shift lever from this angled one depending on how everything works out but for now it seems really nice and its kinda trippy to sit in a seat with the steering wheel and shifter. makes me feel like things are moving along and they are but im hoping wiring wont be too difficult, well see. suspension and running the brake lines and all that should be pretty easy

              Comment


                #67
                got the intercooler piping sorted out

                Click image for larger version

Name:	20190911-222653.jpg
Views:	189
Size:	74.8 KB
ID:	9869239

                Click image for larger version

Name:	20190911-222703.jpg
Views:	180
Size:	73.0 KB
ID:	9869240

                on the passengers side I used a tube I got from the control pack that I cut up.

                Click image for larger version

Name:	20190911-224314.jpg
Views:	180
Size:	83.1 KB
ID:	9869241

                Comment


                  #68
                  making a lower radiator support with some rubber and some flat bar

                  Click image for larger version

Name:	20190911-235338.jpg
Views:	191
Size:	80.1 KB
ID:	9869243

                  Click image for larger version

Name:	20190911-235353.jpg
Views:	181
Size:	78.7 KB
ID:	9869244

                  put some bends in it for clearance

                  Click image for larger version

Name:	20190912-000016.jpg
Views:	182
Size:	77.1 KB
ID:	9869245

                  rivet it to the car

                  Click image for larger version

Name:	20190912-002304.jpg
Views:	179
Size:	41.3 KB
ID:	9869246

                  Click image for larger version

Name:	20190912-004359.jpg
Views:	181
Size:	82.0 KB
ID:	9869247

                  Comment


                    #69
                    pic of the radiator support all mounted up

                    Click image for larger version  Name:	20190912-004718.jpg Views:	0 Size:	78.6 KB ID:	9869249


                    made the intercooler mounting brackets, intercooler sits on the original radiator support.

                    Click image for larger version  Name:	20190912-011223.jpg Views:	0 Size:	84.2 KB ID:	9869250

                    trimmed the radiator shroud a bit more and riveted the bottom of it to the bottom of the radiator. then riveted the top of the radiator shroud to the car and it really tucks the radiator and its shroud in nice and tight

                    Click image for larger version  Name:	20190912-014605.jpg Views:	0 Size:	86.8 KB ID:	9869251

                    Click image for larger version  Name:	20190912-014620.jpg Views:	0 Size:	86.2 KB ID:	9869252

                    so with that all this stuff up front is pretty much taken care of, done with that on to the next one.
                    Last edited by hkv; 09-12-2019, 12:47 AM.

                    Comment


                      #70
                      How’s the seating position with the shifter that for back?

                      Did you have to move the pedals?
                      Zach@Zakspeed.us

                      Comment


                        #71
                        Originally posted by moatilliatta View Post
                        How’s the seating position with the shifter that for back?

                        Did you have to move the pedals?
                        well naturally what im doing is adjusting stuff that can be easily adjusted to work with stuff that cant be adjusted. for example I cant easily adjust the position of the steering wheel so im basing my seating position, shifter position and pedal position off of that. lucking I can move the shifter up 2" or 4" up from where it is right now and I probably will switch to a straight shifter from the angled shifter ive got right now to get a better shifter position.

                        what im not going to be able to get in an ideal position is the pedals because unfortunately in this context I am pretty tall. I am using a wildwood pedal box because I have previous experience with them and I know they work good for applications like these. because the engine intrudes so deeply into the cabin I am only barely able to get the throttle in an acceptable location and the throttle really determines the location of the clutch and the brake pedal because they cant be in wildly different positions; I want to atleast somewhat be able to heel and toe. so this is what the situation is looking like right now.




                        throttle just barely clears the intake manifold, bellhousing, tunnel ect... this is about as good as the position gets unless i were going to move everything to the left side of the foot well which would have its own issues

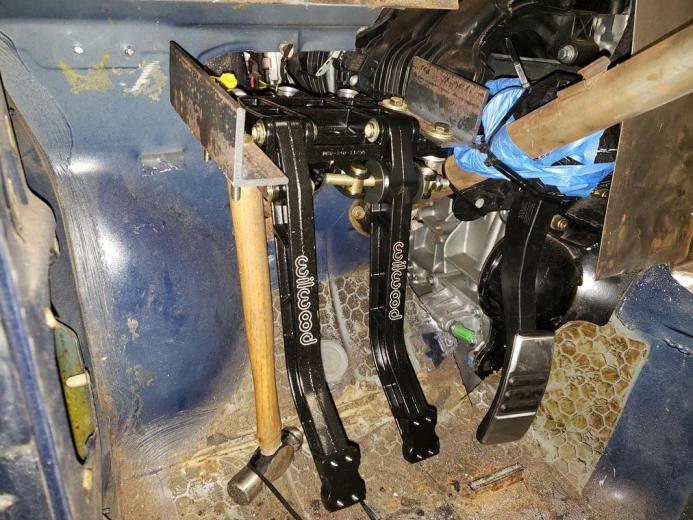

                        Click image for larger version

Name:	20190913-015436.jpg
Views:	171
Size:	83.4 KB
ID:	9869606

                        Click image for larger version

Name:	20190913-015502.jpg
Views:	159
Size:	73.5 KB
ID:	9869607



                        this is pretty much what im looking at, my legs are gonna be a little bent up but ive tested it, it will be acceptable. unfortunately I cant mount the brake forward of the throttle to facilitate heel and toeing because my legs already have to bend pretty good to reach the throttle.

                        Click image for larger version

Name:	20190913-030748.jpg
Views:	157
Size:	79.4 KB
ID:	9869608

                        obviously the final location of the pedals will be a little bit higher than they are in the pic but this what were looking at and it will work just not ideal for a guy my height because I don't want my arms too extended to reach the steering wheel. obviously once the car is driving I can look into a steering wheel that comes out farther and then adjust the pedals out more to better match the throttle but that's something to worry about once everything's put together

                        Comment


                          #72
                          I knew the drivers side firewall was gonna be a pain but now after dealing with throttle and the pedal box I can tell its gonna be a major PITA. i will git er done though.

                          Comment


                            #73
                            Maybe left offset the pedals or consider moving the seat and pedals aft.

                            Comment


                              #74
                              What about a floor mount setup?
                              Zach@Zakspeed.us

                              Comment


                                #75
                                Originally posted by roguetoaster View Post
                                Maybe left offset the pedals or consider moving the seat and pedals aft.
                                from my perspective the possible alternative would be to move all the pedals to the left and back towards the driverside engine bay wheel well. I cant move the pedals or the seat back towards the rear of the car because then it would mess up my reach to the steering wheel. although I may get a steering wheel that comes out farther so that I can move my seat back to more comfortably use the pedals. but then that kinda puts the steering wheel up higher which it doesn't need to be.

                                im gonna look into moving everything left and forward and see if I can tuck it into the left side of the foot well. that way I will have more room to extend my leg, my legs will be angled left rather than straight forward but that's not a big deal

                                Comment
