New booster option for e30 - Bosch iBooster

Collapse
X

  • Filter
  • Time
  • Show
Clear All
new posts

    You used the crv booster? Do you have any pics of it installed? I'm totally ok with a bit of modification for the price. Mine was $360 cad with the connectors.

    Comment


      Originally posted by Ryan_penner View Post
      You used the crv booster? Do you have any pics of it installed? I'm totally ok with a bit of modification for the price. Mine was $360 cad with the connectors.

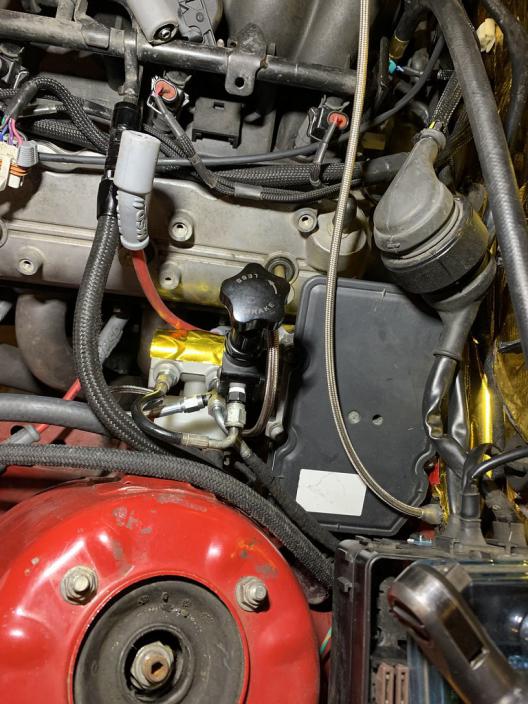

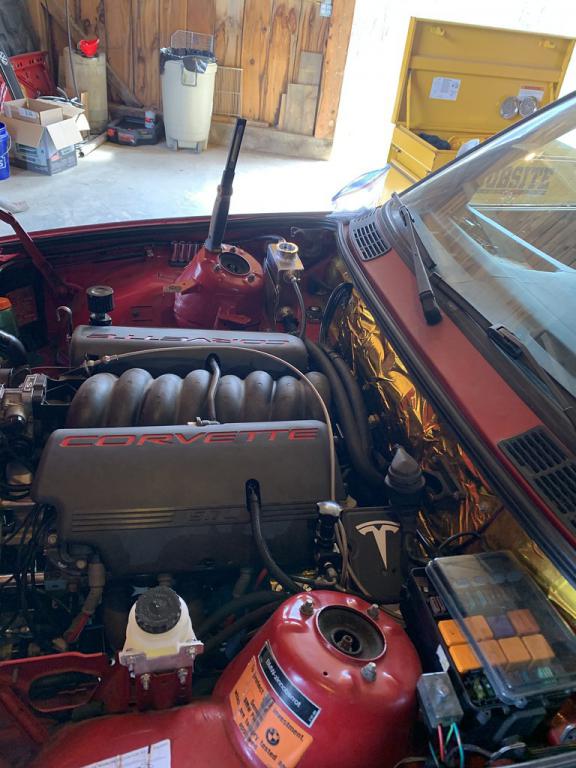

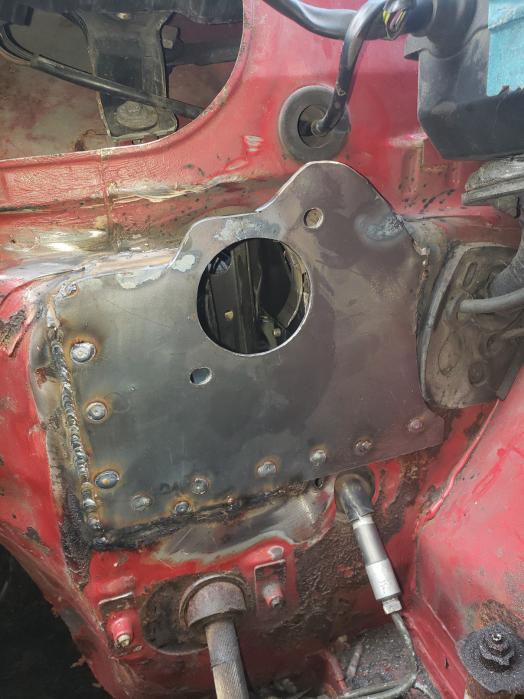

      I used the tesla booster but I removed the mounting flange from the rear. I assume you could do the same with the crv booster but because the crv flange is so thin I dont think youll need to. Heres some photos, I have custom mounts btw so your motor probably sits in a different place.
      Click image for larger version

Name:	51024477842_39c3f8c4e9_b.jpg
Views:	978
Size:	76.4 KB
ID:	9981281

      Click image for larger version

Name:	51090739699_92f8823e5d_b.jpg
Views:	904
Size:	75.3 KB
ID:	9981282Click image for larger version

Name:	51090750272_6d6cb7cee8_b.jpg
Views:	904
Size:	77.5 KB
ID:	9981283

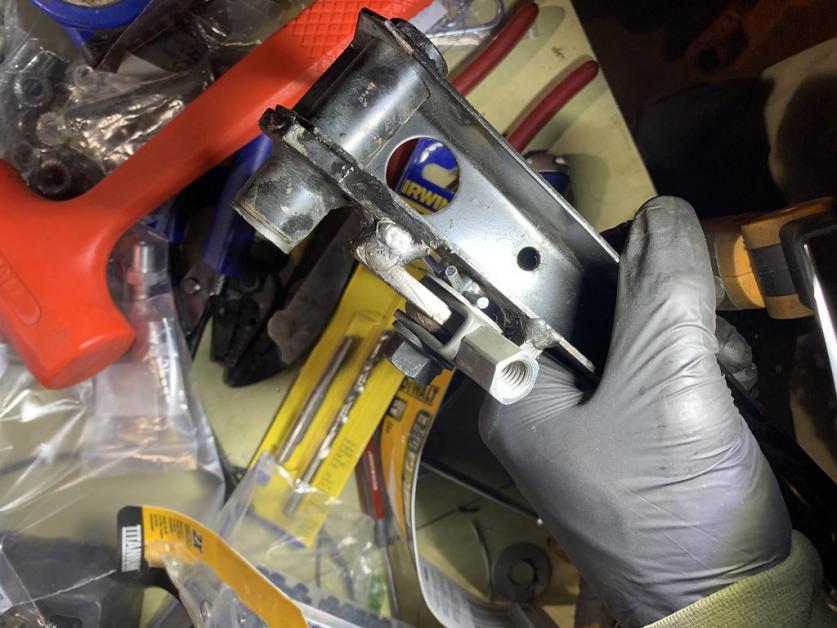

      I also had to modify the brake pedal so that the pushrod wasnt at such a harsh angle, heres a bad photo of that.

      Click image for larger version

Name:	51091488835_b957bb2fd0_b.jpg
Views:	914
Size:	72.9 KB
ID:	9981284

      Comment


        Thanks! I'm actually getting ready to mount it tomorrow. I'll be making custom mounts and whatever parts I can. Looks like you've already been down that road. Looks good!

        Comment


          Originally posted by iman53 View Post

          I used the tesla booster but I removed the mounting flange from the rear. I assume you could do the same with the crv booster but because the crv flange is so thin I dont think youll need to. Heres some photos, I have custom mounts btw so your motor probably sits in a different place.

          I also had to modify the brake pedal so that the pushrod wasnt at such a harsh angle, heres a bad photo of that.
          Have you driven her yet with the new booster?

          Comment


            Originally posted by Bored View Post

            Have you driven her yet with the new booster?
            Unfortunately not yet, I bled the brakes this past weekend and that went well, I tested it on jack stands with the car on and off and there is for sure a difference when the booster is powered.
            I won't be able to do much driving till I get a tune, so basically on and off a trailer.

            Comment

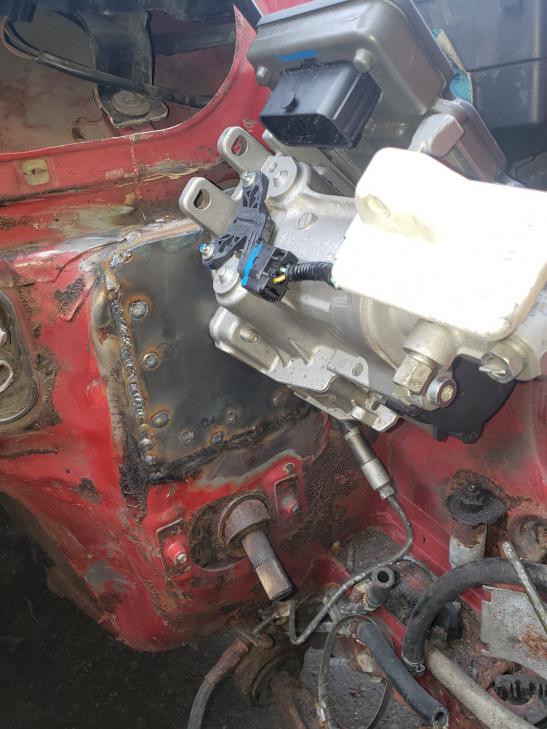

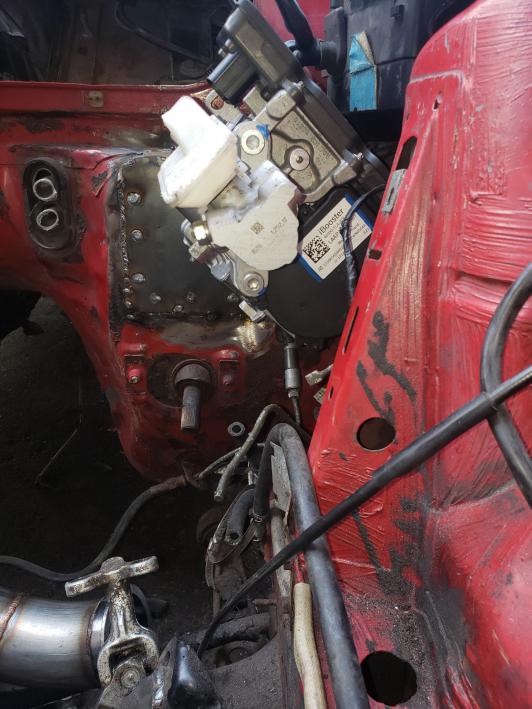

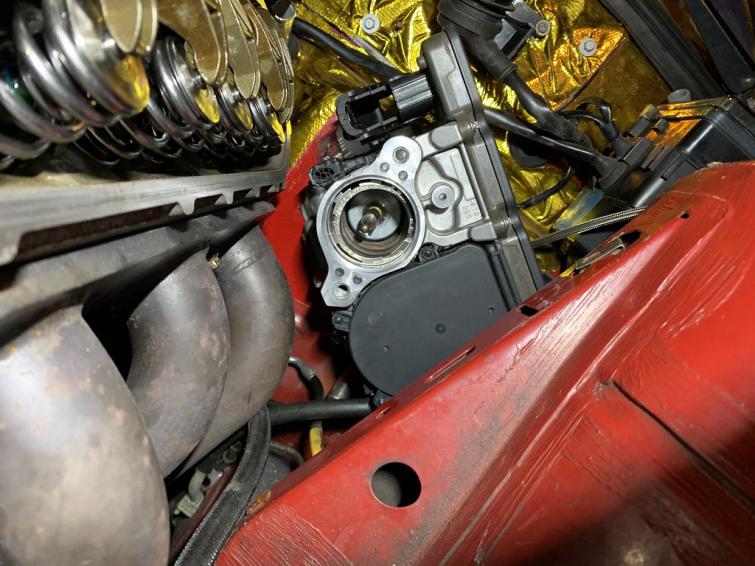

              I got mine mounted. I had to relocate it further inbehind the strut tower; unfortunately my headers don't give me much clearance. I know its not pretty but it will work
              Attached Files

              Comment

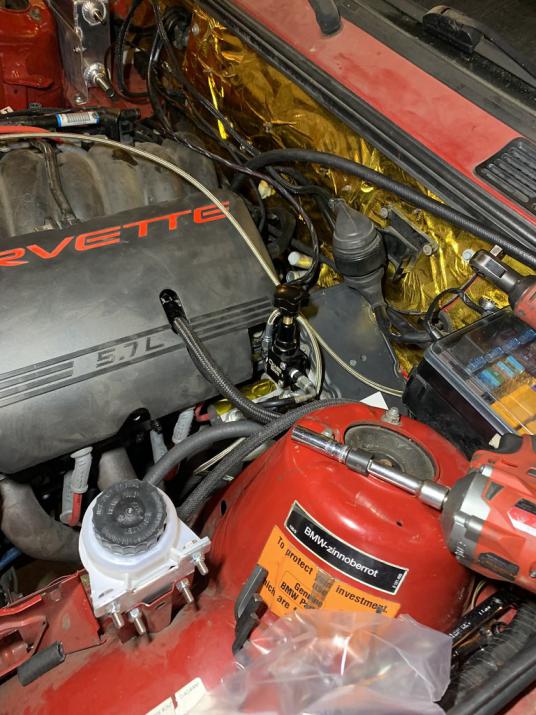

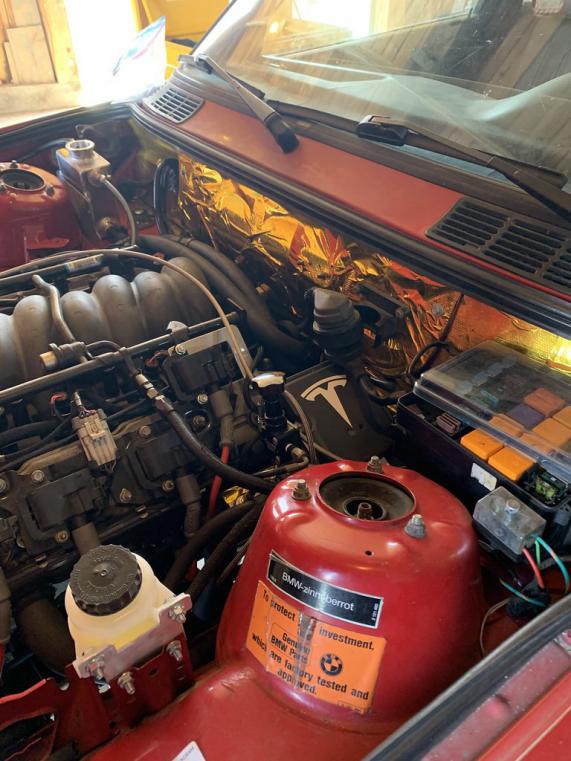

                Just wanted to follow up here, I've put about 600 miles of street driving on my v8 E30 with the Ibooster and I've had no issues. Far less pedal effort than I had with manual brakes. I for sure recommend for anyone looking to go with this booster option. Heres a couple of photos.
                Click image for larger version

Name:	51239971715_6b8348fede_b.jpg
Views:	776
Size:	72.5 KB
ID:	10021091
                Click image for larger version

Name:	51239971680_509dd44c6c_b.jpg
Views:	763
Size:	76.7 KB
ID:	10021092

                Comment


                  Looks good. The cool thing about this booster is it can be mounted in basically any orientation with a remote reservoir. is that the one from the CR-V? I like the sticker too, lol.
                  Build thread

                  Bimmerlabs

                  Comment


                    We need to figure-out how to upload different pedal-effort profiles to them. They're supposed to have less assist during regen braking, etc.

                    Very, very cool!!

                    Comment


                      Originally posted by nando View Post
                      Looks good. The cool thing about this booster is it can be mounted in basically any orientation with a remote reservoir. is that the one from the CR-V? I like the sticker too, lol.
                      The fact that I could tilt it at such an angle was a huge help. It is a Tesla unit with the 4 bolt mounting flange removed so it could get tighter to the firewall. It is still the Tesla MC but with the CRV remote reservoir adapter attached to it. Then I’m using the 2002 auto trans reservoir, one outlet for the brake master one for the clutch. I put the sticker on it to get peoples attention lol.

                      Comment


                        Pretty good video about the ibooster

                        https://youtu.be/SRZ8XDNz2vU
                        I’m rebuilding an E30 I saved from a crack house. Follow along on my Instagram and give me some motivation and tips!

                        Instagram: @E30tweak

                        Comment


                          WOW, this is really cool.

                          Has anyone driven with the electric booster yet? Any more info on brake balance and feel? It looks like the e30 m3/e32 master is ~25mm for both ports, but the 325i has seperate dimension for the front and rear

                          It looks like it is a direct fit to the pedal assembly, just a little too short it says in the first post. Anyone looked into a clevis pin swap to fix this? Is it long enough to interact with the brake light switch? Pictures of assembly in car would be nice

                          Comment


                            First go uploading pictures here, but... this is a RHD tesla model s booster (1043885-00-A, as pictured). Leaving the community but I'd love to see it go with someone in the e30 world. Was planning on using it in an LS swap, but I'm in the process of selling the car so, here we are!

                            Click image for larger version  Name:	263916463_1241522423010403_3989709247993967090_n.jpg Views:	26 Size:	80.9 KB ID:	10039695

                            Click image for larger version  Name:	263418715_439516321168015_875940197201589701_n.jpg Views:	18 Size:	27.9 KB ID:	10039505

                            [sold!]
                            Attached Files
                            Last edited by Bored; 12-18-2021, 09:15 AM.

                            Comment


                              Does it have the MC? how much do you want for it?
                              Build thread

                              Bimmerlabs

                              Comment


                                Originally posted by nando View Post
                                Does it have the MC? how much do you want for it?
                                https://www.facebook.com/groups/R3VL...61591471537627

                                Comment
